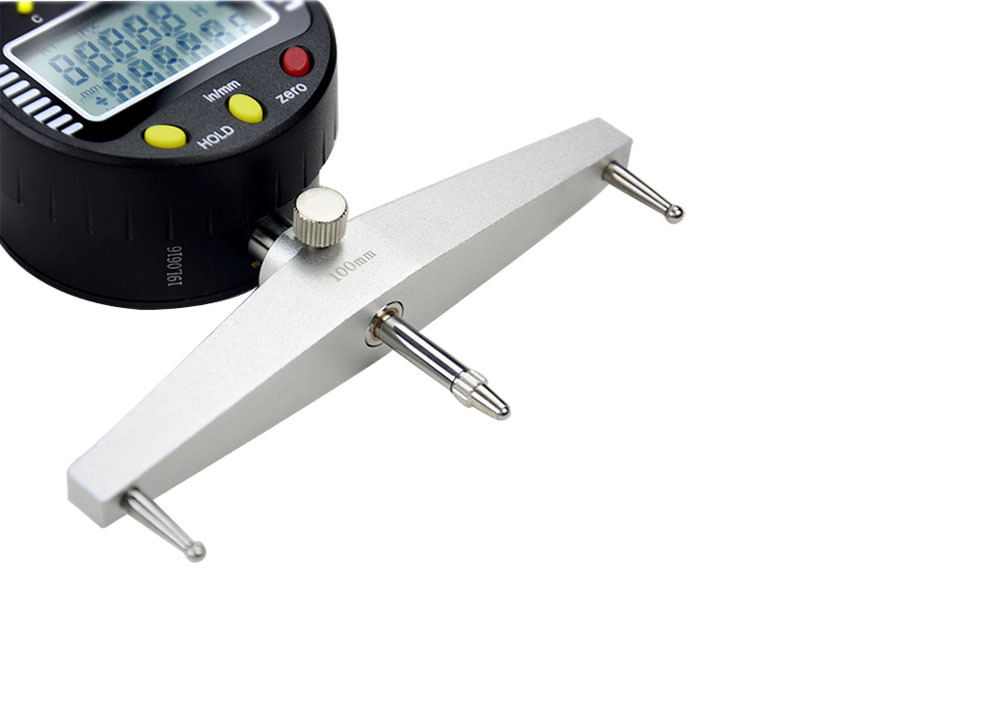

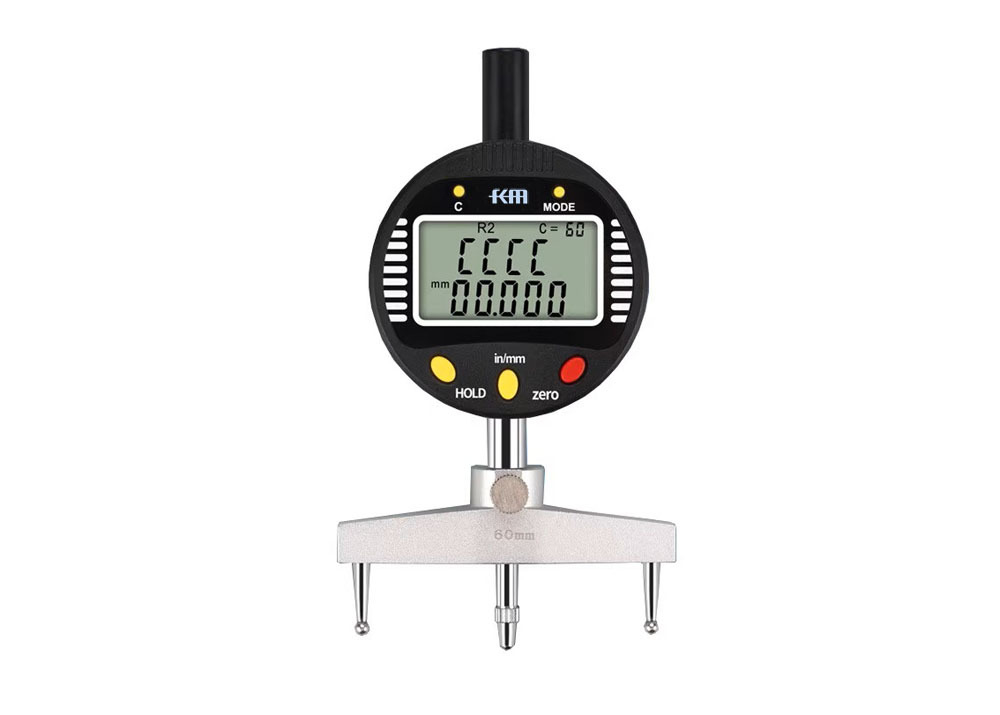

High Accuracy Digital Radius Gauge Electronic Inside and Outside Radius Gage with Changeable Measuring Claws

High Accuracy Digital Radius Gauge Electronic Inside and Outside Radius Gage with Changeable Measuring Claws

Description:

Digital radius gauge is an industrial inspection instrument, can measure the radius, length, depth, and steps of internal and external arcs.

Electronic radius gauge features a small size, convenient readings, and handheld measurement, simple operation and quick readings.

Radius gauge equipped with multiple sets of measuring claws including 10mm, 20mm, 30mm, 60mm, 100mm, different measuring

claws can be selected according to different arcs and measurement accuracy. You can choose the appropriate measuring claw based

on the size of the measurement object. Generally larger radius requires a larger measuring claw.

Quick Detail:

1. Can both measure Outer & Inner Radius of arcs & Depth and Step measurement.

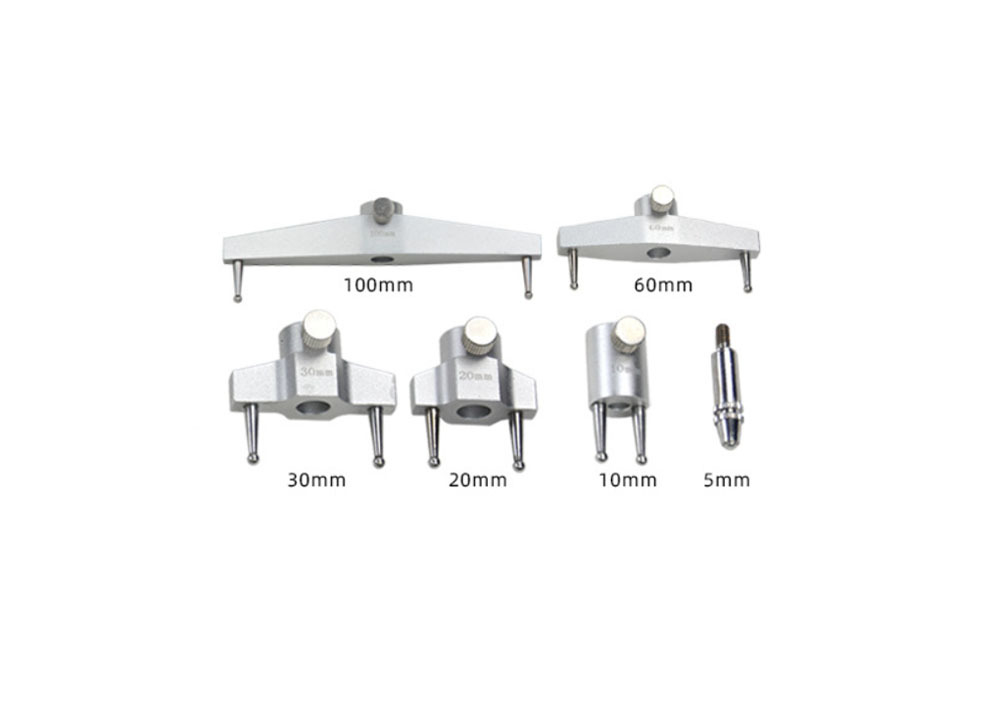

2. With 5 Interchangeable Measuring Jaws: 10mm/ 20mm/ 30mm/ 60mm/ 100mm. You can choose corresponding jaws

    according to your measuring needs.

3. Inch/Metric Conversion: Switchable between mm and inch, Suitable for All Kinds of Measurement, with simple operation,

    fast reading, small size, convenient reading, hand-held Measurement characteristics.

4. Glass capacitive sensor.

5. Auto/manual on off.

6. Max measurement speed over 1.5m/s.

7. Main body is made of aerometal.

8. Supplied in fitted case.

Specification:

Radius Measurement Range

Applications:

Digital radius gauge is mainly used for measuring the inside and outside arc radius of mechanical parts, wooden molds,

construction steel molds, and widely used in automotive, aviation, and medical fields.

Precautions:

1. Use soft cloth or cotton cleaning the gauge and the measuring claws.

2. Do not use any organic solvent.

3. Do not use gauge to measure moving or hot objects or to strike something.

4. Remove the battery if the gauge not use for a long time.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) What are the terms of trade?

We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?

Yes, OEM is available.

6) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
