Highlight
universal bevel protractor with Magnifier
,0-360 Degree universal bevel protractor
,bevel protractor with Magnifier
-
WarrantyOne Year
-
MaterialStainless Steel
-
Measurement ObjectAngle
-
Range0-360°
-
Graduation5′
-
FeatureWith Magnifier, Easy To Reading
-
FunctionWith Fine Adjustment Roll
-
FormWith 150mm/200mm/300mm Blade
-
CustomizedAcceptable
-
PackagePlastic Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-VP360
-
Packaging DetailsPlastic Box 35*11*5cm/Piece 0.72kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
KM 0-360 Degree Universal Bevel Protractor With Magnifier
KM 0-360 Degree Universal Bevel Protractor With Magnifier
Product Description
KM 0-360 Degree Universal Bevel Protractor with Magnifier for Easy Reading
Key Features
- Made of durable stainless steel construction
- Features fine adjustment roll for precise measurements
- Includes magnifier for easy reading of vernier scale
- Multiple measurement method combinations
- Available with 150mm, 200mm, or 300mm blade options

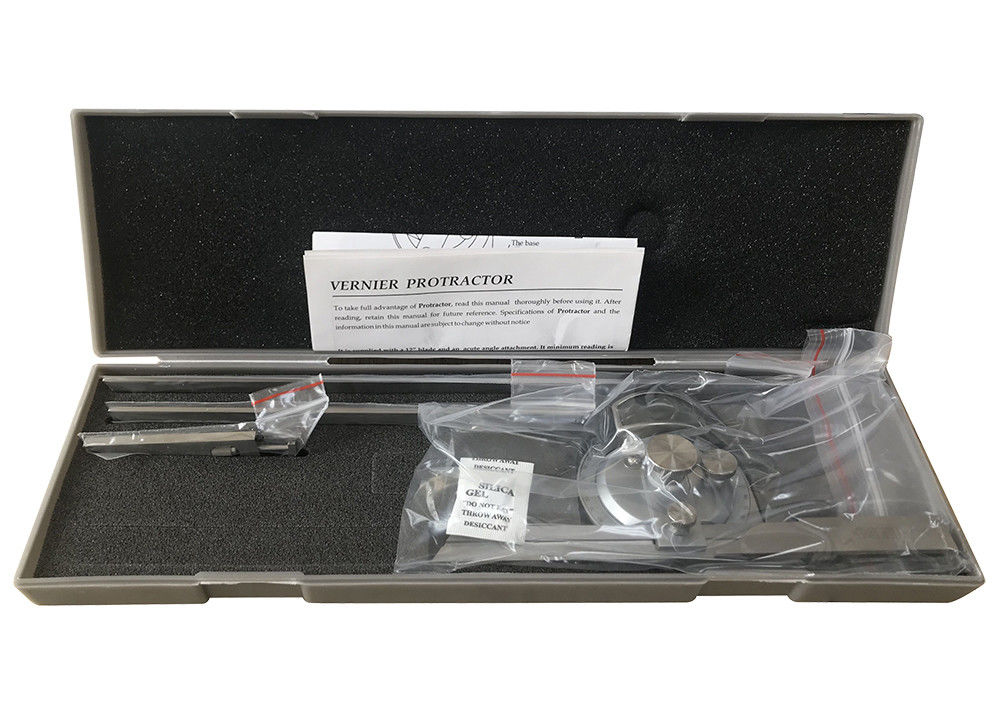

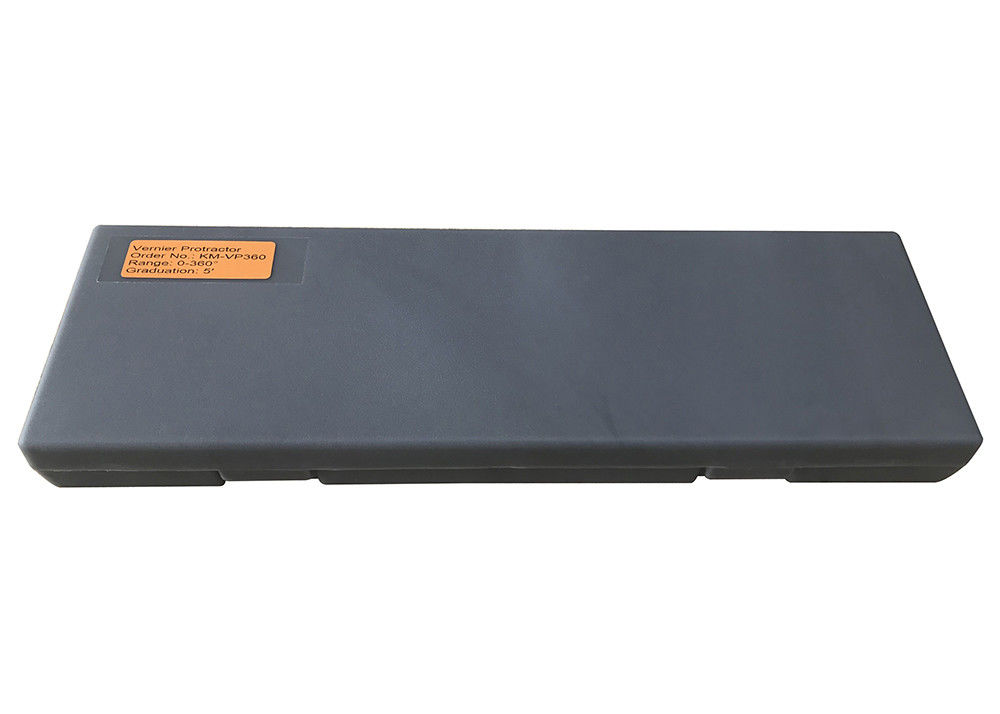

- Supplied in protective fitted case
Detailed Description

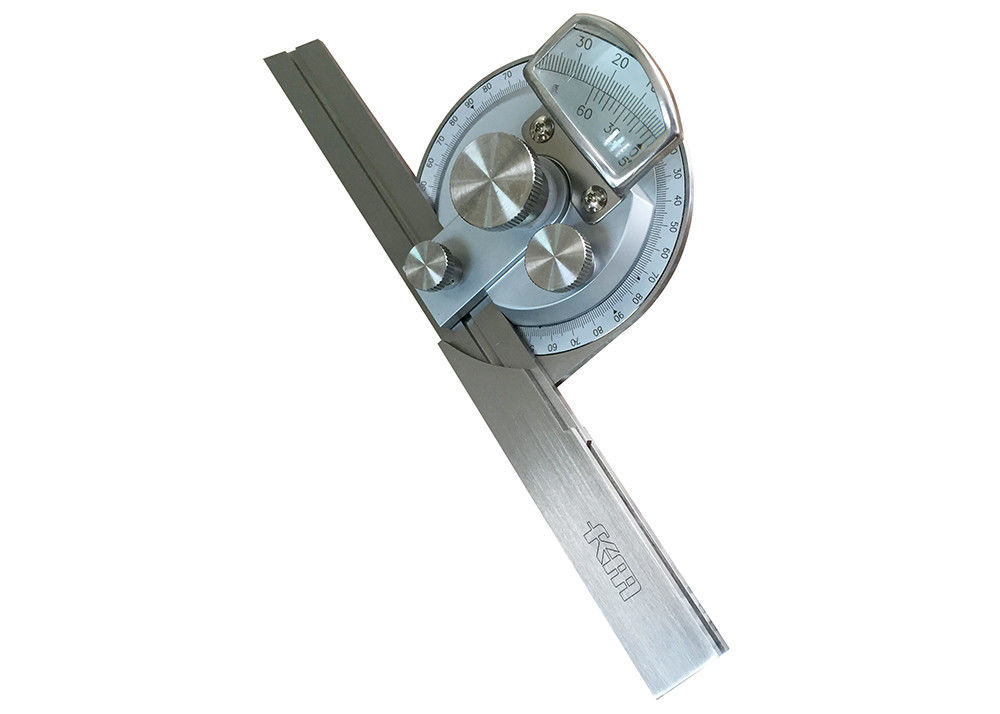

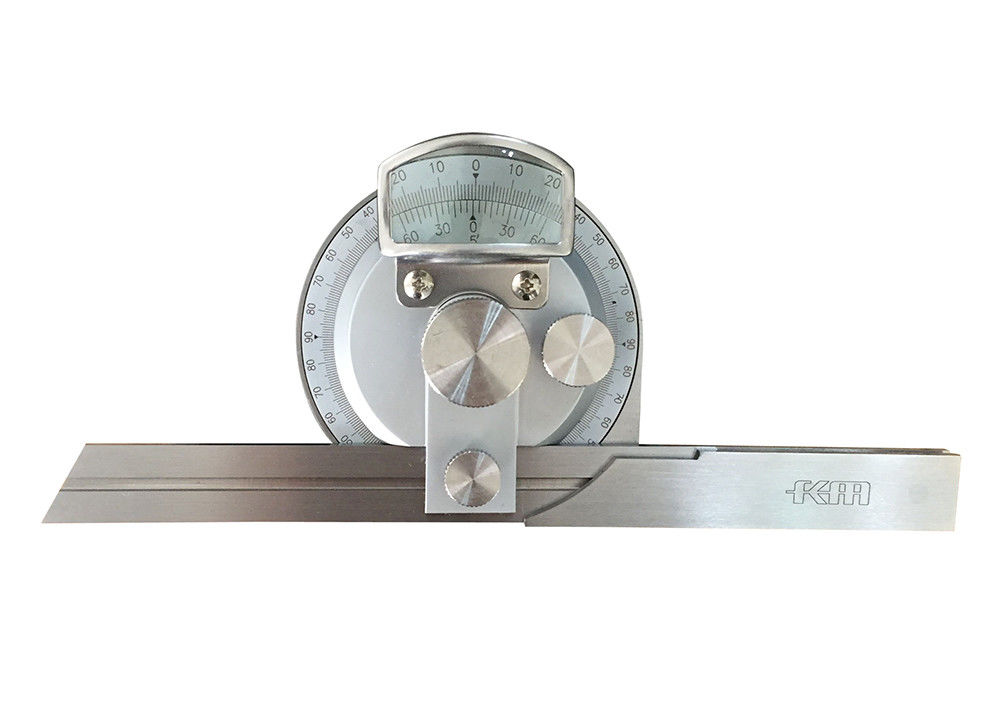

Our KM-VP360 protractor provides precise angle measurement from 0 to 360° with 5′ graduation. The optical magnifying device enhances readability of the vernier scale. The main body mounts to the base plate (stock) which includes the working edge. The locking nut simplifies installation and removal of the acute angle attachment.
The adjustable blade moves along the circular plate and can be secured in any position using the blade locking nut. Constructed from stainless steel with a stable structure, this bevel protractor maintains measurement accuracy and stability through extended use, while resisting damage in various working environments.
Technical Specifications
| Order No. | Measuring Range | Graduation | Accuracy |
|---|---|---|---|
| KM-VP360 | 0-360° | 5′ | ±5′ |
Usage Precautions
- Do not disassemble or modify the instrument
- Before initial use, wipe off rust preventive oil with a soft cloth and ensure all measuring surfaces are clean
- Protect from chips and particles that could damage the rack and affect accuracy
- Apply rust preventive oil when storing for extended periods
Industry Applications
Construction Industry: Measuring roof angles, floor inclinations, and other building angles.
Woodworking: Measuring angles for door frames, cabinets, and various woodworking projects.
Machining: Measuring angles of machine parts to ensure precise mounting and alignment.
Frequently Asked Questions
Who are we?
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China mainland.
What products do we carry?
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What payment methods do we accept?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
What is the warranty policy?
All products come with a one-year warranty. Defective parts or products will be replaced upon receipt of notification.
