Highlight
87Pcs steel metric rectangular gage block
,rectangular gage block DIN 861 Standard
,metric gage block set DIN 861 Standard
-
WarrantyOne Year
-
Number Of Blocks87Pcs
-
Grade0 1 2
-
ShapeRectangular
-
UsageFor Inspection
-
PackageWood Case
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-GB87
-
Packaging DetailsWooden Case 40*20*7cm/Piece 4.50kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

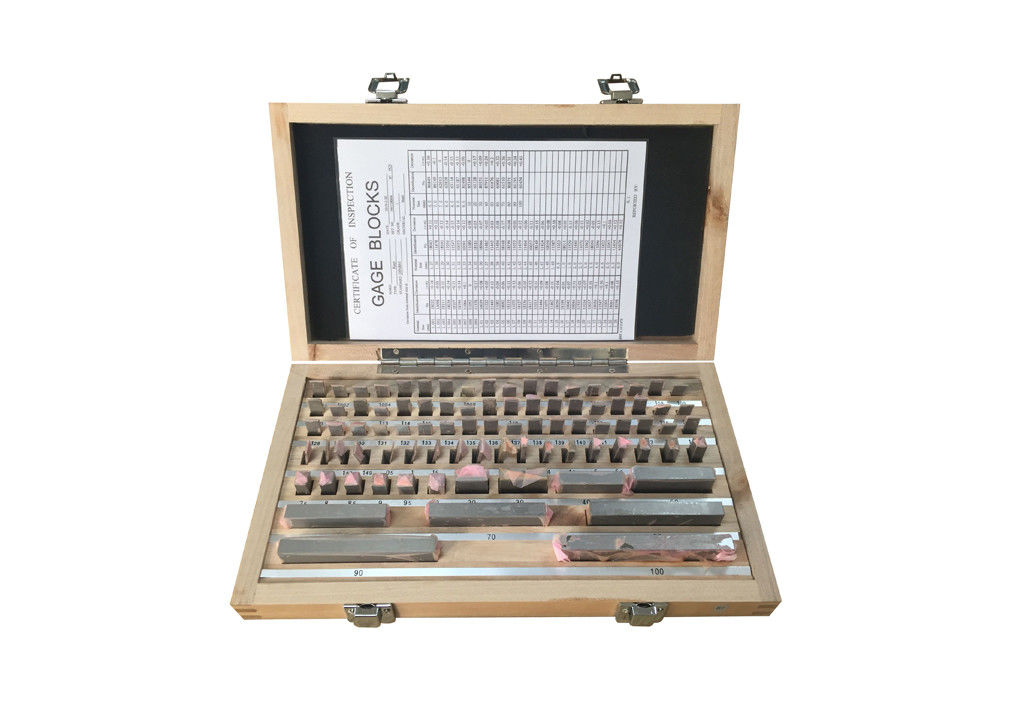

87Pcs Steel Metric Rectangular Gage Block Set With DIN 861 Standard
87Pcs Steel Metric Rectangular Gauge Blocks with DIN861 Standard
Our KM-GB series precision gauge blocks are primarily used for measuring part dimensions. They serve multiple purposes including verifying measuring instrument errors, functioning as standard parts for comparative measurements, and enabling precision marking in machine tool adjustment and machining processes.
Key Features
- Steel rectangular gauge block set compliant with DIN standard
- Available in Grade 0, 1, and 2 accuracy levels
- Simple shape with stable values and excellent wear resistance
- Blocks can be used individually or combined for various sizes
- Nominal length range: L≥0.5-500mm series

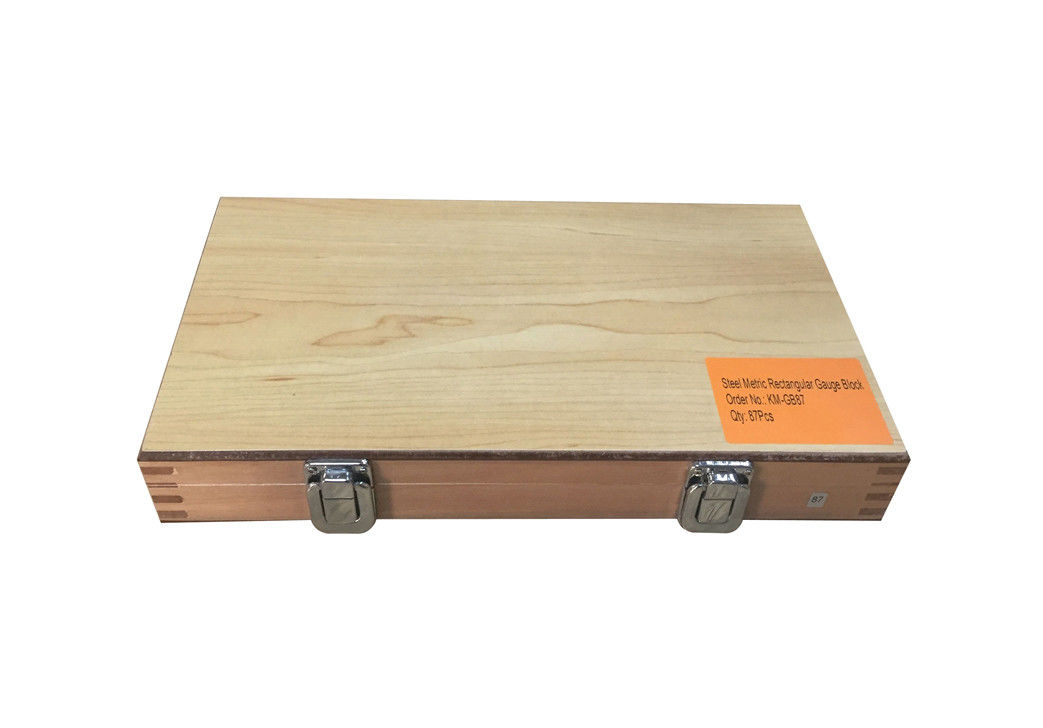

- Includes fitted case for storage and protection
- Special surface treatment for rust prevention and easy maintenance
- Made from wear-resistant alloy steel with minimal thermal expansion
Specifications

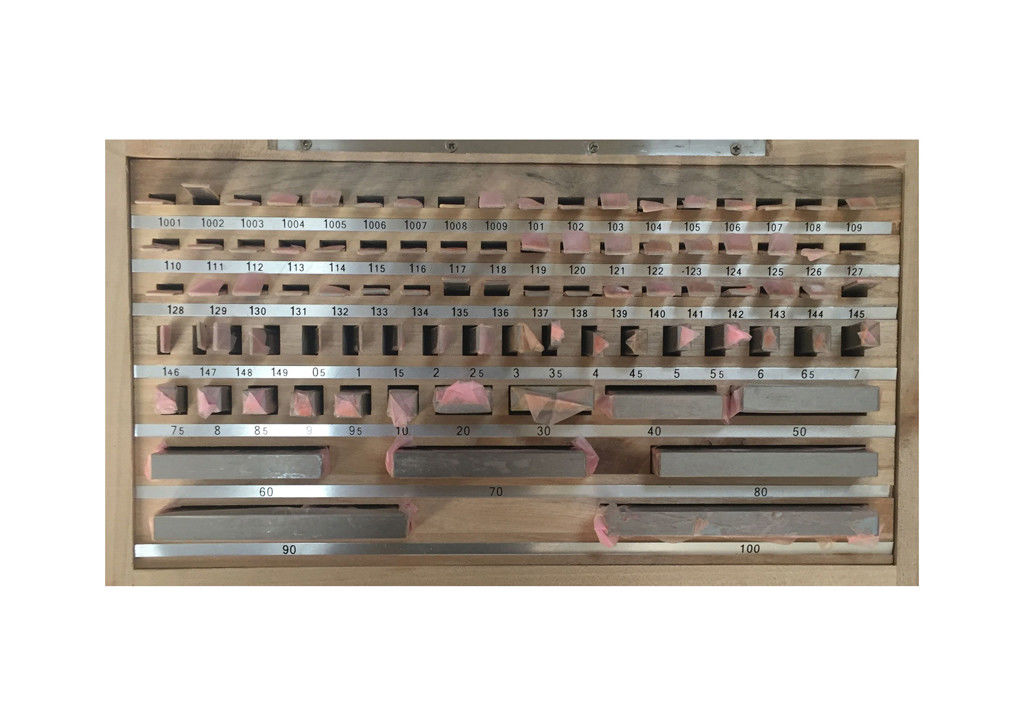

| Order No. | Number of Blocks | Block Size | Interval | Pieces | Technical Standards | Grade |
|---|---|---|---|---|---|---|
| KM-GB87 | 87Pcs | 1.001-1.009 | 0.001 | 9 | JIS B7506 DIN861 | 0,1,2 |
| 1.01-1.49 | 0.1 | 49 | ||||
| 0.5-9.5 | 0.5 | 19 | ||||
| 10-100 | 10 | 10 |
Applications
- Length standard for measurement value transmission
- Verification of measuring instrument errors
- Standard unit for comparative measurement of workpieces
- Direct measurement of part dimensions
- Precision scribing in machine tool adjustment and machining
Precautions
Keep gauge block surfaces clean and dry to maintain measurement accuracy. Ensure perfect contact between the workpiece and gauge block to prevent measurement deviations. Read values perpendicular to the surface to avoid errors. Handle with care to prevent surface damage. Store in a dry, ventilated environment.
FAQ
Who are we?
Deko Corporation specializes in developing and manufacturing KM brand precision measuring tools in China.
What products do we carry?
We offer dial indicators, micrometers, calipers, bore gauges, height gauges, thickness gauges, depth gauges, protractors, gauge blocks, and levels.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW terms.
What payment methods do we accept?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
What is the after-sales service?
All products come with a one-year warranty. Defective items will be replaced promptly.
