Highlight
digital universal bevel protractor
,LCD digital display universal bevel protractor
,digital bevel protractor 4x90 degree
-
WarrantyOne Year
-
TypeProtractor
-
MaterialStainless Steel
-
Measurement ObjectDegree
-
Range0-360°
-
Resolution10′′
-
Precision5′
-
ProcessingFine Lapping
-
CustomizedAcceptable
-
PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-EDP360
-
Packaging DetailsABS Box 38*13*4.5cm/Piece 1.06kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

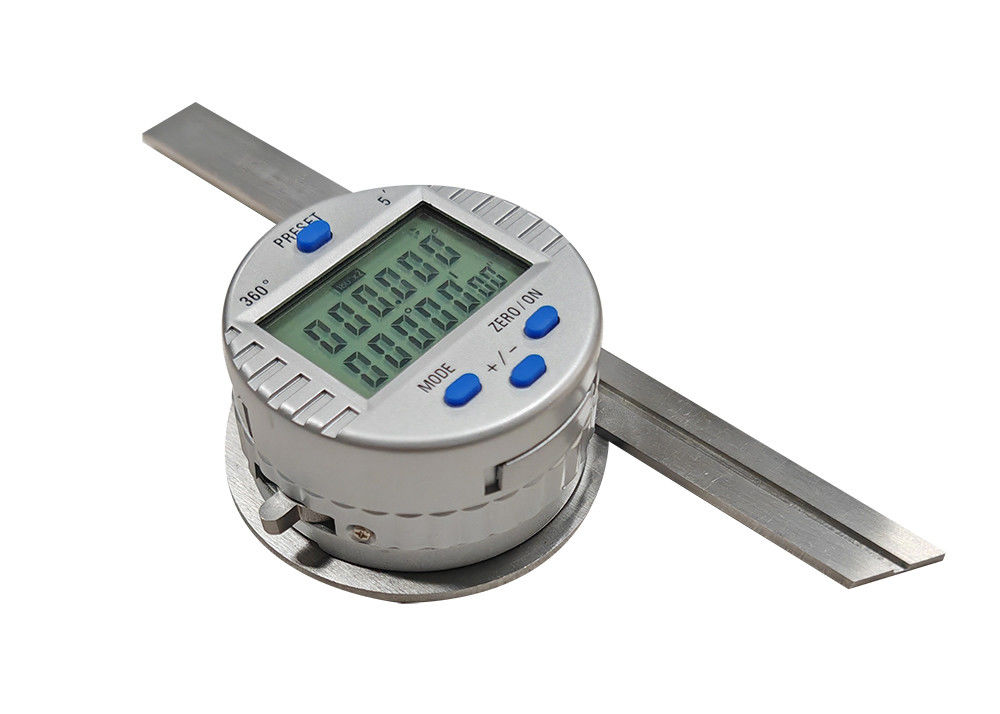

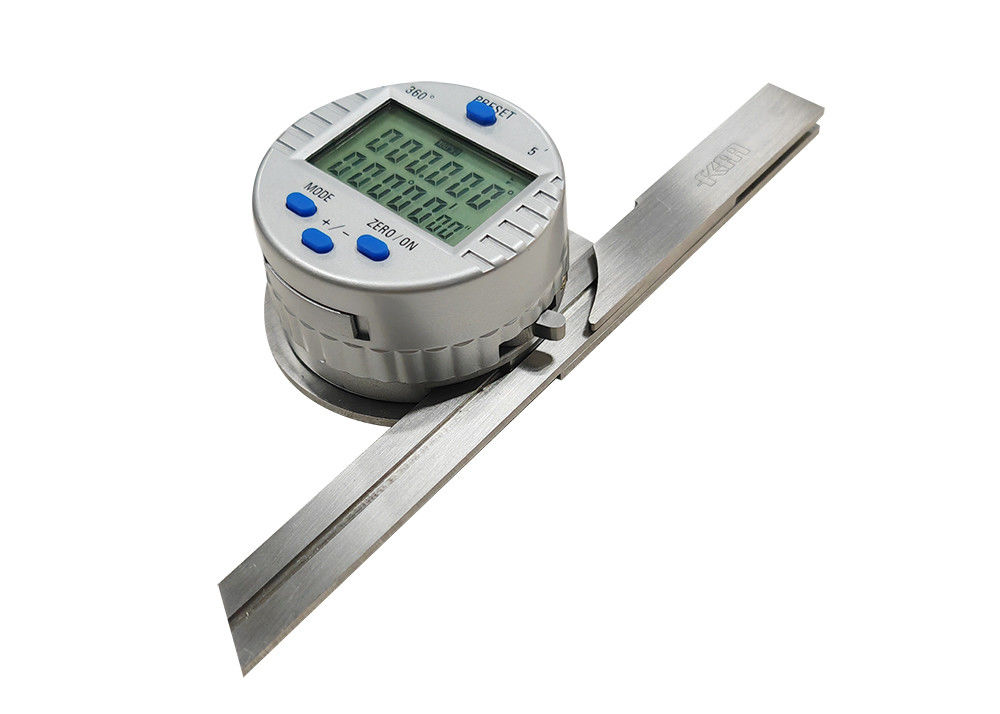

LCD Digital Display Universal Bevel Protractor 1x360 2x180 4x90 Degree
LCD Digital Display Universal Bevel Protractor 1x360 2x180 4x90 Degree
Product Description
KM Digital Bevel Protractor 0-360° Degree Universal Bevel Digital Protractor Measuring Tool
Key Features:
- Large LCD digital display for easy reading
- Constructed from durable stainless steel
- Includes fine adjustment roll for precision measurements
- Displays DMS/DD (Degree-Minute-Second/Degree Decimal) simultaneously
- Multiple measurement combinations available
- Zero setting capability at any position within range
- Range selection options: 1x360°, 2x180°, 4x90°
- Fine adjustment within full 360° range
- Data output via Rs232 interface

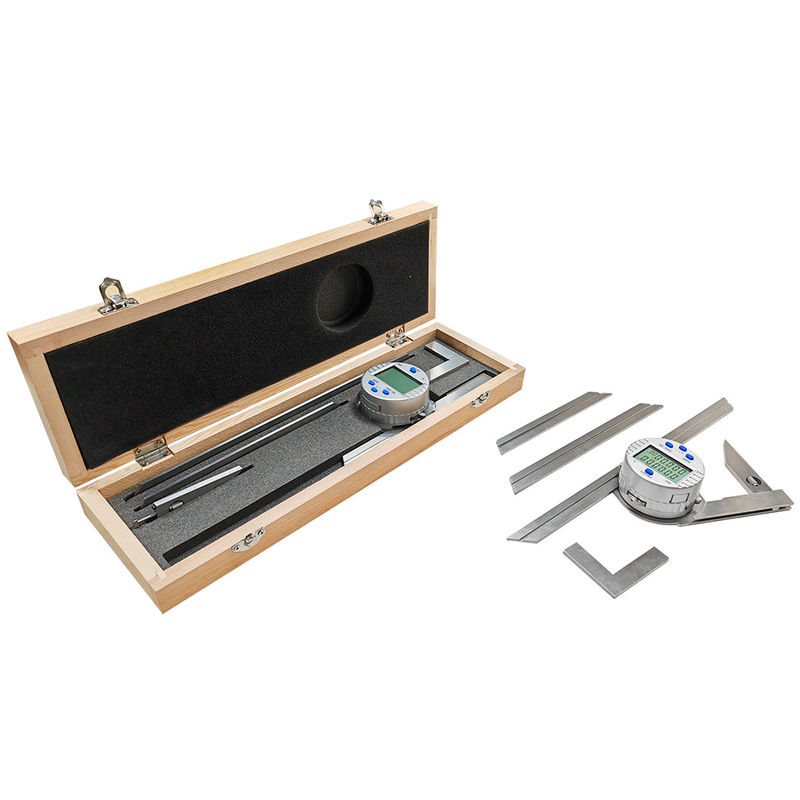

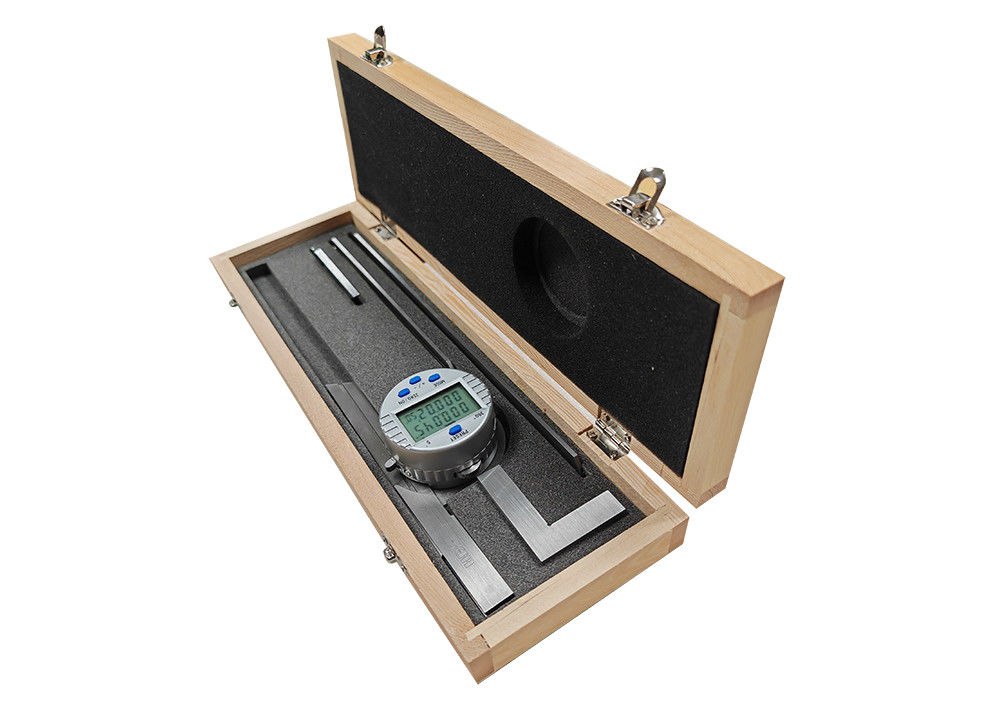

- Includes protective fitted case
The KM-EDP360 digital bevel protractor features a large LCD display for clear visibility, measuring angles from 0 to 360° with 10′′ resolution. The stationary base serves as a flat reference while the adjustable locking arm rotates 360°. A fine-adjustment dial enables precise blade positioning for accurate measurements.
Manufactured from stainless steel for durability and stability, this protractor performs reliably in various environments, including demanding industrial settings.
Technical Specifications
| Order No. | Range | Accuracy | Resolution | Work Temp. | Storage Temp. |
|---|---|---|---|---|---|
| KM-EDP360 | 0-360° | ±5′ | 10″ | 5ºC-40ºC | -20ºC-60ºC |
| KM-EDPH360 | 0-360° | ±2.5′ | 10″ | 5ºC-40ºC | -20ºC-60ºC |
Usage Precautions
- Do not disassemble or modify the instrument
- Before initial use, clean rust preventive oil from all surfaces with a soft cloth
- Keep measuring faces free from chips or particles to maintain accuracy
- Remove battery when not in use for extended periods
Industry Applications
Construction Industry
Measures roof angles, floor inclinations, and other structural angles in buildings.
Woodworking Industry
Essential for measuring angles in door frames, cabinets, and various woodworking projects.
Machining Field
Precisely measures angles of machine parts to ensure accurate mounting and alignment.
Frequently Asked Questions
About Our Company
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China.
Product Range
We offer dial indicators, micrometers, calipers, bore gauges, height gauges, thickness gauges, depth gauges, bevel protractors, gauge blocks, and levels.
Trade Terms
We support FOB, CFR, CIF, and EXW trade terms.
Payment Methods
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Customization
OEM services are available for customized products.
After-Sales Service
All products come with a one-year warranty. Defective parts will be replaced promptly.
