0-12.7mm/0-0.5'' High Precision Digital Indicator Measuring Tool

0-12.7mm/0-0.5'' High Precision Digital Indicator Measuring Tool

Products - Indicators - Digital Indicators
  • Highlight

    0-12.7mm digital test indicator

    ,

    0-0.5″ digital test indicator

    ,

    digital test indicator measuring tool

  • Warranty
    One Year
  • Type
    Digital Indicator
  • Measurement
    Metric&Inch
  • Precision
    0.02mm
  • Range
    0-12.7mm/0-0.5''
  • Resolution
    0.01mm/0.0005''
  • Cap
    Fixed And Moveable Cap
  • Max Measuring Force
    2.2n
  • Back
    Flat Back And Back With Lug
  • Package
    ABS Box
  • Place of Origin
    Shaanxi, China
  • Brand Name
    KM
  • Certification
    ISO DIN GB RoHS
  • Model Number
    KM-232LJ-12.7
  • Packaging Details
    ABS Box 16*6*10cm/Piece 0.30kg/Piece
  • Delivery Time
    Within 15days
  • Payment Terms
    T/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
  • Supply Ability
    50000pieces/Month

0-12.7mm/0-0.5'' High Precision Digital Indicator Measuring Tool

  • 0-12.7mm/0-0.5'' High Precision Digital Indicator Measuring Tool
Get Price Contact Now

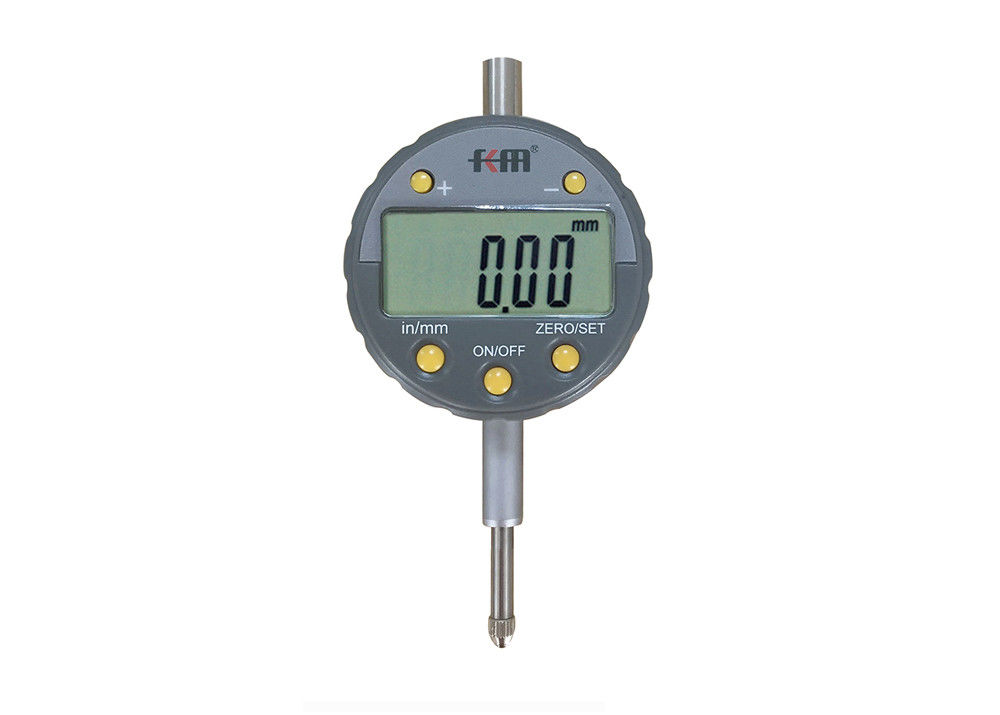

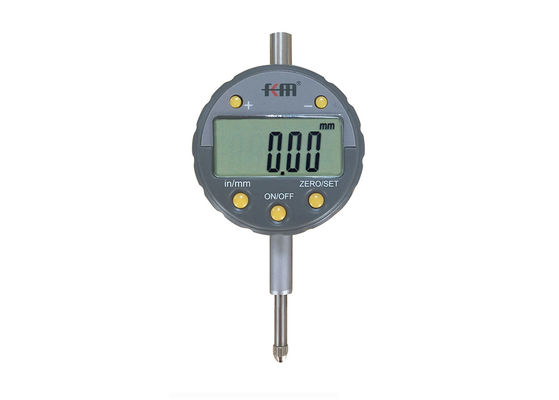

0-12.7mm/0-0.5" High Precision Digital Indicator Measuring Tool
Quick Features
  1. Large LCD for easy-reading.
  2. Metric/inch conversion (in/mm).
  3. Power on/off function.
  4. Zero setting capability.
  5. Value adjustment buttons (+/-).
  6. Data output functionality.
  7. Optional fixed and moveable caps.
  8. Includes both flat back and lug back for mounting.
  9. Uses CR2025 3V battery (easy replacement).
  10. Supplied in protective fitted case.
Product Description
This digital indicator offers enhanced functionality with value adjustment buttons (+/-) and features a measuring range of 0-12.7mm/0-0.5", 0-25.4mm/0-1", and 0-50mm/0-2" with 0.01mm/0.0005" resolution.
Compared to traditional dial gauges, our digital indicator provides higher accuracy and reliability with direct electronic readouts, eliminating manual pointer reading. It includes protection features like overload protection and low battery indication to ensure measurement safety and accuracy.
Technical Specifications
Order No. Range Resolution Accuracy Max Measuring Force
KM-232J-12.7 0-12.7mm/0-0.5" 0.01mm/0.0005" ±0.02mm 1.6N
KM-232LJ-25.4 0-25.4mm/0-1" 0.01mm/0.0005" ±0.03mm 2.2N
KM-232LJ-50 0-50mm/0-2" 0.01mm/0.0005" ±0.04mm 3.5N
Usage Precautions
  1. Keep indicator face clean and prevent liquid ingress.
  2. Avoid shocks, impacts, or dropping to maintain precision.
  3. Do not operate in direct sunlight or extreme temperatures.
  4. Never connect any part to voltage sources.
  5. Do not remove end lid without using output interface.
  6. Remove battery when not in use for extended periods.
Applications
This precision measuring tool is ideal for:
  1. Machining industry part measurements with high accuracy.
  2. Measuring flat objects including plates, tires, and wheels.
  3. Round object measurements (external/internal circles, roundness).
  4. Material hardness testing in industrial production.
  5. Depth measurements (oil wells, ground pipes, etc.).
Frequently Asked Questions
Who are we?
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China mainland.
What products do we carry?
We offer dial indicators, micrometers, calipers, bore gauges, height gauges, thickness gauges, depth gauges, protractors, gauge blocks, and levels.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the payment methods?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do you accept customization?
Yes, OEM services are available.
What is your after-sales service?
All products come with a one-year warranty. Defective items will be replaced promptly.
