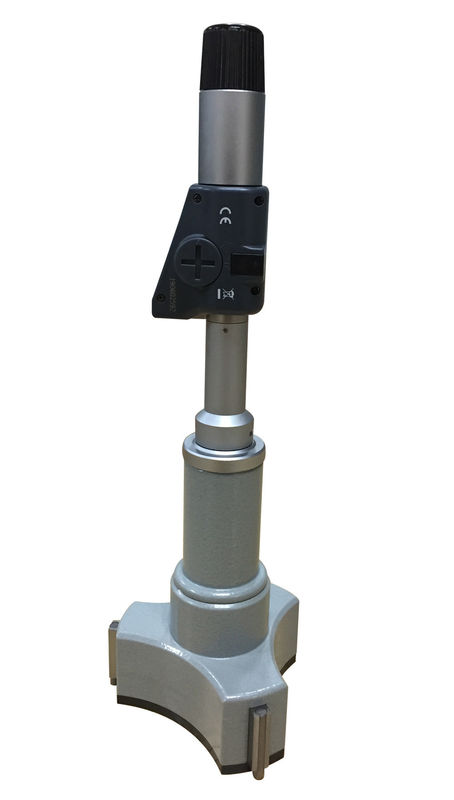

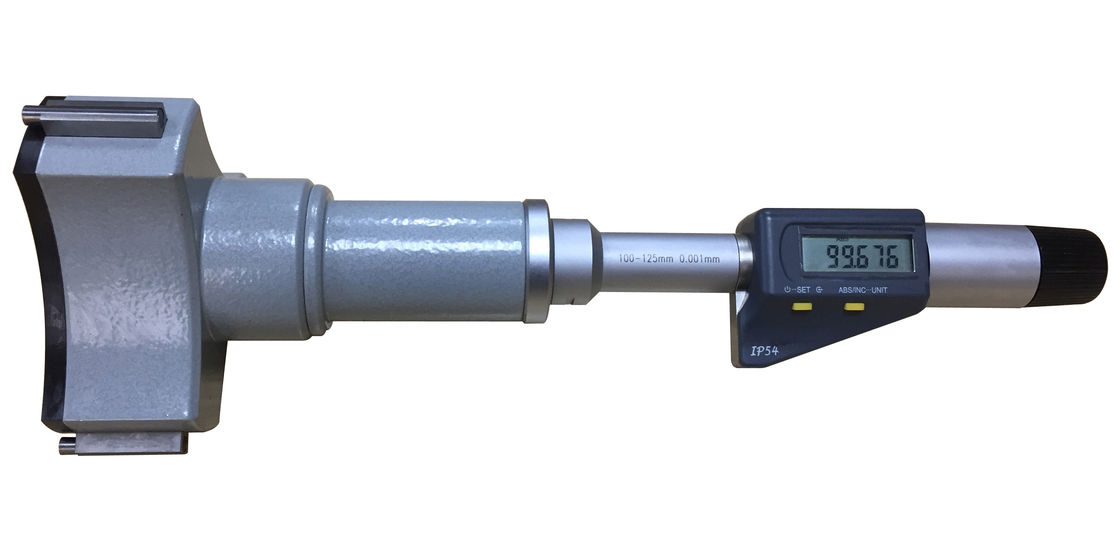

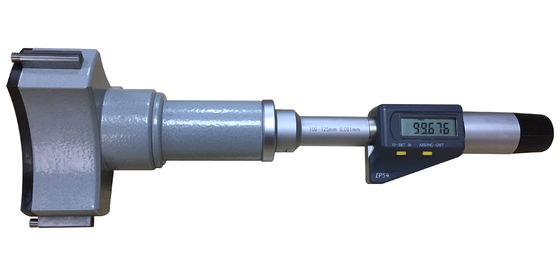

KM 100-125mm Digital Three Point Bore Micrometer With IP54 Protection Degree

KM 100-125mm Digital Three Point Internal Micrometer with IP54 Protection Degree

Quick Detail:

1. Protection level IP54.

2. Digital three-point micrometer centering self and aligning self.

3. Measurement can be taken closer to the bottom of the blind bore, and can be taken into a deep hole

    with an extension rod.

4. ON/OFF button.

5. Zero setting at any position.

6. Metric/inch conversion.

7. Absolute/Incremental measurement conversion.

8. Origin set for absolute measurement.

9. Carbide-tipped contacts points, ratchet stop.

10. Within 100mm, supplied with setting rings.

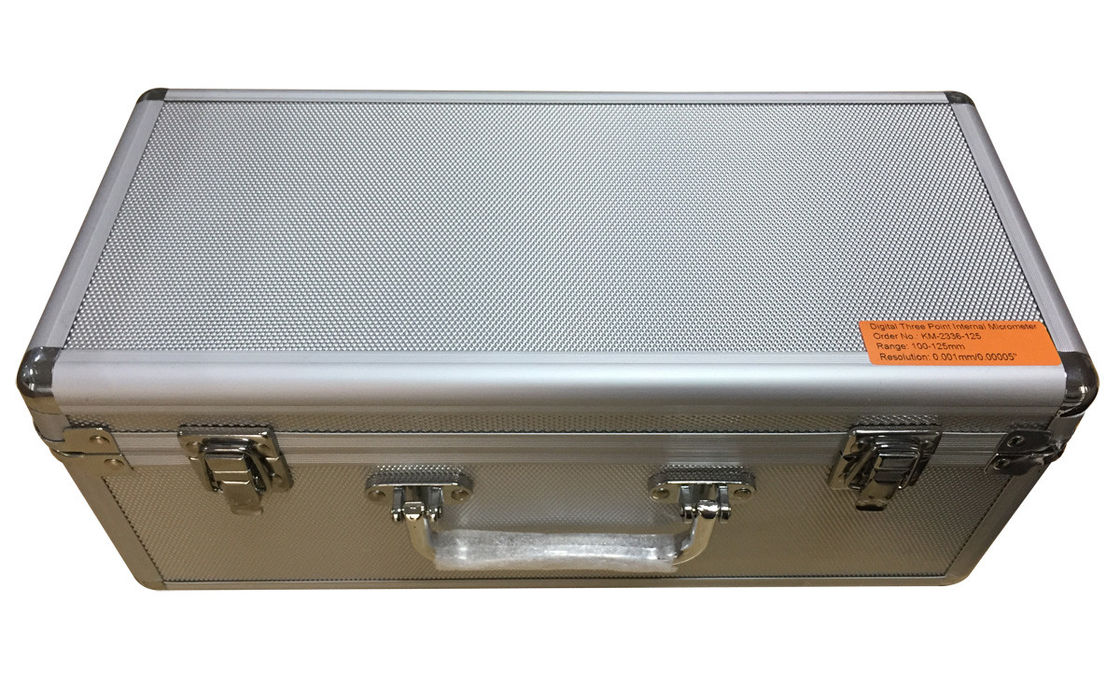

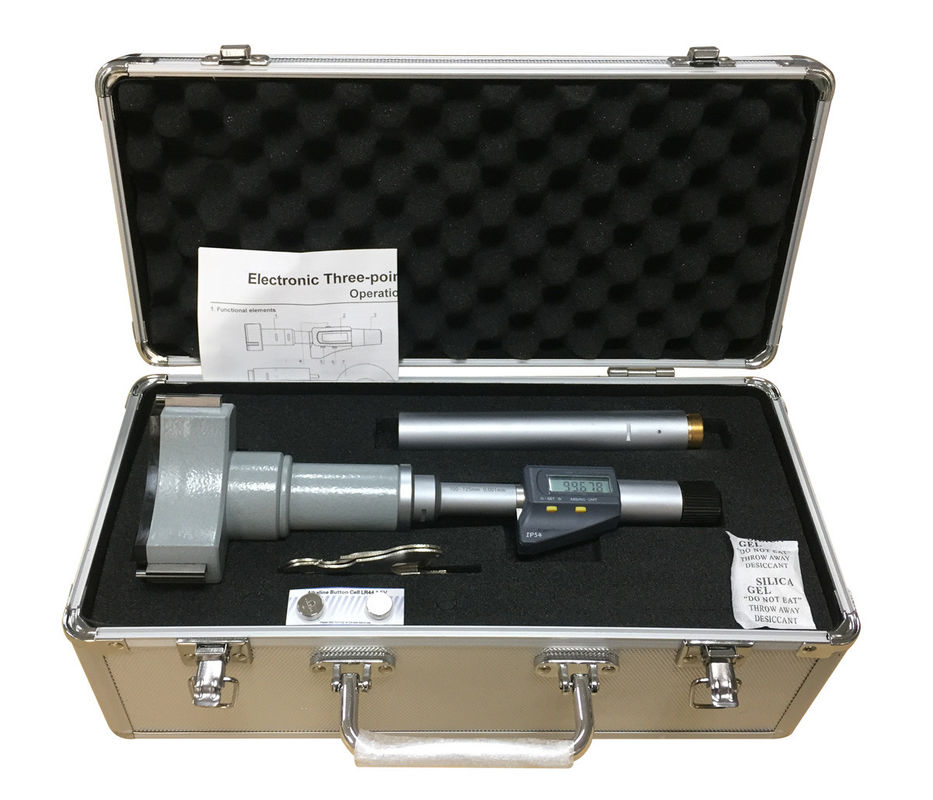

11. Supplied in fitted case.

Description:

This series provide large measuring range up to 300mm, with resolution 0.001mm, within 100mm, supplied with setting rings,

it is optional over 100mm. Digital three-point internal micrometer can provide exact diameters of bore holes.

It can centering self and aligning self, the measured values are significantly more accurate than those obtained with a caliper.

The protection level of the IP54 electronic three-point internal micrometer provides good dust and water resistance,

even in dusty workshops or humid environments, the micrometer can maintain its accuracy and stability,

and will not reduce the measurement accuracy due to the influence of the external environment.

We also supply set with a wide measuring range.

Specification:

Metric/Inch

Inch/Metric

Precautions:

1. Do not subject the instrument to blows or knocks. Do not drop it or apply excessive force to it.

2. Do not disassemble the instrument. Do not press the key with a pointed object.

3. Do not use or store the instrument under direct sunlight, or in an excessively hot or cold place.

4. Do not let the instrument near strong magnetic field or high voltage.

5. Use a soft or a cotton swad that is dry to wipe stains off the instrument. Do not use organic solvent

    such as   benzene.

6. Clean measuring faces of the instrument before use it.

7. Remove the battery if the instrument not used for a long time.

Applications:

Digital three-point internal micrometer is mainly used to measure the holes, slotted hole, etc. It is widely used in machinery

manufacturing, automobile manufacturing, aerospace, electronic components and other industrial fields.

With its high measurement accuracy, easy to use and simple operation, it has become one of the important tools

for measuring bore diameter.
