Highlight
gauge blocks DIN standard
,46pcs rectangular gauge blocks set metric
,gauge block set metric DIN standard
-
WarrantyOne Year
-
TypeGauge Block
-
MaterialSteel
-
ShapeRectangular
-
PackageWood Case
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-GB46
-
Packaging DetailsWood Box 30*17*5cm/Piece 1.50kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

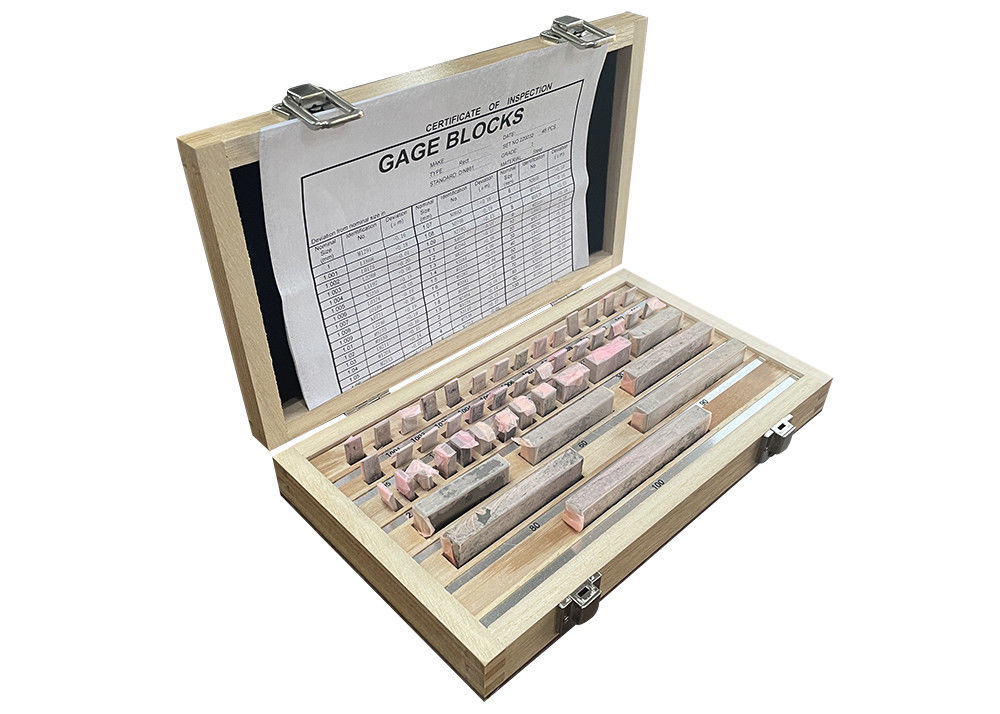

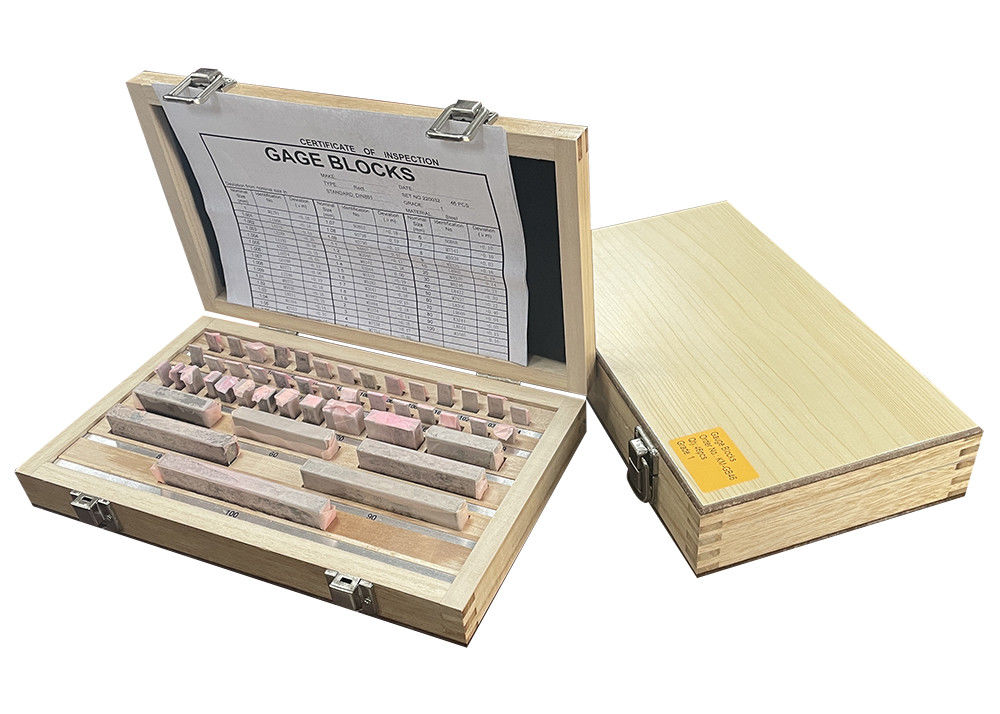

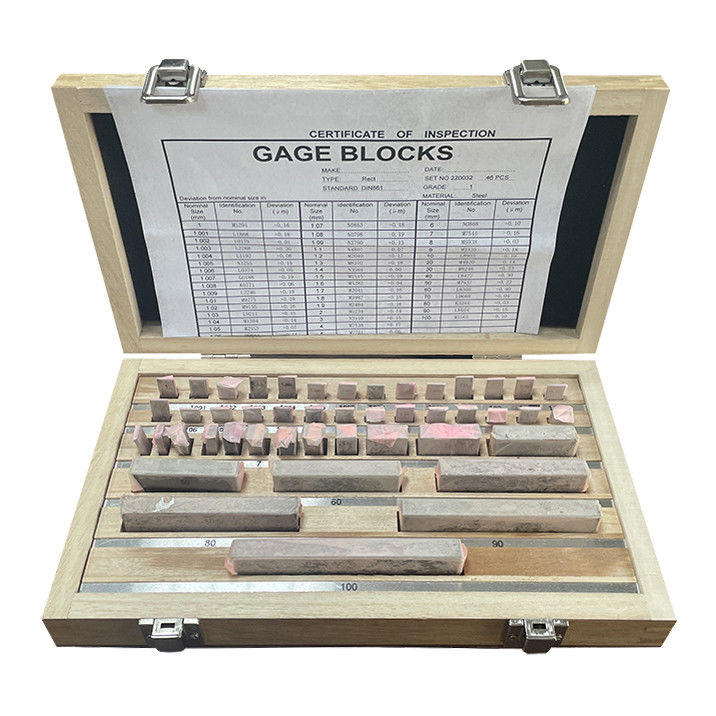

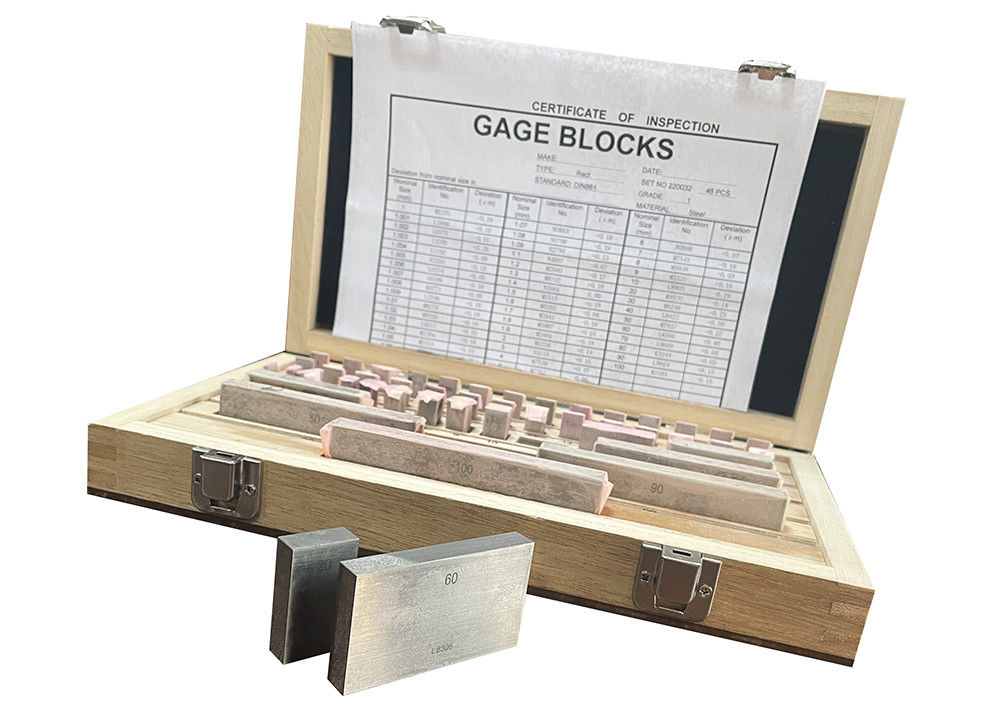

46pcs Rectangular Gauge Blocks Set Metric DIN Standard
46pcs Rectangular Gauge Blocks Set Metric DIN Standard
Product Description
46Pcs Steel Metric Rectangular Gauge Block Measuring Device
Our KM-GB series precision gauge blocks are primarily used for measuring part dimensions. They serve multiple functions including verifying measurement instrument errors, comparing workpiece sizes as standard references, and precision marking in machine tool adjustment and machining processes.
These gauge blocks are classified into different accuracy grades (0, 1, 2) and available in various nominal lengths. Their special surface treatment resists rust and deformation while maintaining dimensional stability. Made from wear-resistant alloy steel with minimal thermal expansion, they ensure long-term reliability in measurement applications.
Quick Features
- Steel Rectangular gauge blocks set
- DIN standard compliant
- Available in Grade 0, 1 and 2 precision levels
- Simple shape with stable values and excellent wear resistance
- Blocks can be used individually or combined for different sizes
- Nominal length range: L≥0.5-500mm series
- Includes fitted protective case
Specifications
| Order No. | Number of Blocks | Block Size | Interval | Pieces | Technical Standards | Grade |
|---|---|---|---|---|---|---|
| KM-GB122 | 122Pcs | 0.5 | - | 1 | GB/T6093 | 0 1 2 |
| KM-GB112 | 112Pcs | 1.005 | - | 1 | JIS B7506 DIN861 | 0 1 2 |
| KM-GB103 | 103Pcs | 1.005 | - | 1 | 0 | |
| KM-GB91 | 91Pcs | 0.5 | - | 1 | GB/T6093 | 0 1 |
| KM-GB88 | 88Pcs | 1.005 | - | 1 | DIN861 | 0 1 2 |
| KM-GB87 | 87Pcs | 1.001-1.009 | 0.001 | 9 | JIS B7506 DIN861 | 0 1 2 |
| KM-GB83 | 83Pcs | 0.5 | - | 1 | GB/T6093 | 0 1 2 |
| KM-GB76 | 76Pcs | 1.005 | - | 1 | JIS B7506 DIN861 | 0 1 2 |
| KM-GB47 | 47Pcs | 1.005 | - | 1 | DIN861 | 0 1 2 |
| KM-GB46 | 46Pcs | 1.001-1.009 | 0.001 | 9 | GB/T6093 DIN861 | 0 1 2 |
Usage Precautions
- Keep gauge block surfaces dry and clean, free from dust and grease to maintain measurement accuracy
- Ensure perfect contact between workpiece and gauge block surfaces to prevent measurement deviations
- Read values perpendicular to the gauge block surface to avoid viewing angle errors
- Avoid excessive force or scratching the measuring surfaces
- Store in dry, ventilated conditions when not in use
Applications
- Length standard for measurement value transmission
- Verification of measuring instrument errors
- Standard reference for comparative workpiece measurement
- Direct part dimension measurement
- Precision marking in machine tool adjustment and machining
Frequently Asked Questions
Who are we?
Deko Corporation specializes in developing, manufacturing, and marketing KM brand precision measuring tools in China mainland.
What products do we carry?
Our product range includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
How about after-sales service?
All products come with a one-year warranty. Defective parts will be replaced promptly. Our strict calibration and inspection processes ensure reliable product quality.
