38Pcs Steel Metric Rectangular Gauge Blocks with DIN861 Standard for Precision Verification
-
Highlight
Precision Verification Gauge Blocks
,38Pcs Gauge Blocks
,DIN861 Gauge Blocks
-
WarrantyOne Year
-
Number Of Blocks38Pcs
-
Grade0 1 2
-
ShapeRectangular
-
UsageFor Inspection
-
PackageWood Case
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-GB38
-
Packaging DetailsWooden Case 28.5*17.5*6cm/Piece 2.40kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

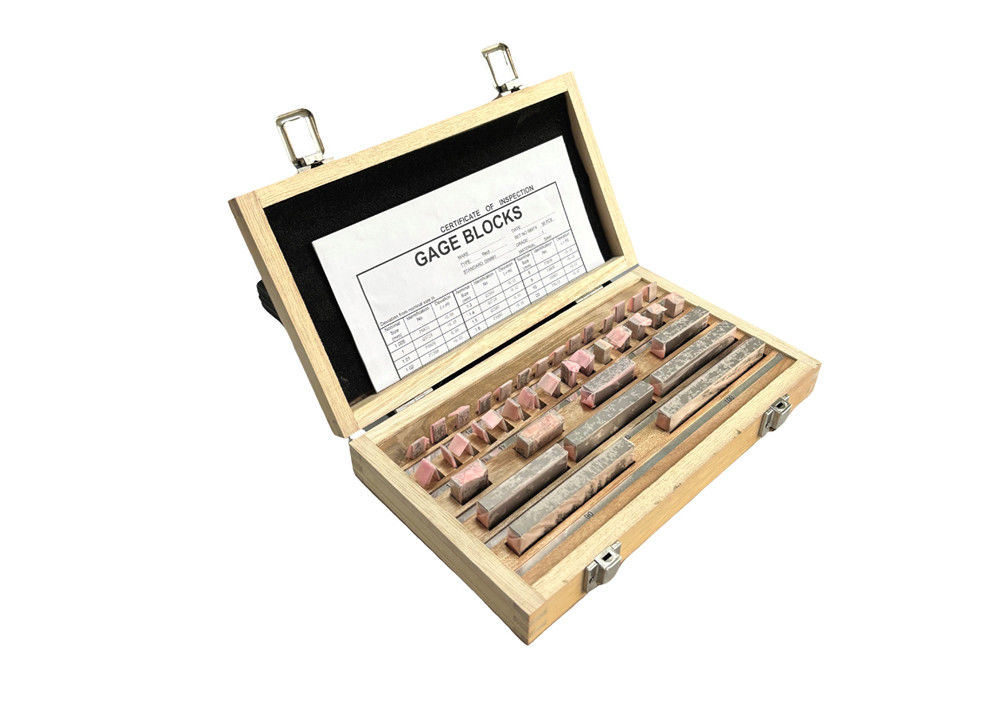

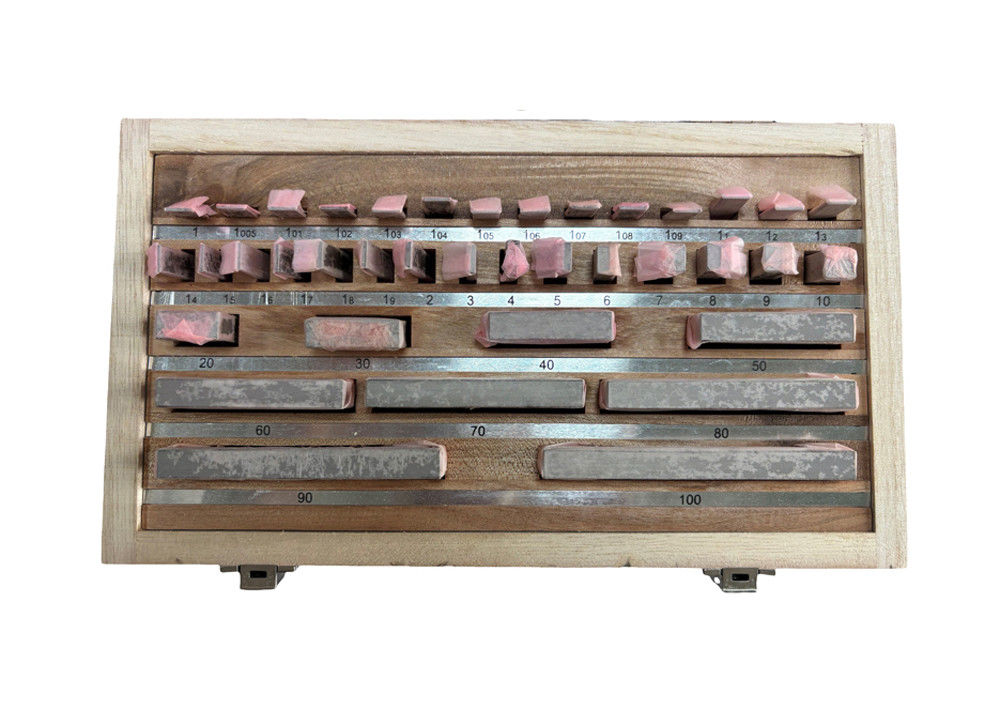

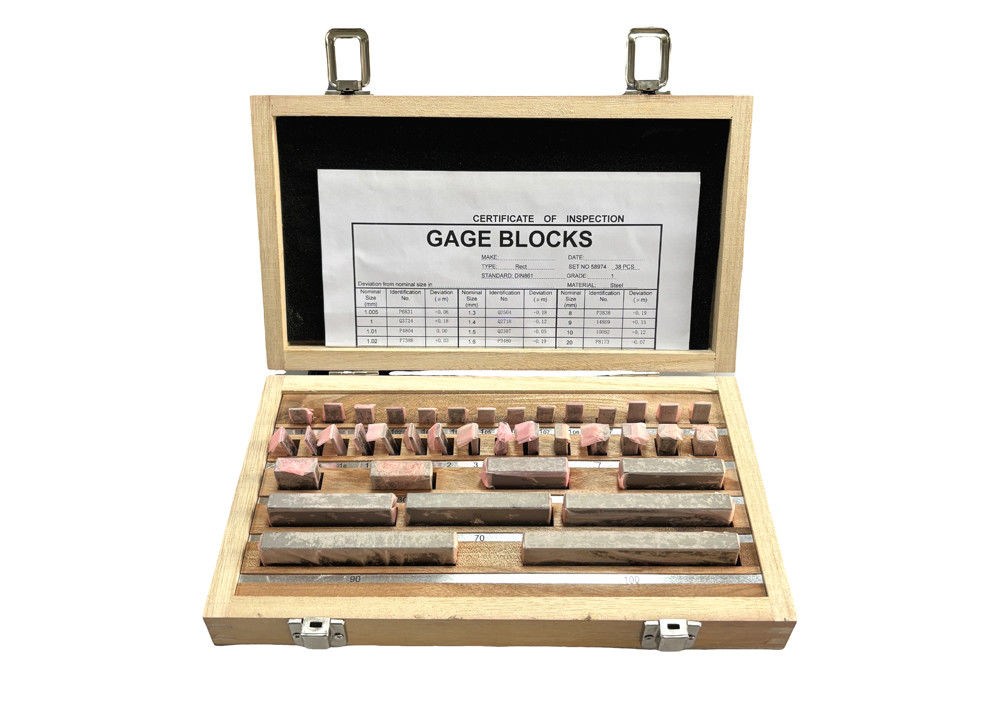

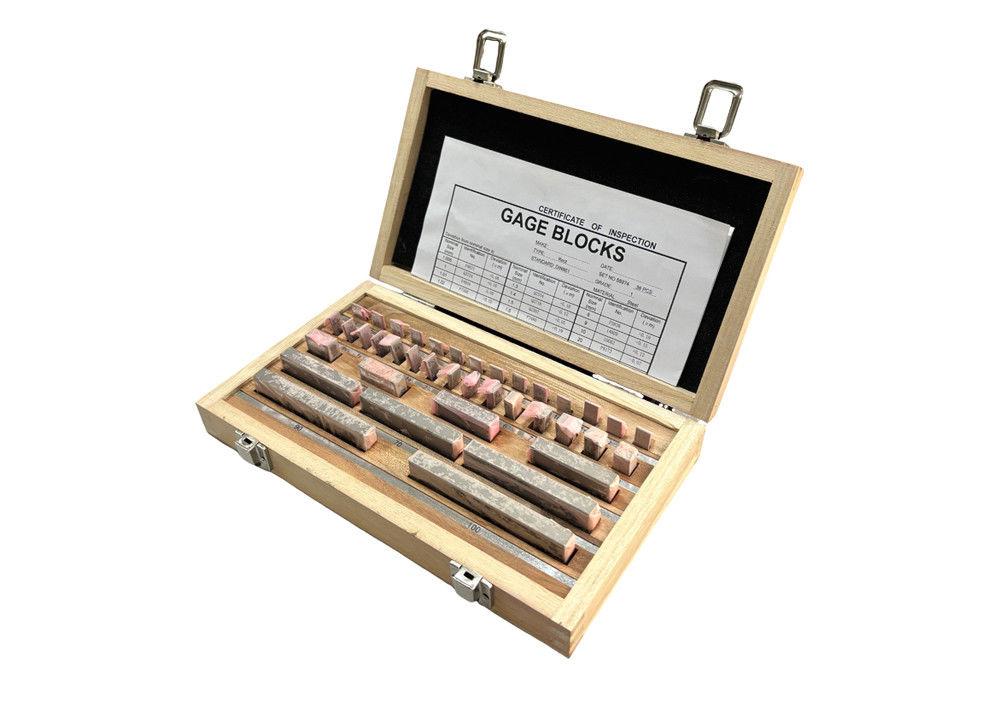

38Pcs Steel Metric Rectangular Gauge Blocks with DIN861 Standard for Precision Verification
38Pcs Steel Metric Rectangular Gauge Blocks with DIN861 Standard for Precision Verification
Product Overview
Our KM-GB series precision gauge blocks are primarily used for measuring part dimensions, verifying measuring instrument errors, and serving as standard components for comparative measurement. They are also essential for precision marking in machine tool adjustment and machining processes.
Key Features
- Steel rectangular gauge block set compliant with DIN standard
- Available in Grade 0, 1, and 2 accuracy levels
- Simple shape with stable values and excellent wear resistance
- Blocks can be used individually or combined for various sizes
- Nominal length range: L≥0.5-500mm series

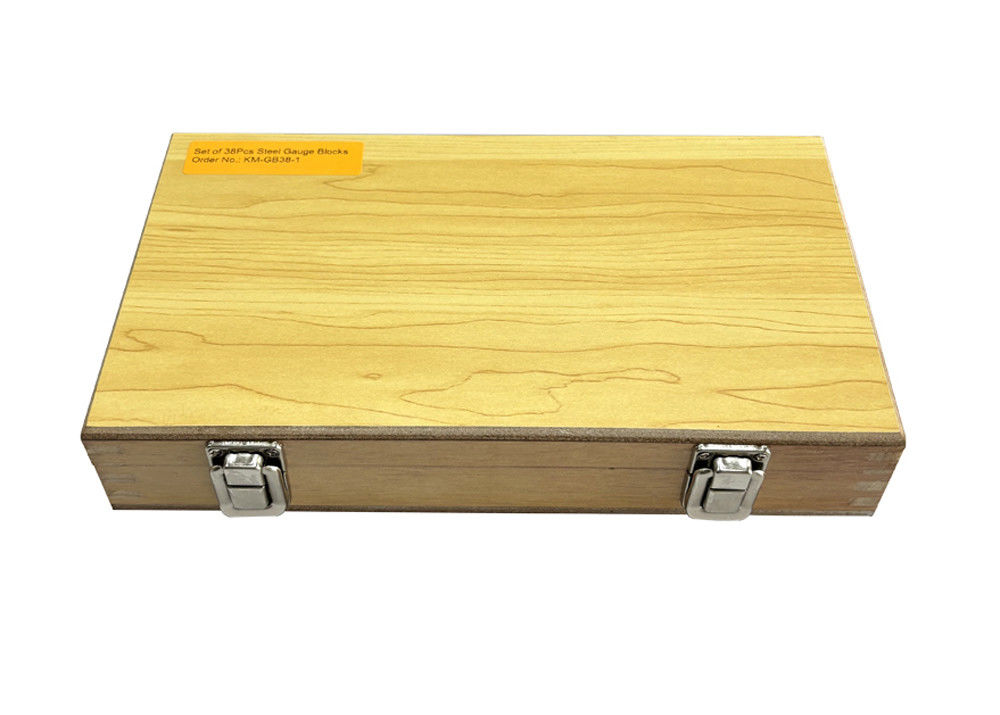

- Includes fitted protective case
Technical Specifications
| Order No. | Number of Blocks | Block Size | Interval | Pieces | Technical Standards | Grade |
|---|---|---|---|---|---|---|
| KM-GB38 | 38Pcs | 1.005 | - | 1 | GB/T6093 |
0 1 2 |
| 1.01-1.09 | 0.01 | 9 | ||||
| 1.1-1.9 | 0.1 | 9 | ||||
| 1-9 | 1 | 9 | ||||
| 10-100 | 10 | 10 |
Material & Construction
Our gauge blocks feature specially treated surfaces for rust resistance and dimensional stability. Made from wear-resistant alloy steel with minimal linear expansion, they maintain long-term accuracy and reliability.
Usage Precautions
- Keep surfaces clean and dry to maintain measurement accuracy
- Ensure perfect contact between workpiece and gauge block surfaces
- Read values perpendicular to avoid viewing angle errors
- Avoid excessive force or surface scratching during use
- Store in dry, ventilated conditions
Applications
- Length standard for measurement value transmission
- Verification of measuring instrument errors
- Comparative measurement of workpiece dimensions
- Direct part size measurement
- Precision machine tool adjustment and marking
Company Information
Deko Corporation specializes in manufacturing KM brand precision measuring tools, including dial indicators, micrometers, calipers, and various gauges. We offer OEM services and provide one-year warranty on all products.
Trade Terms
We support FOB, CFR, CIF, EXW with payment options including T/T, L/C, D/A, D/P, PayPal, and Western Union.
