Rotary Shoulder Connection Ring Plug Gauge
,NC50 API Thread Gauge
,Rotary Shoulder Connection API Thread Gauge
-
WarrantyOne Year
-
Operation PressureAPI
-
StandardAPI 7-2
-
Applicable MediumMud, Water, Natural Gas
-
CustomizedAcceptable
-
UsageManual
-
MethodShoulder Connection
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,Money Gram
-
Supply Ability50000pieces/Month

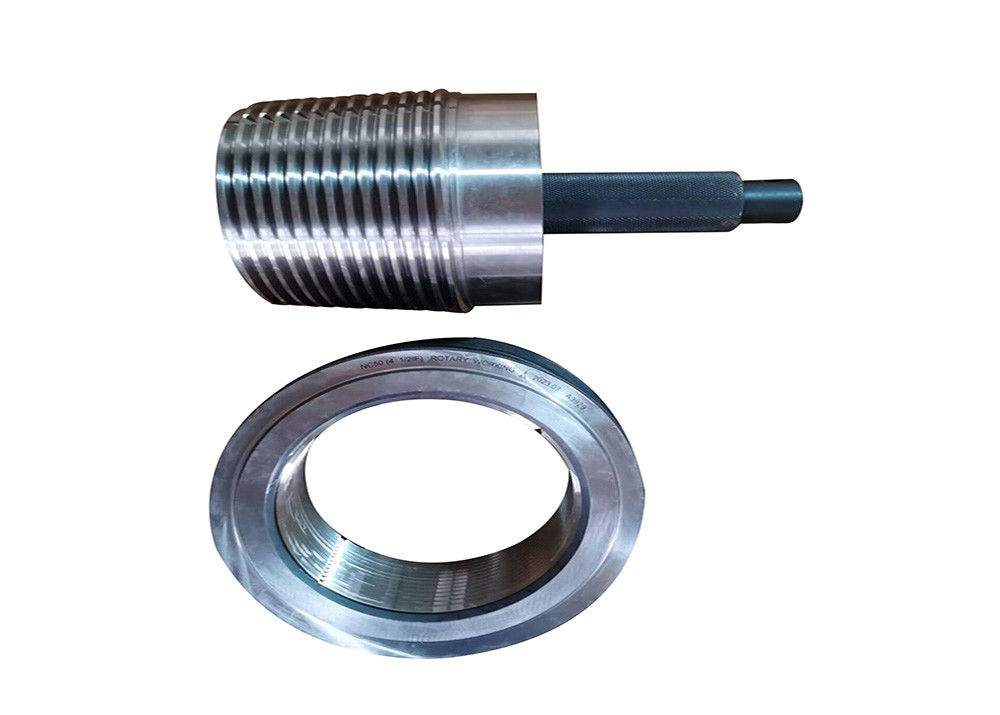

NC50 API Thread Gauge Ring Plug Gauge Rotary Shoulder Connection
NC50 API Thread Gauge Ring Plug Gauge Rotary Shoulder Connection
Product Description
NC numbered connection working gauges supplied with a calibration report detailing the measured dimensions and the accuracy. All working gauges and reference master gauges are manufactured and calibrated conform to API Spec 7-2 standard.
We supply numbered connections (NC) working, reference and regional master gages from NC10 to NC77. We introduced international first grade thread machining center and measuring equipment to provide high precision thread gauges to customers worldwide. The quality and reliability of our gauges have made them the preferred choice of coupling shops, pipe and tube mills globally.
Quick Detail
- Conform standard: API Spec 7-2
- Wear resistance and corrosion resistance, stable structure, easy to use
- Comes with calibration certificates
- Supplied in fitted case
Specification
| Size | Form of Thread Inspected | Pitch per 25.4mm | Taper | Form of Angle | Basic Pitch Dia |
|---|---|---|---|---|---|
| NC10 | V-0.055 | 4.233(6) | 1:8 | 60° | 27.000 |
| NC12 | V-0.055 | 4.233(6) | 1:8 | 32.131 | |
| NC13 | V-0.055 | 4.233(6) | 1:8 | 35.331 | |
| NC16 | V-0.055 | 4.233(6) | 1:8 | 40.869 | |
| NC23 | V-0.038R | 6.350(4) | 1:6 | 59.817 | |
| NC26(2 3/8 I F) | V-0.038R(V-0.065) | 6.350(4) | 1:6 | 67.767 | |
| NC31(2 7/8 I F) | V-0.038R(V-0.065) | 6.350(4) | 1:6 | 80.848 | |
| NC35 | V-0.038R | 6.350(4) | 1:6 | 89.687 | |
| NC38(3 1/2 I F) | V-0.038R(V-0.065) | 6.350(4) | 1:6 | 96.723 | |
| NC40(4 FH) | V-0.038R(V-0.065) | 6.350(4) | 1:6 | 103.429 | |
| NC44 | V-0.038R | 6.350(4) | 1:6 | 112.192 | |
| NC46(4 I F) | V-0.038R(V-0.065) | 6.350(4) | 1:6 | 117.500 | |
| NC50(4 1/2 I F) | V-0.038R(V-0.065) | 6.350(4) | 1:6 | 128.059 | |
| NC56 | V-0.038R | 6.350(4) | 1:4 | 142.646 | |
| NC61 | V-0.038R | 6.350(4) | 1:4 | 156.921 | |
| NC70 | V-0.038R | 6.350(4) | 1:4 | 179.146 | |
| NC77 | V-0.038R | 6.350(4) | 1:4 | 196.621 |
Applications
NC50 numbered connection working gauge are mainly used in the petroleum oil and gas industry.
Precautions
- Do not touch the working surface of the gauge with your hands to prevent rust
- Inspect regularly for damage, rust or deformation. If rust appears, soak in gasoline, wipe carefully, and apply anti-rust oil
- Do not store working surfaces together to prevent adhesion and potential damage
- After use, wipe clean and store under dry conditions
