High Precision M24.0 GO NOGO Metric Thread Ring Gauge for Threaded Parts Equipment with Internal First Grade Thread Machining Center

High Precision M24.0 GO NOGO Metric Thread Ring Gauge for Threaded Parts Equipment with Internal First Grade Thread Machining Center

Products - Ring and Plug Gauge - Metric Ring and Plug Thread Gauge
  • Highlight

    NOGO Metric Thread Plug Gauge

    ,

    M24.0 Metric Thread Plug Gauge

    ,

    High Precision Metric Thread Plug Gauge

  • Warranty
    One Year
  • Type
    Thread Ring Gauge
  • Standard
    DIN13, DIN2280-89
  • Measurement
    Metric
  • Thread Specification
    М24x3-6g
  • Shape
    Round
  • Usage
    For Working And Inspection
  • Package
    ABS Box
  • Place of Origin
    Shaanxi, China
  • Brand Name
    KM
  • Certification
    ISO DIN GB RoHS
  • Model Number
    KM-R240-300

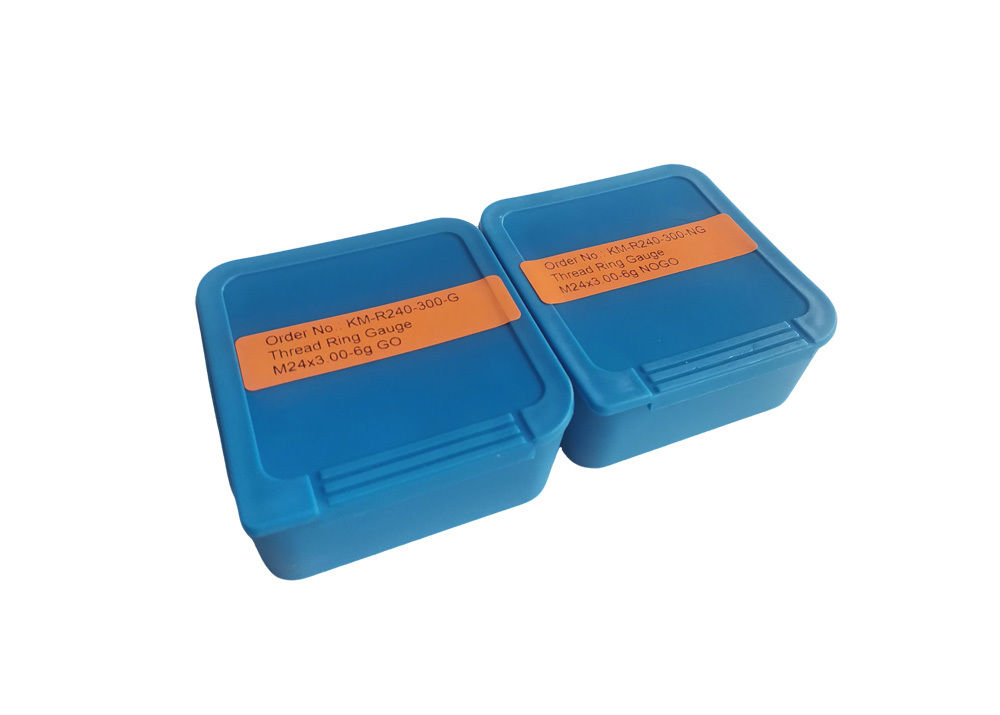

  • Packaging Details
    ABS Box 5*5*3.5cm/Piece 0.60kg/Piece
  • Delivery Time
    Within 15days
  • Payment Terms
    L/C,D/A,D/P,T/T,Western Union,MoneyGram
  • Supply Ability
    50000pieces/Month

High Precision M24.0 GO NOGO Metric Thread Ring Gauge for Threaded Parts Equipment with Internal First Grade Thread Machining Center

  • High Precision M24.0 GO NOGO Metric Thread Ring Gauge for Threaded Parts Equipment with Internal First Grade Thread Machining Center
  • High Precision M24.0 GO NOGO Metric Thread Ring Gauge for Threaded Parts Equipment with Internal First Grade Thread Machining Center
  • High Precision M24.0 GO NOGO Metric Thread Ring Gauge for Threaded Parts Equipment with Internal First Grade Thread Machining Center
Get Price Contact Now
High Precision M24.0 GO NOGO Metric Thread Ring Gauge
Metric thread ring gauges are precision inspection tools used for checking the thread of outside diameter on screws, bolts and threaded rods. These gauges typically have normal accuracy classifications including 6g, 6h, 7g, 7h, 8g, and 8h.

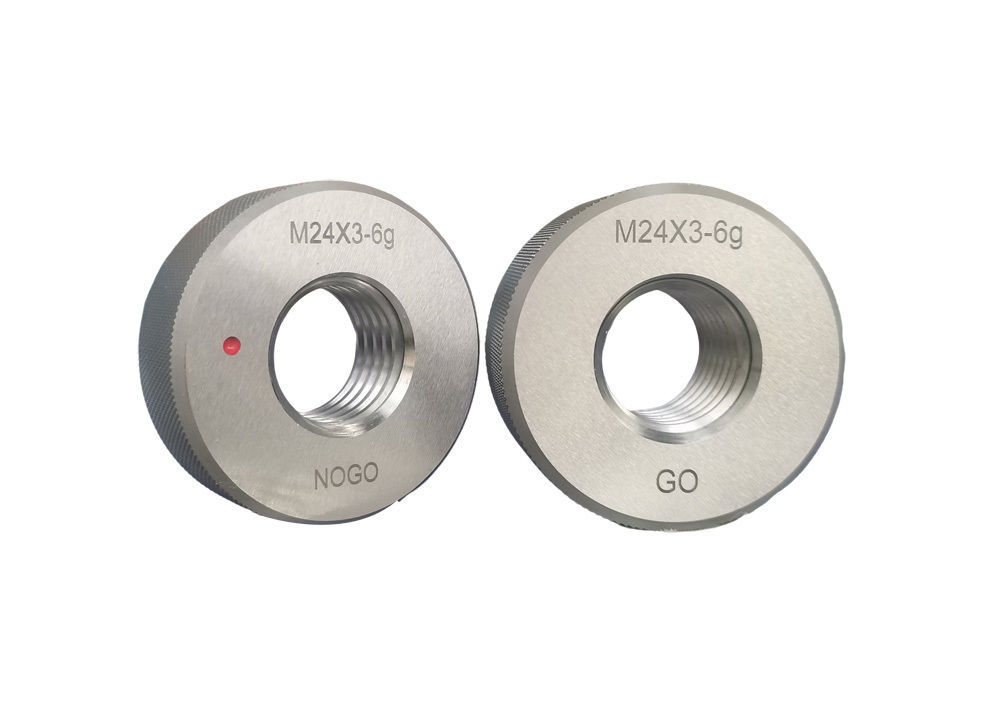

Thread ring gauges come in GO and NOGO types. The GO ring gauge is machined to a minus tolerance for verification at the maximum material limit, while the NOGO thread ring gauge is machined to a plus tolerance for verification at the minimum material limit of externally threaded components.
Our facility utilizes internal first grade thread machining centers and measuring equipment to provide high precision thread ring gauges to customers worldwide.
Key Features
  • Precision metric thread ring gauge
  • Available in multiple accuracy classes: 6g, 6h, 7g, 7h, 8g, 8h
  • Includes both GO and NO GO types
  • Conforms to DIN13 and DIN2280-89 standards
  • Wear and corrosion resistant construction
  • Stable structure for reliable performance

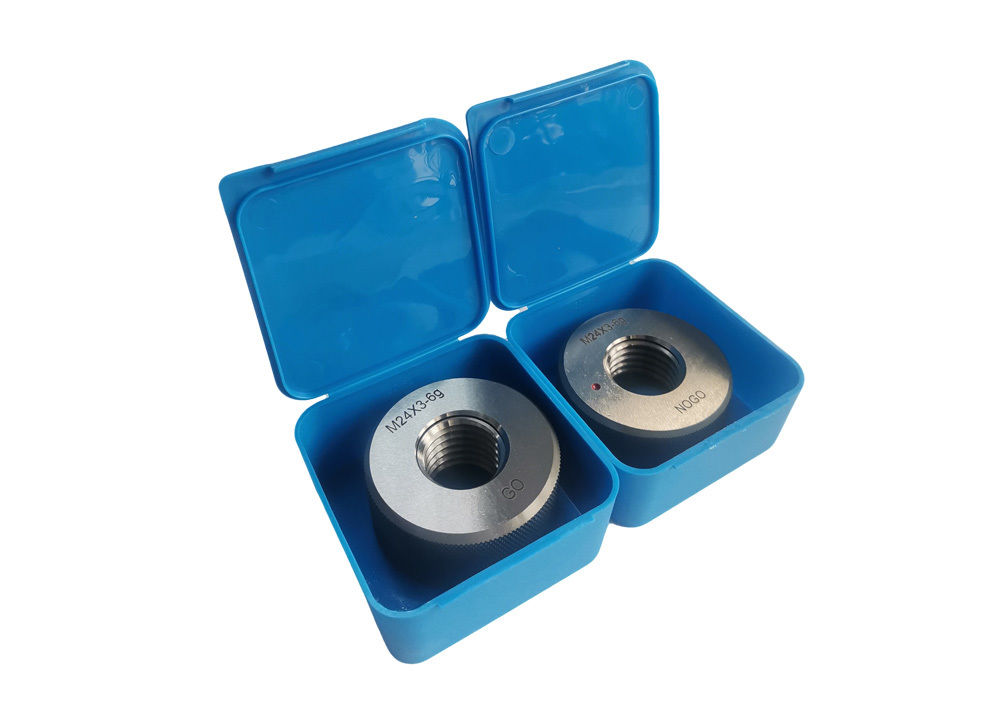

  • Supplied in protective fitted case
Product Specifications
Order No. Size Coarse Fine Accuracy
Pitch 1 Pitch 1 Pitch 1 Pitch 1 Pitch 1 Pitch 1
KM-R001 M1.0 0.25 0.20




3h

4h

5g6g

5h4h

5h6h

6e

6f

6g

6h

7g6g

7h6h

8g

8h
KM-R011 M1.1 0.25 0.20



KM-R012 M1.2 0.25 0.20



KM-R014 M1.4 0.30 0.20



KM-R016 M1.6 0.35 0.20



KM-R018 M1.8 0.35 0.20



KM-R020 M2.0 0.40 0.25



KM-R022 M2.2 0.45 0.25



KM-R025 M2.5 0.45 0.35



KM-R030 M3.0 0.50 0.35



KM-R035 M3.5 0.60 0.35



KM-R040 M4.0 0.70 0.50



KM-R050 M5.0 0.80 0.50



KM-R060 M6.0 1.00 0.75 0.50


KM-R080 M8.0 1.25 1.00 0.75 0.50

KM-R100 M10.0 1.50 1.25 1.00 0.75 0.50
KM-R120 M12.0 1.75 1.50 1.25 1.00 0.75 0.50
KM-R140 M14.0 2.00 1.50 1.25 1.00 0.75 0.50
KM-R160 M16.0 2.00 1.50 1.00 0.75 0.50
KM-R180 M18.0 2.50 2.00 1.50 1.00 0.75 0.50

…… …… …… …… …… …… ……
KM-R320 M320





Applications
These threaded ring gauges are primarily used to measure thread diameter and pitch. Their high precision, wide measurement range, and simple operation make them ideal for machinery manufacturing, aerospace, automotive production, and other industrial applications.
Usage Precautions
  • Avoid touching the working surface with bare hands to prevent rust
  • Store properly on tool cabinet surfaces or wooden backing plates - never on machine tool holders or guide rails
  • Inspect regularly for damage, rust, or deformation
  • If rust appears, soak in gasoline, wipe carefully, and apply anti-rust oil
  • Never store working surfaces of two gauges together to prevent sticking
  • Clean thoroughly after each use and store in dry conditions
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
What products do we carry?
Our product line includes dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
How about after-sales service?
All products come with a one-year warranty. If you receive any defective items, we will promptly ship replacement parts or products. Our strict calibration and inspection processes ensure reliable quality.
