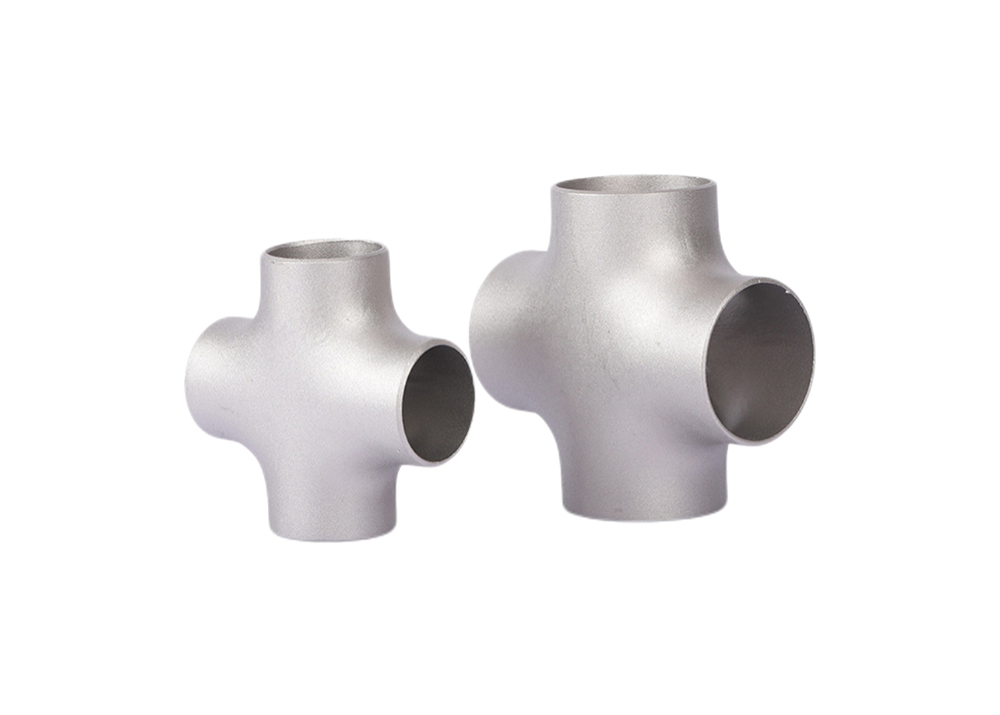

Shot Blasting Surface Finish Titanium Seamless Cross Pipe Fittings with OEM Customization
-
Highlight
Seamless Cross Pipe Fittings
,OEM Customization Titanium Seamless Pipe Fittings
,OEM Customization Seamless Pipe Fittings
-
MaterialTA1/TA2/TA9/TA10/GR1/GR2/GR7/GR12/N5/N6 Etc
-
SizeDN15-DN1200
-
OEMAvailable
-
Titanium Surface FinishShot Blasting, Sand Blasting
-
TechnicsWelding, Seamless
-
Place of OriginShaanxi, China
-
Brand NameVOTECH
-
CertificationASME B16.9，GB/T27684-2011
-
Model NumberCustomized
-
Packaging DetailsExport Standard Wooden Case, or Can Be Customized
-
Delivery Time7-15 Days
-
Payment TermsL/C,D/A,D/P,T/T,Western Union,MoneyGram
-
Supply Ability100ton/Month

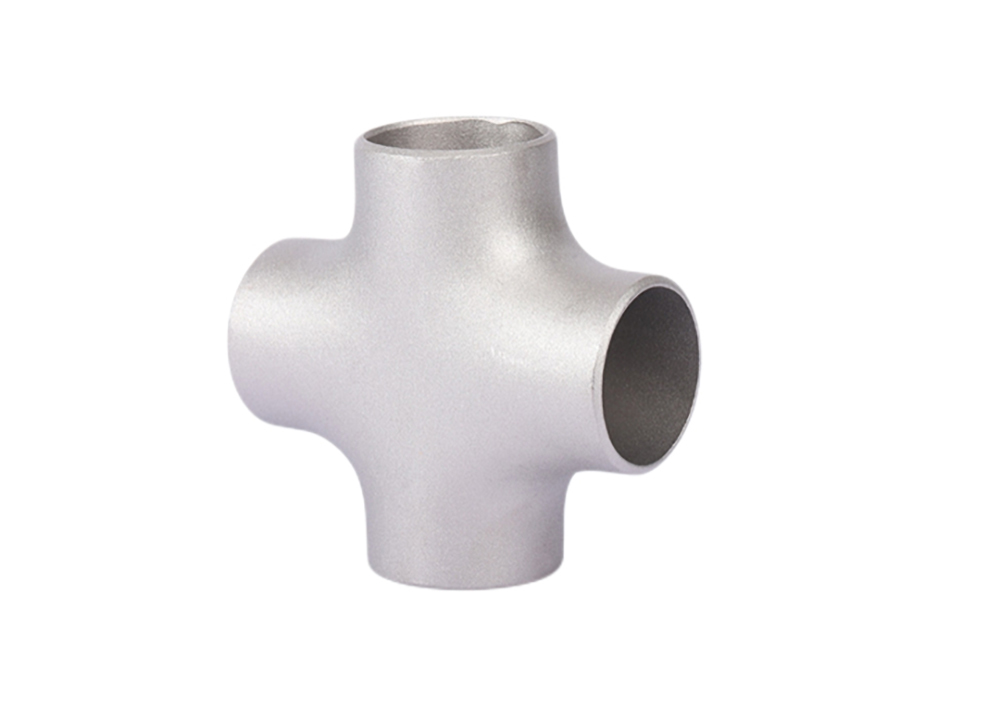

Shot Blasting Surface Finish Titanium Seamless Cross Pipe Fittings with OEM Customization

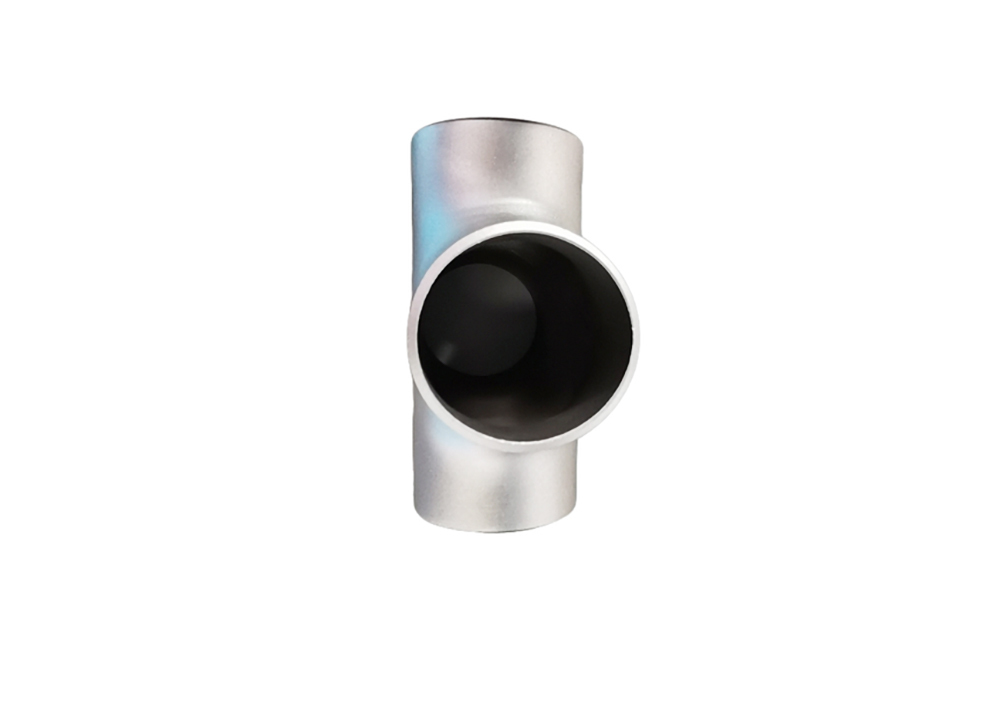

Shot Blasting Surface Finish Titanium Seamless Cross Pipe Fittings with OEM Customization
Titanium pipe cross fittings feature strong corrosion resistance, resistance to acids and alkalis, high strength, and lightweight properties that reduce structural weight. These components also offer high temperature resistance, stable performance, and extended service life, ensuring long-term reliable operation of pipeline systems.
Titanium elbow equal cross fittings serve as key connecting components for fluid diversion in pipeline systems. Designed with equal or unequal diameters to accommodate different pipe requirements, these fittings are widely used in petrochemical and precision instrument industries.
Product Specifications
| Standard | ASME B16.9, GB/T27684-2011 |
| Material | TA1/TA2/TA9/TA10/GR1/GR2/GR7/GR12/N5/N6 etc |
| Size | DN15-DN1200 |
| OEM | Available |
| Titanium Surface Finish | Shot blasting, Sand blasting |
| Technics | Welding, Seamless |
| Type | Titanium Equal Cross |
| Packaging | Export Standard Wooden case, or can be customized |
| Application | Chemistry, petrochemicals and general industries: electrolytic cells, reactors, distillation towers, concentrators, separators, heat exchangers, pipelines, electrodes, etc. in chlor-alkali, soda ash, plastics, petrochemicals, metallurgy, salt production and other industries. Marine engineering: pipelines for seawater desalination, pumps, valves, pipe fittings for offshore oil drilling, etc. |
Specification(mm)
|
Nominal Diameter |
Outside diameter at bevel |
Center to end |
||
|
ⅠSeries |
ⅡSeries |
Tube pass C |
Exit M |
|
|
15 |
21.3 |
18 |
25 |
25 |
|
20 |
26.7 |
25 |
29 |
29 |
|
25 |
33.4 |
32 |
38 |
38 |
|
32 |
42.2 |
38 |
48 |
48 |
|
40 |
48.3 |
45 |
57 |
57 |
|
50 |
60.3 |
57 |
64 |
64 |
|
65 |
73.0 |
76 |
76 |
76 |
|
80 |
88.9 |
89 |
86 |
86 |
|
90 |
101.6 |
——— |
95 |
95 |
|
100 |
114.3 |
108 |
105 |
105 |
|
125 |
141.3 |
133 |
124 |
124 |
|
150 |
168.3 |
159 |
143 |
143 |
|
200 |
219.1 |
219 |
178 |
178 |
|
250 |
273.0 |
273 |
216 |
216 |
|
300 |
323.8 |
325 |
254 |
254 |
|
350 |
355.6 |
377 |
279 |
279 |
|
400 |
406. 4 |
426 |
305 |
305 |
|
450 |
457 |
480 |
343 |
343 |
|
500 |
508 |
530 |
381 |
381 |
|
550 |
559 |
——— |
419 |
419 |
|
600 |
610 |
630 |
432 |
432 |
|
650 |
660 |
——— |
495 |
495 |
|
700 |
711 |
720 |
521 |
521 |
|
750 |
762 |
——— |
559 |
559 |
|
800 |
813 |
820 |
597 |
597 |
|
850 |
864 |
——— |
635 |
635 |
|
900 |
914 |
920 |
673 |
673 |
|
950 |
965 |
——— |
711 |
711 |
|
1 000 |
1 016 |
1 020 |
749 |
749 |
|
1 050 |
1 067 |
——— |
762 |
711 |
|
1 100 |
1 118 |
1 120 |
813 |
762 |
|
1 150 |
1 168 |
——— |
851 |
800 |
|
1 200 |
1 219 |
1 220 |
889 |
838 |
Suitable for the cross below DN600. Tees and cross above DN650, recommend exit size.
Frequently Asked Questions
1. What are the outstanding performances of titanium equal cross in terms of corrosion resistance?
Titanium equal cross fittings have extremely strong resistance to corrosive media such as seawater and chloride ions. Their corrosion resistance far exceeds that of stainless steel and carbon steel, making them especially suitable for harsh environments such as marine and chemical industries.
2. Do titanium equal cross need additional anti-rust measures?
No need. Titanium equal cross can be used for a long time without coating or cathodic protection, avoiding the risk of rust and significantly reducing maintenance requirements.
3. Where does the lightweight advantage of titanium pipe cross lie?
Titanium has a strength close to that of steel, but its density is only 60% of that of steel, which enables it to significantly reduce the weight of equipment in fields such as aerospace and shipbuilding while maintaining high load-bearing capacity.
4. How is the high-temperature resistance of titanium cross pipe fitting?
Titanium alloys (such as TA2 and TA9) can maintain stable mechanical properties at high temperatures of 300-500℃, and some materials can even withstand higher temperatures for a short period of time.
5. Why are titanium equal pipe cross still economical despite their high initial cost?
Although the initial purchase cost of titanium equal pipe cross is relatively high, their extremely long service life and very low maintenance requirements significantly reduce the long-term usage cost, making their overall economic performance better.
6. Are titanium pipe fittings suitable for the pharmaceutical and food industries?
Yes. Titanium has non-toxic and harmless biocompatibility, and its material purity is high, fully meeting the strict hygiene requirements of fields such as pharmaceuticals and food processing.
