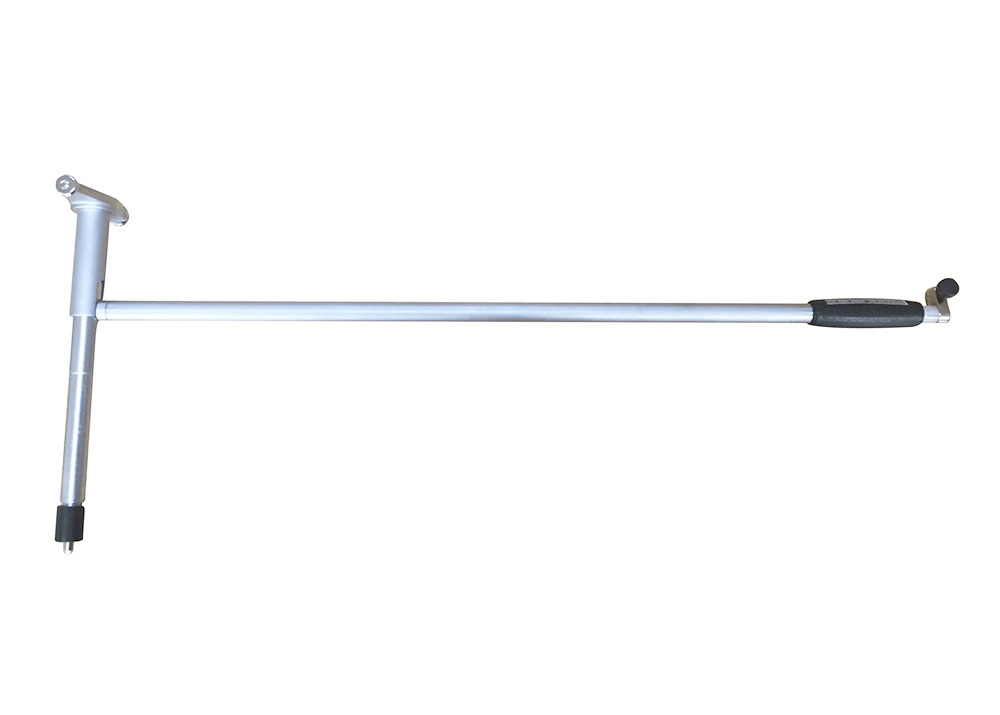

250-525mm Special Dial Bore Gauge With 500mm Measuring Depth Precision Measuring Tools Used To Measure Inside Diameter
-
Highlight
525mm Special Dial Bore Gauge
,Measuring Depth Precision Dial Bore Gauge
-
WarrantyOne Year
-
TypeDial Bore Gauge
-
MeasurementMetric
-
ApplicationInternal Measurement
-
Range250-525mm
-
Measuring Depth500mm
-
Graduation0.01mm
-
FeatureWheel Guide
-

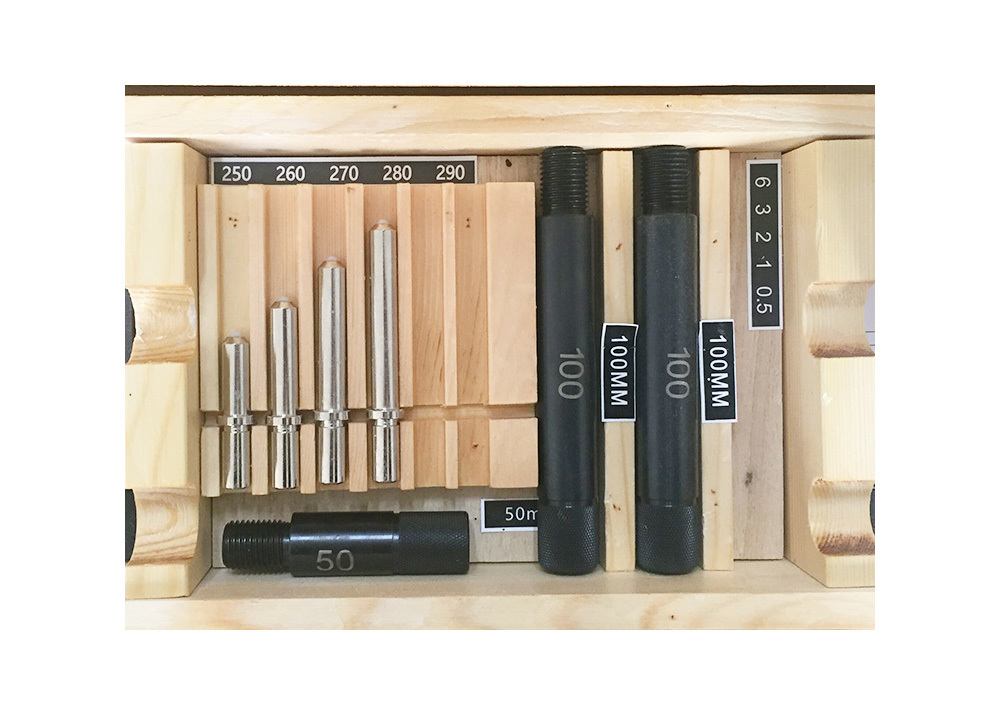

PartsWith Inserting Interchangeable Anvils
-
CustomizedAcceptable
-

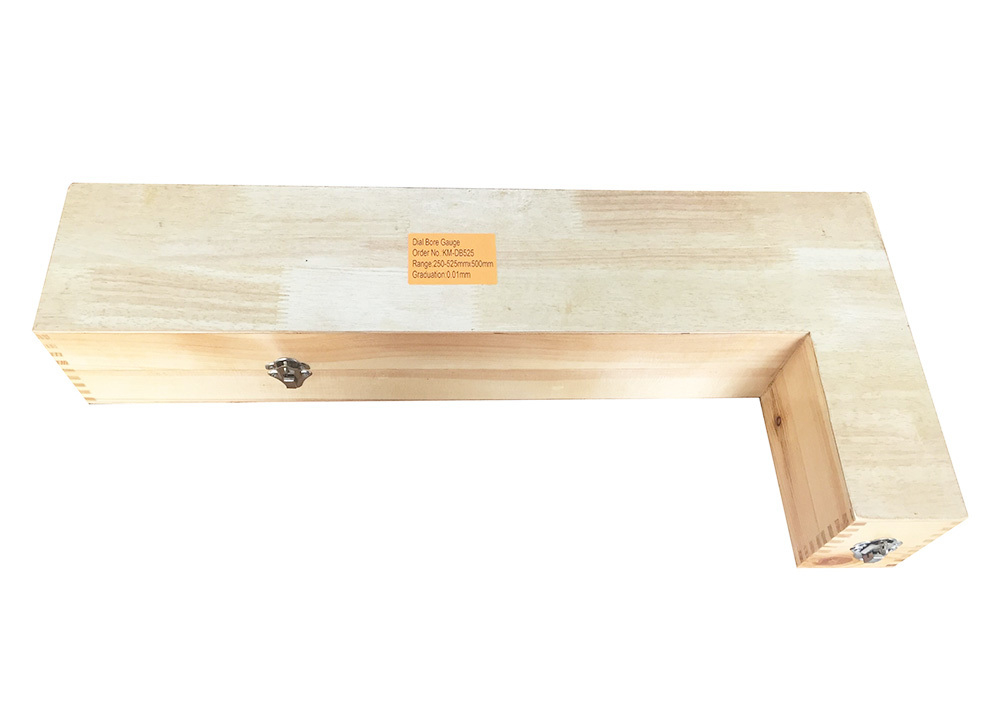

PackageWooden Case
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-DBI525
-
Packaging DetailsWooden Case 45*28*12.5cm/Piece 2.80kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
250-525mm Special Dial Bore Gauge With 500mm Measuring Depth Precision Measuring Tools Used To Measure Inside Diameter
250-525mm Special Dial Bore Gauge With 500mm Measuring Depth Precision Measuring Tools Used To Measure Inside Diameter
Precision measuring tools used to measure inside diameter with exceptional accuracy and reliability.
Product Overview

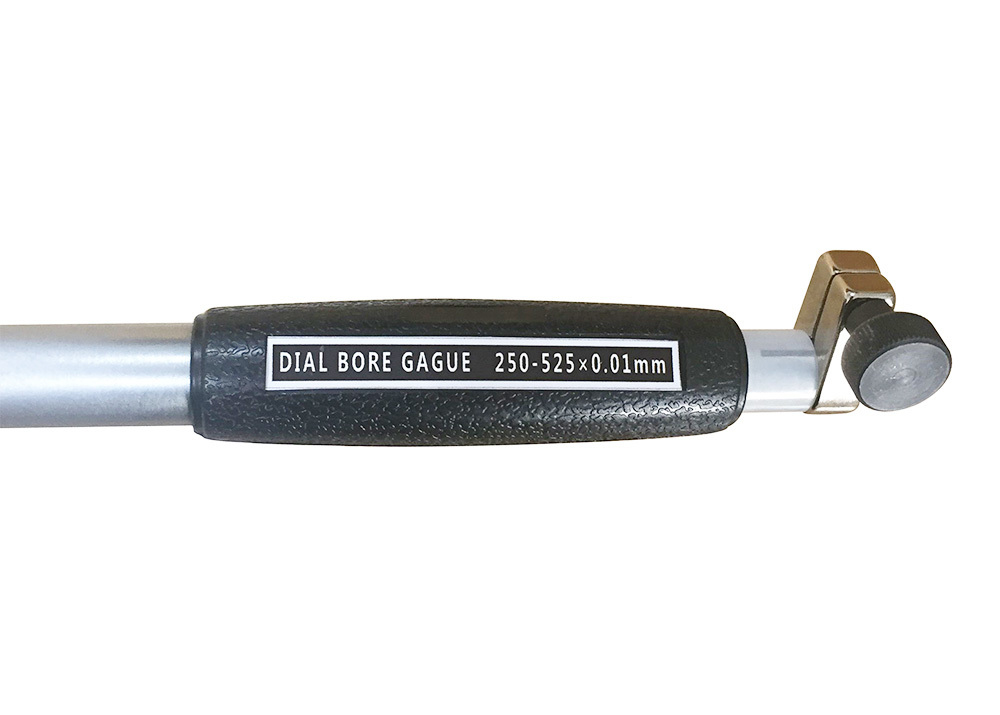

This bore gauge set provides the ultimate solution for precise and accurate measurements of inner hole sizes. The complete set includes a durable metal clamping device and a dial indicator with a measuring range of 0-3mm and a graduation of 0.01mm. The self-centering design allows for fast and efficient measurement, while the insulated grip ensures comfort and safety during operation.
Key Features
- Designed for internal measurement applications

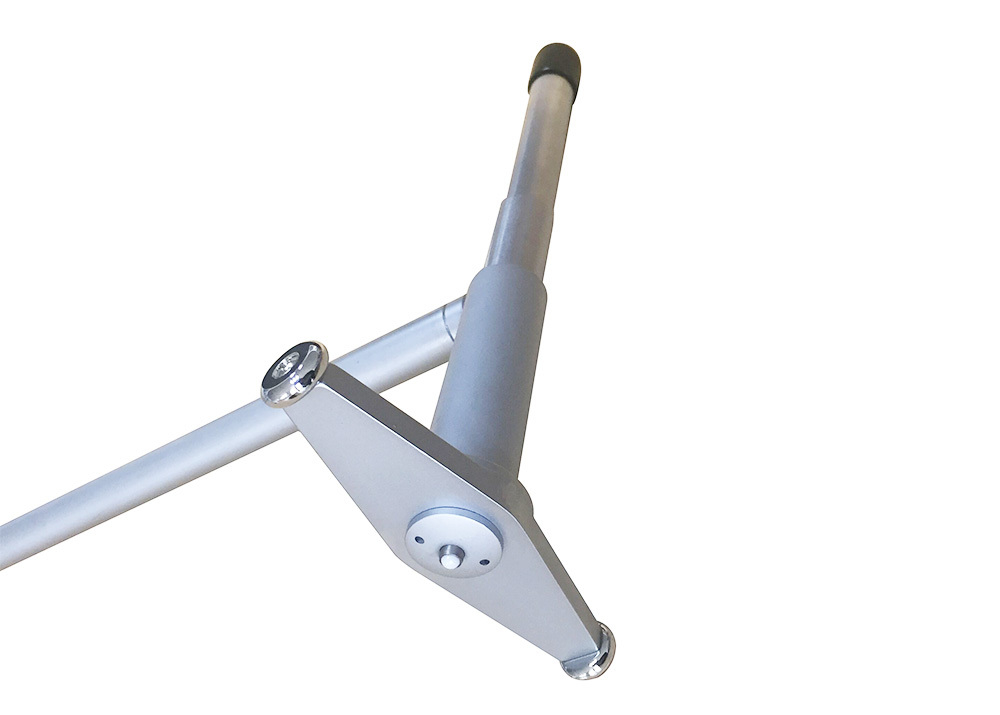

- Wheel guide for smooth operation
- Interchangeable anvils for versatile use
- 0.01mm precision dial indicator included
- Customizable measuring depth for different applications

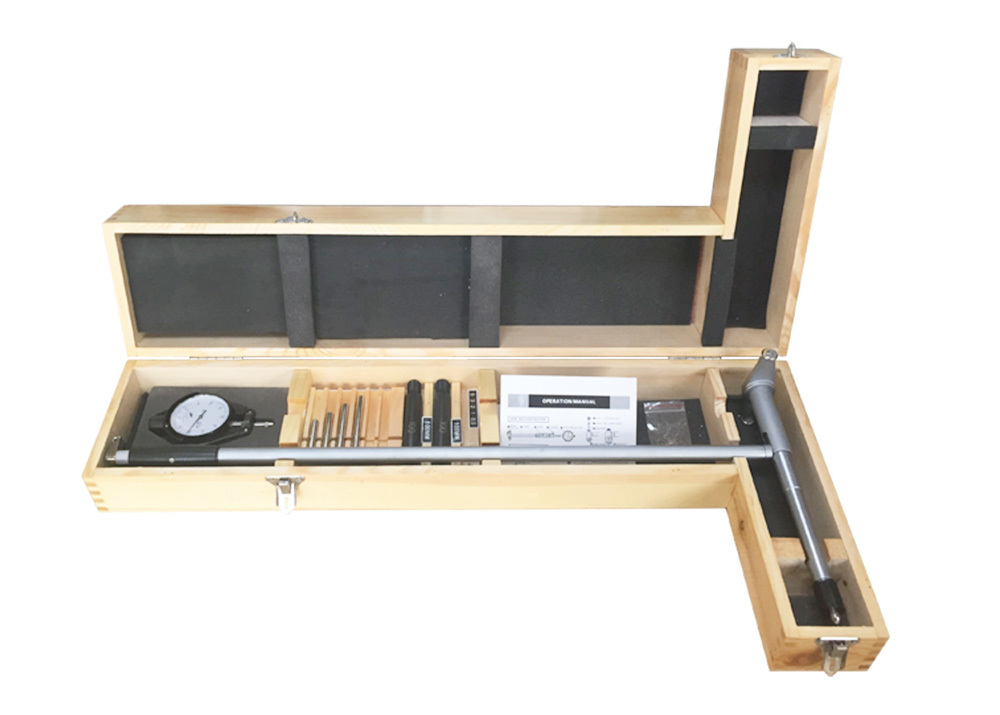

- Supplied in protective fitted case for storage and transport
Specifications
| Order No. | Range | Measuring Depth | Graduation | Anvils | Washers | Sub-anvils |
|---|---|---|---|---|---|---|
| KM-DBI10 | 6-10mm | 40mm | 0.01mm | 9 | ||
| KM-DBI18 | 10-18mm | 100mm | 0.01mm | 9 | 1 | |
| KM-DBI35 | 18-35mm | 150mm | 0.01mm | 9 | 2 | |
| KM-DBI50 | 35-50mm | 150mm | 0.01mm | 4 | 4 | |
| KM-DBI60 | 35-60mm | 150mm | 0.01mm | 4 | 4 | |
| KM-DBI100 | 50-100mm | 150mm | 0.01mm | 11 | 4 | |
| KM-DBI160 | 50-160mm | 150mm | 0.01mm | 12 | 4 | 1 |
| KM-DBI250 | 160-250mm | 250mm | 0.01mm | 5 | 5 | 1 |
| KM-DBI450 | 250-450mm | 250mm | 0.01mm | 5 | 5 | 2 |
Measuring Ranges
Standard measuring ranges available: 6-8mm, 10-18mm, 18-35mm, 35-60mm, 50-160mm, 160-250mm, 250-450mm. Special measuring ranges can be customized according to specific requirements.
Applications
Bore gauges are widely used in the automotive industry for checking hole sizes in engine components, drivetrains, and brake systems. Additionally, they find extensive application in machining, aerospace, shipbuilding, and other industrial fields to help enterprises improve production efficiency and quality control.
Operation Precautions
- Do not disassemble or modify the gauge
- Avoid subjecting the gauge to impacts or knocks
- Clean and apply anti-rust treatment after use
- Disassemble the indicator when storing (storing together may affect precision)
- Place the gauge in its protective case when not in use
- Do not interchange anvils, washers, or other components between different sets
Frequently Asked Questions
About Our Company
Deko Corporation is dedicated to the development, manufacture, and marketing of KM brand precision measuring tools in mainland China.
Product Range
We carry a comprehensive range of precision measuring tools including dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
Trade Terms
We support FOB, CFR, CIF, and EXW trading terms.
Payment Methods
Accepted payment methods include T/T, L/C, D/A, D/P, PayPal, and Western Union.
Customization Options
Yes, OEM customization is available for all our products.
After-Sales Service
All products come with a one-year warranty. If you receive any defective accessories, we will ship replacement parts or products immediately. As an experienced manufacturer, we maintain strict calibration and inspection procedures to ensure superior product quality you can trust.
