0-200mm/0-8'' Stainless Steel Electronic Digital Depth Vernier Caliper with Inch/Metric Conversion
-
Highlight
stainless steel digital depth caliper
,0-200mm vernier caliper with conversion
,electronic depth caliper inch metric
-
WarrantyOne Year
-
TypeDigital Depth Caliper
-
MaterialStainless Steel
-
Measurement ObjectDepth
-
MeasurementMetric/Inch
-
Range0-200mm/0-8''
-
Graduation0.01mm/0.0005''
-
Precision±0.02mm
-
FeatureEasy To Operate
-
PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-DDC200
-
Packaging DetailsABS Box 34*12*3.5cm/Piece 1.10kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

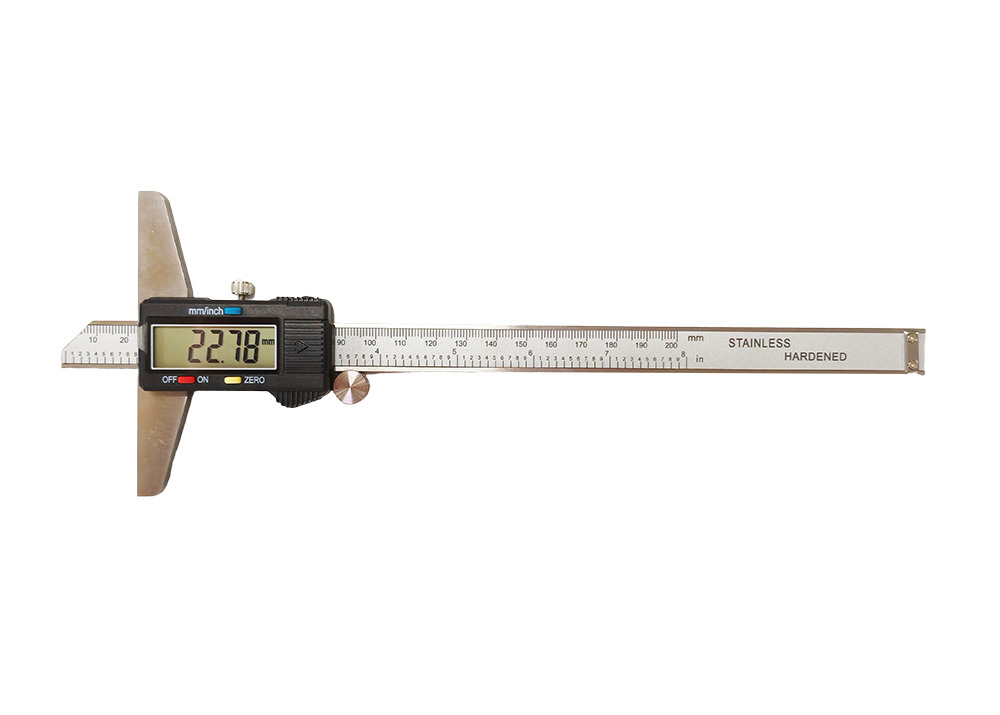

0-200mm/0-8'' Stainless Steel Electronic Digital Depth Vernier Caliper with Inch/Metric Conversion
0-200mm/0-8'' Stainless Steel Electronic Digital Depth Vernier Caliper
Our KM-DDC series digital depth vernier caliper features a hardened stainless steel body and clear large LCD display for easy reading. Available in measuring ranges from 0-150mm/0-6'' up to 0-600mm/0-24'' to meet various measurement requirements.
This precision instrument offers high measurement accuracy for machining and inspection applications. The well-designed structure ensures easy operation, allowing users to quickly achieve accurate measurements.
Key Features
- Large LCD display for easy reading
- Inch/metric conversion capability
- Power switch and zero setting functions
- Hardened stainless steel construction
- Data output capability

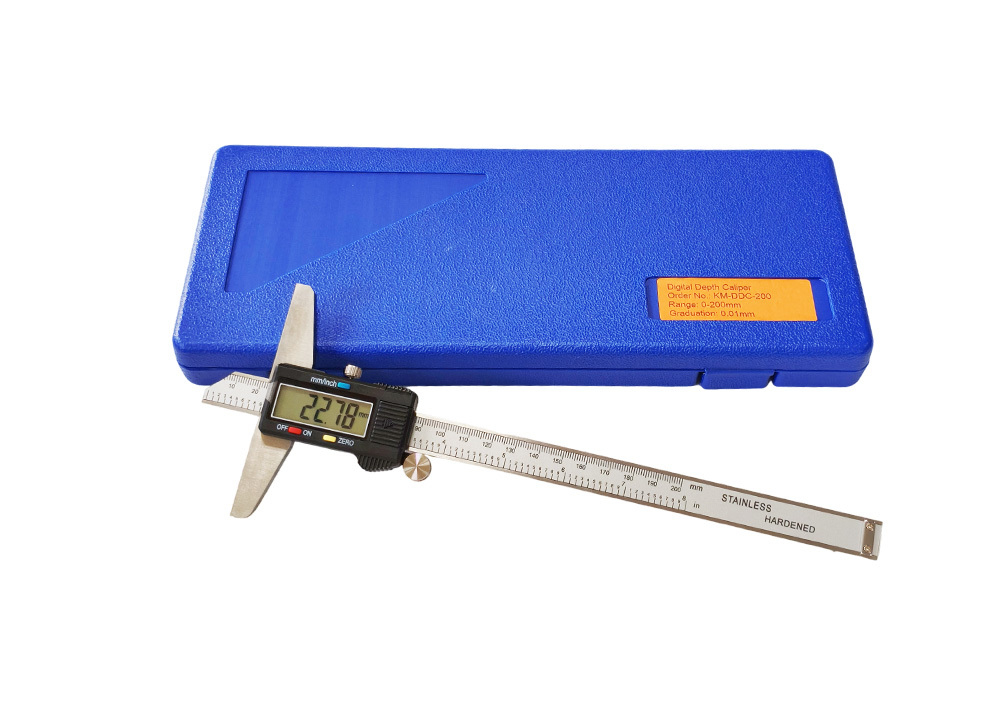

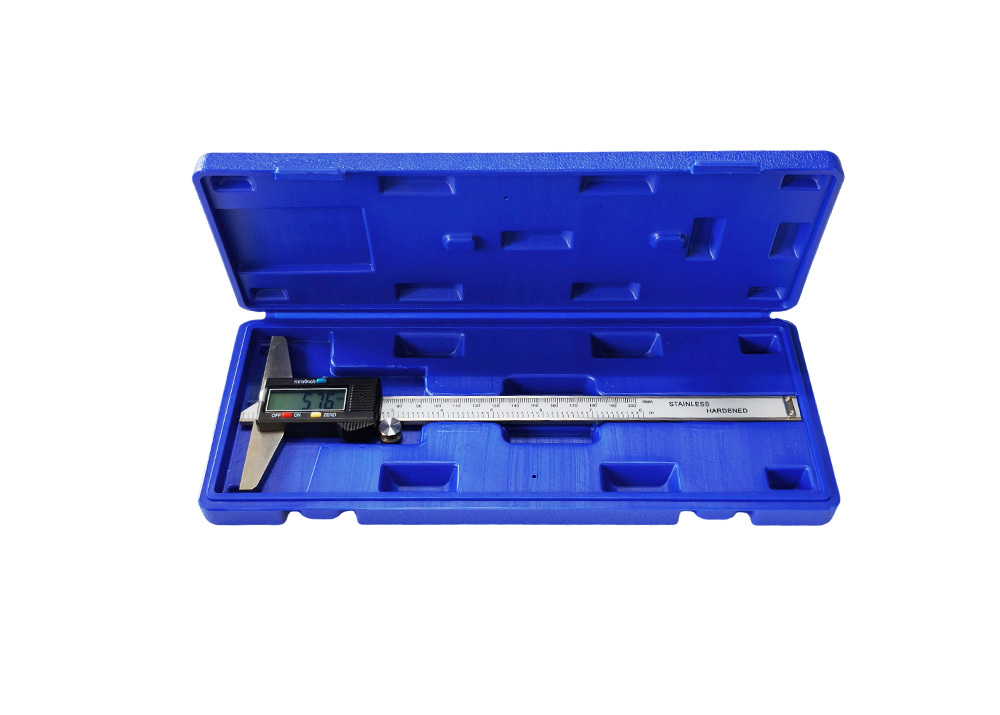

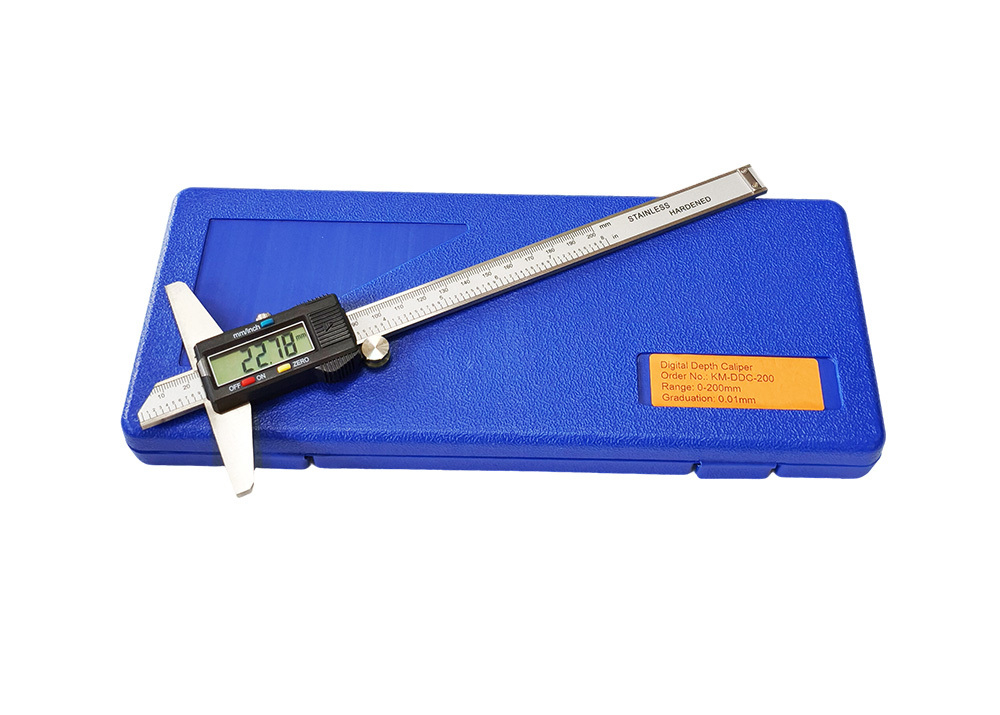

- Supplied in protective fitted case
Technical Specifications
| Order No. | Measuring Range | Resolution | Accuracy |
|---|---|---|---|
| KM-DDC150 | 0-150mm/0-6'' | 0.01mm/0.0005'' | ±0.02mm |
| KM-DDC200 | 0-200mm/0-8'' | 0.01mm/0.0005'' | ±0.02mm |
| KM-DDC300 | 0-300mm/0-12'' | 0.01mm/0.0005'' | ±0.03mm |
| KM-DDC500 | 0-500mm/0-20'' | 0.01mm/0.0005'' | ±0.05mm |
| KM-DDC600 | 0-600mm/0-24'' | 0.01mm/0.0005'' | ±0.05mm |
Operation Guidelines
- Clean measuring surfaces before use to prevent contamination and wear
- Ensure measuring base and caliper end face are perpendicular and tightly fitted to measured surfaces
- Measure parts only when completely stable during machine operation
- Position measuring base on highest point when measuring curved surfaces
- Avoid excessive pressure during measurement to prevent bending or wear
- Take multiple measurements in different directions for improved accuracy
- Remove battery when not in use for extended periods
Applications
- Machining operations including turning, drilling, and milling
- Precision part manufacturing and dimensional verification
- Quality control and inspection in industrial production
