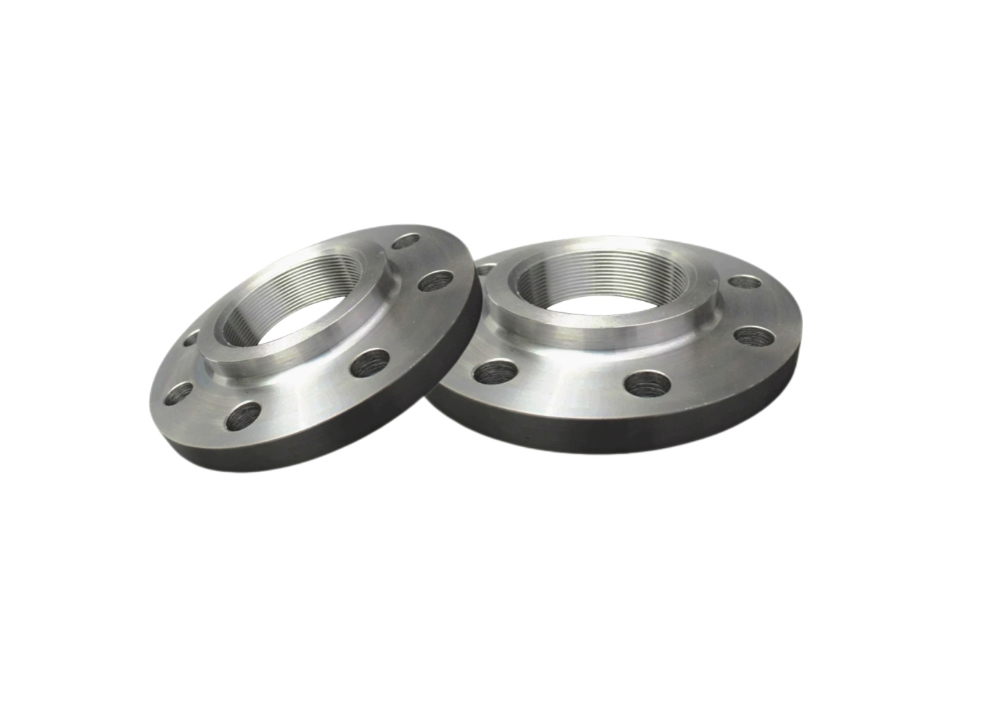

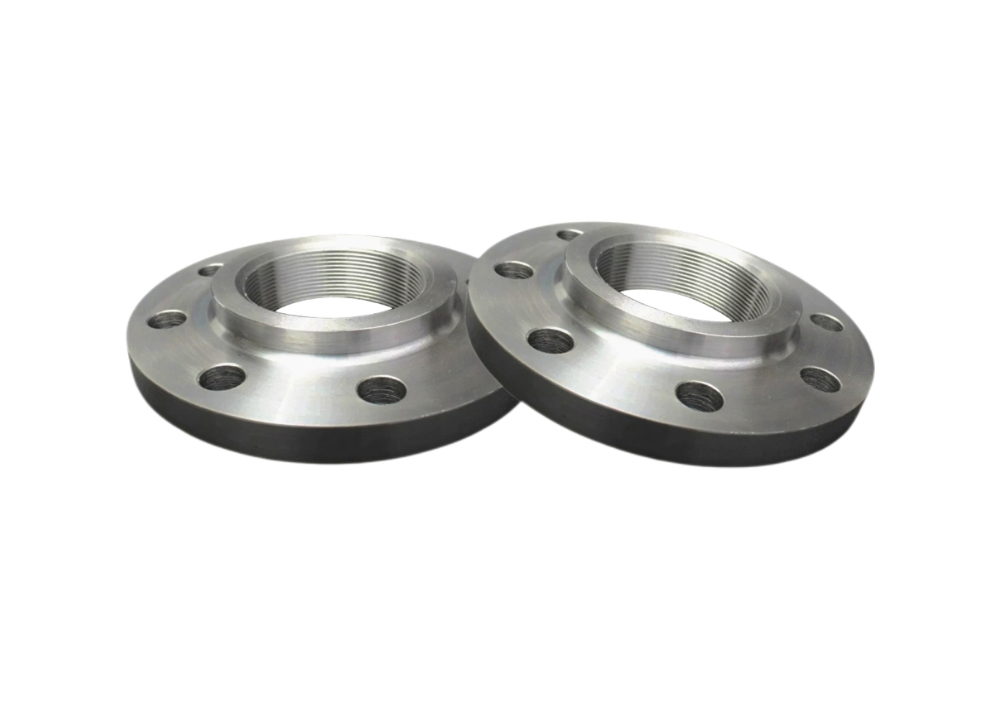

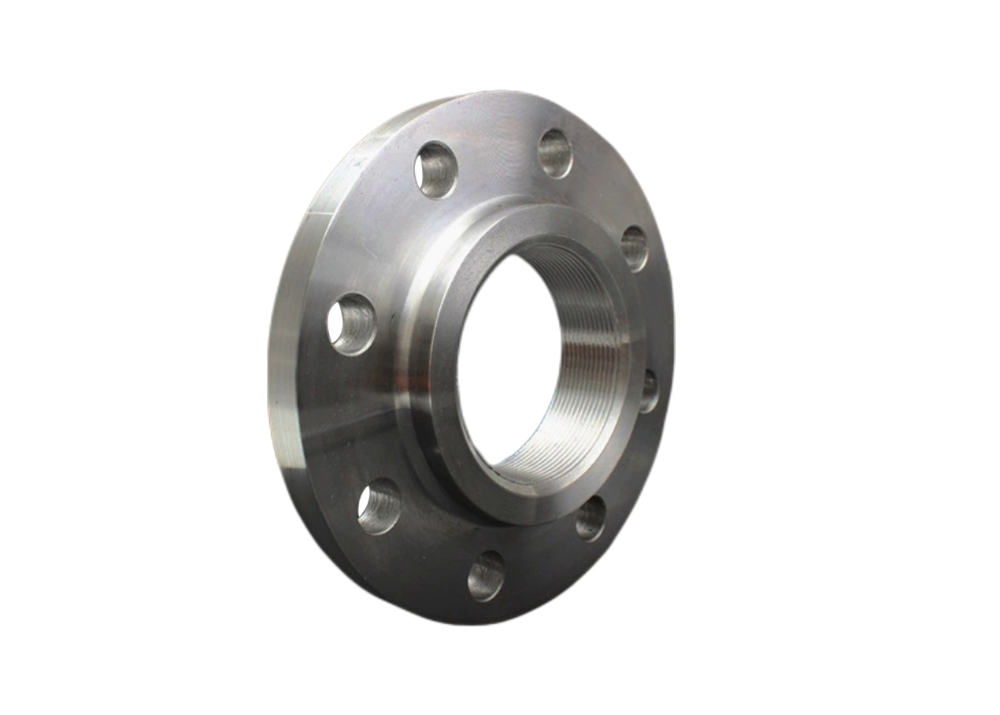

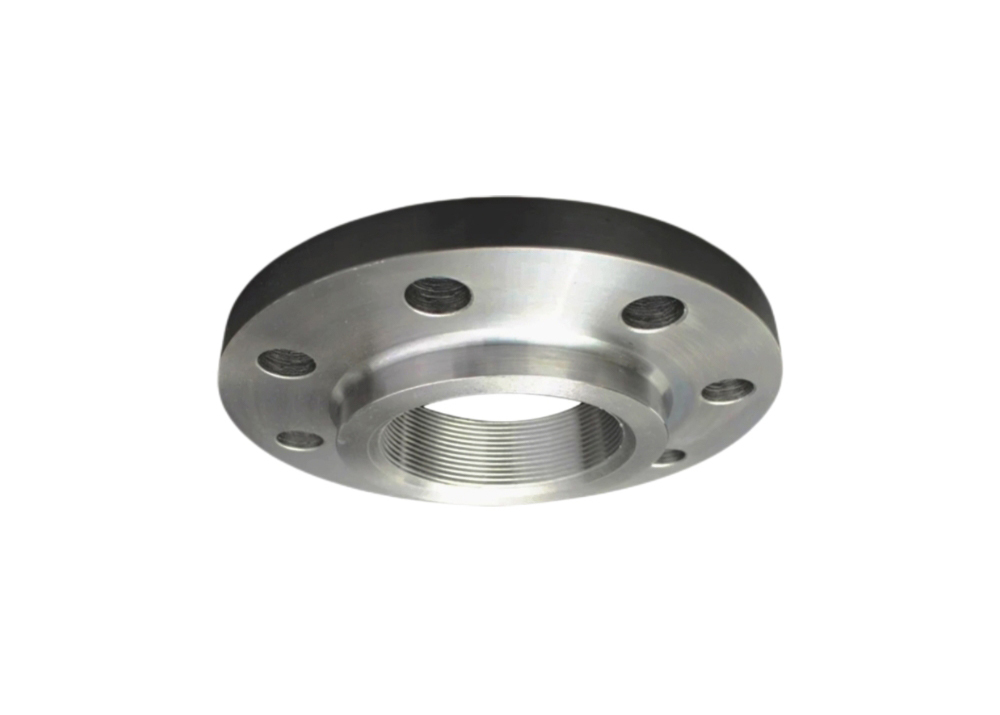

China Suppliers Forged Titanium Pipe Fitting Threaded Flange for High Sealing

China Suppliers Forged Titanium Pipe Fitting Threaded Flange for High Sealing

Products - Titanium Products - Titanium Flanges
  • Highlight

    forged titanium threaded flange

    ,

    NPS 1/2-6 flange

    ,

    Class 150-300 titanium flange

  • Material Designation
    TA1,TA2,TA9,TA10,GR1,GR2,GR7,GR12,GR16,N5,N6,N7 Etc
  • Size
    NPS 1/2-NPS 6
  • OEM/ODM
    Available
  • Pressure
    Class 150,Class300
  • Technics
    Forged
  • Sealing Surface
    RF,MFM,TG,FF
  • Place of Origin
    Shaanxi,China
  • Brand Name
    VOTECH
  • Certification
    ASME,ANSI
  • Model Number
    class150
  • Packaging Details
    Export Standard Wooden Case, or Can Be Customized
  • Delivery Time
    7-15 Days
  • Payment Terms
    MoneyGram,Western Union,T/T,D/P,D/A,L/C
  • Supply Ability
    100ton/Month

China Suppliers Forged Titanium Pipe Fitting Threaded Flange for High Sealing

Get Price Contact Now
China Suppliers Forged Titanium Pipe Fitting Threaded Flange for High Sealing
Titanium threaded pipe flanges are essential components in piping systems across multiple industries including chemical processing, petroleum refining, offshore engineering, power generation, pharmaceuticals, and food processing. These flanges excel in handling highly corrosive media such as hydrochloric acid, sulfuric acid, and seawater. Titanium's exceptional corrosion resistance ensures structural integrity and sealing reliability in harsh environments, significantly reducing maintenance costs and extending equipment lifespan. Additionally, titanium flanges offer substantial weight advantages over traditional stainless steel or carbon steel alternatives, making them ideal for applications where weight reduction is critical.
These threaded flanges are precision-engineered from non-ferrous titanium or titanium alloys, featuring threaded connections instead of welding. The internal bore is machined to form precise pipe threads, offering easy installation and maintenance. This design makes them particularly suitable for piping systems where welding is not permitted, especially in low-pressure environments.
Product Specifications
Standard ASME, ANSI
Material Designation TA1, TA2, TA9, TA10, GR1, GR2, GR7, GR12, GR16, N5, N6, N7 etc.
Size NPS 1/2 - NPS 6
OEM&ODM Available
Pressure Class 150, Class 300
Technics Forged
Sealing Surface RF, FF
Type Threaded flange
Packaging Export Standard Wooden case, or can be customized
Application Petroleum, chemical, shipbuilding, pharmaceutical, metallurgy, machinery, stamping elbow, food and other industries
Class150(mm) Dimensional Specifications
China Suppliers Forged Titanium Pipe Fitting Threaded Flange for High Sealing 0

Nominal Dimension

Outer diameter of steel pipe
A

Connection size

Flange thickness
C

The large end of the flange neck
N

Flange height
H

Pipe thread specification Rc or NPT

DN

NPS

Flange outer diameter
D

The diameter of the central circle of the bolt hole
K

Bolt hole diameter
L

Bolt
Th

The number of bolt holes
n(pc)

15

1/2

21.3

90

60.3

16

M14

4

9.6

30

14

1/2

20

3/4

26.9

100

69.9

16

M14

4

11.2

38

14

3/4

25

1

33.7

110

79.4

16

M14

4

12.7

49

16

1

32

1-1/4

42.4

115

88.9

16

M14

4

14.3

59

19

1-1/4

40

1-1/2

48.3

125

98.4

16

M14

4

15.9

65

21

1-1/2

50

2

60.3

150

120.7

18

M16

4

17.5

78

24

2

65

2-1/2

76.1

180

139.7

18

M16

4

20.7

90

27

2-1/2

80

3

88.9

190

152.4

18

M16

4

22.3

108

29

3

100

4

114.3

230

190.5

18

M16

8

22.3

135

32

4

125

5

139.7

255

215.9

22

M20

8

2.3

164

35

5

150

6

168.3

280

241.3

22

M20

8

23.9

192

38

6
Frequently Asked Questions
1. What are the outstanding performances of titanium threaded flange in terms of corrosion resistance?
Titanium threaded flanges demonstrate exceptional resistance to corrosive media including seawater and chloride ions. Their corrosion resistance significantly surpasses that of stainless steel and carbon steel, making them particularly suitable for demanding environments in marine and chemical industries.
2. Do titanium threaded flanges need additional anti-rust measures?
No additional anti-rust measures are required. Titanium threaded flanges can be used long-term without coatings or cathodic protection, eliminating rust risks and substantially reducing maintenance requirements.
3. Where does the lightweight advantage of titanium flanges lie?
Titanium offers strength comparable to steel but with only 60% of steel's density. This property enables significant weight reduction in applications such as aerospace and shipbuilding while maintaining high load-bearing capacity.
4. How does titanium flange perform in low-temperature environments?
Titanium flanges maintain excellent toughness in ultra-low temperature environments (such as liquid nitrogen and liquid oxygen applications), making them an ideal choice for cryogenic engineering projects.
5. How is the high-temperature resistance of titanium flanges?
Titanium alloys (including TA2 and TA9) maintain stable mechanical properties at high temperatures ranging from 300-500℃, with some materials capable of withstanding even higher temperatures for limited durations.
6. How do titanium flanges resist high-temperature oxidation?
At elevated temperatures, titanium forms a dense, protective oxide surface layer that effectively isolates oxygen and prevents further material oxidation.
7. Why is the service life of titanium flanges longer than that of stainless steel?
In corrosive environments, titanium flanges can last over ten times longer than stainless steel equivalents while requiring minimal maintenance, resulting in significantly lower total lifecycle costs.
8. Why are titanium flanges still economical despite their high initial cost?
While titanium flanges have higher initial purchase costs, their extended service life and minimal maintenance requirements result in superior long-term economic performance and lower total cost of ownership.
9. Are titanium flanges suitable for the pharmaceutical and food industries?
Yes. Titanium's non-toxic, biocompatible properties and high material purity meet stringent hygiene requirements for pharmaceutical and food processing applications.
10. How are the processing and welding properties of titanium flanges?
Titanium flanges support various welding methods including TIG and plasma welding, producing high-strength welds. They can be designed with multiple interface configurations (flat welding, butt welding, threaded welding) to meet diverse pipeline system requirements.
Our Manufacturing Advantages
  • Strict Quality: Rigorous quality control measures comply with ASME, JIS, DIN, GB, GOST standards, ensuring all titanium products meet industry and customer specifications.
  • Modern Production Facilities: Advanced manufacturing infrastructure with multiple titanium metal production lines enables efficient handling of bulk orders and customized projects.
  • Logistics and Packaging: All orders are carefully packed in wooden crates or trays to prevent transit damage, providing maximum protection and safety.
  • Experienced Team: Years of specialized expertise in titanium metal manufacturing ensures production of high-quality products tailored to various industry needs.
  • Comprehensive Service: Customized solutions, rapid lead times, and dedicated support throughout the purchasing process.
  • Customer-Centric Services: Flexible payment options, comprehensive technical support, and dedicated customer service for a seamless purchasing experience.
