High-Pressure ASME Threaded Titanium Flange for Petrochemical and Gas Applications

High-Pressure ASME Threaded Titanium Flange for Petrochemical and Gas Applications

Products - Titanium Products - Titanium Flanges
  • Highlight

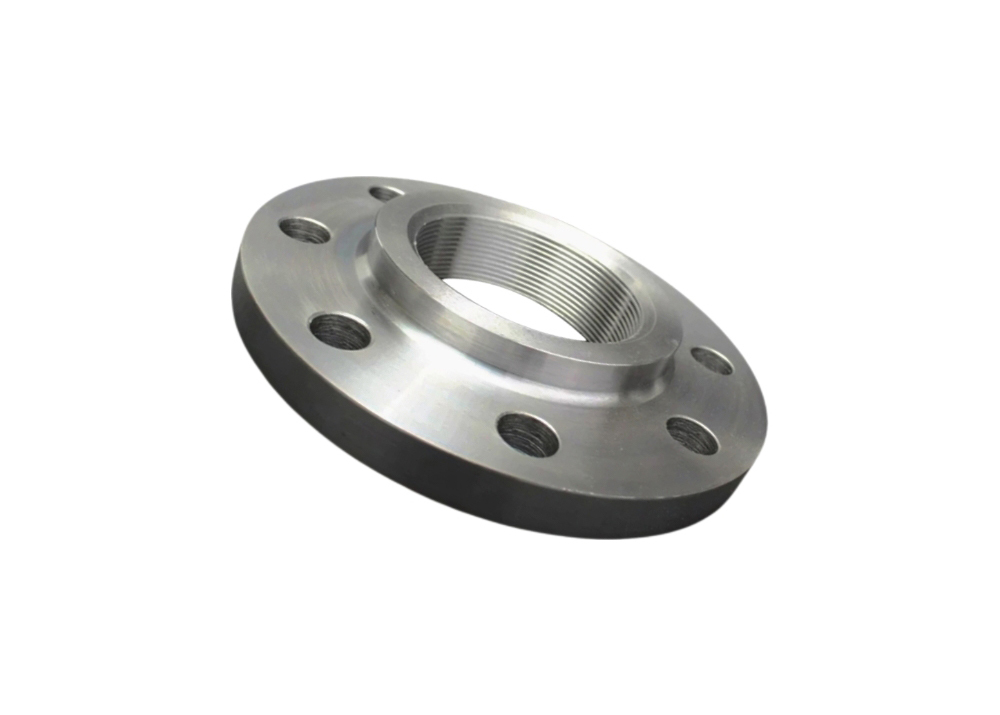

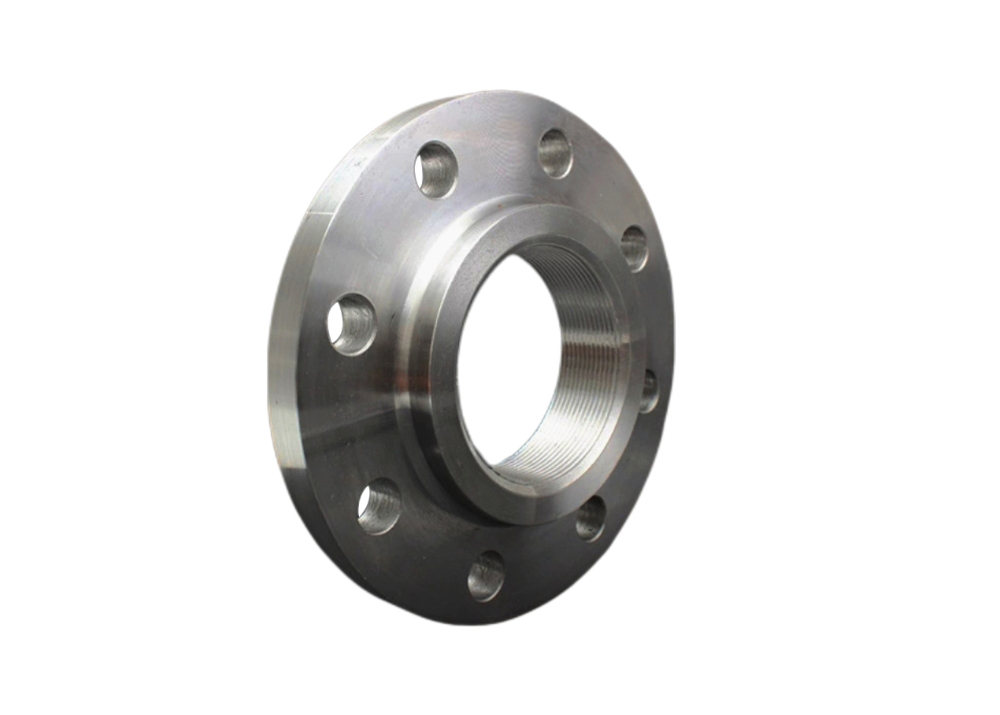

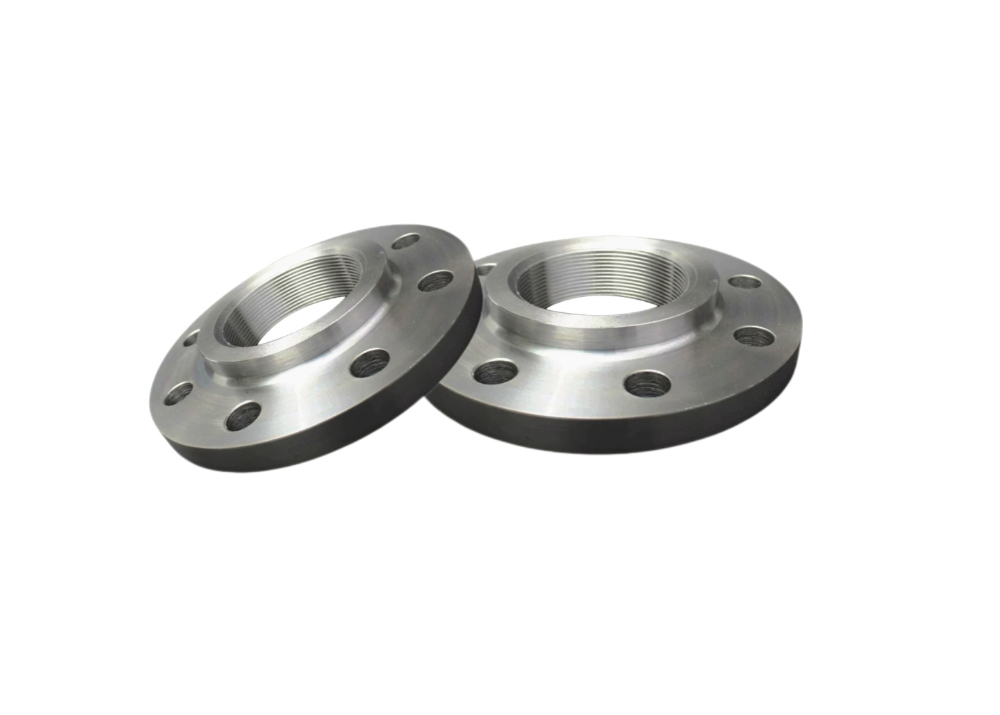

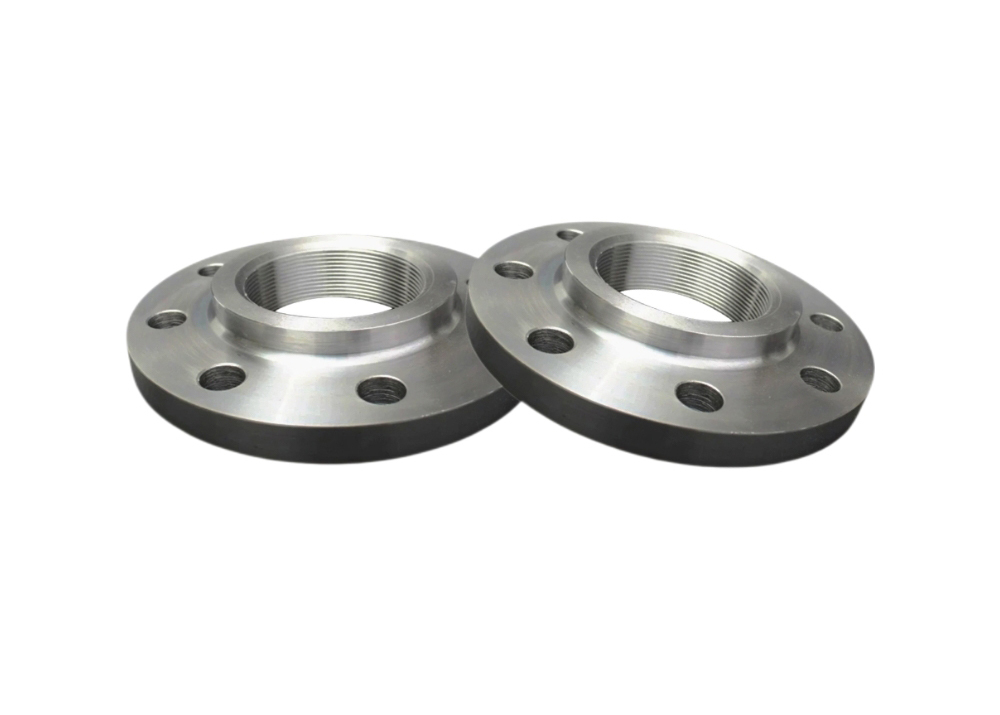

    ASME threaded titanium flange

    ,

    high-pressure titanium gas flange

    ,

    petrochemical titanium flange with warranty

  • Material Designation
    TA1,TA2,TA9,TA10,GR1,GR2,GR7,GR12,GR16,N5,N6,N7 Etc
  • Size
    NPS 1/2-NPS 6
  • OEM/ODM
    Available
  • Pressure
    Class 150,Class300
  • Technics
    Forged
  • Sealing Surface
    RF,MFM,TG,FF
  • Place of Origin
    Shaanxi,China
  • Brand Name
    VOTECH
  • Certification
    ASME,ANSI
  • Model Number
    class150
  • Packaging Details
    Export Standard Wooden Case, or Can Be Customized
  • Delivery Time
    7-15 Days
  • Payment Terms
    MoneyGram,Western Union,T/T,D/P,D/A,L/C
  • Supply Ability
    100ton/Month

High-Pressure ASME Threaded Titanium Flange for Petrochemical and Gas Applications

Get Price Contact Now
High-Pressure ASME Threaded Titanium Flange for Petrochemical and Gas Applications
Titanium threaded pipe flanges are essential components in piping systems across industries including chemical processing, petroleum refining, offshore
engineering, power generation, pharmaceuticals, and food processing. These flanges excel in handling highly corrosive media such as hydrochloric acid,
sulfuric acid, and seawater.

Titanium's superior corrosion resistance ensures structural integrity and sealing reliability in harsh environments, significantly reducing maintenance costs
and extending equipment lifespan. Compared to traditional stainless steel or carbon steel flanges, titanium flanges offer substantial weight reduction, making
them ideal for applications where weight savings are critical.

Our titanium threaded flanges are precision-engineered pipe end fittings made from high-grade titanium or titanium alloys. Featuring threaded connections
instead of welding, these flanges have internal bores machined with pipe threads for easy installation and maintenance. They are particularly suitable for
 piping systems where welding is not permitted, especially in low-pressure environments.
Technical Specifications
Standard ASME, ANSI
Material Designation TA1, TA2, TA9, TA10, GR1, GR2, GR7, GR12, GR16, N5, N6, N7 etc.
Size NPS 1/2 - NPS 6
OEM & ODM Available
Pressure Class 150, Class 300
Technics Forged
Sealing Surface RF, FF
Type Threaded flange
Packaging Export Standard Wooden case, or can be customized
Application Petroleum, chemical, shipbuilding, pharmaceutical, metallurgy, machinery, stamping elbow, food and other industries
Class 300 (mm) Dimensional Specifications
High-Pressure ASME Threaded Titanium Flange for Petrochemical and Gas Applications 0

Nominal Dimension

Outer diameter of steel pipe
A

Connection size

Flange thickness
C

The large end of the flange neck
N

Flange height
H

Minimum thread length
H

Threaded positioning hole diameter

V

Pipe thread specification Rc or NPT

DN

NPS

Flange outer diameter
D

The diameter of the central circle of the bolt hole
K

Bolt hole diameter
L

Bolt
Th

The number of bolt holes
n(pc)

15

1/2

21.3

95

66.7

16

M14

4

12.7

38

21

16

23.6

1/2

20

3/4

26.9

115

82.6

18

M16

4

14.3

48

24

16

29.0

3/4

25

1

33.7

125

88.9

18

M16

4

15.9

54

25

18

35.8

1

32

1-1/4

42.4

135

98.4

18

M16

4

17.5

64

25

21

44.4

1-1/4

40

1-1/2

48.3

155

114.3

22

M20

4

19.1

70

29

23

50.3

1-1/2

50

2

60.3

165

127.0

18

M16

8

20.7

84

32

29

63.5

2

65

2-1/2

76.1

190

149.2

22

M20

8

23.9

100

37

32

76.2

2-1/2

80

3

88.9

210

168.3

22

M20

8

27.0

117

41

32

92.2

3

100

4

114.3

255

200.0

22

M20

8

30.2

146

46

37

117.6

4

125

5

139.7

280

235.0

22

M20

8

33.4

178

49

43

144.4

5

150

6

168.3

320

269.9

22

M20

12

35.0

206

51

47

171.4

6
