Precision Steel Pin Gauge Set for Inspection Hole Diameter and Groove Width
- Measures hole sizes and geometry with precision.
- Manufactured to ±0.001mm tolerance for accuracy.
- Each pin clearly etched with stated size.

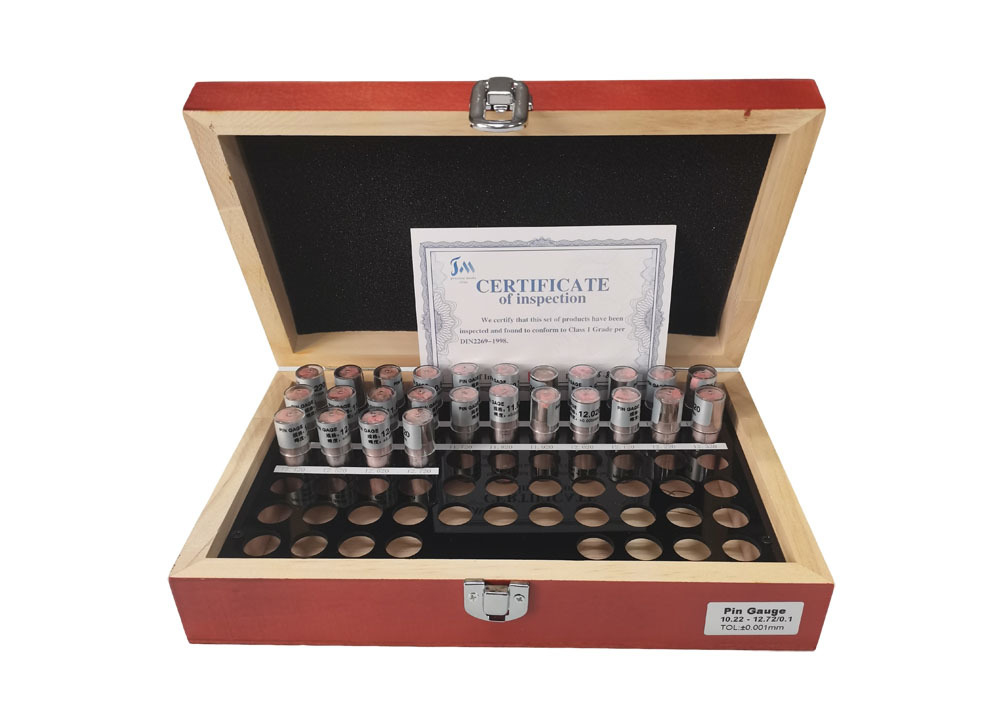

- Includes inspection certificate with every set.

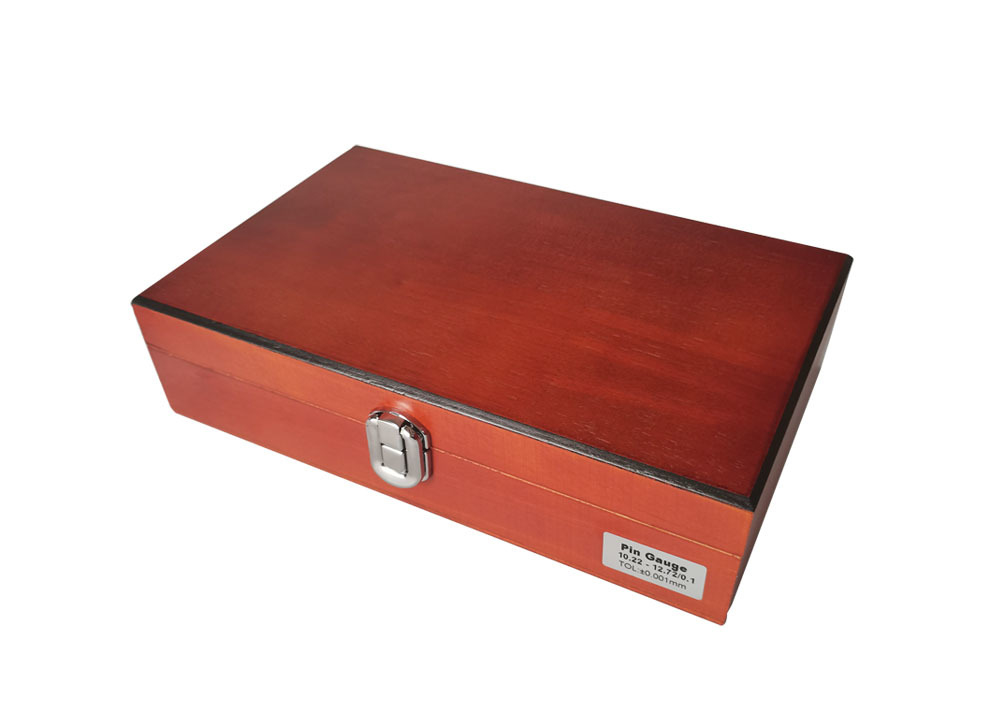

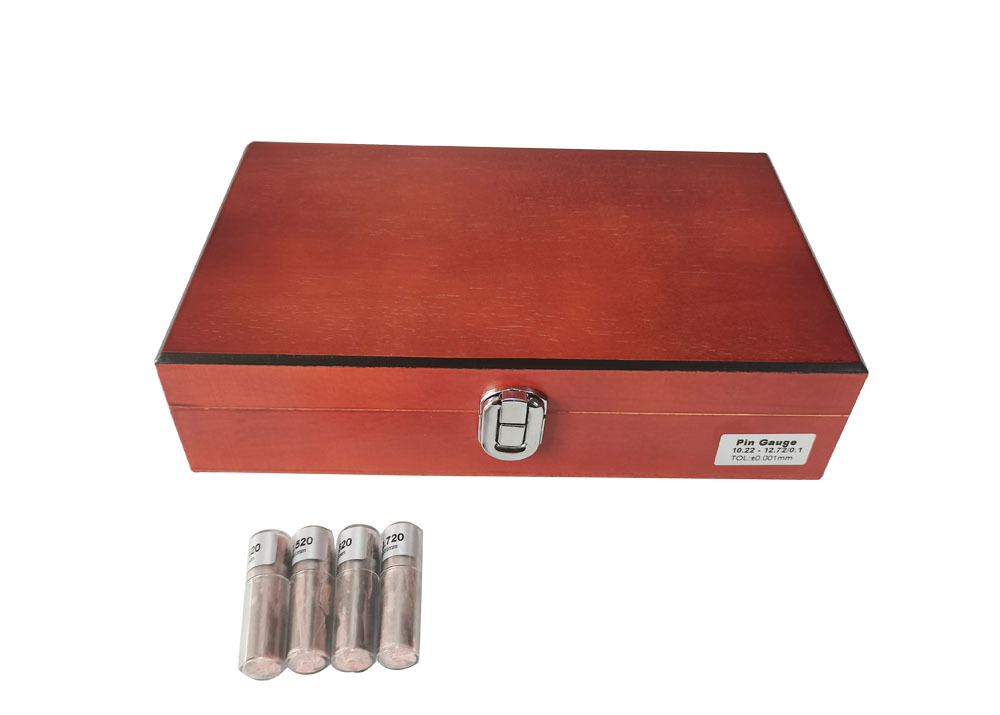

- Supplied with high-impact protective case.

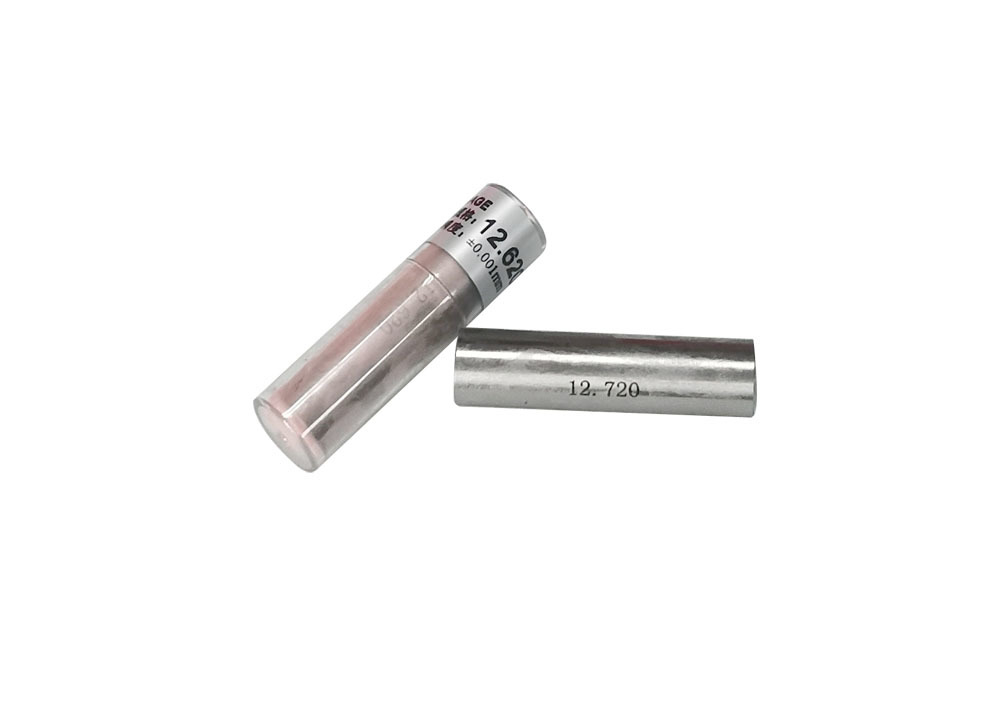

Pin gauge is cylindrical gauges with guaranteed diameter accuracy, mainly used for inspecting hole diameter and groove width.
It can also calibrate vernier gauges, micrometers, and other measuring equipment to detect geometric deviations.
Pin gauge is made of steel, heat-treated to a hardness of 60-62 RC for durability and long-lasting reliability.
These 126 pieces set covers a range of 0.22 to 10.12mm with step 0.1mm. The surface of the gauge is polished and burr-free,
with a finish of 10 microns or better.

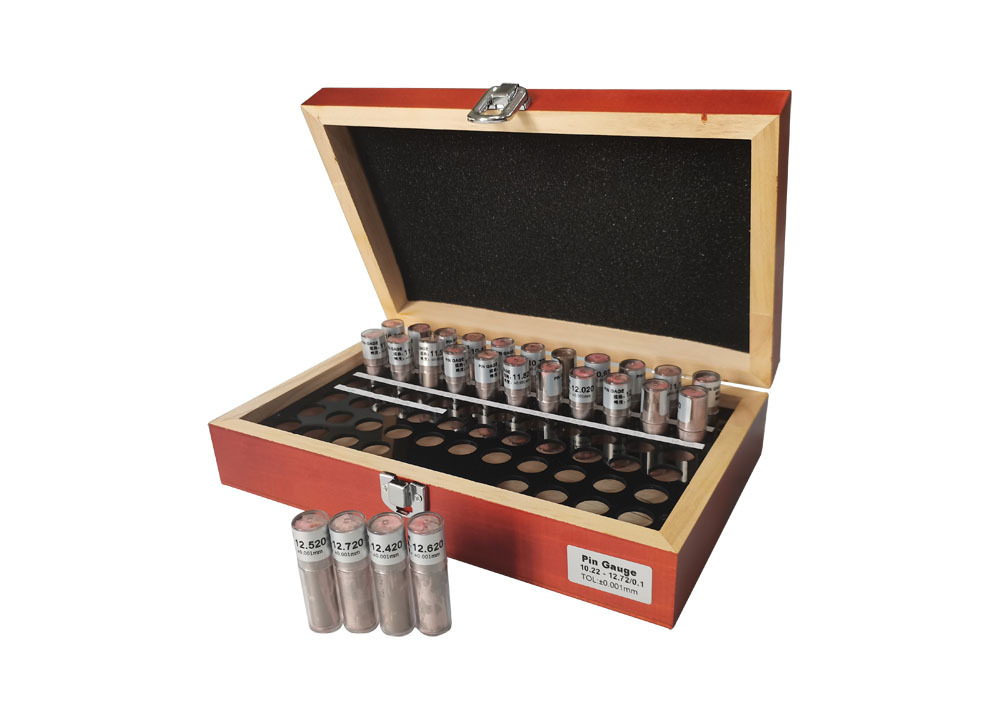

Pin gauge comes with a storage case to keep the pin calipers organized. Each gauge size is clearly marked on the case,
and size information is engraved on each tang gauge, making it easy to identify and use.
| Order No. | Measuring Range (mm) | Size (mm) | Step | Pin Gauge Per Set |
|---|---|---|---|---|
| KM-PG-0.22-10.12 | 0.22-10.12 |
0.22,0.32,0.42,0.52,0.62,0.72,0.82,0.92,1.02,1.12,1.22,1.32,1.42,1.52,1.62,1.72, 1.82,1.92,2.02,2.12,2.22,2.32,2.42,2.52,2.62,2.72,2.82,2.92,3.02,3.12,3.22,3.32, 3.42,3.52,3.62,3.72,3.82,3.92,4.02,4.12,4.22,4.32,4.42,4.52,4.62,4.72,4.82,4.92, 5.02,5.12,5.22,5.32,5.42,5.52,5.62,5.72,5.82,5.92,6.02,6.12,6.22,6.32,6.42,6.52, 6.62,6.72,6.82,6.92,7.02,7.12,7.22,7.32,7.42,7.52,7.62,7.72,7.82,7.92,8.02,8.12, 8.22,8.32,8.42,8.52,8.62,8.72,8.82,8.92,9.02,9.12,9.22,9.32,9.42,9.52,9.62,9.72, 9.82,9.92,10.02,10.12 |
0.1mm | 100pcs |
| KM-PG-10.22-12.72 | 10.22-12.72 |
10.22,10.32,10.42,10.52,10.62,10.72,10.82,10.92,11.02,11.12,11.22,11.32,11.42, 11.52, 11.62,11.72,11.82,11.92,12.02,12.12,12.22,12.32,12.42,12.52,12.62,12.72 |
0.1mm | 26pcs |
- Always clean both the pin gauge and measured surface with a lint-free cloth before use.
- Avoid dropping or striking gauges against hard surfaces to prevent damage.
- Never force a pin gauge - proper sizing requires smooth insertion with minimal pressure.
- Handle by the grip when possible and minimize skin contact with measuring surfaces.
- Store in protective case immediately after use to maintain precision.
- Direct measurement of hole diameters, bores, and slot widths.
- Quality control for first-article inspection, in-process checks, and final QA.
- Machine tool setup verification before production runs.
