Precision Pin Gauge Set 0.22-10.12 Hardened Steel Gauge Pins for Dimensional Inspection
-
Highlight
hardened steel pin gauge set
,precision gauge pins for dimensional inspection
,0.22-10.12 pin gauge set
-
WarrantyOne Year
-
Range0.22-10.12
-
Number Of Pins100Pcs
-
Use CaseChecking Hole Sizes
-

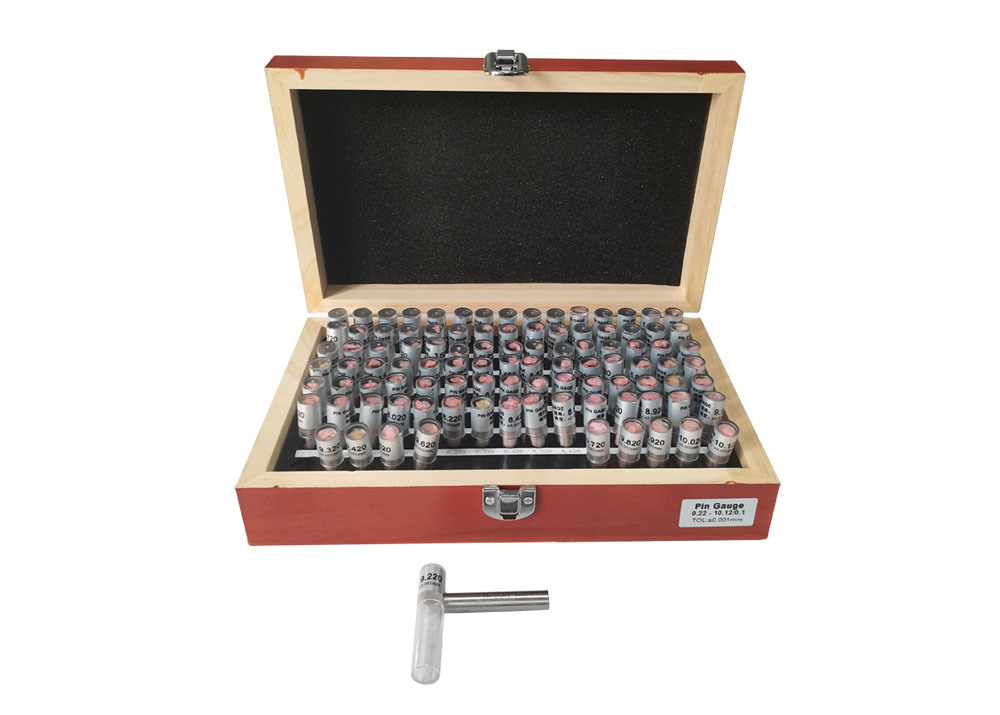

Case LayoutIndividual Slots
-
ApplicationDimensional Inspection
-
Pin Length51mm
-

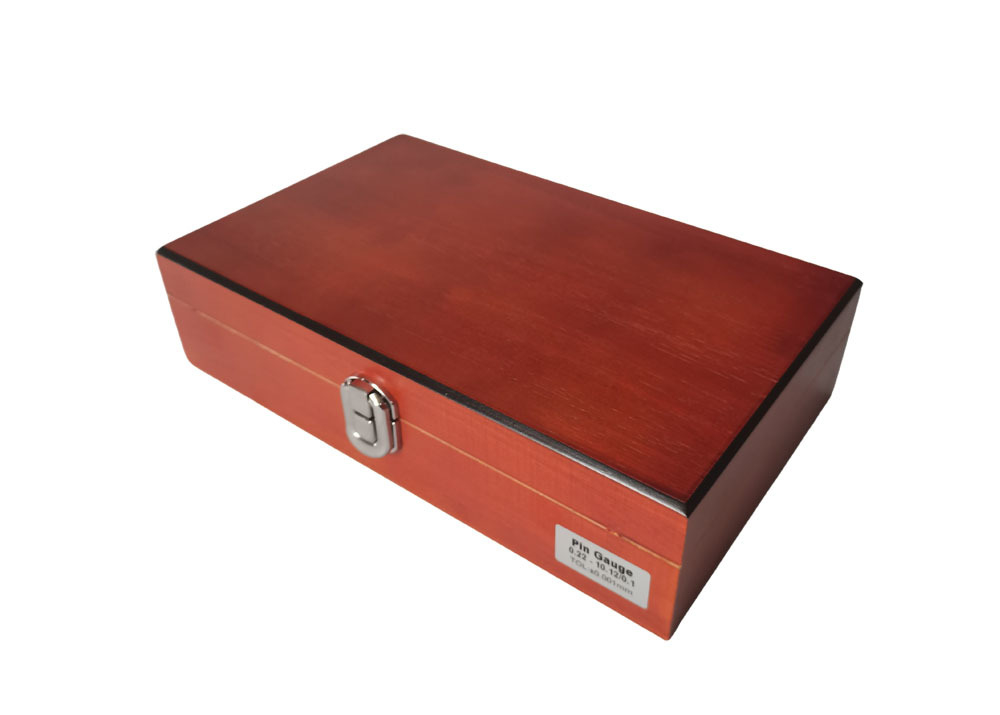

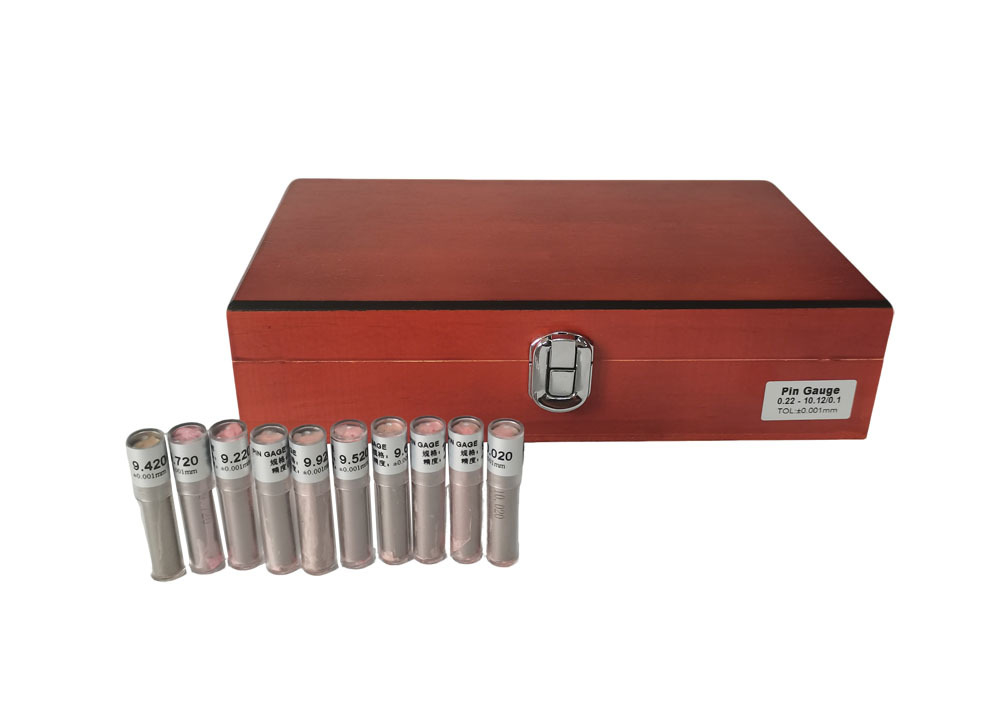

PackageWooden Case
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-PG-0.22-10.12
-
Packaging DetailsWooden Box 30* 20*9.5cm/Piece 2.2kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
Precision Pin Gauge Set 0.22-10.12 Hardened Steel Gauge Pins for Dimensional Inspection
- Measures hole sizes and geometry with precision.
- Manufactured to ±0.001mm tolerance for accuracy.

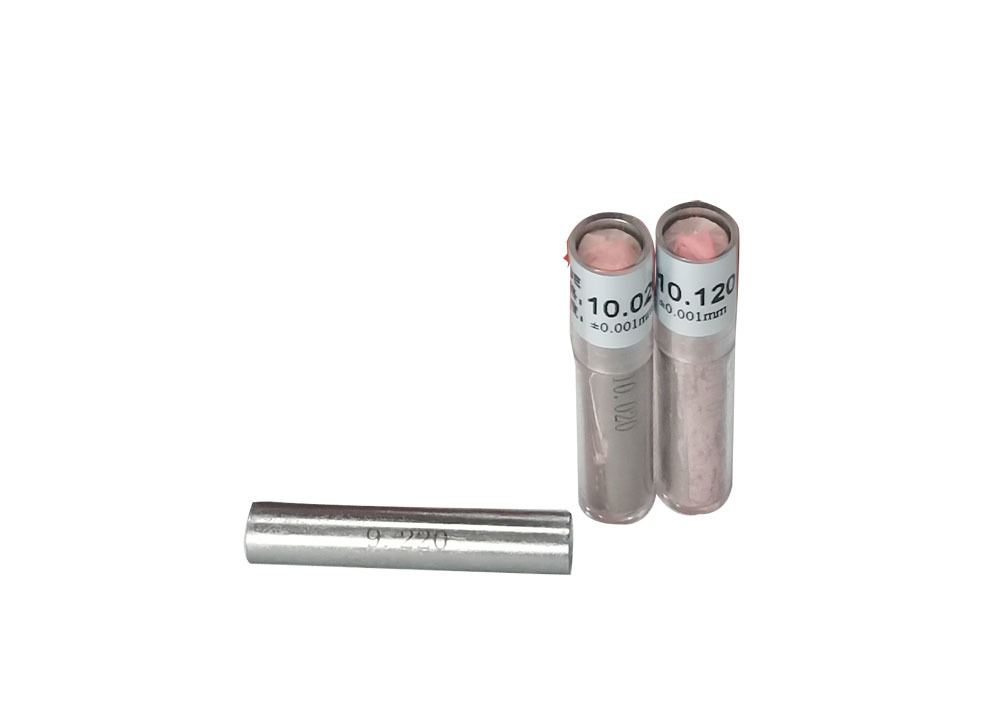

- Each pin clearly etched with stated size.

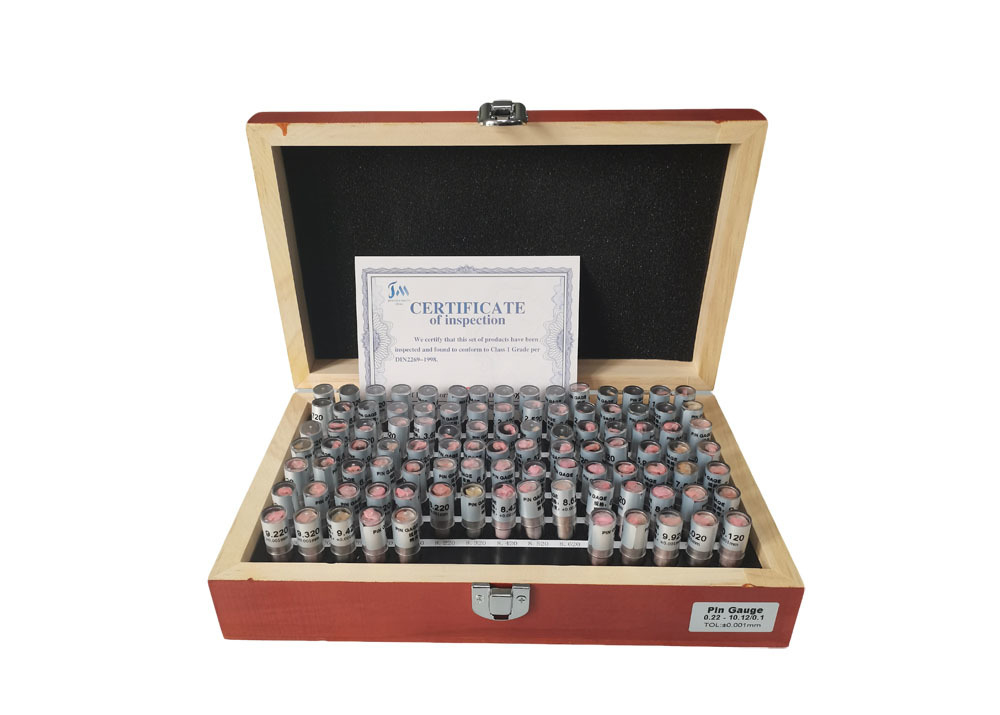

- Includes inspection certificate with every set.
- Supplied with high-impact protective case.
| Order No. | Measuring Range (mm) | Size (mm) | Step | Pin Gauge Per Set |
|---|---|---|---|---|
| KM-PG-0.22-10.12 | 0.22-10.12 |
0.22,0.32,0.42,0.52,0.62,0.72,0.82,0.92,1.02,1.12,1.22,1.32,1.42,1.52,1.62,1.72,1.82, 1.92,2.02,2.12,2.22,2.32,2.42,2.52,2.62,2.72,2.82,2.92,3.02,3.12,3.22,3.32,3.42,3.52, 3.62,3.72,3.82,3.92,4.02,4.12,4.22,4.32,4.42,4.52,4.62,4.72,4.82,4.92,5.02,5.12,5.22, 5.32,5.42,5.52,5.62,5.72,5.82,5.92,6.02,6.12,6.22,6.32,6.42,6.52,6.62,6.72,6.82, 6.92,7.02,7.12,7.22,7.32,7.42,7.52,7.62,7.72,7.82,7.92,8.02,8.12,8.22,8.32,8.42,8.52,8.62,8.72,8.82, 8.92,9.02,9.12,9.22,9.32,9.42,9.52,9.62,9.72,9.82,9.92,10.02,10.12 |
0.1mm | 100pcs |
| KM-PG-10.22-12.72 | 10.22-12.72 |
10.22,10.32,10.42,10.52,10.62,10.72,10.82,10.92,11.02,11.12,11.22,11.32,11.42,11.52, 11.62,11.72,11.82,11.92,12.02,12.12,12.22,12.32,12.42,12.52,12.62,12.72 10.22,10.32,10.42,10.52,10.62,10.72,10.82,10.92,11.02,11.12,11.22,11.32,11.42, 11.52,11.62,11.72,11.82,11.92,12.02,12.12,12.22,12.32,12.42,12.52,12.62,12.72 |
0.1mm | 26Pcs |
- Always clean the pin gauge and workpiece with a lint-free cloth before measurement.
- Avoid dropping or striking gauges against hard surfaces to prevent damage.
- Never force a pin gauge - correct sizes should slide in smoothly with minimal pressure.
- Handle by the tang when possible and minimize skin contact with measuring surfaces.
- Store gauges in protective case immediately after use.
- Direct measurement of hole diameters, bores, and slots.
- Quality control for first-article inspection, in-process checks, and final QA.
- Machine tool setup and verification before production runs.
