0-200mm Marking Vernier Caliper With Carbide Scriber Parallel Marking Gauge Ruler Measuring Instrument
-
Highlight
Carbide Scriber Vernier Caliper
,Parallel Marking Gauge Ruler Measuring Instrument
,0-200mm Marking Vernier Caliper
-
WarrantyOne Year
-
MeasurementMetric
-
MaterialStainless Steel
-
Type Of Vernier ScaleStandard Vernier
-
Range0-200mm
-
Graduation0.02mm
-
Slide MovementSmooth Gliding Action
-
Unit MarkingMm
-
PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-MVC200
-
Packaging DetailsABS Box 28*13*4.5cm/Piece 0.55kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

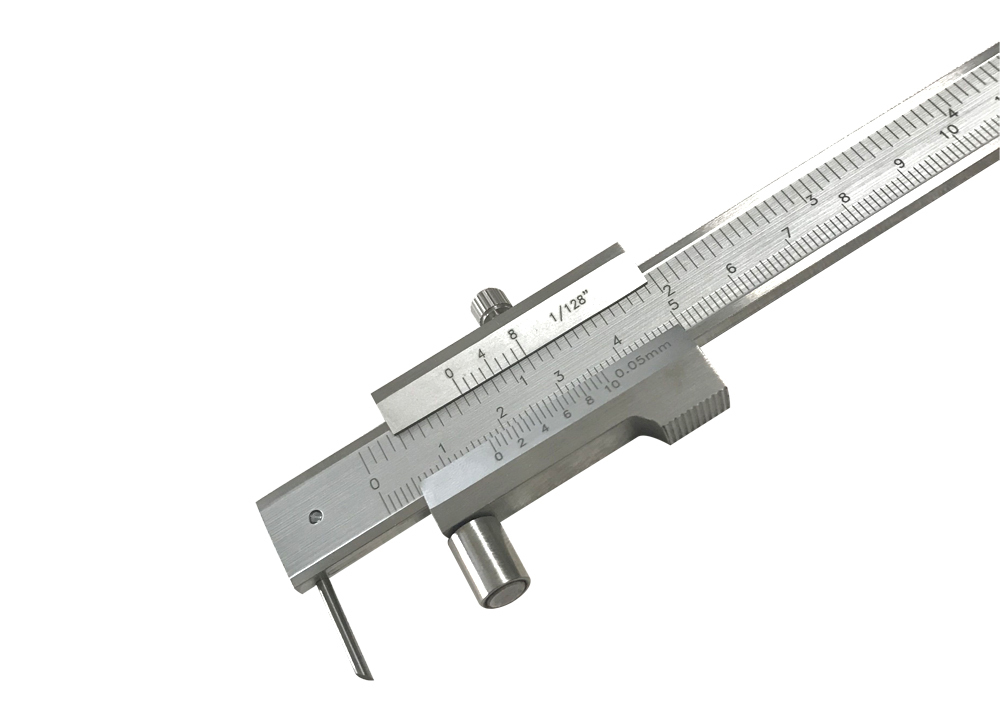

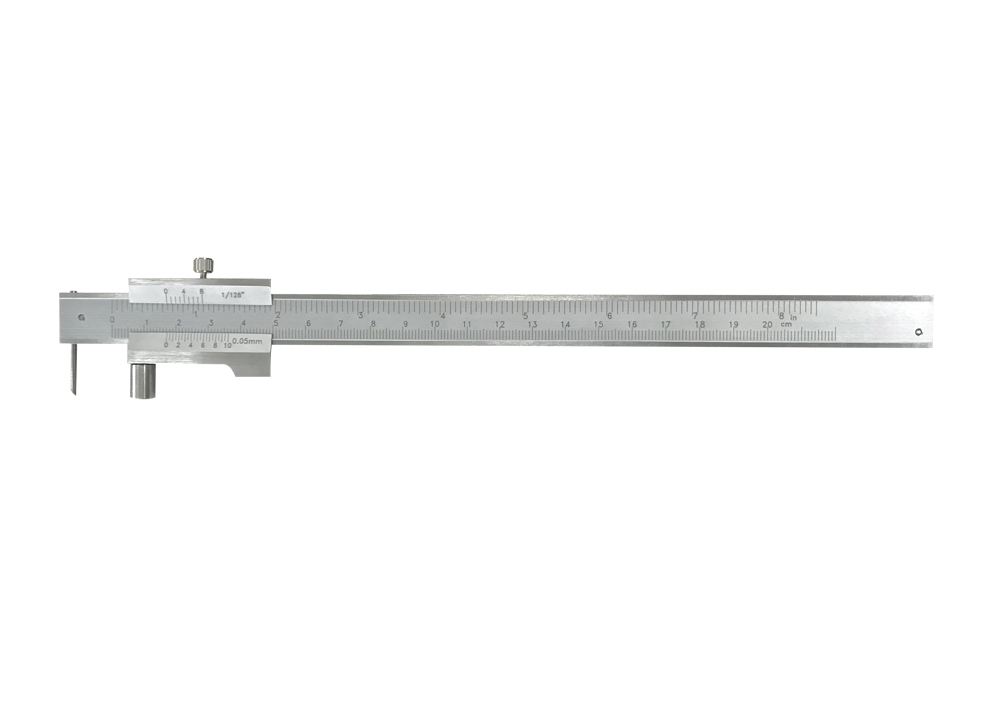

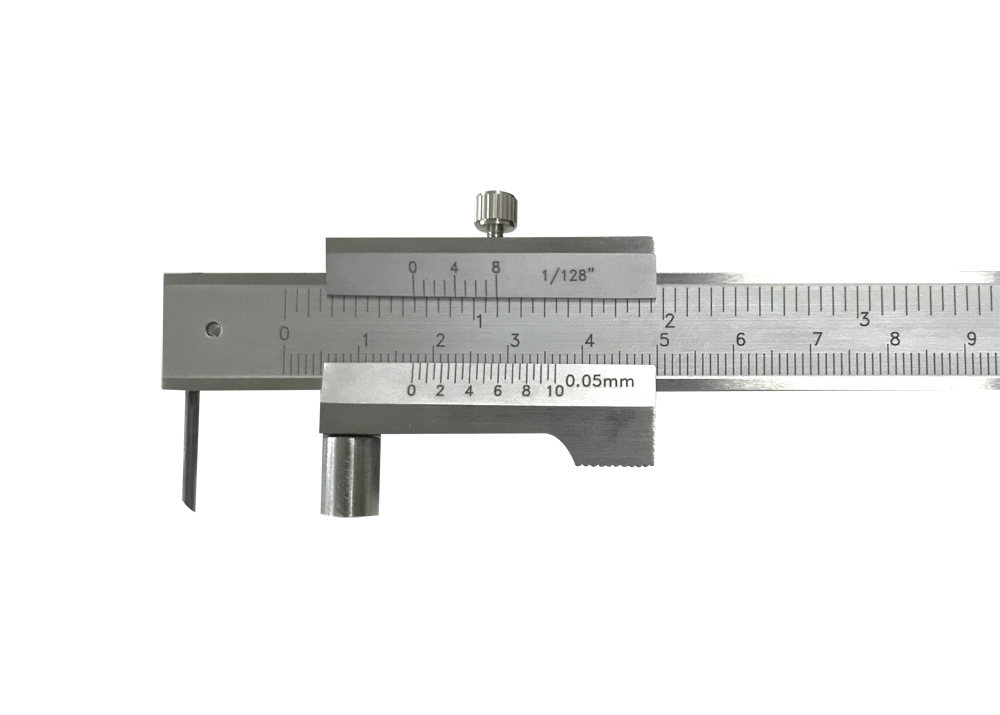

0-200mm Marking Vernier Caliper With Carbide Scriber Parallel Marking Gauge Ruler Measuring Instrument
Marking vernier caliper is also called parallel marking gauge ruler used for accurate measurement and precise marking in mechanical engineering
and metalworking applications. It can be used for precise measurement and scoring of workpieces, as well as measuring the diameter of various
objects, to ensure the accuracy of workpiece dimensions.
Parallel marking caliper is made of stainless steel, the scale of the vernier caliper is clear, making reading easier and more accurate.
The metric and inch scales can meet your different needs.
Marking vernier caliper, which is professional-grade caliper combines traditional vernier measurement with an integrated scratch tool,
allowing users to measure dimensions and mark workpieces in a single operation.
- Stainless steel hardened body for durability.
- Integrated parallel scriber function.
- Adjustable scriber that slides up and down or can be replaced.

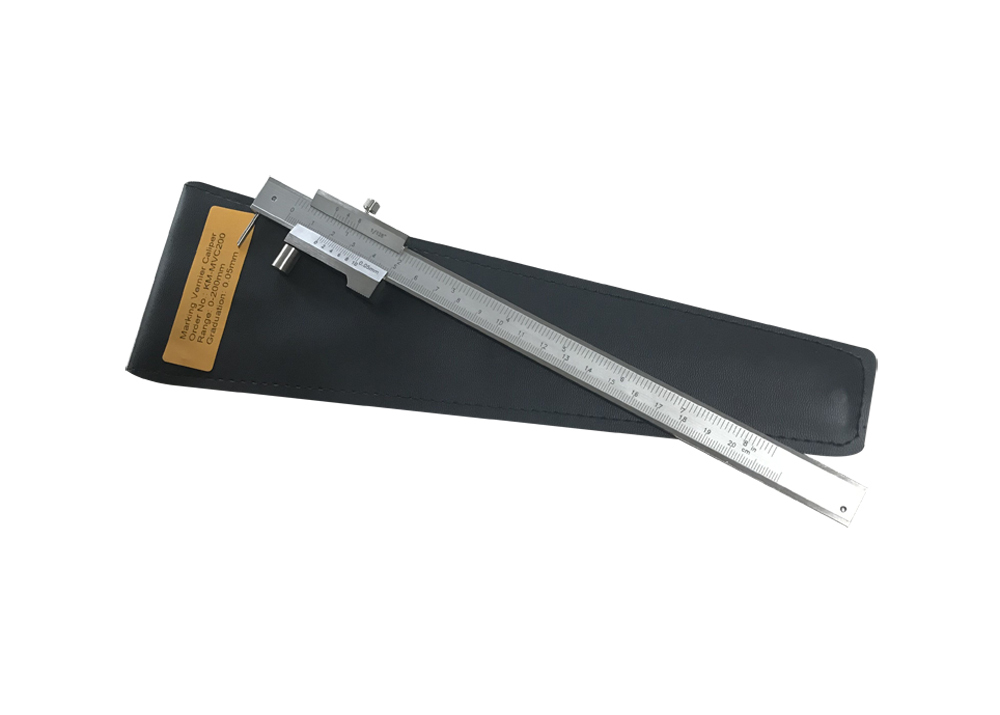

- Includes protective case for safe storage.
| Order No. | Measuring Range | Graduation |
|---|---|---|
| KM-MVC150 | 0-150mm | 0.05mm |
| KM-MVC200 | 0-200mm | 0.05mm |
- Clean workpiece surfaces before measurement/marking to ensure accuracy.
- Engage locking screw when taking critical measurements to prevent sliding.
- Do not use on moving or vibrating workpieces.
- Store in protective case with scriber retracted.
- Machining: Layout marking for drilling/milling operations.
- Metal Fabrication: Precision measurement and scribing of sheet metal.
- Tool & Die Making: Dimensional verification and template marking.
- Quality Control: Dual verification of part dimensions.
