Digital Welding Gauge Weld Seam Fillet Inspection 20mm LCD Display Metric Inch Gauge
-
Highlight
Digital Welding Gauge
,LCD Display Metric Inch Gauge
-
WarrantyOne Year
-
MeasurementMetric/Inch
-
Probe DesignPointed Tip For Crevices
-
MaterialStainless Steel
-
FeatureDigital LCD Display
-
Measurement FunctionWeld Undercut Depth Measurement
-
Sensor TypePrecision Linear Encoder
-
Included AccessoriesProtective Case
-
PackageAluminum Case
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-DYW-100
-
Packaging DetailsAluminum Case 35*17*5cm/Piece 0.66kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

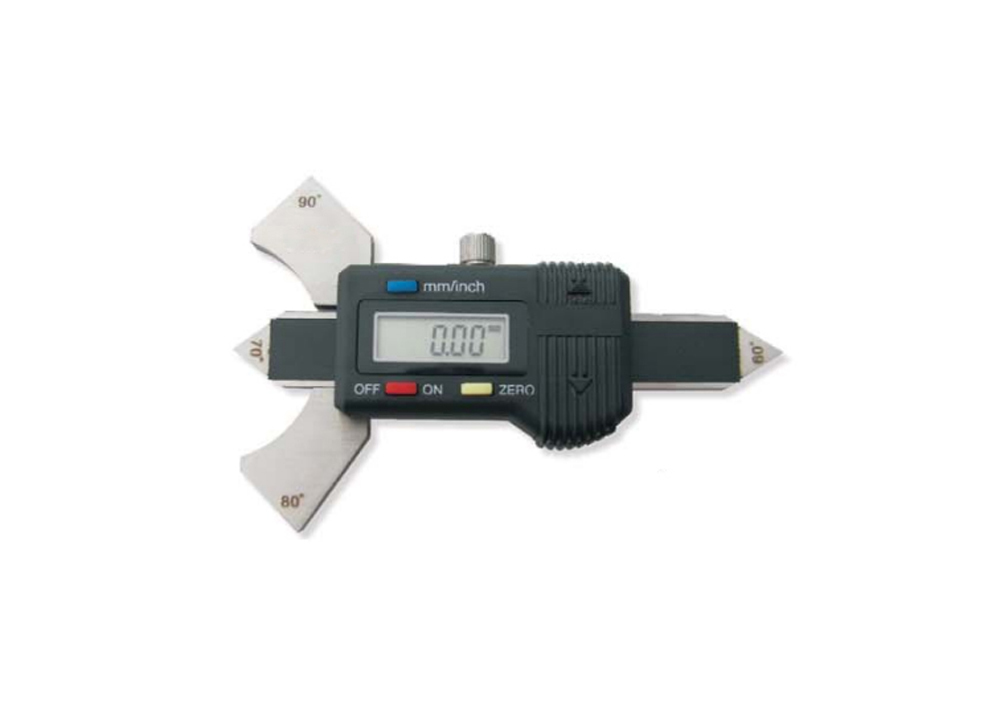

Digital Welding Gauge Weld Seam Fillet Inspection 20mm LCD Display Metric Inch Gauge
Digital welding gauge is used for precise weld height, fillet thickness, and bevel angle measurements, it is a compact, lightweight tool engineered
for professional welders and inspectors. Featuring four fixed angle displays (60°, 70°, 80°, 90°).
Electronic welding gauge offers instant unit conversion between Metric and Inch. Digital welding gauge is made of high-strength stainless body,
they have strong resistance to wear and corrosion. The clear LCD display provides easy reading. Set zero at any position for ultimate flexibility
and accuracy in complex welds.
1. Used for weld height, fillet thickness, and bevel angle measurements.
2. LCD display for easy reading.
3. Stainless steel hardened body.
4. in/mm: inch/metric conversion.
5. ON/OFF: power on and power off.
6. ZERO: zero setting.
7. Seamlessly measure welds at 60°70°80°and 90° for flawless results.
8.Supplied in safe case packing.
| Order No. | Range | Resolution | Accuracy |
|---|---|---|---|
| KM-DYW-100 | 0-12.5mm/0-5″ | 0.01mm/0.0005″ | ±0.03mm |
| KM-DYW-150 | 0-20mm/0-8″ | 0.01mm/0.0005″ | ±0.03mm |
- Measurement of weld reinforcement height and excess weld metal in butt joints.
- Weld toe angle inspection and misalignment (hi-lo) measurement.
- Pre-production joint fit-up checks (bevel angles, root gaps).
- Post-weld inspection for procedure validation.
- Wear-resistant overlay thickness verification.
- Clean measurement surfaces from slag, spatter, or debris before use.
- Ensure proper contact between gauge probes and weld profile.
- Clean probes after use with soft brush (avoid abrasive tools).
- Store in protective case with ABS gel to prevent moisture damage.
