Wholesale Sanitary Fittings Ware Elbow Titanium 90° Sanitary Elbow
-
Highlight
Titanium sanitary elbow 90 degree
,Wholesale titanium pipe fittings
,Sanitary fittings titanium elbow
-
MaterialTA1,TA2, Gr.1 BT1-00, Gr.1ELI, BT1－00CB,Gr.2 BT1-0 Etc
-
SizeDN15-DN 650(NPS1/2-NPS 26)
-
OEM/ODMAvailable
-
Titanium Surface FinishInner And Outer Surface Polishing
-
TechnicsWelding
-
TypeTitanium 90° Sanitary Elbow
-
Place of OriginShaanxi,China
-
Brand NameVOTECH
-
CertificationGB/T17684—2011，ASME B 16.9
-
Model NumberDN15-DN 650(NPS1/2-NPS 26)
-
Packaging DetailsExport Standard Wooden Case, or Can Be Customized
-
Delivery Time7-15 Days
-
Payment TermsMoneyGram,Western Union,T/T,D/P,D/A,L/C
-
Supply Ability100ton/Month
Wholesale Sanitary Fittings Ware Elbow Titanium 90° Sanitary Elbow
Wholesale Sanitary Fittings Ware Elbow Titanium 90° Sanitary Elbow

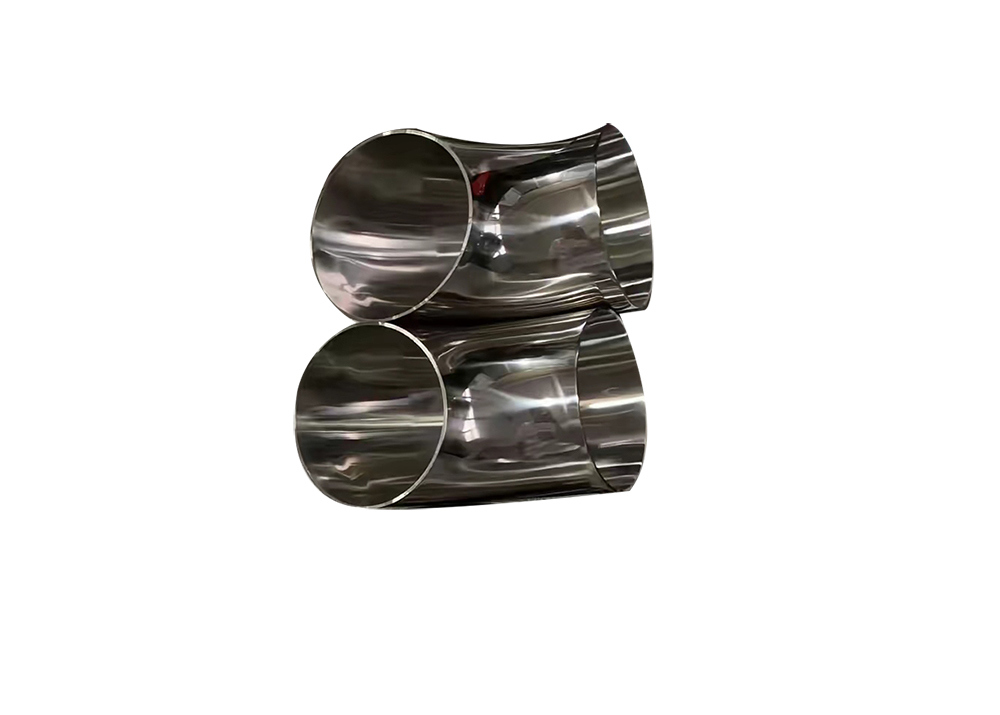

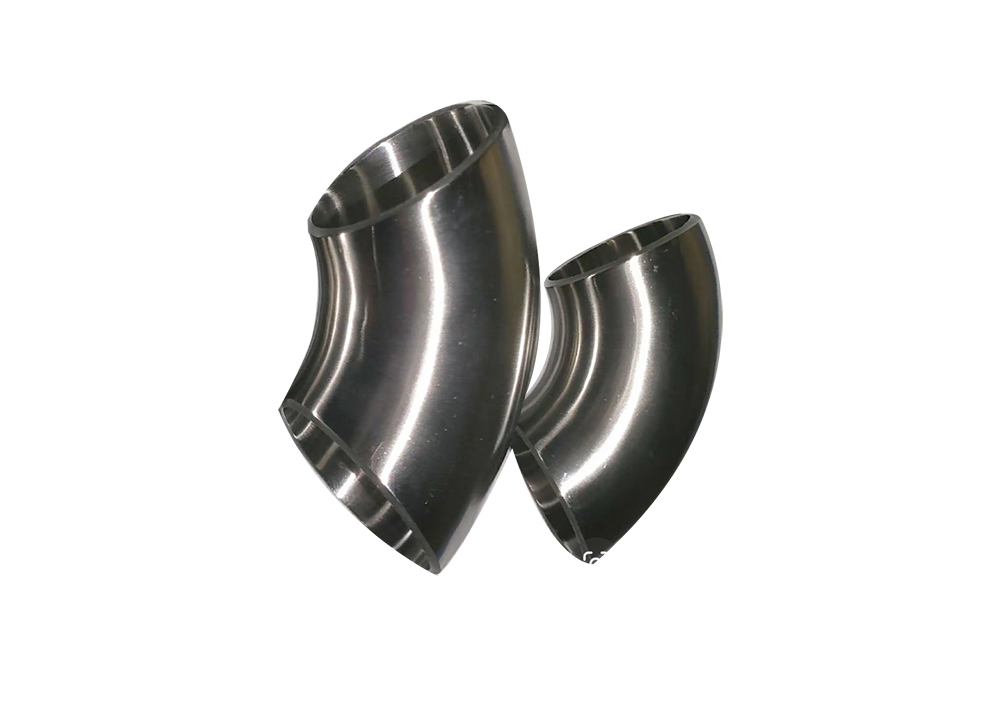

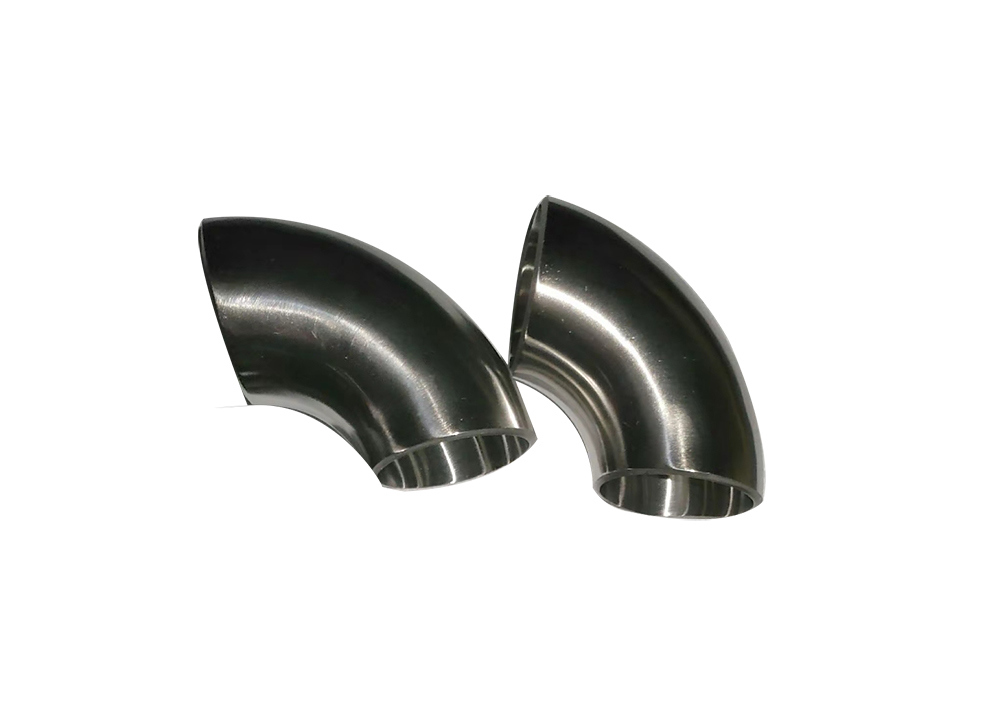

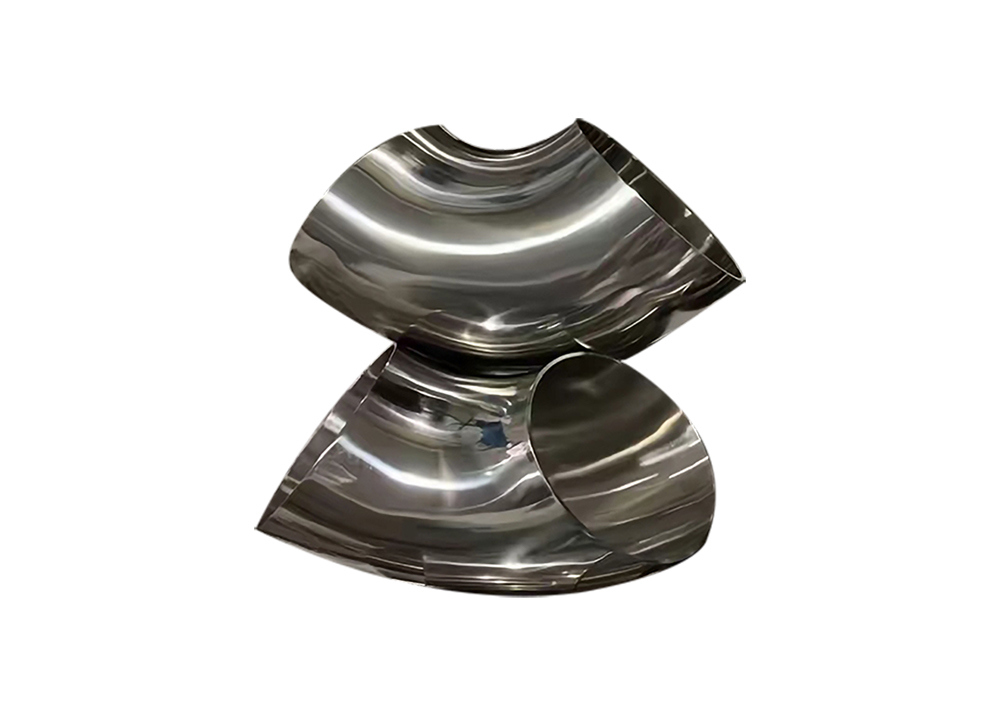

The Titanium 90° sanitary elbow is a specialized pipe fitting designed to change the direction of fluid flow in pipeline systems. It is extensively used in industries requiring high sanitation standards including dairy, food and beverage, beer, biopharmaceutical, and daily chemical processing.
This 90° sanitary titanium elbow maintains media purity through exceptional corrosion resistance, high-temperature tolerance, superior strength, and lightweight properties. Its lifespan significantly exceeds stainless steel alternatives, making it ideal for high-sanitation process connections in food and pharmaceutical industries.
Available in specifications from DN15 to DN650, our Titanium 90° Sanitary Elbow fittings can also be custom-manufactured to meet specific requirements. All products are manufactured in strict compliance with international standards including ASME B16.9 and GB/T 17684-2011.
Product Specifications
| Standard | GB/T17684--2011, ASME B 16.9 |
| Material | TA1, TA2, Gr.1 BT1-00, Gr.1ELI, BT1-00CB, Gr.2 BT1-0 etc |
| Size | DN15-DN 650 (NPS1/2-NPS 26) |
| OEM/ODM | Available |
| Titanium Surface Finish | Inner and Outer Surface Polishing |
| Technics | Welding |
| Type | Titanium 90° sanitary elbow |
| Packaging | Export standard wooden case, or can be customized |
| Application | Pharmaceutical Industry, Biotechnology & Biopharm, Food & Beverage Industry, Cosmetics Industry, Semiconductor & Electronics Industry, Chemical & Speciality Chemicals, Vehicle Exhaust System |
Dimensional Specifications (mm)
|
Nominal size |
|
Center to End |
Center to Center |
Back to Face |
|||||
|
90°Ebows |
45°Ebows |
180°return |
|||||||
|
DN |
NPS |
D |
LR |
SR |
LR |
LR |
SR |
LR |
SR |
|
15 |
1/2 |
21.3 |
38 |
- |
16 |
76 |
- |
48 |
- |
|
20 |
3/4 |
26.7 |
38 |
- |
19 |
76 |
- |
51 |
- |
|
25 |
1 |
33.4 |
38 |
25 |
22 |
75 |
51 |
56 |
41 |
|
32 |
1 1/4 |
42.2 |
48 |
32 |
25 |
95 |
64 |
70 |
52 |
|
40 |
1 1/2 |
48.3 |
57 |
38 |
29 |
114 |
76 |
83 |
62 |
|
50 |
2 |
60.3 |
76 |
51 |
35 |
152 |
102 |
106 |
81 |
|
65 |
2 1/2 |
73.0 |
95 |
64 |
44 |
191 |
127 |
132 |
100 |
|
80 |
3 |
88.9 |
114 |
76 |
51 |
229 |
152 |
159 |
121 |
|
90 |
3 1/2 |
101.6 |
133 |
89 |
57 |
267 |
178 |
184 |
140 |
|
100 |
4 |
114.3 |
152 |
102 |
64 |
305 |
203 |
210 |
159 |
|
125 |
5 |
141.3 |
190 |
127 |
79 |
381 |
254 |
262 |
197 |
|
150 |
6 |
168.3 |
229 |
152 |
95 |
457 |
305 |
313 |
237 |
|
200 |
8 |
219.1 |
305 |
203 |
127 |
610 |
406 |
414 |
313 |
|
250 |
10 |
273 |
381 |
254 |
159 |
762 |
508 |
518 |
391 |
|
300 |
12 |
323.8 |
457 |
305 |
190 |
914 |
609 |
619 |
467 |
|
350 |
14 |
355.6 |
533 |
356 |
222 |
1067 |
711 |
711 |
533 |
|
400 |
16 |
406.4 |
610 |
406 |
254 |
1219 |
813 |
813 |
610 |
|
450 |
18 |
457.0 |
686 |
457 |
286 |
1372 |
914 |
914 |
686 |
|
500 |
20 |
508.0 |
762 |
508 |
318 |
1524 |
1016 |
1016 |
762 |
|
550 |
22 |
559.0 |
838 |
559 |
343 |
1676 |
1118 |
1118 |
838 |
Frequently Asked Questions
What are the outstanding performances of titanium 90° sanitary elbow in terms of corrosion resistance?
Titanium pipe fittings have extremely strong resistance to corrosive media such as seawater and chloride ions. Their corrosion resistance far exceeds that of stainless steel and carbon steel, making them especially suitable for harsh environments such as marine and chemical industries.
Do titanium 90° sanitary elbows need additional anti-rust measures?
No need. Titanium 90° sanitary elbows can be used for a long time without coating or cathodic protection, avoiding the risk of rust and significantly reducing maintenance requirements.
Where does the lightweight advantage of titanium 90° sanitary elbow lie?
Titanium has a strength close to that of steel, but its density is only 60% of steel, which enables significant weight reduction in equipment for fields such as aerospace and shipbuilding while maintaining high load-bearing capacity.
How is the high-temperature resistance of titanium pipe fittings?
Titanium alloys (such as TA2 and TA9) can maintain stable mechanical properties at high temperatures of 300-500℃, with some materials capable of withstanding even higher temperatures for short periods.
Why are titanium 90 degree sanitary elbows still economical despite their high initial cost?
Although the initial purchase cost is relatively high, the extremely long service life and minimal maintenance requirements significantly reduce long-term usage costs, resulting in superior overall economic performance.
Are titanium pipe fittings suitable for the pharmaceutical and food industries?
Yes. Titanium has non-toxic, harmless biocompatibility with high material purity, fully meeting the strict hygiene requirements of pharmaceutical and food processing industries.
Our Advantages
- Strict Quality: Rigorous quality control measures complying with ASME, JIS, DIN, GB, GOST standards ensure all titanium products meet industry and customer requirements.
- Modern Production Facilities: Advanced factory with multiple titanium metal production lines enables handling of bulk orders and customized projects.
- Logistics and Packaging: Every order is carefully packed in wood cabins or trays to prevent transit damage, offering maximum protection.
- Experienced Team: Years of professional knowledge in titanium metal manufacturing ensures high-quality products for various industries.
- Comprehensive Service: Customized solutions, fast lead times, and dedicated support throughout the purchasing process.
- Customer-Centric Services: Flexible payment options, comprehensive technical support, and dedicated customer service for a seamless purchasing experience.
