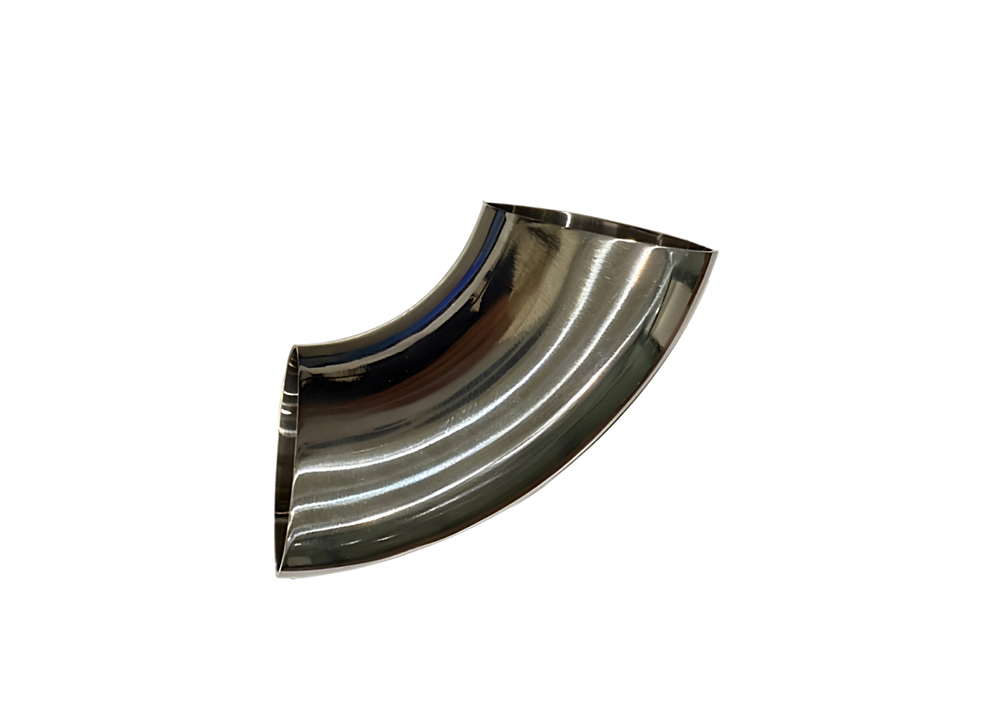

90 Degree Titanium Elbow Sanitary Pipe Fittings Titanium GR2 For Pharmaceutical Manufacturing
90° Titanium Sanitary Elbow Fittings for Pharmaceutical Manufacturing
The Titanium 90° sanitary elbow is a specialized pipe fitting designed to change fluid flow direction in pipeline systems. Engineered for demanding sanitary applications, it serves industries including dairy, food and beverage, biopharmaceutical, and chemical processing.
These titanium elbows ensure media purity through exceptional corrosion resistance, high-temperature tolerance, and superior strength-to-weight ratio. Their lifespan significantly exceeds stainless steel alternatives, making them ideal for high-sanitation process connections in pharmaceutical and food production.
Available in sizes from DN15 to DN650 (NPS1/2 to NPS 26), our 90° sanitary elbows can be custom manufactured to your specifications. All fittings comply with international standards including ASME B16.9 and GB/T 17684-2011.
Product Specifications
| Standard | GB/T17684-2011, ASME B 16.9 |
|---|---|
| Material | TA1, TA2, Gr.1 BT1-00, Gr.1ELI, BT1-00CB, Gr.2 BT1-0 etc |
| Size | DN15-DN650 (NPS1/2-NPS 26) |
| OEM/ODM | Available |
| Surface Finish | Inner and Outer Surface Polishing |
| Technics | Welding |
| Type | Titanium 90° sanitary elbow |
| Packaging | Export standard wooden case, customizable options available |
| Application | Pharmaceutical, Biotechnology, Food & Beverage, Cosmetics, Semiconductor, Chemical Processing, Vehicle Exhaust Systems |
Dimensional Specifications (mm)
|
Nominal size |
|
Center to End |
Center to Center |
Back to Face |
|||||
|
90°Ebows |
45°Ebows |
180°return |
|||||||
|
DN |
NPS |
D |
LR |
SR |
LR |
LR |
SR |
LR |
SR |
|
15 |
1/2 |
21.3 |
38 |
- |
16 |
76 |
- |
48 |
- |
|
20 |
3/4 |
26.7 |
38 |
- |
19 |
76 |
- |
51 |
- |
|
25 |
1 |
33.4 |
38 |
25 |
22 |
75 |
51 |
56 |
41 |
|
32 |
1 1/4 |
42.2 |
48 |
32 |
25 |
95 |
64 |
70 |
52 |
|
40 |
1 1/2 |
48.3 |
57 |
38 |
29 |
114 |
76 |
83 |
62 |
|
50 |
2 |
60.3 |
76 |
51 |
35 |
152 |
102 |
106 |
81 |
|
65 |
2 1/2 |
73.0 |
95 |
64 |
44 |
191 |
127 |
132 |
100 |
|
80 |
3 |
88.9 |
114 |
76 |
51 |
229 |
152 |
159 |
121 |
|
90 |
3 1/2 |
101.6 |
133 |
89 |
57 |
267 |
178 |
184 |
140 |
|
100 |
4 |
114.3 |
152 |
102 |
64 |
305 |
203 |
210 |
159 |
|
125 |
5 |
141.3 |
190 |
127 |
79 |
381 |
254 |
262 |
197 |
|
150 |
6 |
168.3 |
229 |
152 |
95 |
457 |
305 |
313 |
237 |
|
200 |
8 |
219.1 |
305 |
203 |
127 |
610 |
406 |
414 |
313 |
|
250 |
10 |
273 |
381 |
254 |
159 |
762 |
508 |
518 |
391 |
|
300 |
12 |
323.8 |
457 |
305 |
190 |
914 |
609 |
619 |
467 |
|
350 |
14 |
355.6 |
533 |
356 |
222 |
1067 |
711 |
711 |
533 |
|
400 |
16 |
406.4 |
610 |
406 |
254 |
1219 |
813 |
813 |
610 |
|
450 |
18 |
457.0 |
686 |
457 |
286 |
1372 |
914 |
914 |
686 |
|
500 |
20 |
508.0 |
762 |
508 |
318 |
1524 |
1016 |
1016 |
762 |
|
550 |
22 |
559.0 |
838 |
559 |
343 |
1676 |
1118 |
1118 |
838 |
