ASME B 16.9 Pipe Fittings Titanium 90 Degree Sanitary Elbow for Vehicle Exhaust System
-
Highlight
ASME B16.9 titanium pipe fittings
,titanium sanitary elbow 90 degree
,vehicle exhaust system pipe fittings
-
MaterialTA1,TA2, Gr.1 BT1-00, Gr.1ELI, BT1－00CB,Gr.2 BT1-0 Etc
-
SizeDN15-DN 650(NPS1/2-NPS 26)
-
OEM/ODMAvailable
-
Titanium Surface FinishInner And Outer Surface Polishing
-
TechnicsWelding
-
TypeTitanium 90° Sanitary Elbow
-
Place of OriginShaanxi,China
-
Brand NameVOTECH
-
CertificationGB/T17684—2011，ASME B 16.9
-
Model NumberDN15-DN 650(NPS1/2-NPS 26)
-
Packaging DetailsExport Standard Wooden Case, or Can Be Customized
-
Delivery Time7-15 Days
-
Payment TermsMoneyGram,Western Union,T/T,D/P,D/A,L/C
-
Supply Ability100ton/Month
ASME B 16.9 Pipe Fittings Titanium 90 Degree Sanitary Elbow for Vehicle Exhaust System
ASME B 16.9 Pipe Fittings Titanium 90 Degree Sanitary Elbow for Vehicle Exhaust System

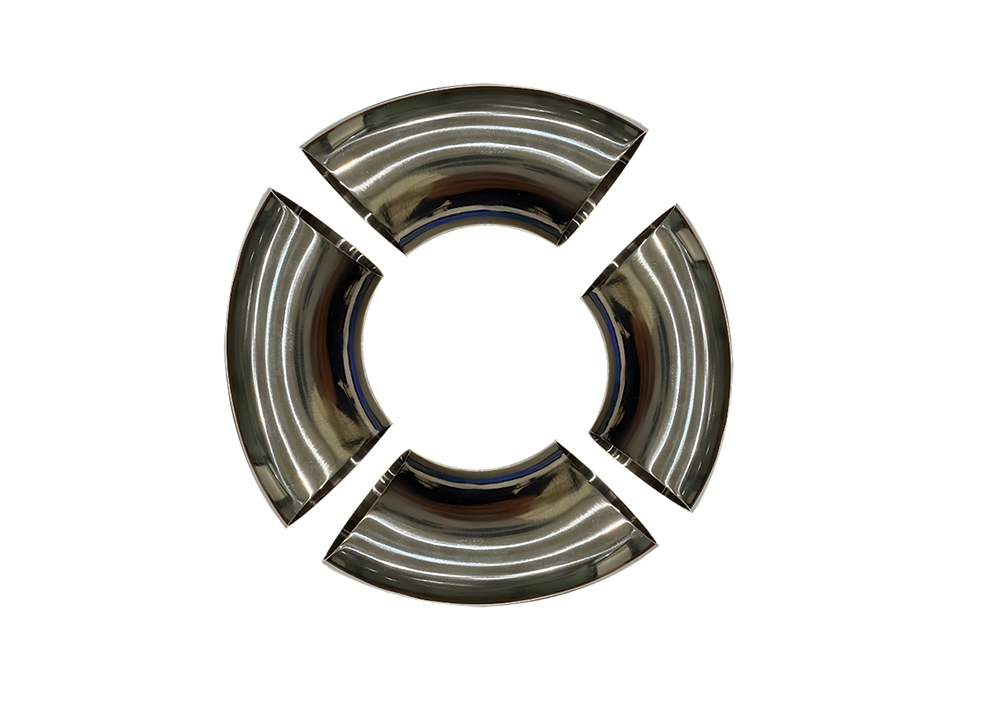

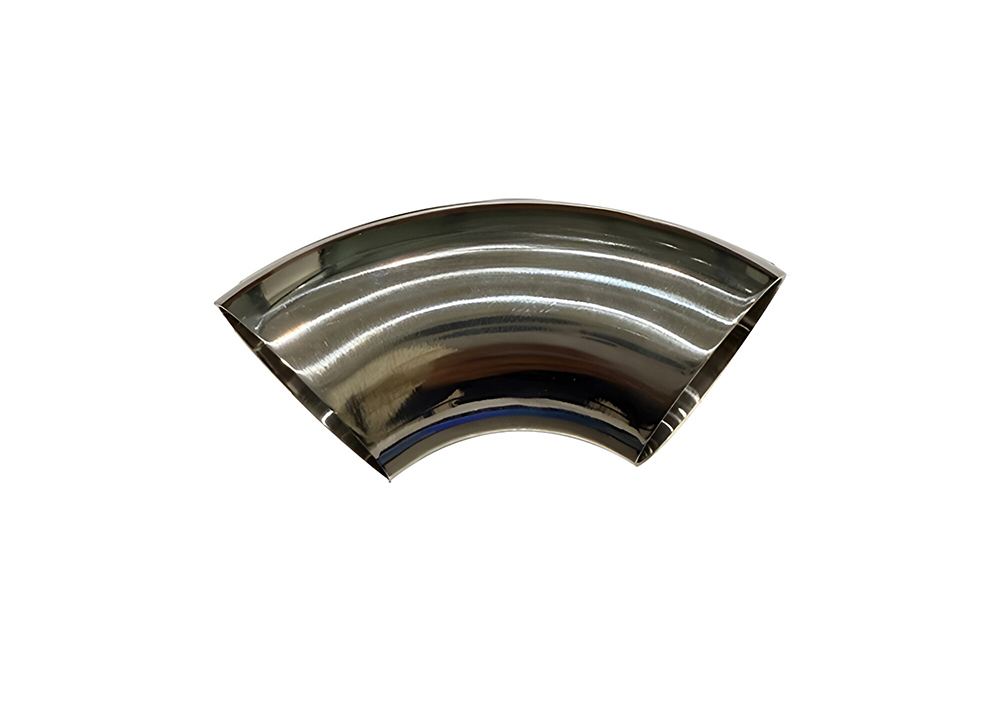

The Titanium 90° sanitary elbow is a specialized pipe fitting designed to change the direction of fluid flow in pipeline systems. Engineered for demanding sanitary-sensitive applications, it is widely used across industries including dairy, food and beverage, beer, biopharmaceutical, and daily chemicals.
This 90° sanitary titanium elbow ensures media purity through exceptional corrosion resistance, high-temperature tolerance, superior strength, and lightweight properties. With a lifespan significantly exceeding stainless steel alternatives, it is the ideal choice for high-sanitation process connections in food and pharmaceutical industries.
Available in specifications from DN15 to DN650, our Titanium 90° Sanitary Elbow fittings can also be custom-manufactured to meet specific requirements or drawings. All products are strictly produced in compliance with international standards including ASME B16.9 and GB/T 17684-2011.
Product Specifications
| Standard | GB/T17684--2011, ASME B 16.9 |
|---|---|
| Material | TA1, TA2, Gr.1 BT1-00, Gr.1ELI, BT1－00CB, Gr.2 BT1-0 etc |
| Size | DN15-DN 650 (NPS1/2-NPS 26) |
| OEM/ODM | Available |
| Titanium Surface Finish | Inner and Outer Surface Polishing |
| Technics | Welding |
| Type | Titanium 90° sanitary elbow |
| Packaging | Export standard wooden case, or can be customized |
| Application | Pharmaceutical Industry, Biotechnology & Biopharm, Food & Beverage Industry, Cosmetics Industry, Semiconductor & Electronics Industry, Chemical & Speciality Chemicals, Vehicle Exhaust System |
Dimensional Specifications (mm)
|
Nominal size |
|
Center to End |
Center to Center |
Back to Face |
|||||
|
90°Ebows |
45°Ebows |
180°return |
|||||||
|
DN |
NPS |
D |
LR |
SR |
LR |
LR |
SR |
LR |
SR |
|
15 |
1/2 |
21.3 |
38 |
- |
16 |
76 |
- |
48 |
- |
|
20 |
3/4 |
26.7 |
38 |
- |
19 |
76 |
- |
51 |
- |
|
25 |
1 |
33.4 |
38 |
25 |
22 |
75 |
51 |
56 |
41 |
|
32 |
1 1/4 |
42.2 |
48 |
32 |
25 |
95 |
64 |
70 |
52 |
|
40 |
1 1/2 |
48.3 |
57 |
38 |
29 |
114 |
76 |
83 |
62 |
|
50 |
2 |
60.3 |
76 |
51 |
35 |
152 |
102 |
106 |
81 |
|
65 |
2 1/2 |
73.0 |
95 |
64 |
44 |
191 |
127 |
132 |
100 |
|
80 |
3 |
88.9 |
114 |
76 |
51 |
229 |
152 |
159 |
121 |
|
90 |
3 1/2 |
101.6 |
133 |
89 |
57 |
267 |
178 |
184 |
140 |
|
100 |
4 |
114.3 |
152 |
102 |
64 |
305 |
203 |
210 |
159 |
|
125 |
5 |
141.3 |
190 |
127 |
79 |
381 |
254 |
262 |
197 |
|
150 |
6 |
168.3 |
229 |
152 |
95 |
457 |
305 |
313 |
237 |
|
200 |
8 |
219.1 |
305 |
203 |
127 |
610 |
406 |
414 |
313 |
|
250 |
10 |
273 |
381 |
254 |
159 |
762 |
508 |
518 |
391 |
|
300 |
12 |
323.8 |
457 |
305 |
190 |
914 |
609 |
619 |
467 |
|
350 |
14 |
355.6 |
533 |
356 |
222 |
1067 |
711 |
711 |
533 |
|
400 |
16 |
406.4 |
610 |
406 |
254 |
1219 |
813 |
813 |
610 |
|
450 |
18 |
457.0 |
686 |
457 |
286 |
1372 |
914 |
914 |
686 |
|
500 |
20 |
508.0 |
762 |
508 |
318 |
1524 |
1016 |
1016 |
762 |
|
550 |
22 |
559.0 |
838 |
559 |
343 |
1676 |
1118 |
1118 |
838 |
Frequently Asked Questions
What are the outstanding performances of titanium 90° sanitary elbow in terms of corrosion resistance?
Titanium pipe fittings exhibit exceptional resistance to corrosive media including seawater and chloride ions. Their corrosion resistance significantly surpasses stainless steel and carbon steel, making them particularly suitable for harsh environments such as marine and chemical industries.
Do titanium 90° sanitary elbows need additional anti-rust measures?
No additional measures are required. Titanium 90° sanitary elbows can be used long-term without coating or cathodic protection, eliminating rust risk and substantially reducing maintenance needs.
Where does the lightweight advantage of titanium 90° sanitary elbows lie?
Titanium offers strength comparable to steel but with only 60% of steel's density. This enables significant weight reduction in equipment for aerospace and shipbuilding applications while maintaining high load-bearing capacity.
How is the high-temperature resistance of titanium pipe fittings?
Titanium alloys (such as TA2 and TA9) maintain stable mechanical properties at 300-500℃, with some materials capable of withstanding even higher temperatures for short durations.
Why are titanium 90 degree sanitary elbows still economical despite their high initial cost?
While the initial purchase cost is higher, titanium pipe fittings offer an extremely long service life with minimal maintenance requirements, resulting in superior long-term cost-effectiveness.
Are titanium pipe fittings suitable for the pharmaceutical and food industries?
Absolutely. Titanium's non-toxic, biocompatible nature and high material purity meet the stringent hygiene requirements of pharmaceutical and food processing applications.
Our Advantages
- Strict Quality: Rigorous quality control measures complying with ASME, JIS, DIN, GB, GOST ensure all titanium products meet industry and customer requirements.
- Modern Production Facilities: Advanced factory with multiple titanium metal production lines enables bulk order processing and customized projects.
- Logistics and Packaging: Every order is carefully packed in wood cabins or trays to prevent transit damage, ensuring maximum protection.
- Experienced Team: Years of professional knowledge in titanium metal manufacturing enables production of high-quality products for diverse industries.
- Comprehensive Service: Customized solutions, fast lead times, and dedicated support throughout the purchasing process.
- Customer-Centric Services: Flexible payment options, comprehensive technical support, and dedicated customer service for a seamless purchasing experience.
