NPS1/2-NPS 26 Bend Pipe Fittings Welding Titanium Elbow 90 Degree For Cars
-
Highlight
Welding Titanium Elbow 90 Degree
,NPS26 Bend Pipe Fittings Titanium Elbow
,NPS1/2 Titanium Elbow
-
MaterialTA1,TA2, Gr.1 BT1-00, Gr.1ELI, BT1－00CB,Gr.2 BT1-0 Etc
-
SizeDN15-DN 650(NPS1/2-NPS 26)
-
OEM/ODMAvailable
-
Titanium Surface FinishInner And Outer Surface Polishing
-
TechnicsWelding
-
TypeTitanium 90° Sanitary Elbow
-
Place of OriginShaanxi,China
-
Brand NameVOTECH
-
CertificationGB/T17684—2011，ASME B 16.9
-
Model NumberDN15-DN 650(NPS1/2-NPS 26)
-
Packaging DetailsExport Standard Wooden Case, or Can Be Customized
-
Delivery Time7-15 Days
-
Payment TermsMoneyGram,Western Union,T/T,D/P,D/A,L/C
-
Supply Ability100ton/Month
NPS1/2-NPS 26 Bend Pipe Fittings Welding Titanium Elbow 90 Degree For Cars
NPS1/2-NPS 26 Bend Pipe Fittings Titanium Elbow 90 Degree for Cars

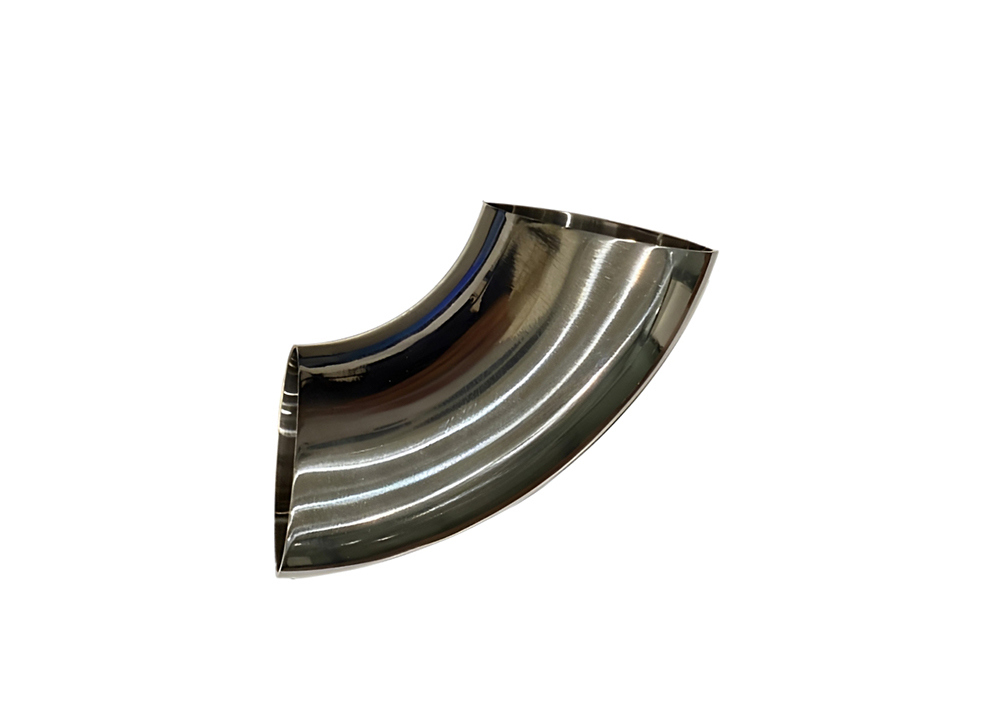

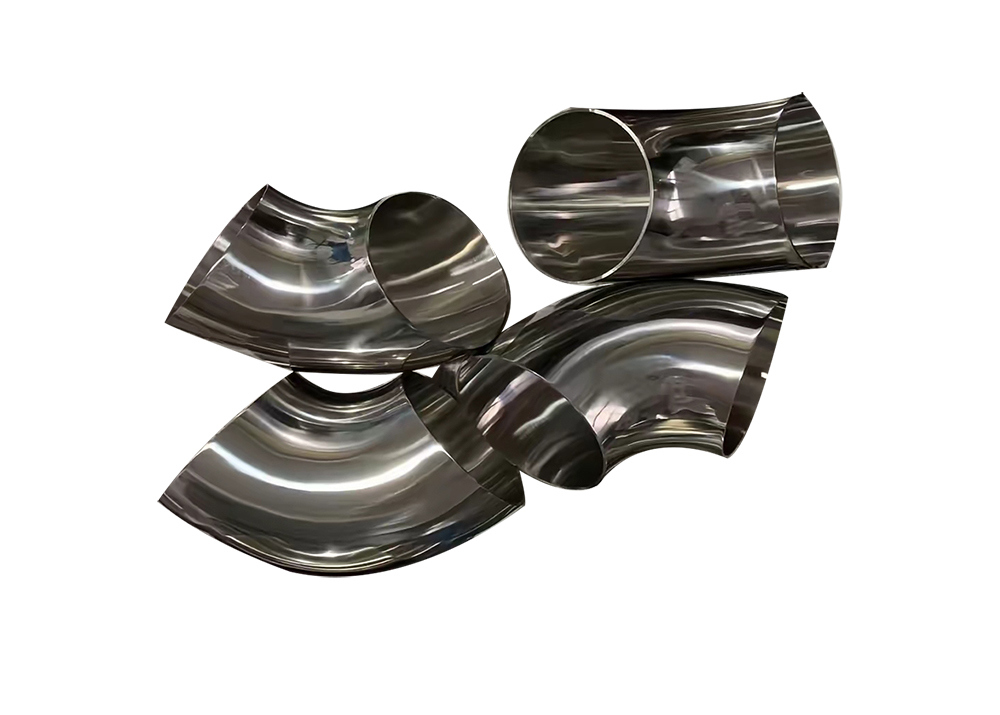

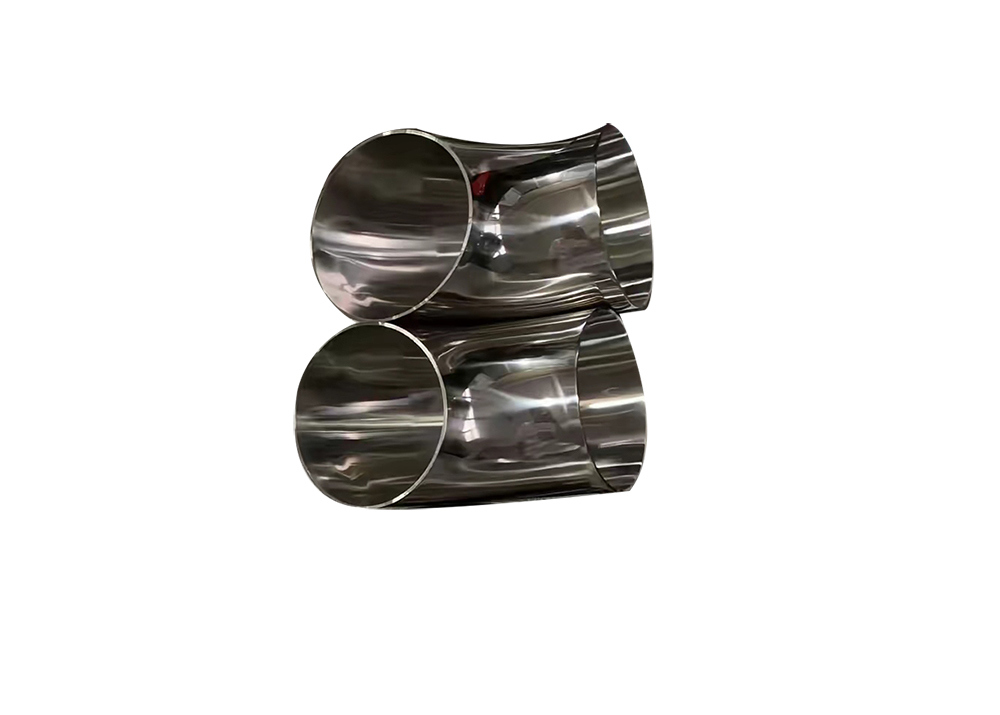

The Titanium 90° sanitary elbow is a specialized pipe fitting designed to change the direction of fluid flow in pipeline systems. Engineered for demanding sanitary-sensitive applications, it is widely used across industries including dairy, food and beverage, beer, biopharmaceutical, and daily chemicals.
This 90° sanitary titanium elbow maintains media purity through exceptional corrosion resistance, high-temperature tolerance, superior strength, and lightweight properties. With a lifespan significantly exceeding stainless steel, it is the ideal choice for high-sanitation process connections in food and pharmaceutical industries.
Available in specifications from DN15 to DN650 (NPS1/2-NPS 26), our Titanium 90° Sanitary Elbow fittings can also be custom-manufactured to customer specifications. All products are manufactured in strict compliance with international standards including ASME B16.9 and GB/T 17684-2011.
Product Specifications
| Standard | GB/T17684--2011, ASME B 16.9 |
| Material | TA1, TA2, Gr.1 BT1-00, Gr.1ELI, BT1－00CB, Gr.2 BT1-0 etc |
| Size | DN15-DN 650 (NPS1/2-NPS 26) |
| OEM/ODM | Available |
| Titanium Surface Finish | Inner and Outer Surface Polishing |
| Technics | Welding |
| Type | Titanium 90° sanitary elbow |
| Packaging | Export standard wooden case, or can be customized |
| Application | Pharmaceutical Industry, Biotechnology & Biopharm, Food & Beverage Industry, Cosmetics Industry, Semiconductor & Electronics Industry, Chemical & Speciality Chemicals, Vehicle Exhaust System |
Dimensional Specifications (mm)
|
Nominal size |
|
Center to End |
Center to Center |
Back to Face |
|||||
|
90°Ebows |
45°Ebows |
180°return |
|||||||
|
DN |
NPS |
D |
LR |
SR |
LR |
LR |
SR |
LR |
SR |
|
15 |
1/2 |
21.3 |
38 |
- |
16 |
76 |
- |
48 |
- |
|
20 |
3/4 |
26.7 |
38 |
- |
19 |
76 |
- |
51 |
- |
|
25 |
1 |
33.4 |
38 |
25 |
22 |
75 |
51 |
56 |
41 |
|
32 |
1 1/4 |
42.2 |
48 |
32 |
25 |
95 |
64 |
70 |
52 |
|
40 |
1 1/2 |
48.3 |
57 |
38 |
29 |
114 |
76 |
83 |
62 |
|
50 |
2 |
60.3 |
76 |
51 |
35 |
152 |
102 |
106 |
81 |
|
65 |
2 1/2 |
73.0 |
95 |
64 |
44 |
191 |
127 |
132 |
100 |
|
80 |
3 |
88.9 |
114 |
76 |
51 |
229 |
152 |
159 |
121 |
|
90 |
3 1/2 |
101.6 |
133 |
89 |
57 |
267 |
178 |
184 |
140 |
|
100 |
4 |
114.3 |
152 |
102 |
64 |
305 |
203 |
210 |
159 |
|
125 |
5 |
141.3 |
190 |
127 |
79 |
381 |
254 |
262 |
197 |
|
150 |
6 |
168.3 |
229 |
152 |
95 |
457 |
305 |
313 |
237 |
|
200 |
8 |
219.1 |
305 |
203 |
127 |
610 |
406 |
414 |
313 |
|
250 |
10 |
273 |
381 |
254 |
159 |
762 |
508 |
518 |
391 |
|
300 |
12 |
323.8 |
457 |
305 |
190 |
914 |
609 |
619 |
467 |
|
350 |
14 |
355.6 |
533 |
356 |
222 |
1067 |
711 |
711 |
533 |
|
400 |
16 |
406.4 |
610 |
406 |
254 |
1219 |
813 |
813 |
610 |
|
450 |
18 |
457.0 |
686 |
457 |
286 |
1372 |
914 |
914 |
686 |
|
500 |
20 |
508.0 |
762 |
508 |
318 |
1524 |
1016 |
1016 |
762 |
|
550 |
22 |
559.0 |
838 |
559 |
343 |
1676 |
1118 |
1118 |
838 |
Frequently Asked Questions
What are the outstanding performances of titanium 90° sanitary elbow in terms of corrosion resistance?
Titanium pipe fittings offer exceptional resistance to corrosive media including seawater and chloride ions, far surpassing stainless steel and carbon steel. They are particularly suitable for harsh environments such as marine and chemical industries.
Do titanium 90° sanitary elbow need additional anti-rust measures?
No additional protection is needed. Titanium 90° sanitary elbows can be used long-term without coating or cathodic protection, eliminating rust risk and significantly reducing maintenance requirements.
Where does the lightweight advantage of titanium 90° sanitary elbow lie?
With strength comparable to steel but only 60% of its density, titanium significantly reduces equipment weight in aerospace and shipbuilding applications while maintaining high load-bearing capacity.
How is the high-temperature resistance of titanium pipe fittings?
Titanium alloys (such as TA2 and TA9) maintain stable mechanical properties at 300-500℃, with some materials capable of withstanding even higher temperatures for short periods.
Why are titanium 90 degree sanitary elbow still economical despite their high initial cost?
While the initial cost is higher, the extremely long service life and minimal maintenance requirements of titanium pipe fittings result in superior long-term economic performance.
Are titanium pipe fittings suitable for the pharmaceutical and food industries?
Yes. Titanium's non-toxic, biocompatible properties and high material purity make it ideal for strict hygiene requirements in pharmaceutical and food processing applications.
Our Advantages
- Strict Quality: Rigorous quality control measures complying with ASME, JIS, DIN, GB, GOST standards ensure all titanium products meet industry and customer requirements.
- Modern Production Facilities: Advanced factory with multiple titanium metal production lines enables bulk order processing and custom projects.
- Logistics and Packaging: Careful packaging in wood cabins or trays prevents transit damage, offering maximum protection.
- Experienced Team: Years of professional knowledge in titanium metal manufacturing ensures high-quality products for diverse industries.
- Comprehensive Service: Customized solutions, fast lead times, and dedicated support throughout the purchasing process.
- Customer-Centric Services: Flexible payment options, comprehensive technical support, and dedicated customer service for a seamless purchasing experience.
