API Spec 5B Thread Gauges High Pressure Line Pipe(1/4 LP) Manufactured with Advanced Technology
-
Highlight
API 5B thread gauge high pressure
,API thread gauge 1/4 LP
,API line pipe thread gauge
-
WarrantyOne Year
-
MeasurementAPI Line Pipe(LP) Thread Gauge
-
StandardAPI 5B
-
Size1/4 LP
-
Outer Dia6.35
-
FeatureDurable And Accurate
-
Applicable MediumMud, Water, Natural Gas
-
CustomizedAcceptable
-
PackageWooden Case
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Delivery Time50000pieces/Month
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,Money Gram

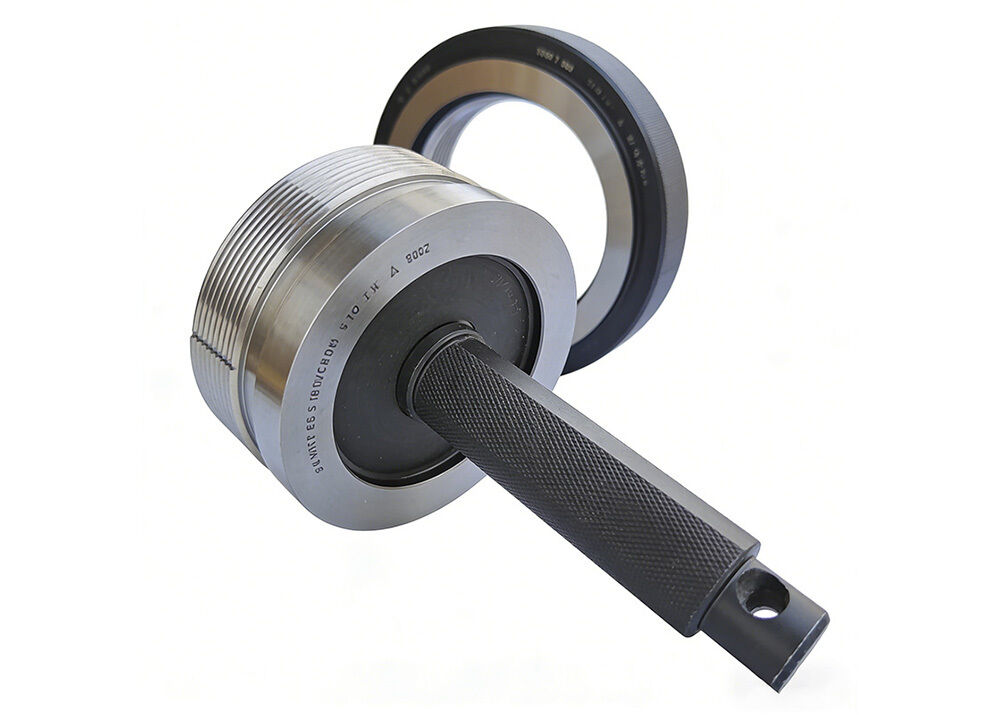

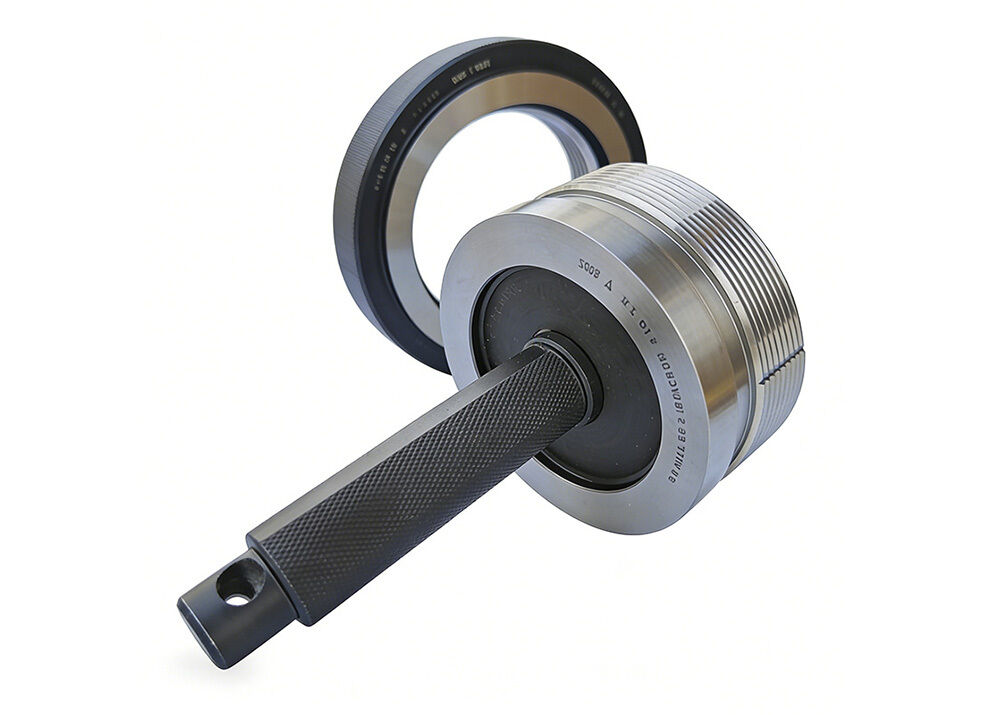

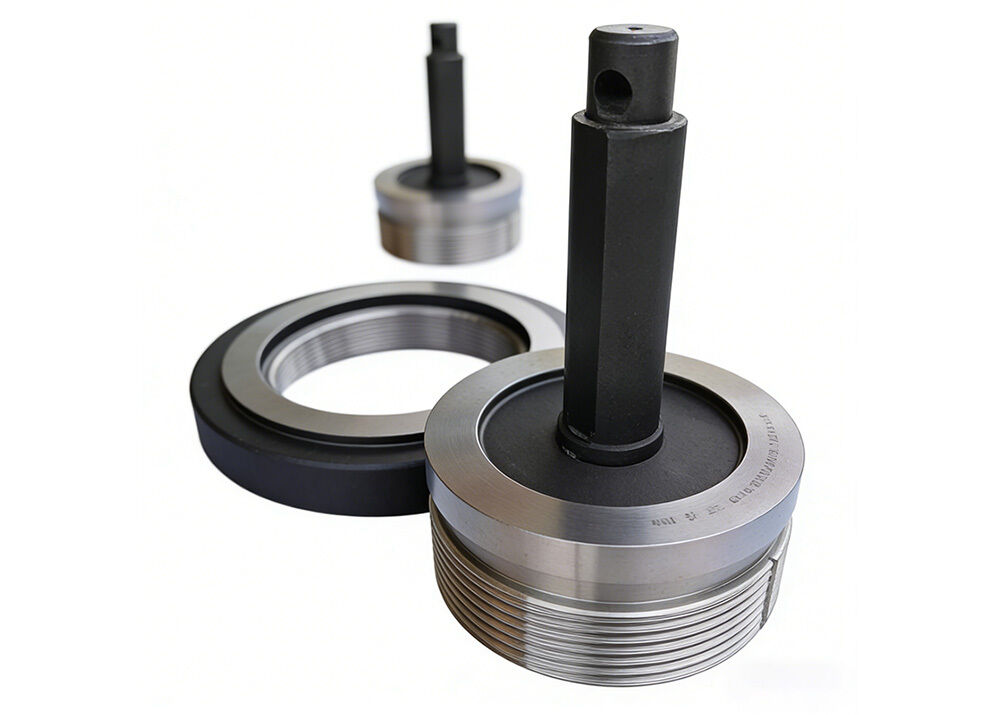

API Spec 5B Thread Gauges High Pressure Line Pipe(1/4 LP) Manufactured with Advanced Technology
API Spec 5B Thread Gauges High Pressure Line Pipe(1/4 LP) Manufactured with Advanced Technology
Description:
Deko Corp provides line pipe working gauges, available sizes from 1/8 to 20 inches in diameter,
we introduced international first grade thread machining center and measuring equipment, all working gauges
and reference master gauges are manufactured and calibrated conform to API Spec 5B standard.
When you order, please mark example, working gauge: 1/4 LP RING&PLUG.
Quick Detail:
1. Conform standard: API Spec 5B.
2. Wear resistance and corrosion resistance, stable structure, easy to use.
3. Comes with calibration certificates.
4. Supplied in fitted case.
Specification:
|
Size |
Outer Dia |
Pitch per 25.4mm |
Taper |
Form Angle |
|
1/8 LP |
3.18 |
0.941(27) |
1:16 |
60° |
|
1/4 LP |
6.35 |
1.411(18) |
||
|
3/8 LP |
9.53 |
1.411(18) |
||
|
1/2 LP |
12.70 |
1.814(14) |
||
|
3/4 LP |
19.05 |
1.814(14) |
||
|
1 LP |
25.40 |
2.209(111/2) |
||
|
11/4 LP |
31.75 |
2.209(111/2) |
||
|
11/2 LP |
38.10 |
2.209(111/2) |
||
|
2 LP |
50.80 |
2.209(111/2) |
||
|
21/2 LP |
63.50 |
3.175(8) |
||
|
3 LP |
76.20 |
3.175(8) |
||
|
31/2 LP |
88.90 |
3.175(8) |
||
|
4 LP |
101.60 |
3.175(8) |
||
|
5 LP |
127.00 |
3.175(8) |
||
|
6 LP |
152.40 |
3.175(8) |
||
|
8 LP |
203.20 |
3.175(8) |
||
|
10 LP |
254.00 |
3.175(8) |
||
|
12 LP |
304.80 |
3.175(8) |
||
|
14 LP |
355.60 |
3.175(8) |
||
|
16 LP |
406.40 |
3.175(8) |
||
|
18 LP |
457.20 |
3.175(8) |
||
|
20 LP |
508.00 |
3.175(8) |
Applications:
Line pipe working gauges are mainly used in the petroleum oil and gas industry for measuring
the thread of casings, tubing and pipelines.
Precautions:
1. It is not allowed to touch the working surface of the gauge with your hands, so as not to cause rust.
2. Inspect regularly to see if there is any damage, rust or deformation. If you find that the gauge begins to rust,
you should put it in gasoline and soak it for a period of time, then take it out and wipe it carefully, and apply anti-rust oil.
3. Do not save the working surfaces of the two gauges together, otherwise the two working surfaces
will be glued to each other, and the gauge will be unnecessarily damaged when separated by external force.
4. After used the threaded gauges, it should be wiped clean and stored under dry condition.
