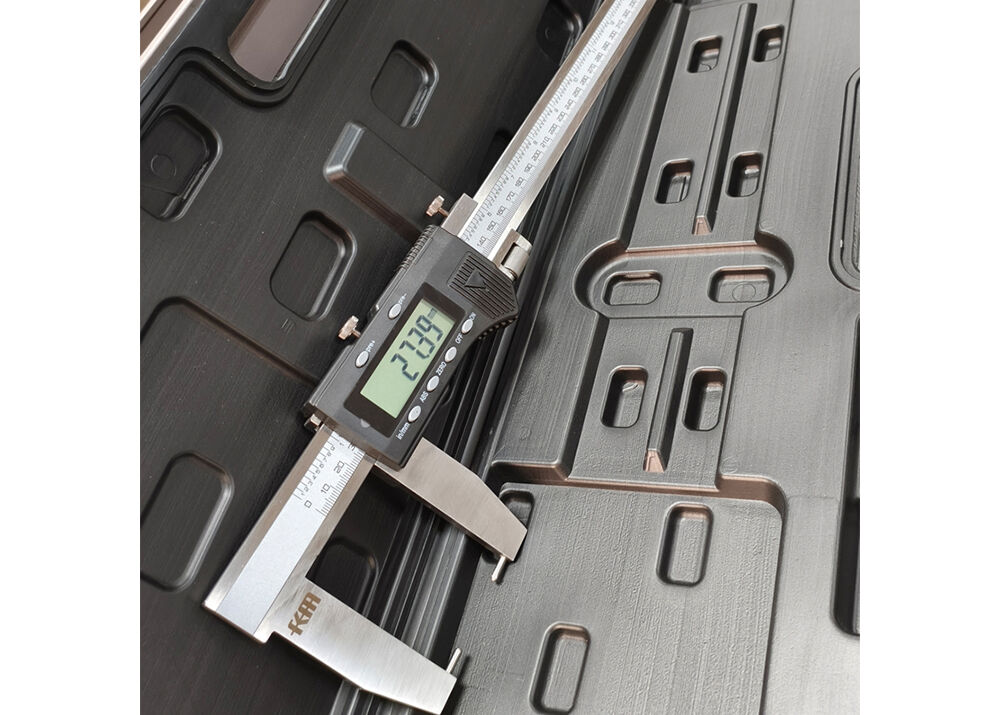

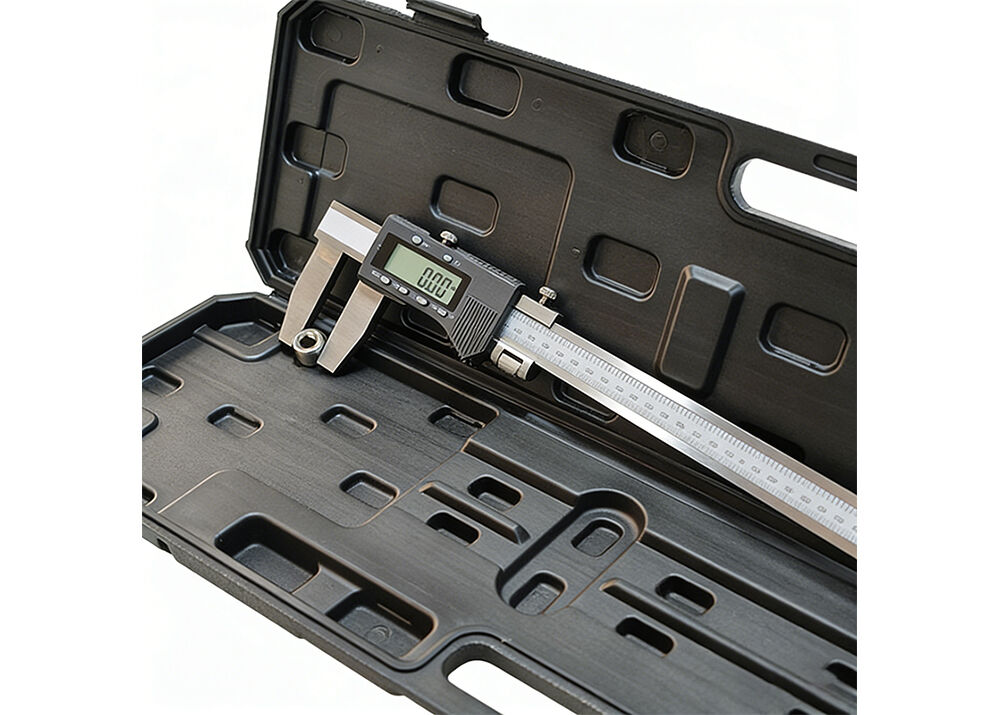

Cylindrical Tip 0-300mm/0-12" External Groove Electronic Caliper for Shaft & Groove Measuring
-
Highlight
0-300mm electronic caliper for shafts
,external groove measuring caliper
,cylindrical tip caliper with warranty
-
WarrantyOne Year
-
TypeSpecial Calipers
-
MaterialStainless Steel
-
MeasurementMetric/Inch
-
Range0-300mm/0-12"
-
FeatureLCD Display For Easy-Reading
-
Measurement ObjectOutside Groove
-
AnvilRound Anvil
-
Measure MethodAutomatic
-
CustomizedAvailable
-

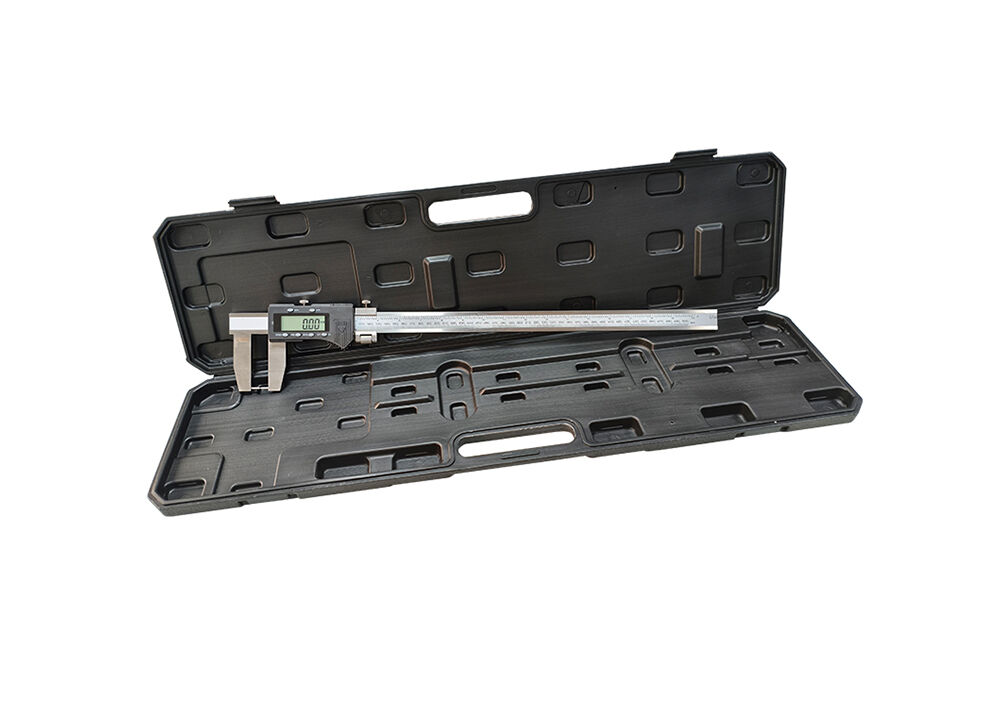

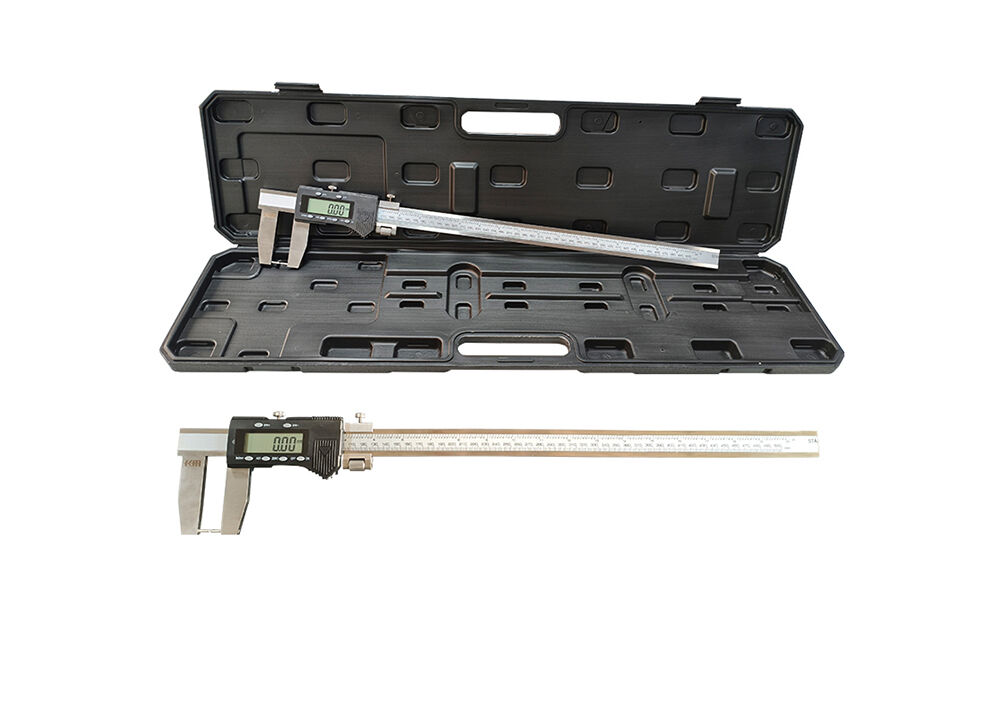

PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-DOG-300-1
-
Packaging DetailsABS Box 48*23*8cm/Piece 2.50kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,PayPal,etc.
-
Supply Ability50000pieces/Month
Cylindrical Tip 0-300mm/0-12" External Groove Electronic Caliper for Shaft & Groove Measuring
Cylindrical Tip 0-300mm/0-12" External Groove Electronic Caliper for Shaft & Groove Measuring
Description:
Cylindrical Head External Groove Digital Caliper is a high-precision measuring instrument engineered specifically for external groove, recess and wall-thickness measurements. Its unique cylindrical measuring head easily accesses narrow external grooves and hard-to-reach outer recesses where standard calipers cannot, delivering accurate, repeatable readings for external dimensional control.
Outside Groove Electronic Caliper is ideal for measuring external groove diameter, groove width, outer recess depth, wall thickness and step dimensions on shafts, pins, tubular components and machined parts.

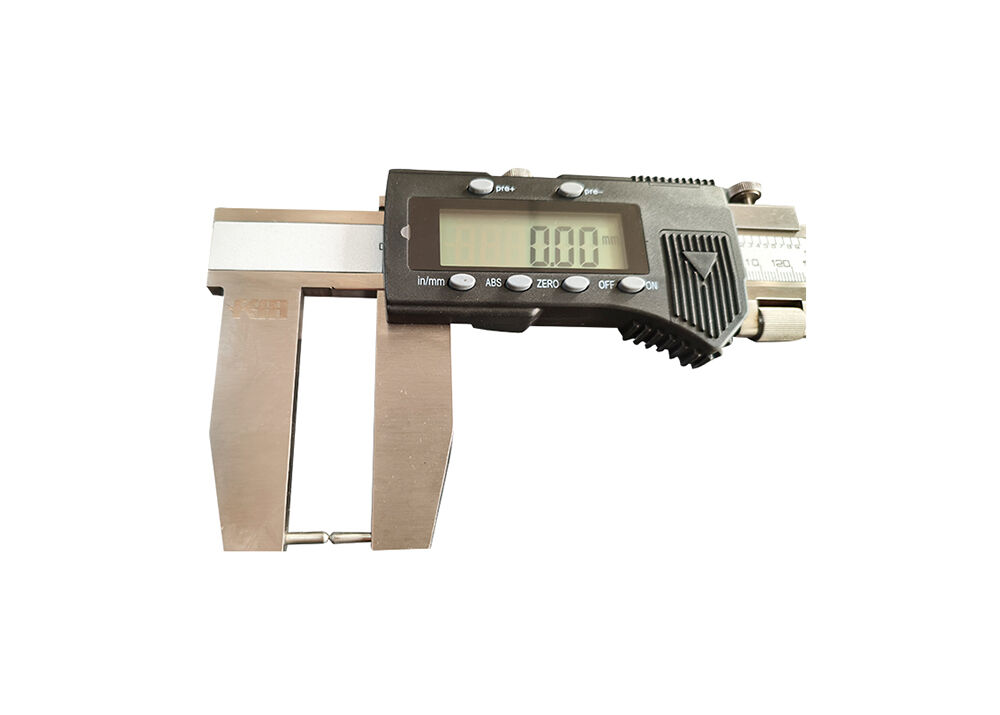

Cylindrical Tip External Groove Digital Caliper comes with a high-resolution LCD with 0.01 mm / 0.0005" resolution, supporting ABS, pre+,pre- mm/inch switching, zero reset and auto power-off. Its precision dovetail slide delivers smooth, backlash-free travel to sustain consistent accuracy during batch inspections.
Quick Detail:
1. Measure external groove dimensions and cavity wall thickness of the work piece.
2. ON/OFF, mm/in, Zero setting function buttons.

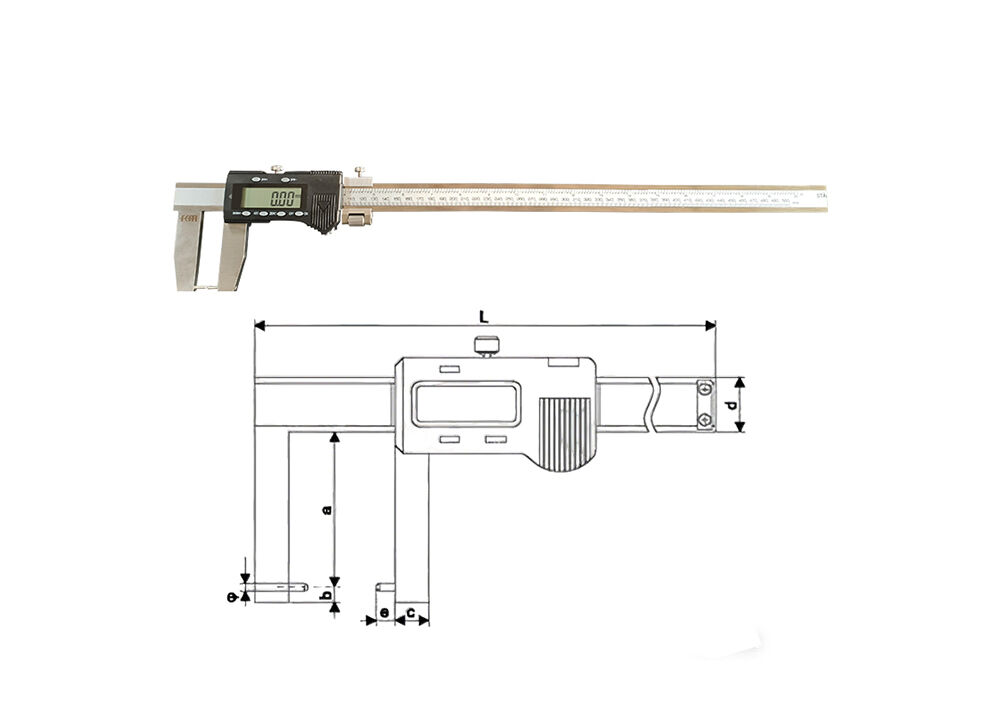

Specification:
|
Order No. |
Range |
Resolution |
Accuracy |
L |
a |
b |
c |
d |
e |
Φ |
|
KM-DOG-150 |
0-150mm/0-6'' |
0.01mm/0.0005'' |
±0.03mm |
250 |
40 |
3 |
10 |
16 |
5 |
2 |
|
KM-DOG-150-1 |
0-150mm/0-6'' |
0.01mm/0.0005'' |
±0.04mm |
250 |
70 |
3 |
10 |
16 |
5 |
2 |
|
KM-DOG-150-2 |
0-150mm/0-6'' |
0.01mm/0.0005'' |
±0.05mm |
290 |
100 |
3 |
20 |
20 |
10 |
3 |
|
KM-DOG-200 |
0-200mm/0-8'' |
0.01mm/0.0005'' |
±0.04mm |
300 |
50 |
3 |
12 |
16 |
8 |
2.5 |
|
KM-DOG-200-1 |
0-200mm/0-8'' |
0.01mm/0.0005'' |
±0.04mm |
300 |
80 |
3 |
12 |
16 |
8 |
2.5 |
|
KM-DOG-200-2 |
0-200mm/0-8'' |
0.01mm/0.0005'' |
±0.05mm |
340 |
110 |
3 |
22 |
20 |
12 |
3 |
|
KM-DOG-300 |
0-300mm/0-12'' |
0.01mm/0.0005'' |
±0.04mm |
410 |
60 |
3 |
14 |
17 |
10 |
2.5 |
|
KM-DOG-300-1 |
0-300mm/0-12'' |
0.01mm/0.0005'' |
±0.05mm |
440 |
100 |
3 |
20 |
20 |
10 |
3 |
|
KM-DOG-300-2 |
0-300mm/0-12'' |
0.01mm/0.0005'' |
±0.05mm |
480 |
150 |
3 |
20 |
24 |
12 |
3 |
|
KM-DOG-500 |
0-500mm/0-20'' |
0.01mm/0.0005'' |
±0.06mm |
680 |
100 |
3 |
20 |
24 |
12 |
3 |
|
KM-DOG-500-1 |
0-500mm/0-20'' |
0.01mm/0.0005'' |
±0.07mm |
680 |
150 |
3 |
20 |
24 |
12 |
3 |
|
KM-DOG-500-2 |
0-500mm/0-20'' |
0.01mm/0.0005'' |
±0.08mm |
680 |
200 |
3 |
20 |
24 |
12 |
3 |
Applications:
Suitable for measuring external grooves, shaft retaining ring grooves, O-ring grooves, step grooves and cylindrical surface grooves.
