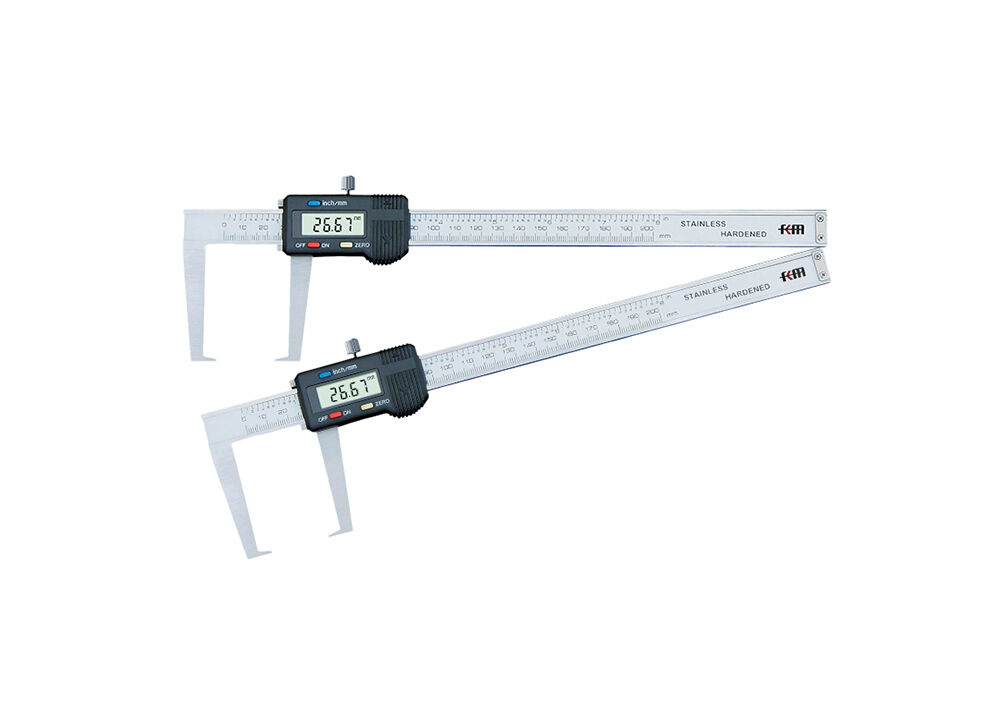

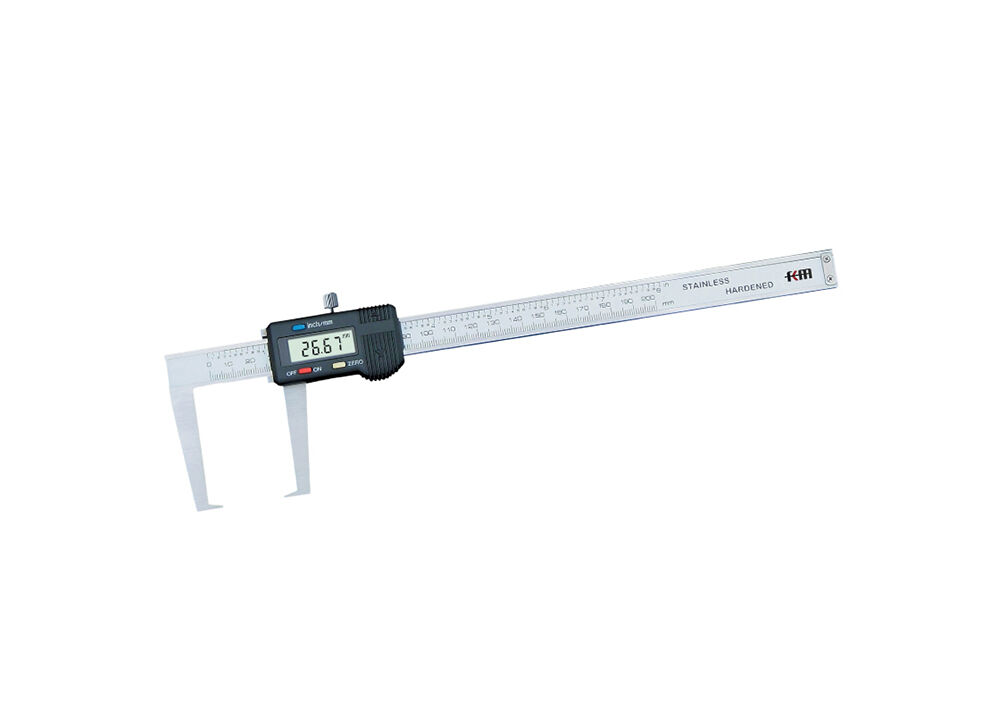

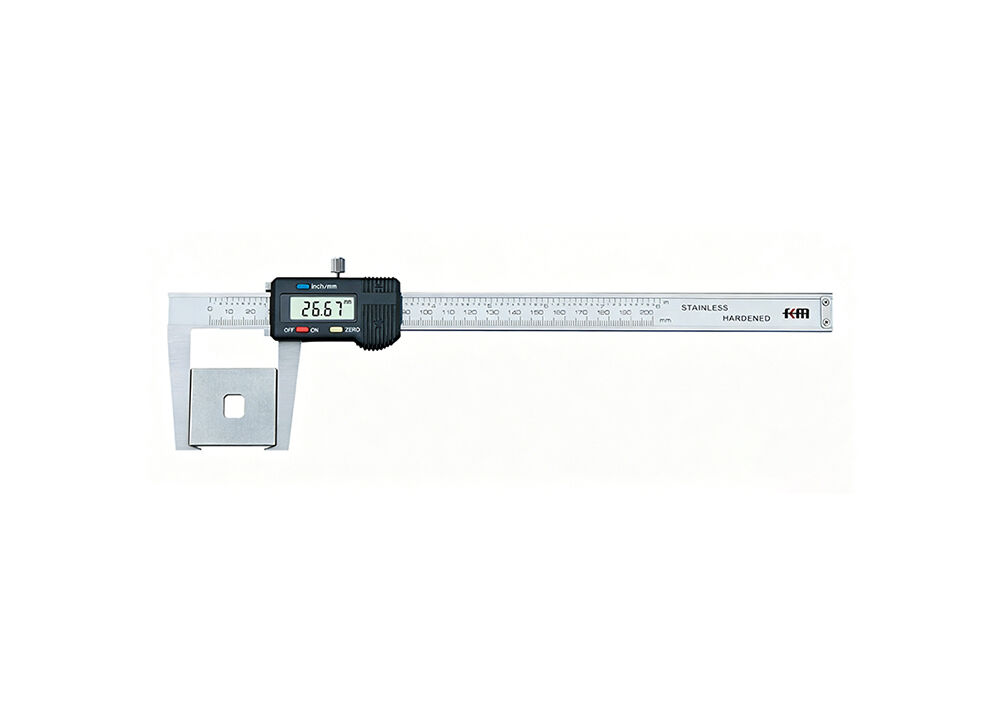

0-150mm/0-6" Flat Tip Digital External Groove Caliper for Shallow Outer Grooves for CNC Industry
-
Highlight
0-150mm digital external groove caliper
,flat tip caliper for shallow outer grooves
,CNC industry groove caliper with warranty
-
WarrantyOne Year
-
TypeSpecial Calipers
-
MaterialStainless Steel
-
MeasurementMetric/Inch
-
Range0-150mm/0-6"
-
AnvilFlat Anvil
-
Measurement ObjectMeasuring External Narrow Dimensions
-
FeatureLCD Display For Easy-Reading
-
ApplicationMeasuring Narrow, Deep And Tiny Exter
-
Measure MethodAutomatic
-
CustomizedAvailable
-
PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-DOGF-150-1
-
Packaging DetailsABS Box 50*25*10cm/Piece 3.00kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,PayPal,etc.
-
Supply Ability50000pieces/Month
0-150mm/0-6" Flat Tip Digital External Groove Caliper for Shallow Outer Grooves for CNC Industry
0-150mm/0-6" Flat Tip Digital External Groove Caliper for Shallow Outer Grooves for CNC Industry
Description:
Flat head external groove caliper is professionally used for precise measurement of external groove diameter, external groove width, outer recess depth, shaft groove size, outer step distance and outer wall thickness of various machined workpieces.
Flat tip External Groove Digital Caliper features with a high-resolution LCD screen with 0.01mm / 0.0005”, the caliper supports essential practical functions including ABS, pre+,pre-, mm/inch unit conversion, zero reset, and auto power-off.
Digital Outer Diameter Groove Gauge with flat tip solves the measurement difficulties of narrow outer grooves and tiny outer gaps that ordinary measuring calipers fail to detect, providing precise dimensional data for precision mechanical parts, shaft parts and grooved components.
Quick Detail:
1. Measure external groove dimensions and cavity wall thickness of the work piece
2. ON/OFF, mm/in, Zero setting function buttons.

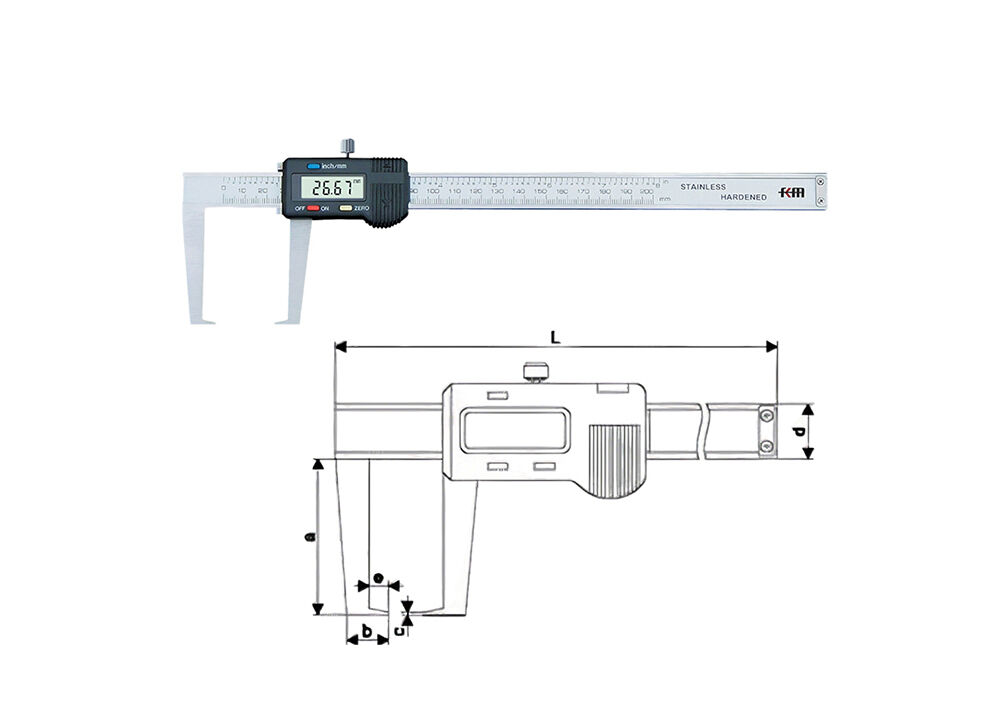

Specification:
|
Order No. |
Range |
Resolution |
Accuracy |
L |
a |
b |
c |
d |
e |
|
KM-DOGF-150 |
0-150mm/0-6'' |
0.01mm/0.0005'' |
±0.03mm |
250 |
40 |
15 |
1 |
16 |
|
|
KM-DOGF-150-1 |
0-150mm/0-6'' |
0.01mm/0.0005'' |
±0.04mm |
250 |
70 |
20 |
2 |
16 |
7 |
|
KM-DOGF-150-2 |
0-150mm/0-6'' |
0.01mm/0.0005'' |
±0.05mm |
290 |
100 |
30 |
2 |
20 |
10 |
|
KM-DOGF-200 |
0-200mm/0-8'' |
0.01mm/0.0005'' |
±0.04mm |
300 |
50 |
19 |
1 |
16 |
7 |
|
KM-DOGF-200-1 |
0-200mm/0-8'' |
0.01mm/0.0005'' |
±0.04mm |
300 |
80 |
23 |
1.5 |
16 |
9 |
|
KM-DOGF-200-2 |
0-200mm/0-8'' |
0.01mm/0.0005'' |
±0.05mm |
340 |
110 |
34 |
2 |
20 |
12 |
|
KM-DOGF-300 |
0-300mm/0-12'' |
0.01mm/0.0005'' |
±0.04mm |
410 |
60 |
21 |
1.5 |
17 |
8 |
|
KM-DOGF-300-1 |
0-300mm/0-12'' |
0.01mm/0.0005'' |
±0.05mm |
440 |
100 |
30 |
2 |
20 |
10 |
|
KM-DOGF-300-2 |
0-300mm/0-12'' |
0.01mm/0.0005'' |
±0.05mm |
480 |
150 |
32 |
2 |
24 |
12 |
|
KM-DOGF-500 |
0-500mm/0-20'' |
0.01mm/0.0005'' |
±0.06mm |
680 |
100 |
34 |
2 |
24 |
12 |
|
KM-DOGF-500-1 |
0-500mm/0-20'' |
0.01mm/0.0005'' |
±0.07mm |
680 |
150 |
36 |
2 |
24 |
12 |
|
KM-DOGF-500-2 |
0-500mm/0-20'' |
0.01mm/0.0005'' |
±0.08mm |
680 |
200 |
36 |
2 |
24 |
12 |
Applications:

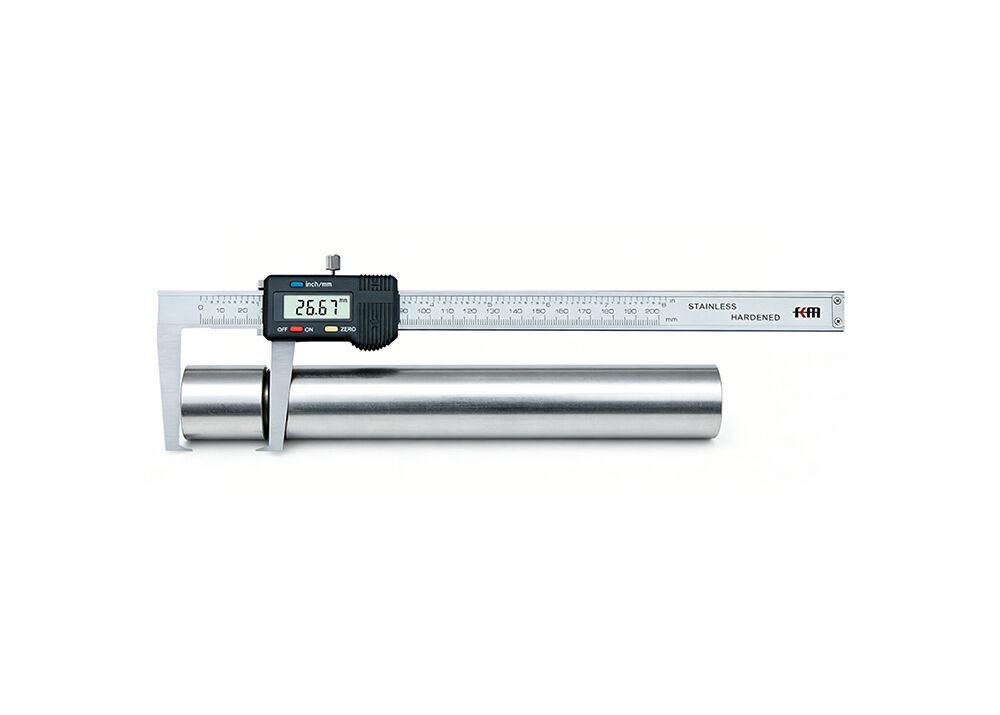

Measuring narrow, deep and tiny external grooves, small gaps and fine slots on shaft and outer surface.
FAQ:
Q1: What is this flat tip digital external groove caliper mainly used to measure?
Q2: What measuring range and resolution does this digital outer groove caliper support?
Q3: What functional features does this flat tip digital caliper have?
ABS function,Pre+ / Pre-,mm/inch unit conversion,Zero reset function,ON/OFF control & auto power-off
Simple operation, stable data reading for daily workshop inspection.
