Flat Head 0-500mm/0-20" External Groove Caliper for Step Groove & Retaining Ring Measurement

Highlight

Flat Head external groove caliper
,
0-500mm step groove caliper
,
Retaining ring measurement caliper
Warranty

One Year
Type

Special Calipers
Material

Stainless Steel
Measurement

Metric/Inch
Range

0-500mm/0-20"
Anvil

Flat Anvil
Measurement Object

Measuring External Narrow Dimensions
Feature

LCD Display For Easy-Reading
Application

Measuring Narrow, Deep And Tiny Exter
Measure Method

Automatic
Customized

Available
Package

ABS Box
Place of Origin

Shaanxi, China
Brand Name

KM
Certification

ISO DIN GB RoHS
Model Number

KM-DOGF-500-1
Packaging Details

ABS Box 50*25*10cm/Piece 3.00kg/Piece
Delivery Time

Within 15days
Payment Terms

T/T,L/C,D/P,D/A,PayPal,etc.
Supply Ability

50000pieces/Month

Flat Head 0-500mm/0-20" External Groove Caliper for Step Groove & Retaining Ring Measurement

Name: Flat Head 0-500mm/0-20" External Groove Caliper for Step Groove & Retaining Ring Measurement
Brand: Deko Corporation
SKU: KM-DOGF-500-1
Price: 58.00 USD
Availability: InStock

button button

Get Price Contact Now

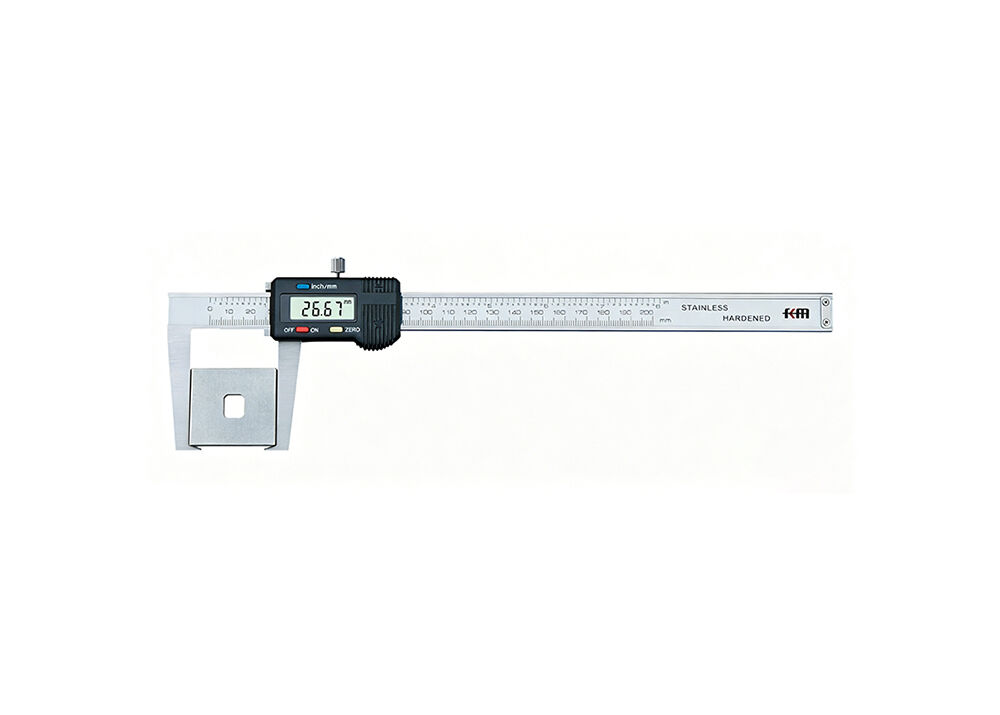

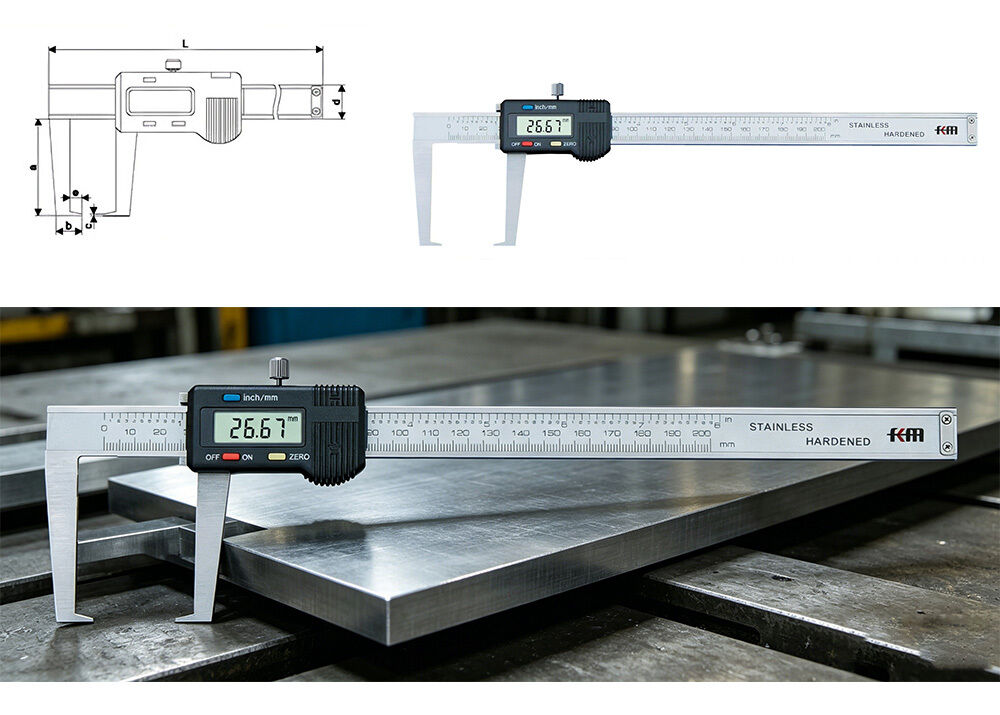

Flat Head 0-500mm/0-20" External Groove Caliper for Step Groove & Retaining Ring Measurement

Description:

Flat head external groove caliper is professionally used for precise measurement of external groove diameter, external groove width, outer recess depth, shaft groove size, outer step distance and outer wall thickness of various machined workpieces.

Flat tip External Groove Digital Caliper features with a high-resolution LCD screen with 0.01mm / 0.0005”, the caliper supports essential practical functions including ABS, pre+,pre-, mm/inch unit conversion, zero reset, and auto power-off.

Digital Outer Diameter Groove Gauge with flat tip solves the measurement difficulties of narrow outer grooves and tiny outer gaps that ordinary measuring calipers fail to detect, providing precise dimensional data for precision mechanical parts, shaft parts and grooved components.

Quick Detail:

1. Measure external groove dimensions and cavity wall thickness of the work piece

2. ON/OFF, mm/in, Zero setting function buttons.

Specification:

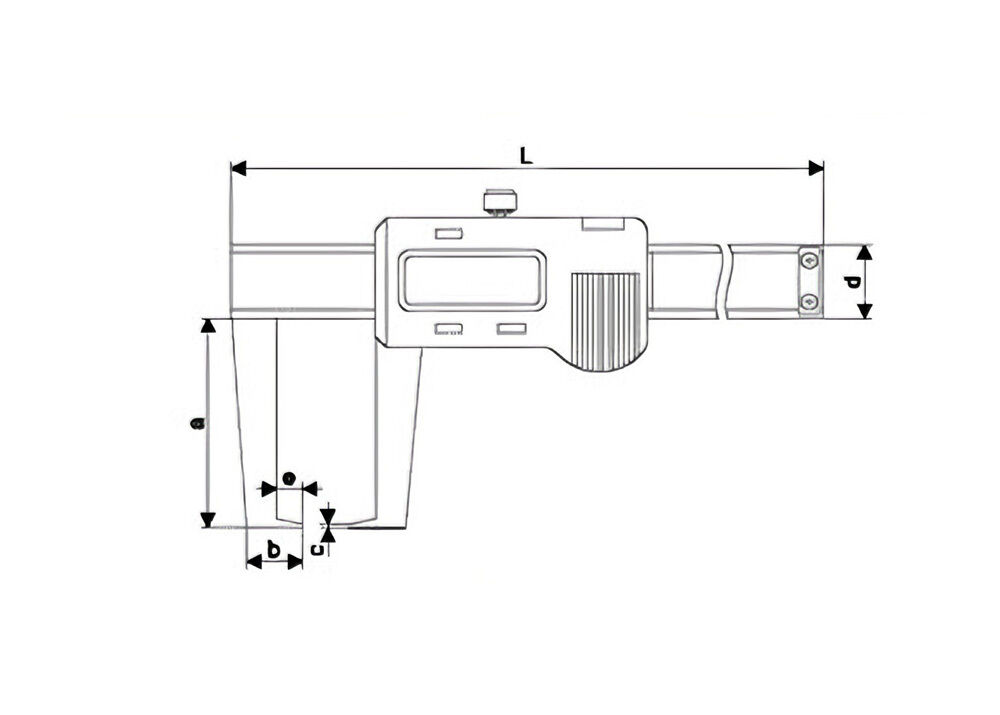

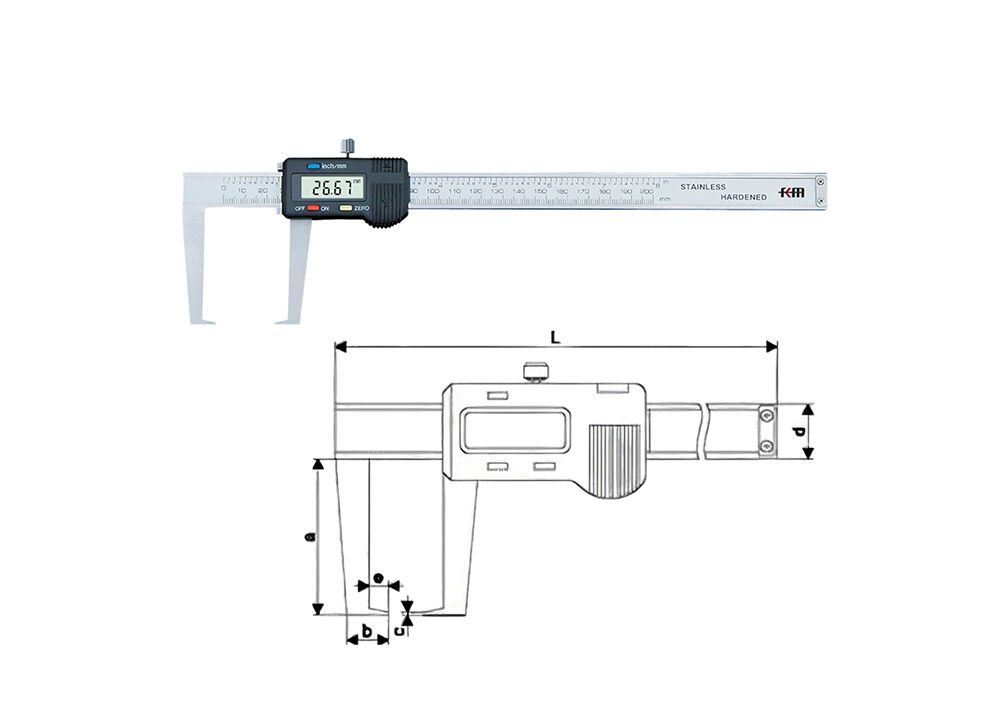

Order No.	Range	Resolution	Accuracy	L	a	b	c	d	e
KM-DOGF-150	0-150mm/0-6''	0.01mm/0.0005''	±0.03mm	250	40	15	1	16
KM-DOGF-150-1	0-150mm/0-6''	0.01mm/0.0005''	±0.04mm	250	70	20	2	16	7
KM-DOGF-150-2	0-150mm/0-6''	0.01mm/0.0005''	±0.05mm	290	100	30	2	20	10
KM-DOGF-200	0-200mm/0-8''	0.01mm/0.0005''	±0.04mm	300	50	19	1	16	7
KM-DOGF-200-1	0-200mm/0-8''	0.01mm/0.0005''	±0.04mm	300	80	23	1.5	16	9
KM-DOGF-200-2	0-200mm/0-8''	0.01mm/0.0005''	±0.05mm	340	110	34	2	20	12
KM-DOGF-300	0-300mm/0-12''	0.01mm/0.0005''	±0.04mm	410	60	21	1.5	17	8
KM-DOGF-300-1	0-300mm/0-12''	0.01mm/0.0005''	±0.05mm	440	100	30	2	20	10
KM-DOGF-300-2	0-300mm/0-12''	0.01mm/0.0005''	±0.05mm	480	150	32	2	24	12
KM-DOGF-500	0-500mm/0-20''	0.01mm/0.0005''	±0.06mm	680	100	34	2	24	12
KM-DOGF-500-1	0-500mm/0-20''	0.01mm/0.0005''	±0.07mm	680	150	36	2	24	12
KM-DOGF-500-2	0-500mm/0-20''	0.01mm/0.0005''	±0.08mm	680	200	36	2	24	12

Applications:

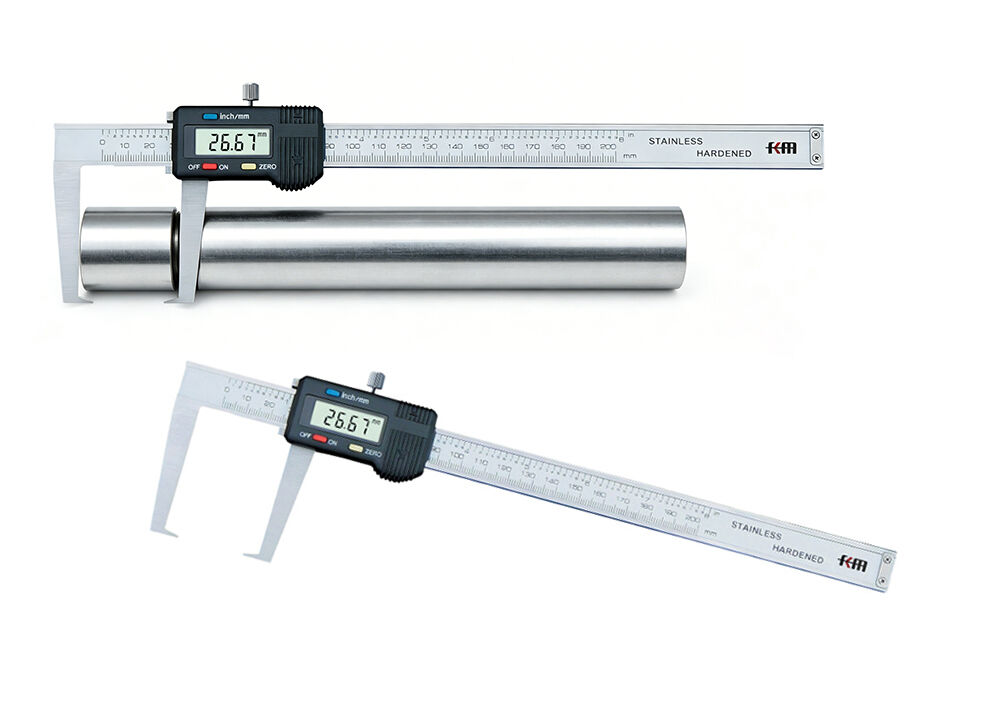

Measuring narrow, deep and tiny external grooves, small gaps and fine slots on shaft and outer surface.

FAQ:

Q1: Is this measuring tool suitable for workshop daily mass inspection?

A: Absolutely. Humanized button layout, clear display, durable flat measuring tip. It is widely used for incoming inspection, process inspection and finished product size testing in CNC factories and machining workshops.

Q2: Does this caliper measure internal grooves or only external grooves?

A: This model is flat tip external groove caliper, specially developed for outer/shaft external grooves. It is not suitable for internal bore grooves. If you need internal groove measuring caliper, you can contact us for other models.

Q3: What is the difference between shallow outer groove caliper and general groove caliper?

A: Our flat tip version is optimized for shallow outer grooves. The flat thin measuring jaws can easily enter shallow narrow outer grooves without interference, avoiding the problem that thick jaws cannot contact the groove measuring surface.
