0-0.8mm Metric Dial Test Indicator with 0.01mm Graduation Horizontal Type
-
Highlight
Metric Dial Test Indicator 0-0.8mm
,Anti Magnetic Body Metric Dial Test Indicator
,Metric Dial Indicator 0-0.8mm
-
WarrantyWarranty
-
Measurement ObjectLength
-
MeasurementMetric
-
Diameter Of Dial32mm
-
Range0-0.8mm
-
Precision0.01mm
-
FeatureAnti Magnetic Body
-
Measuring FaceRuby Contact Point
-
CustomizedAcceptable
-
PackagePlastic Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-342-32-8
-
Packaging DetailsPlastic Box 10*8*5cm/Piece 0.20kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
0-0.8mm Metric Dial Test Indicator with 0.01mm Graduation Horizontal Type
0-0.8mm Metric Dial Test Indicator with 0.01mm Graduation Horizontal Type
Quick Features
- Metric measurement system.

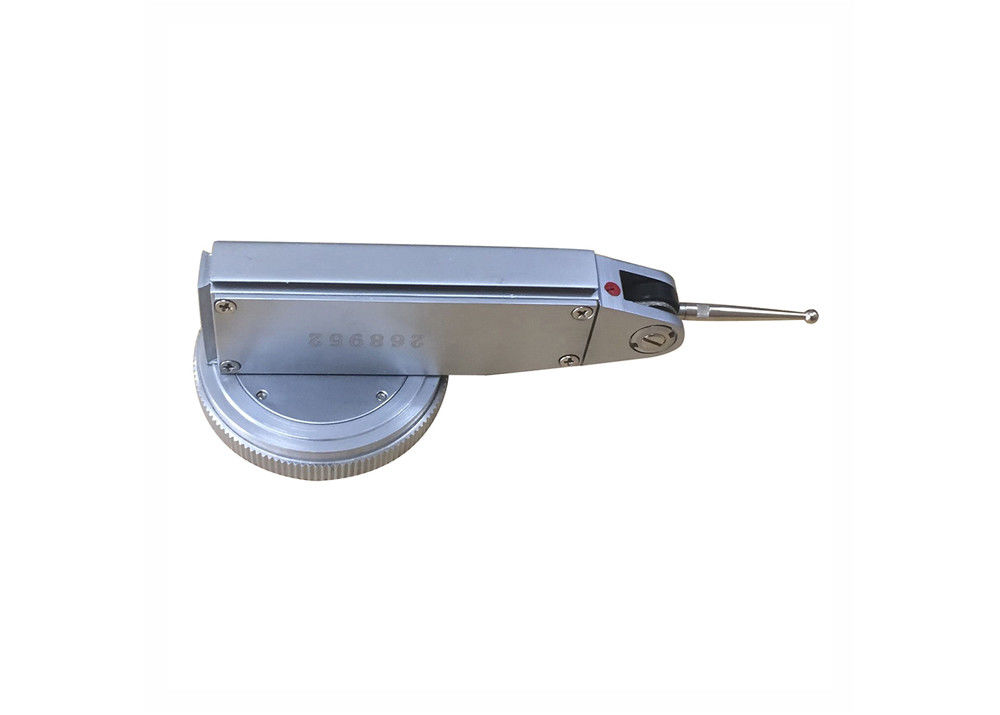

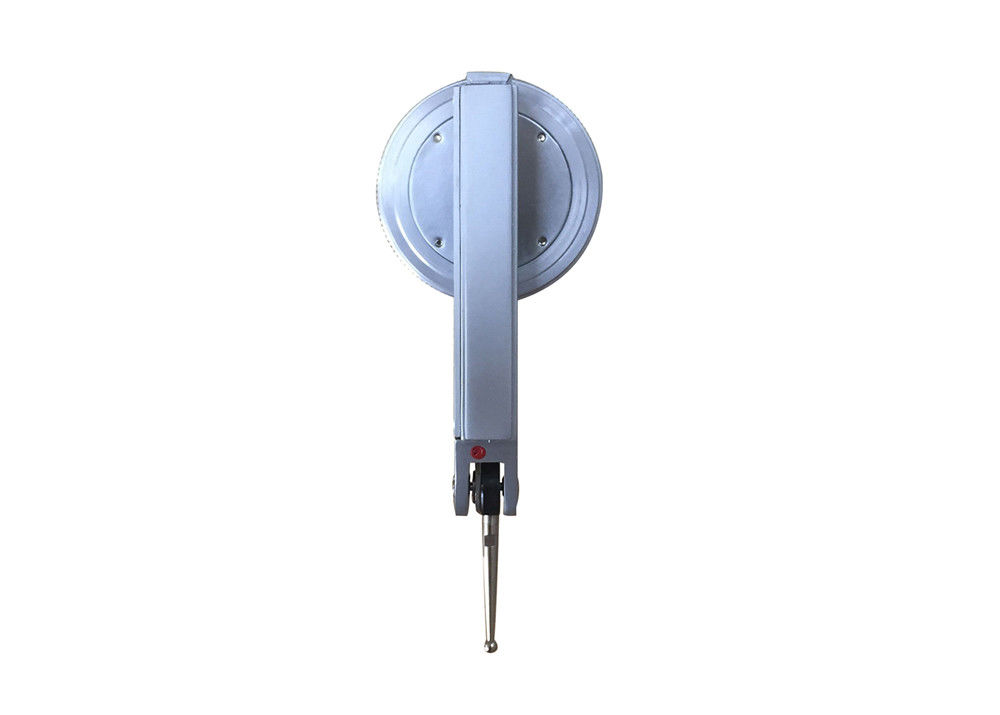

- Dovetails on top and back for all-around positioning.
- Jeweled movement mechanism.
- 180° swiveling with two directional functions.
- Steel contact point for durability.
- Anti-magnetic body construction.

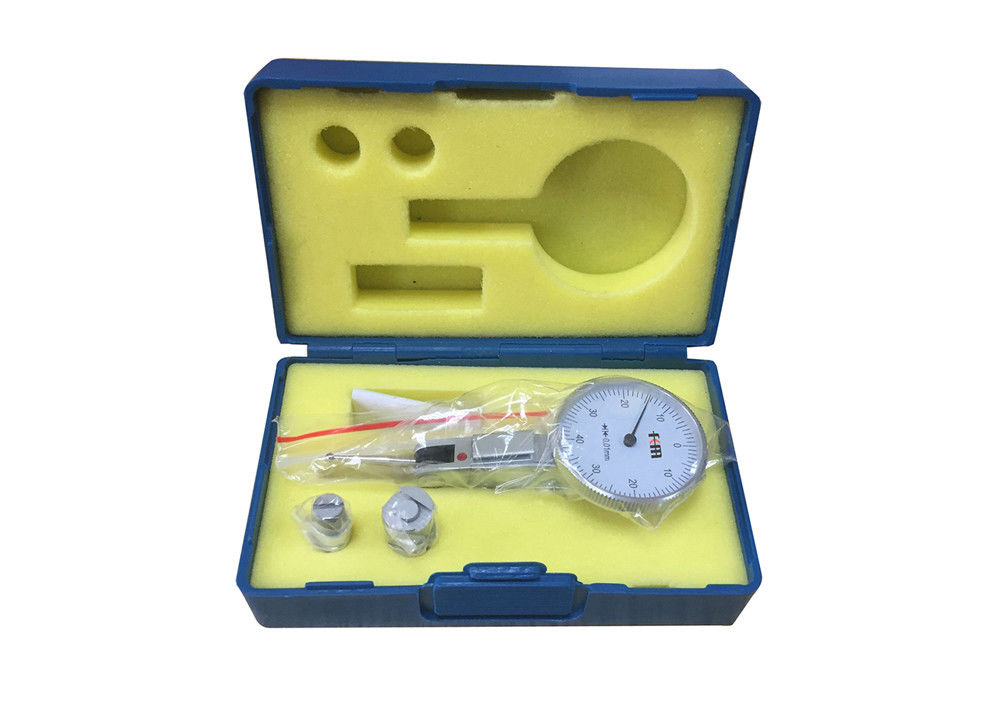

- Includes fitted protective case.
Product Description

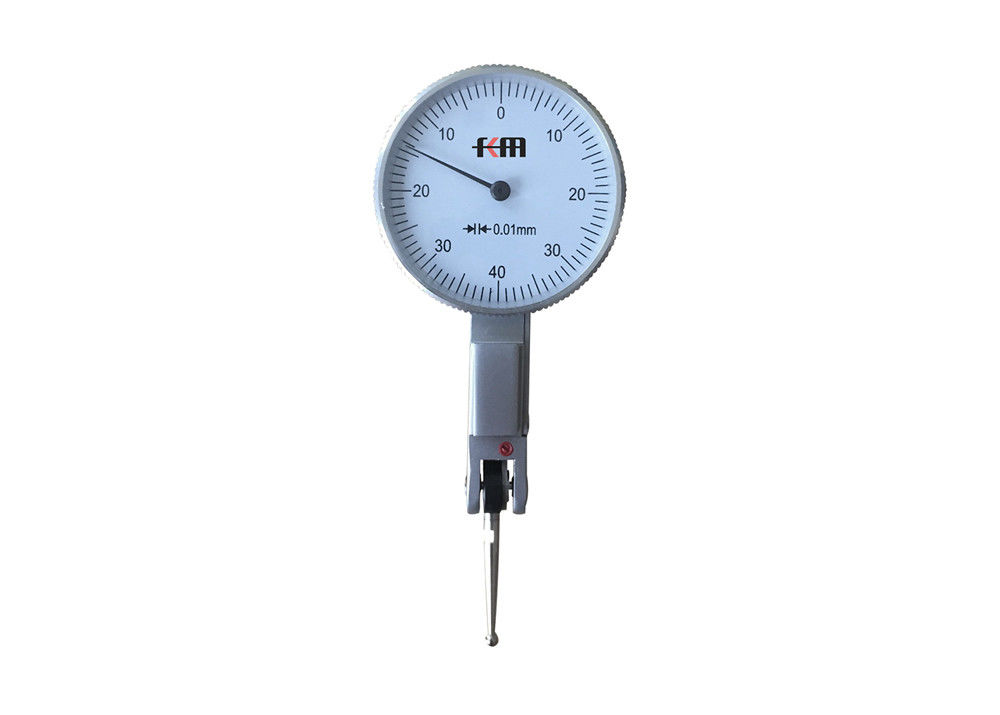

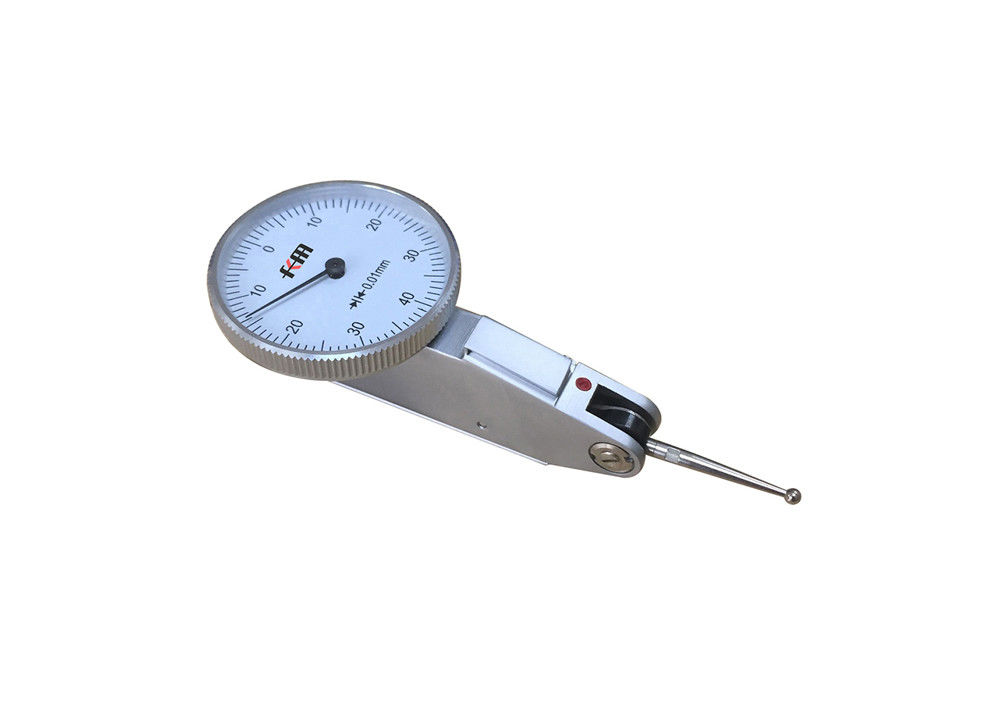

This precision dial test indicator (also known as a lever arm test indicator or finger indicator) features a 0-0.8mm measuring range with 0.01mm graduation. The 32mm dial face displays 0-40-0 readings for clear measurement interpretation. Its compact size and high precision make it ideal for applications where standard dial indicators are impractical.
Designed for measuring geometric errors and positional accuracy of workpieces, this indicator excels in applications requiring comparative measurement of actual dimensions. The symmetrical dial scale and bidirectional stem operation enhance measurement versatility. Available in front, side, and end types, this instrument is particularly valuable for precision measurement tasks with limited space requirements.
Technical Specifications
| Order No. | Range | Graduation | Dial Diameter |
|---|---|---|---|
| KM-342-32-8 | 0-0.8mm | 0.01mm | 32mm |
Usage Guidelines
- Verify measuring rod flexibility before each use.
- Always secure the indicator in a proper holder during operation.
- Avoid measuring rough surfaces or sudden impacts with workpieces.
- Ensure the pointer is zeroed before taking measurements for accuracy.
Applications

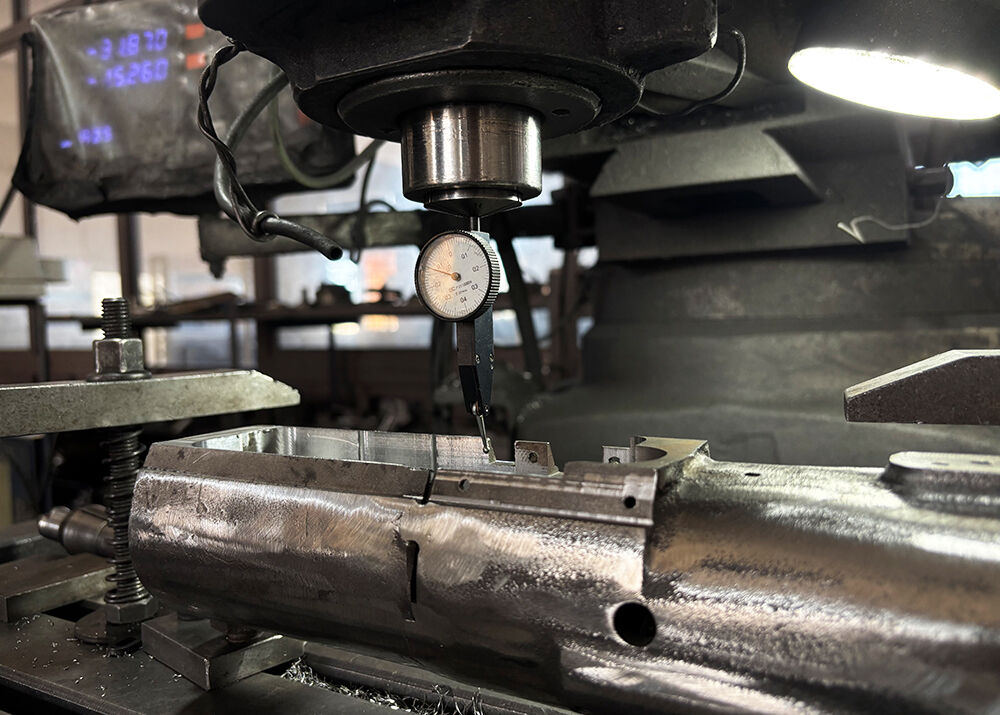

Essential for lathe, jig borer, and milling machine operations, this test indicator simplifies flatness, roundness, and runoff measurements. It enables precise part centering and detects imperfections invisible to the naked eye, significantly enhancing machining accuracy and quality control.
Frequently Asked Questions
About Our Company
Deko Corporation specializes in manufacturing KM brand precision measuring tools, serving the Chinese mainland market with development, production, and distribution.
Product Range
We offer comprehensive measuring instruments including dial indicators, micrometers, calipers, bore gauges, height gauges, thickness gauges, depth gauges, bevel protractors, gauge blocks, and levels.
Trade Terms
Available terms include FOB, CFR, CIF, and EXW to accommodate various shipping and delivery requirements.
Payment Options
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union for customer convenience.
Customization Services
OEM customization is available to meet specific customer requirements.
Warranty & Support
All products come with a one-year warranty. Defective components will be promptly replaced, backed by our rigorous calibration and inspection processes that ensure consistent product quality.
