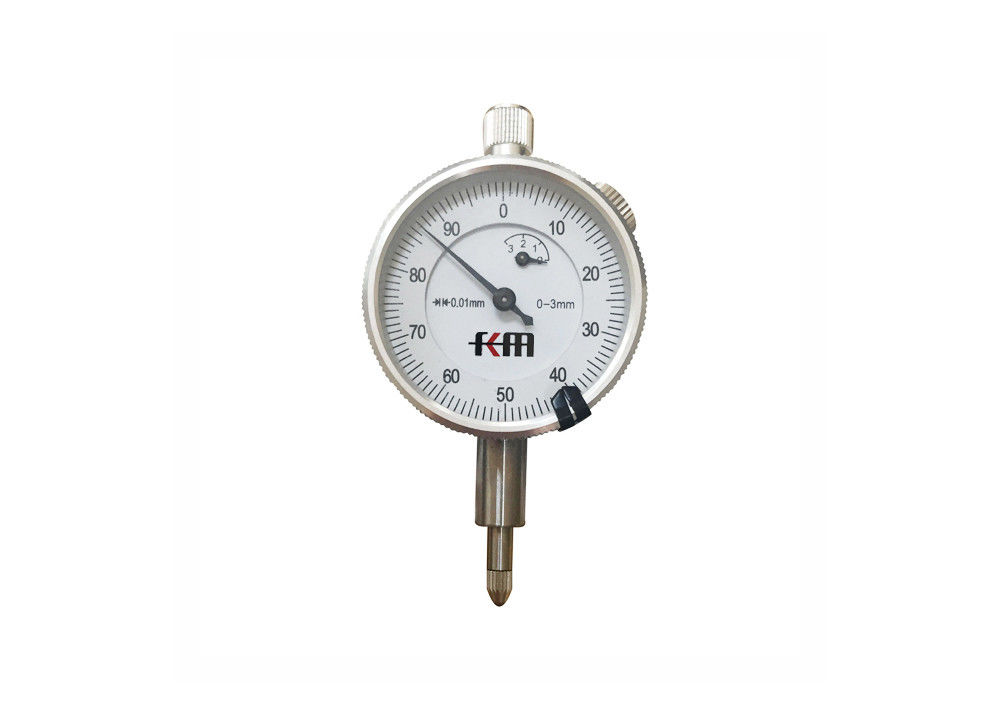

0-3mm Small Dial Indicator With 0.01mm Graduation Aluminum Material

0-3mm Small Dial Indicator with 0.01mm Graduation Aluminum Material

Quick Detail:

1. Metric measurement.

2. 40mm small diameter for restricted-space applications in gaging jigs.

3. Jeweled bearing and shockproof.

4. In-out tolerance marker.

5. Rotational bezel with clamp for easy zero set.

6. Interchangeable hardened contact point.

7. Easy to read and operate, high sensitivity and accuracy.

8. Aluminum or chromate-plated steel available.

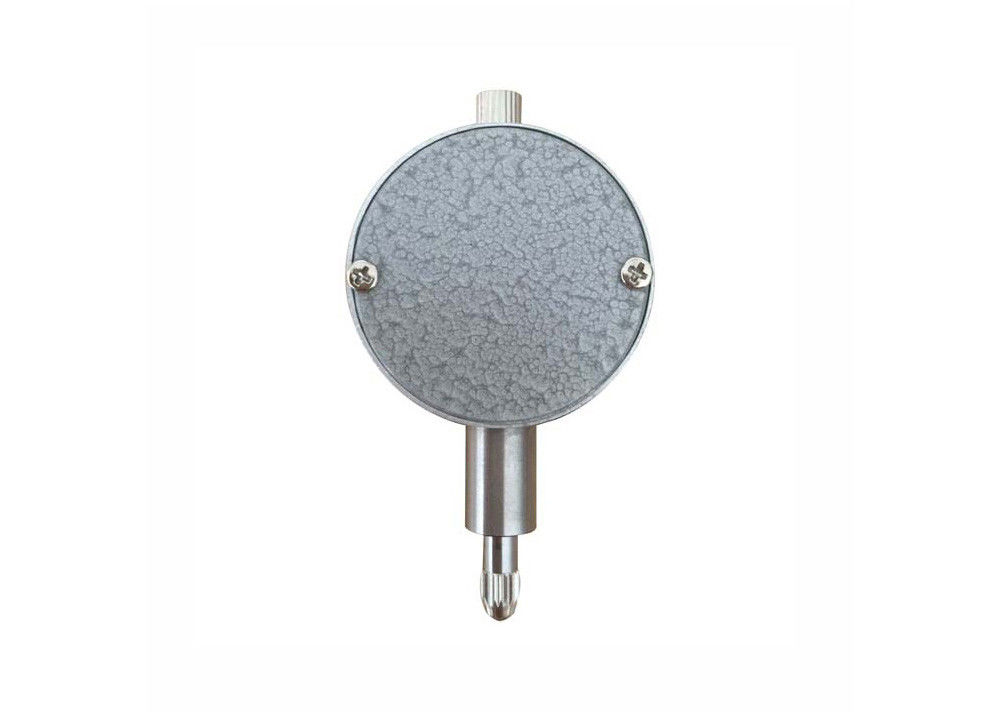

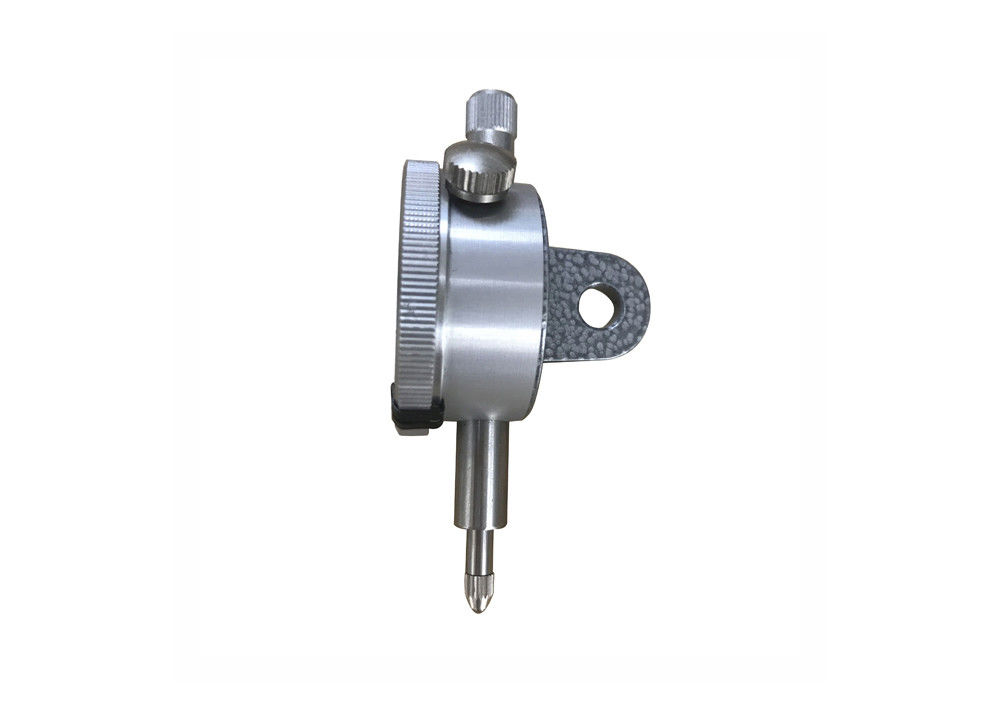

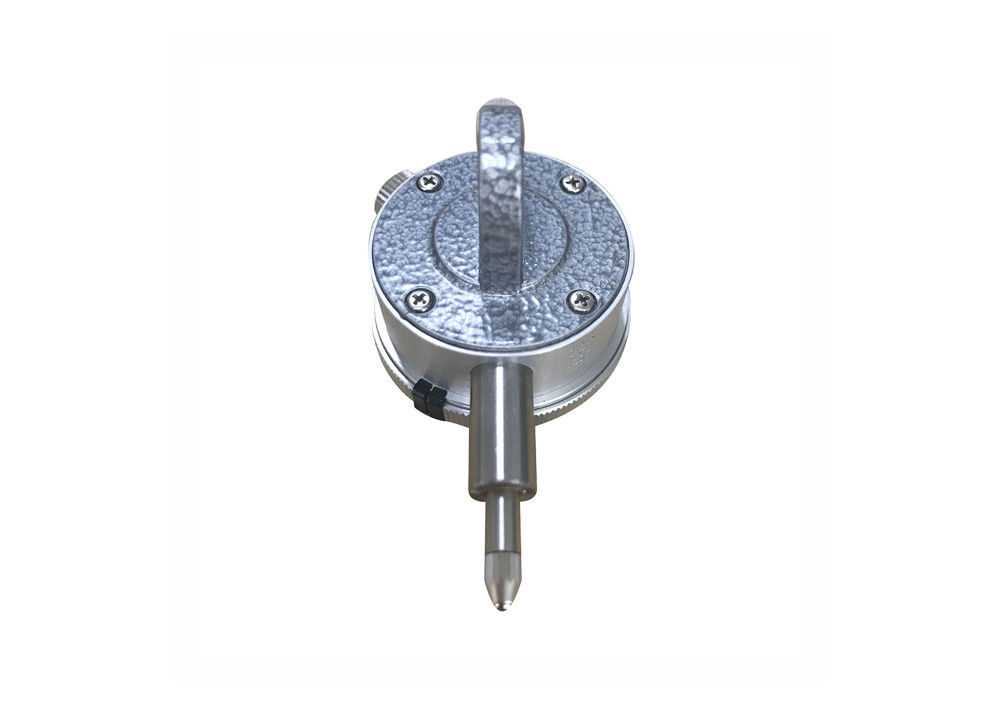

9. Flat back or back lug for mounting purposes.

10. Supplied in fitted case.

Description:

This small dial indicator is designed with 40mm dial diameter, which is suitable to measure at the narrow setting space

of production lines and many measuring points by being mounted to the machine. With range 0-3mm, 0-5mm and 0-8mm,

graduation 0.01mm and 0-100 reading dial face.

Small dial indicators usually have the option of a variety of color dials and hands to meet the individual needs of different users.

The internal and external tolerance indication function makes the measurement more accurate, and the flat and curved surface

glass provides clear readings. In addition, it offers a choice of flat back cover and lug back cover for mounting purpose.

In terms of materials, small dial indicators are usually made of aluminum alloy or steel, which ensures the robustness of the

measuring tools. Users can also choose different colors and patterns of bezel according to special needs. The jeweled bearing

provides great wear resistance and low friction movements for smooth, precise operations.

Small dial indicator has a wide range of applications in many fields, such as mechanical manufacturing, precision machining,

automobile maintenance, etc. In these areas, the precise measurement of small deformations or displacements is essential,

and the small dial indicator is exactly what meets this need. Its high accuracy and reliability enable users to obtain accurate

measurement results.

Specification:

Precautions:

1. Before use, confirm whether operation is smooth.

2. Check whether quiescent point of indicator(pointer/short hand) is stable.

3. Check whether contact point and lug back are not loose.

4. When in use, the dial indicator must be fixed on a reliable clamp.

5. When measuring, do not make the stroke of the measuring rod exceed its measuring range.

Applications:

1. To check for consistency and accuracy in the manufacturing process in a quality environment.

2. To initially set up or calibrate a machine, prior to a production run on the workshop floor.

3. By toolmakers (such as mold makers) in the process of manufacturing precision tooling.

4. In metal engineering workshops, where a typical application is the centering of a lathe's workpiece in a four-jaw chuck.

5. In areas other than manufacturing where accurate measurements need to be recorded (e.g., physics).

6. To check for lateral run-out when affixing a new rotor to an automotive disc brake.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges,

bevel protractors, gauge, blocks, level, etc.

3) What are the terms of trade?

We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?

Yes, OEM is available.

6) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
