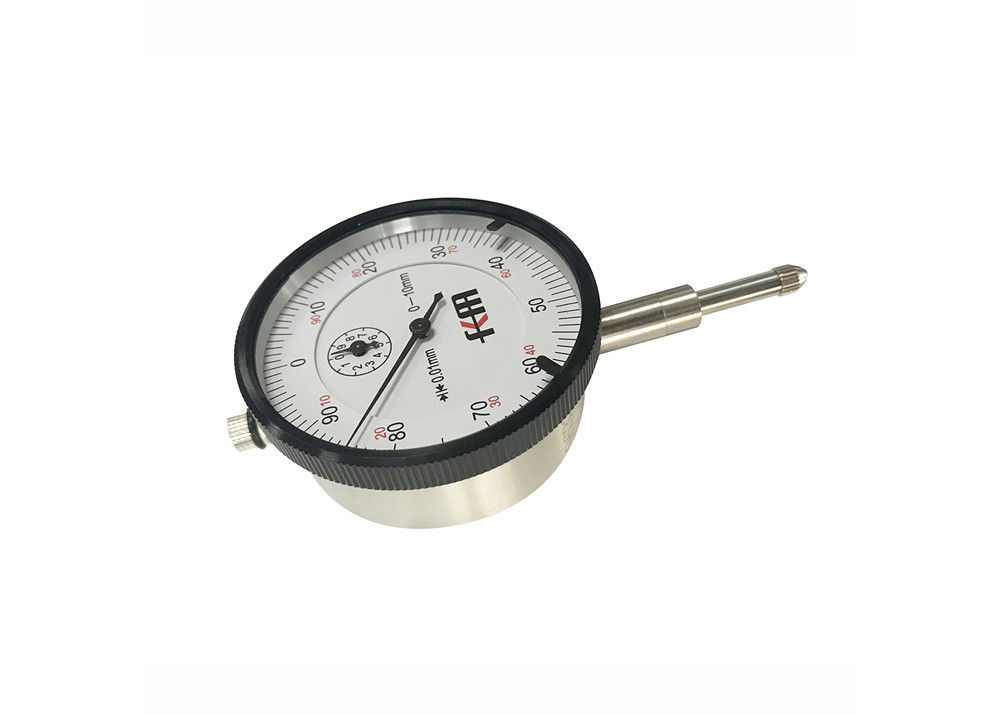

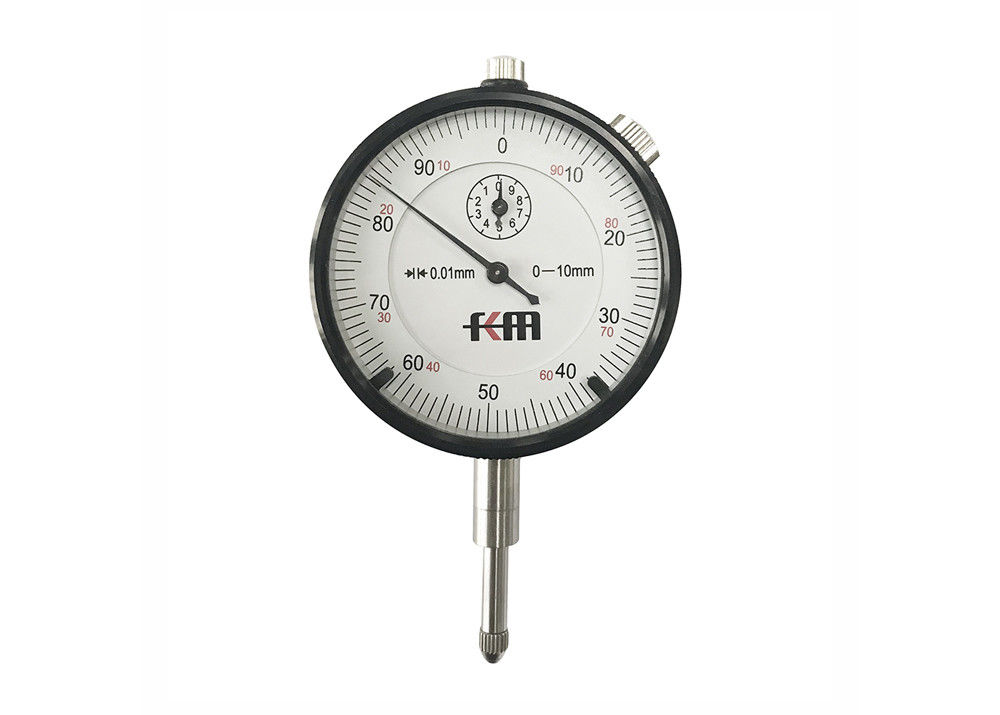

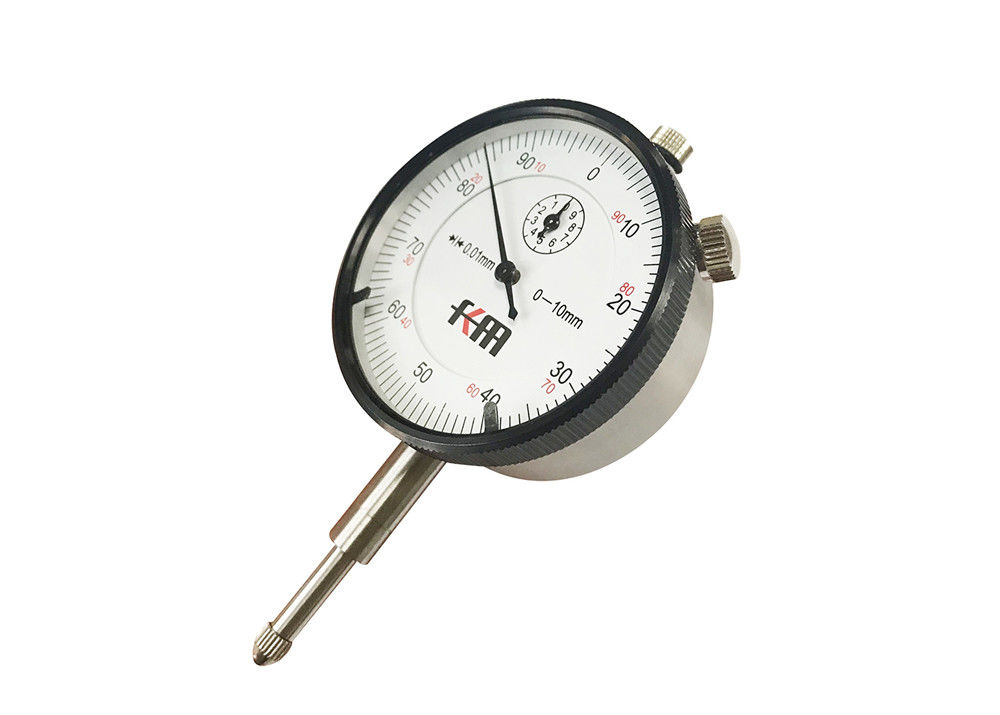

0-10mm Analog Dial Indicator Gauge CNC Machine Lathe Tool

0-10mm Analog Dial Indicator Gauge CNC Machine Lathe Tool

Quick Detail:

1. Metric measurement.

2. 55mm dial diameter.

3. Jeweled bearing and shockproof.

4. In-out tolerance marker.

5. Rotational bezel with clamp for easy zero set.

6. Interchangeable hardened contact point.

7. Easy to read and operate, high sensitivity and accuracy.

8. Aluminum or chromate-plated steel available.

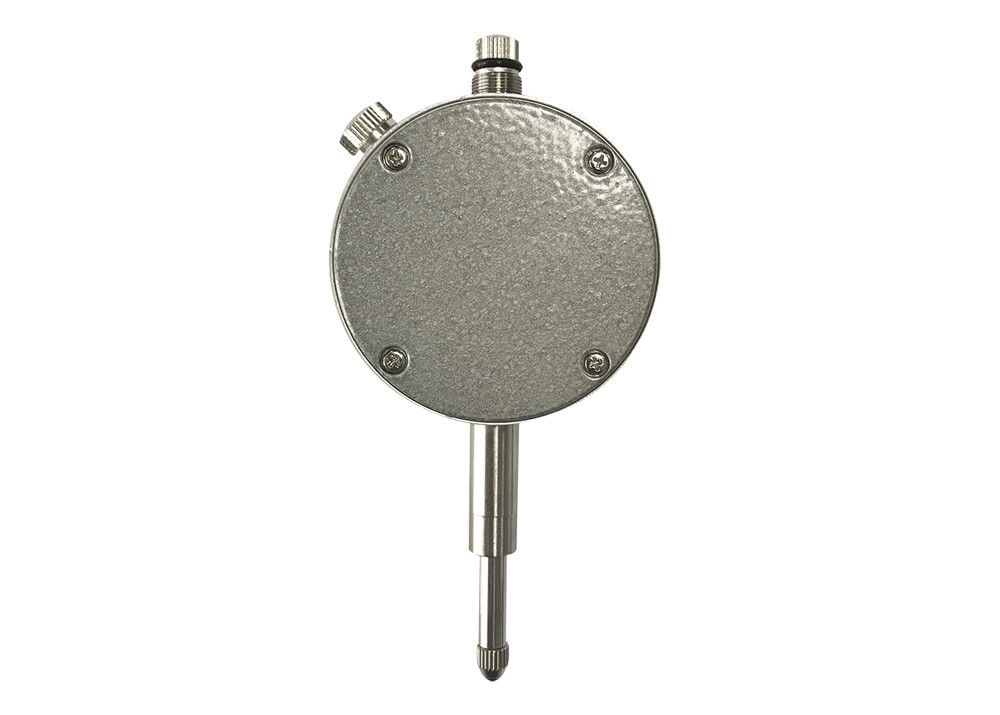

9. Flat back or back lug for mounting purposes.

10. Supplied in fitted case.

Description:

This is very standard type mechanical dial indicators, including range 0-3mm,0-5mm and 0-10mm, graduation 0.01mm,

0-100 reading dial face, the stem and spindle are constructed of hardened, high-strength steel, and the jeweled bearing

provides wear resistance and low friction movements for smooth, precise operations.

Our KM dial indicator comparator has a flexible reading indication and can be easily operated by rotating the dial to adjust

the viewing angle. It has a simple structure and a compact appearance, which is suitable for various measurement

and inspection occasions. The operation of the dial indicator is relatively simple, just contact the measuring rod with

the measured surface, adjust the measuring rod to be perpendicular to the measured surface, and the reading can be taken.

Dial indicators are an essential part of equipment monitoring. When building engines or in many industrial processes

dial indicators are used on a daily basis several times throughout the day.

Specification:

Precautions:

1. Before use, confirm whether operation is smooth.

2. Check whether quiescent point of indicator (pointer/short hand) is stable.

3. Check whether contact point and lug back are not loose.

4. When in use, the dial indicator must be fixed on a reliable clamp.

5. When measuring, do not make the stroke of the measuring rod exceed its measuring range.

Applications:

1. To check for consistency and accuracy in the manufacturing process in a quality environment.

2. To initially set up or calibrate a machine, prior to a production run on the workshop floor.

3. By toolmakers (such as mold makers) in the process of manufacturing precision tooling.

4. In metal engineering workshops, where a typical application is the centering of a lathe's workpiece in a four-jaw chuck.

5. In areas other than manufacturing where accurate measurements need to be recorded (e.g., physics).

6. To check for lateral run-out when affixing a new rotor to an automotive disc brake.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) What are the terms of trade?

We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?

Yes, OEM is available.

6) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
