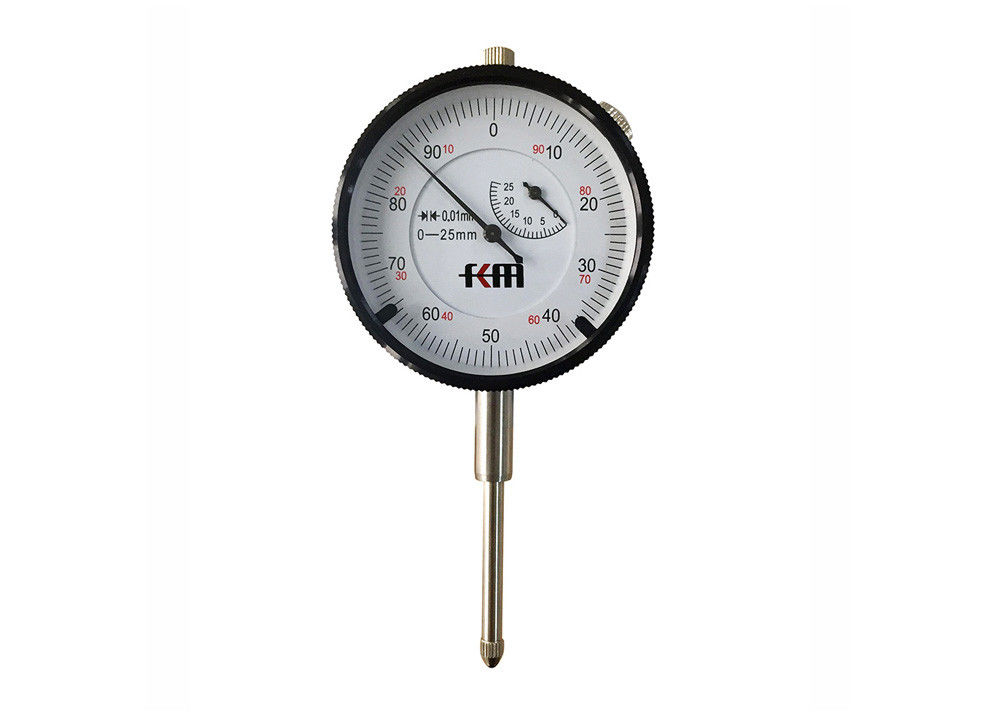

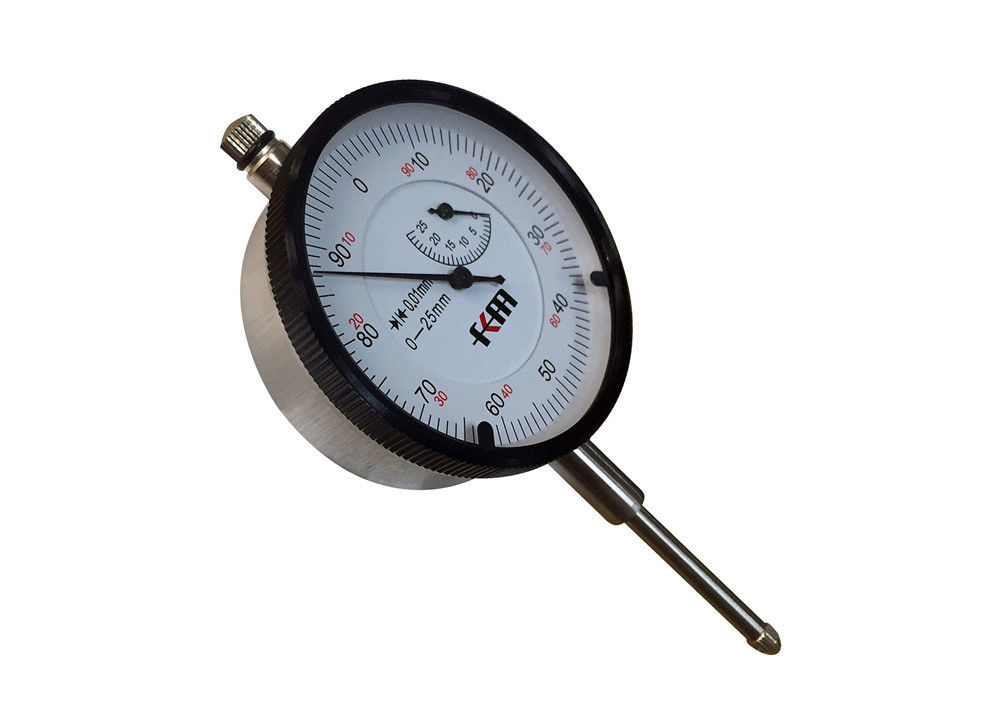

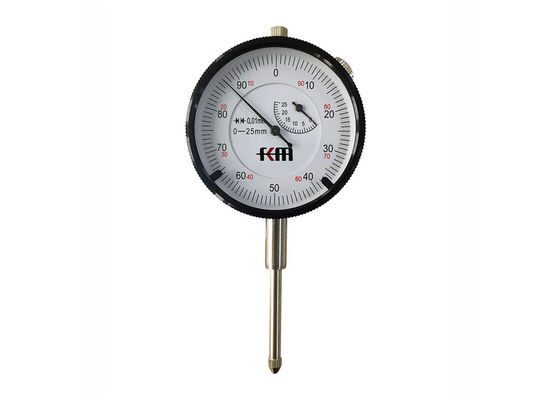

Long Travel Range Dial indicator 0-25mm Ragne, 0-01mm Graduation Interval, 0-100 Dial Reading, Back Plug for Mounting Purpose

Long Travel Range Dial indicator 0-25mm Ragne, 0-01mm Graduation Interval, 0-100 Dial Reading,

Back Plug for Mounting Purpose

Quick Detail:

1. Metric measurement.

2. 60mm dial diameter.

3. Jeweled bearing and shockproof.

4. In-out tolerance marker.

5. Hardened steel stem.

6. Rotational bezel with clamp for easy zero set.

7. Interchangeable hardened contact point.

8. Easy to read and operate, high sensitivity and accuracy.

9. Aluminum or chromate-plated steel available.

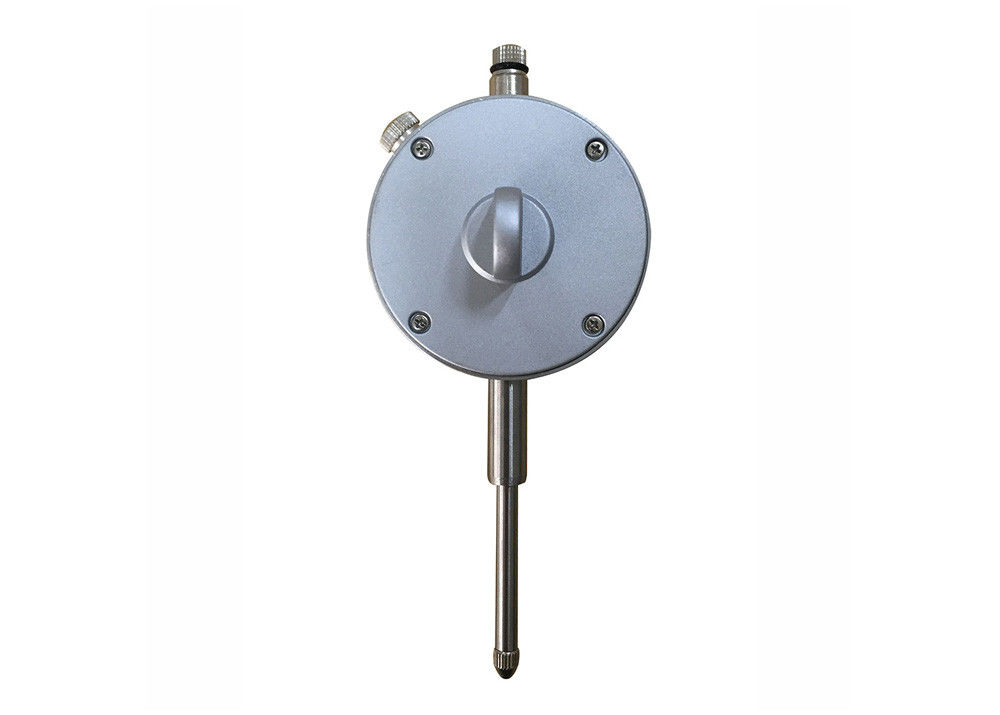

10. Flat back or back lug for mounting purposes.

11. Supplied in fitted case.

Description:

This is long travel range dial indicator provide bigger measuring range including 0-15mm, 0-20mm, 0-25mm and 0-30mm,

graduation 0.01mm, 0-100 reading dial. The large range travel is materialized with highest precision components of high durability

and enlargement mechanism is built-in.

Dial indicator is easy to operate, just contact the measuring rod with the measured surface, adjust the measuring rod to be

perpendicular to the measured surface, and the reading can be taken. In addition, the dial indicator has a flexible  reading indication

and can be easily operated by rotating the dial to adjust the viewing angle. It has a simple structure and a compact appearance,

which is suitable for various measurement and inspection occasions. And the dial indicator usually uses high-quality materials

and manufacturing processes, which have high durability and reliability, and can ensure long-term stable measurement accuracy

and performance. Therefore, it has been widely used in machinery manufacturing, precision machining, quality inspection and other fields.

Dial indicators are valuable for engineering, manufacturing and machining industries. Due to their high precision and versatility,

they have been the most popular for quality control inspections.

Specification:

Precautions:

1. Before use, confirm whether operation is smooth.

2. Check whether quiescent point of indicator (pointer/short hand) is stable.

3. Check whether contact point and lug back are not loose.

4. When in use, the dial indicator must be fixed on a reliable clamp.

5. When measuring, do not make the stroke of the measuring rod exceed its measuring range.

Applications:

1. To check for consistency and accuracy in the manufacturing process in a quality environment.

2. To initially set up or calibrate a machine, prior to a production run on the workshop floor.

3. By toolmakers (such as mold makers) in the process of manufacturing precision tooling.

4. In metal engineering workshops, where a typical application is the centering of a lathe's workpiece in a four-jaw chuck.

5. In areas other than manufacturing where accurate measurements need to be recorded (e.g., physics).

6. To check for lateral run-out when affixing a new rotor to an automotive disc brake.
