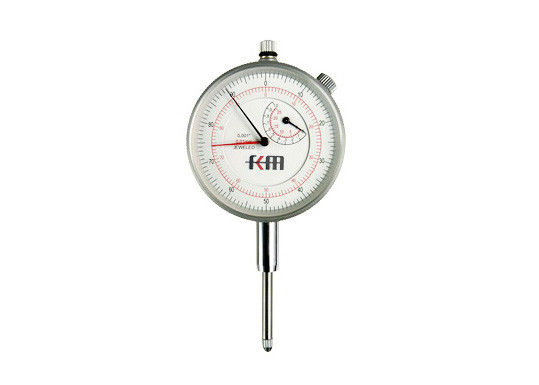

DUAL Reading 0-1in/0-25.4mm Inch And Metric Dial Indicator Gauge High Precision Tools

DUAL Reading 0-1in/0-25.4mm Inch And Metric Dial Indicator Gauge High Precision Tools

Quick Detail:

1. Inch and Metric measurement.

2. Graduation: 0.001in/0.01mm.

3. ANSI/GB standard.

4. Jeweled bearing and shockproof.

5. In-out tolerance marker.

6. Hardened steel stem.

7. Rotational bezel with clamp for easy zero set.

8. Interchangeable hardened contact point.

9. Aluminum or chromate-plated steel available.

10. Flat back or back lug for mounting purposes.

11. Supplied in fitted case.

Description:
This dial indicator reads in both inch and metric, the dial face read in inch(red) and metric(black) , a measuring range

of 0-0.5inch/0-12.7mm, 0-1inch/0-25mm,0-1.5inch/0-40mm and 0-2inch/0-50mm are available.

As one essential tool, our dial indicators are used to check the variation in tolerance during the inspection process of

a machined part, measure the deflection of a beam or ring under laboratory conditions, as well as many other situations

where a small measurement needs to be registered or indicated.

Our KM dial indicator has a simple structure and a compact appearance, which is suitable for various measurement

and inspection occasions. And the dial indicator usually uses high-quality materials and manufacturing processes,

which have high durability and reliability, and can ensure long-term stable measurement accuracy and performance.

Therefore, it has been widely used in machinery manufacturing, precision machining, quality inspection and other fields.

Specification:

Precautions:

1. Before use, confirm whether operation is smooth.

2. Check whether quiescent point of indicator (pointer/short hand) is stable.

3. Check whether contact point and lug back are not loose.

4. When in use, the dial indicator must be fixed on a reliable clamp.

5. When measuring, do not make the stroke of the measuring rod exceed its measuring range.

Applications:

1. To check for consistency and accuracy in the manufacturing process in a quality environment.

2. To initially set up or calibrate a machine, prior to a production run on the workshop floor.

3. By toolmakers (such as mold makers) in the process of manufacturing precision tooling.

4. In metal engineering workshops, where a typical application is the centering of a lathe's workpiece in a four-jaw chuck.

5. In areas other than manufacturing where accurate measurements need to be recorded (e.g., physics).

6. To check for lateral run-out when affixing a new rotor to an automotive disc brake.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) What are the terms of trade?

We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?

Yes, OEM is available.

6) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
