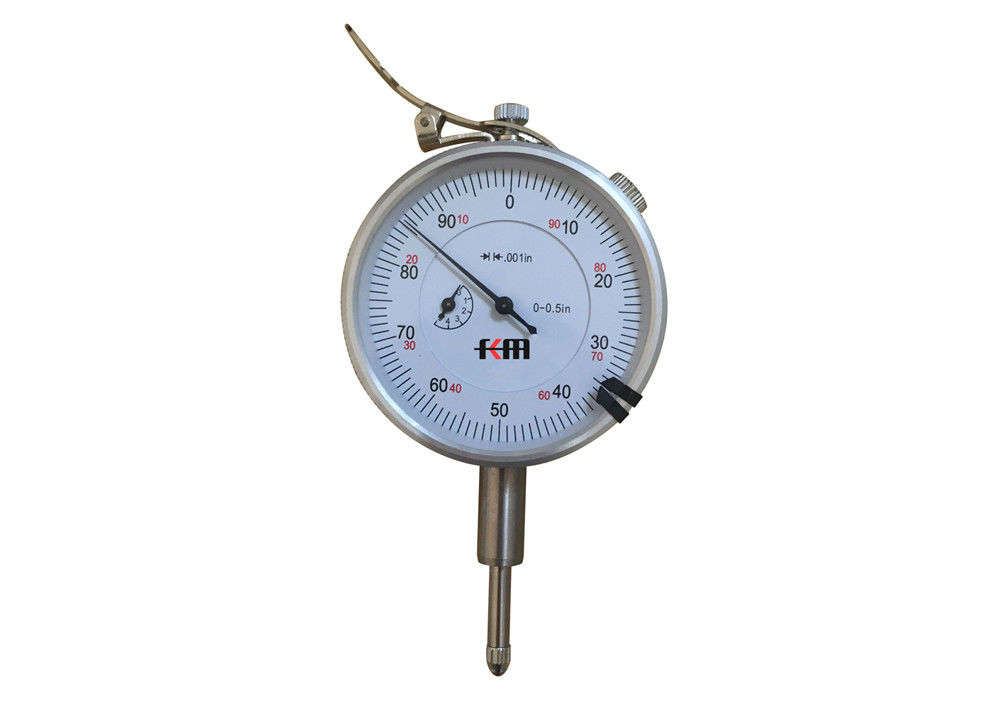

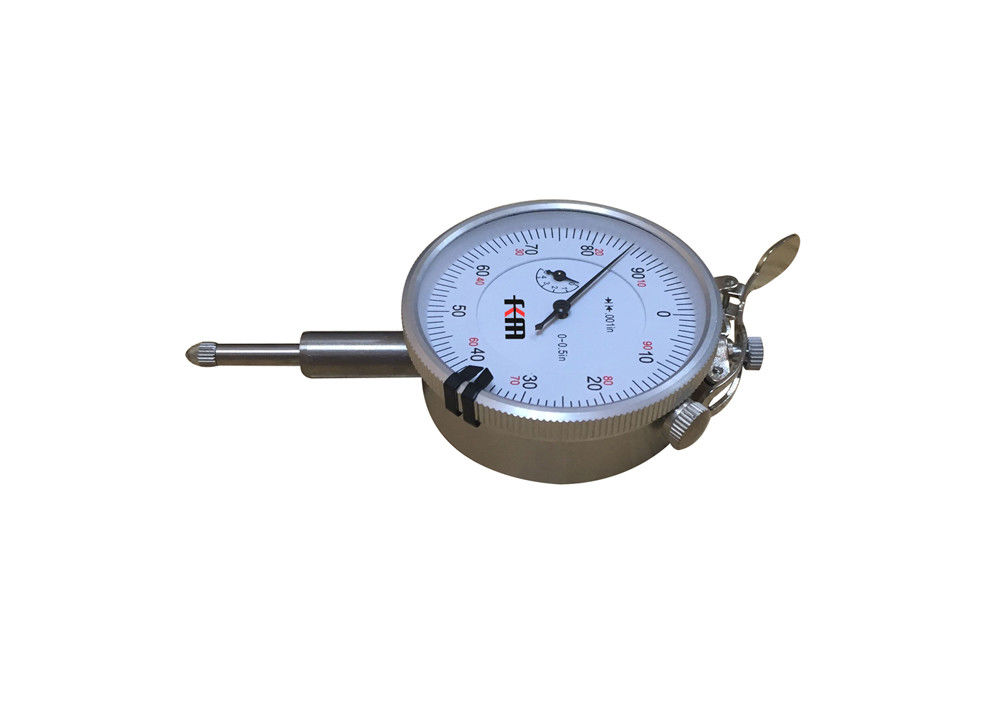

0-0.5″x0.001″ Inch Dial Indicator with Lifting Lever Standard Type

0-0.5″x0.001″ Inch Dial Indicator with Lifting Lever Standard Type

Quick Detail:

1. Inch measurement.

2. ANSI standard.

3. Jeweled bearing and shockproof.

4. In-out tolerance marker.

5. Rotational bezel with clamp for easy zero set.

6. Interchangeable hardened contact point

7. Easy to read and operate, high sensitivity and accuracy.

8. Aluminum or chromate-plated steel available.

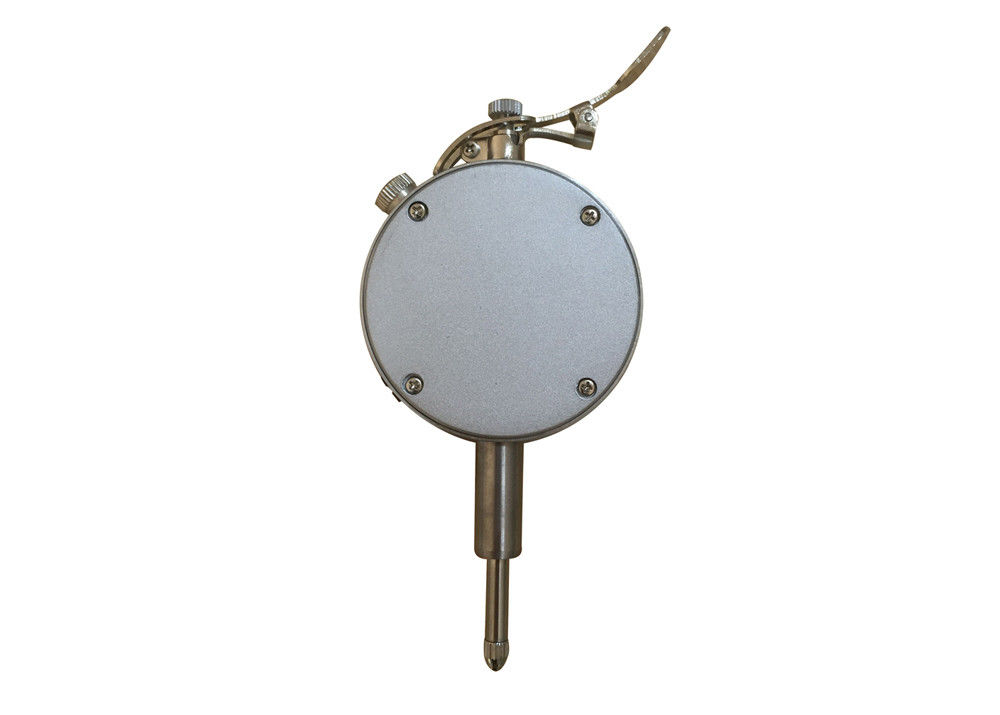

9. Flat back or back lug for mounting purposes.

10. Supplied in fitted case.

Description:

This is one of our most standard and best-selling serial inch dial indicator with measuring range 0-0.25", 0-0.5" and 0-1",

graduation 0.001", 0-100 reading dial, The stem and spindle are constructed of hardened, high-strength steel, and the jeweled

bearing provides wear resistance and low friction movements for smooth, precise operations.

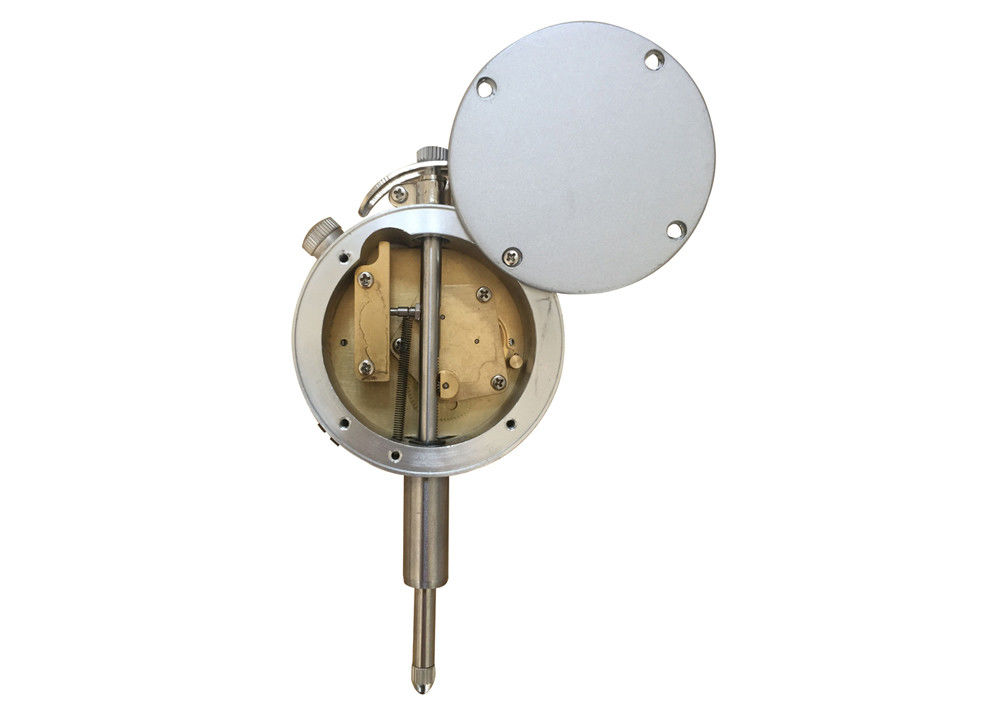

The structure and working principle of the inch dial indicator is similar to that of the dial indicator, and usually includes parts

such as a measuring rod, a transmission mechanism, and an indication mechanism. The slight displacement of the measuring

rod is converted by the transmission mechanism into the rotation of the hands on the dial, which indicates the corresponding

measured value, and specifically designed for accurate measurements in inch units, include a high-precision reading system,

graduation marks in imperial units, and the ability to measure small deformations or displacements.

When selecting and using inch dial indicator, comprehensive consideration should be made according to actual needs

and usage scenarios to ensure the accuracy and reliability of measurement results.

Specification:

Precautions:

1. Before use, confirm whether operation is smooth.

2. Check whether quiescent point of indicator (pointer/short hand) is stable.

3. Check whether contact point and lug back are not loose.

4. When in use, the dial indicator must be fixed on a reliable clamp.

5. When measuring, do not make the stroke of the measuring rod exceed its measuring range.

Applications:

1. To check for consistency and accuracy in the manufacturing process in a quality environment.

2. To initially set up or calibrate a machine, prior to a production run on the workshop floor.

3. By toolmakers (such as mold makers) in the process of manufacturing precision tooling.

4. In metal engineering workshops, where a typical application is the centering of a lathe's workpiece in a four-jaw chuck.

5. In areas other than manufacturing where accurate measurements need to be recorded (e.g., physics).

6. To check for lateral run-out when affixing a new rotor to an automotive disc brake.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) What are the terms of trade?

We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?

Yes, OEM is available.

6) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
