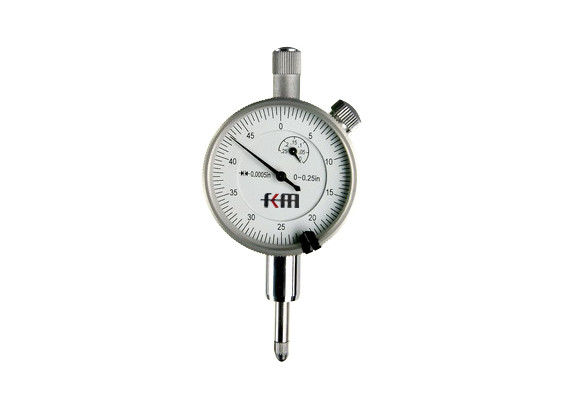

0-0.25" High Precision Standard Type Dial Indicator with 0.0005" Graduation

0-0.25" High Precision Standard Type Dial Indicator with 0.0005" Graduation

Quick Detail:

1. Inch measurement.

2.ANSI standard.

3. Jeweled bearing and shockproof.

4. In-out tolerance marker.

5. Rotational bezel with clamp for easy zero set.

6. Interchangeable hardened contact point.

7. Easy to read and operate, high sensitivity and accuracy.

8. Aluminum or chromate-plated steel available.

9. Flat back or back lug for mounting purposes.

10. Supplied in fitted case.

Description:

This is high precision 0.0005" reading small inch dial indicator, with 1.6inch dial diameter suitable to measure

at the narrow setting space of production lines and many points by being mounted to the machine, the 0.0005" reading

makes the measurement more precision and accurate than standard type dial indicators. They are specifically designed

for measure at the narrow setting space of production lines and many measuring points by being mounted to the machine.

In mechanical manufacturing and machining, small dial indicators are often used to check the dimensional accuracy,

shape accuracy and position accuracy of parts in limited space. Due to its high-precision characteristics, it is able to ensure

the precise manufacturing of mechanical parts, improving the performance and quality of the overall machinery. Due to its small

dial diameter, the small dial indicator is particularly suitable for measurement work in space-constrained environments.

For example, inside mechanical equipment, in narrow holes or in complex structures, the small dial indicator makes it easy

to access and accurately measure the required parameters.

Specification:

Precautions:

1. Before use, confirm whether operation is smooth.

2. Check whether quiescent point of indicator (pointer/short hand) is stable.

3. Check whether contact point and lug back are not loose.

4. When in use, the dial indicator must be fixed on a reliable clamp.

5. When measuring, do not make the stroke of the measuring rod exceed its measuring range.

Applications:

1. To check for consistency and accuracy in the manufacturing process in a quality environment.

2. To initially set up or calibrate a machine, prior to a production run on the workshop floor.

3. By toolmakers (such as mold makers) in the process of manufacturing precision tooling.

4. In metal engineering workshops, where a typical application is the centering of a lathe's workpiece in a four-jaw chuck.

5. In areas other than manufacturing where accurate measurements need to be recorded (e.g., physics).

6. To check for lateral run-out when affixing a new rotor to an automotive disc brake.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) What are the terms of trade?

We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?

Yes, OEM is available.

6) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
