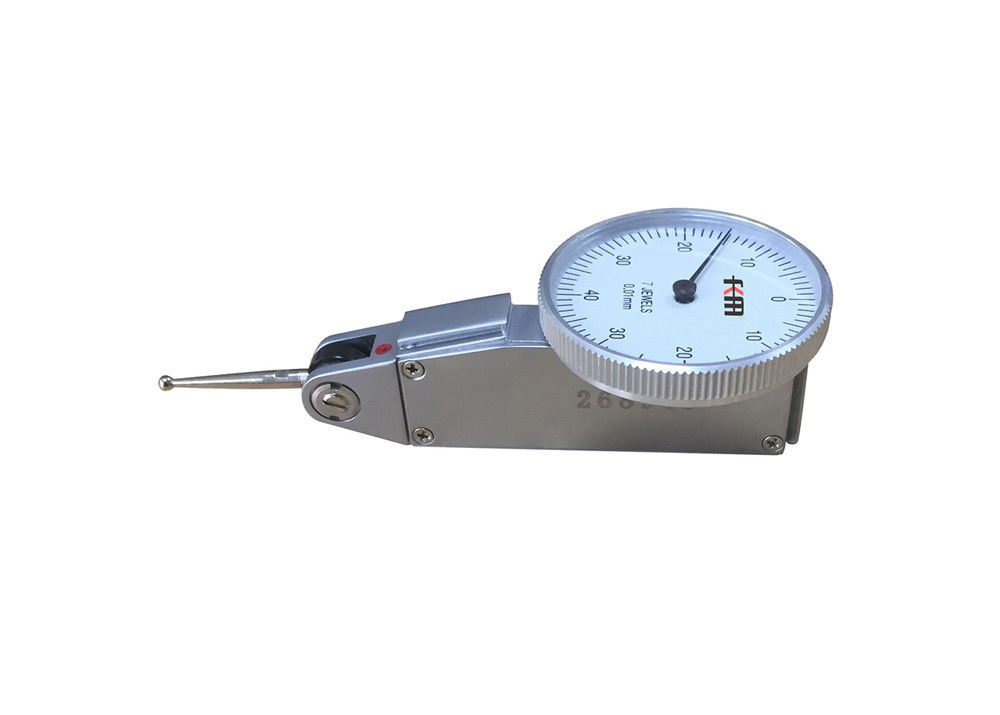

0-0.8mm Six Jewels Dial Test Indicator Measuring Tool with 0.01mm Graduation

0-0.8mm Six Jewels Dial Test Indicator Measuring Tool with 0.01mm Graduation

Quick Detail:

1. Metric measurement.

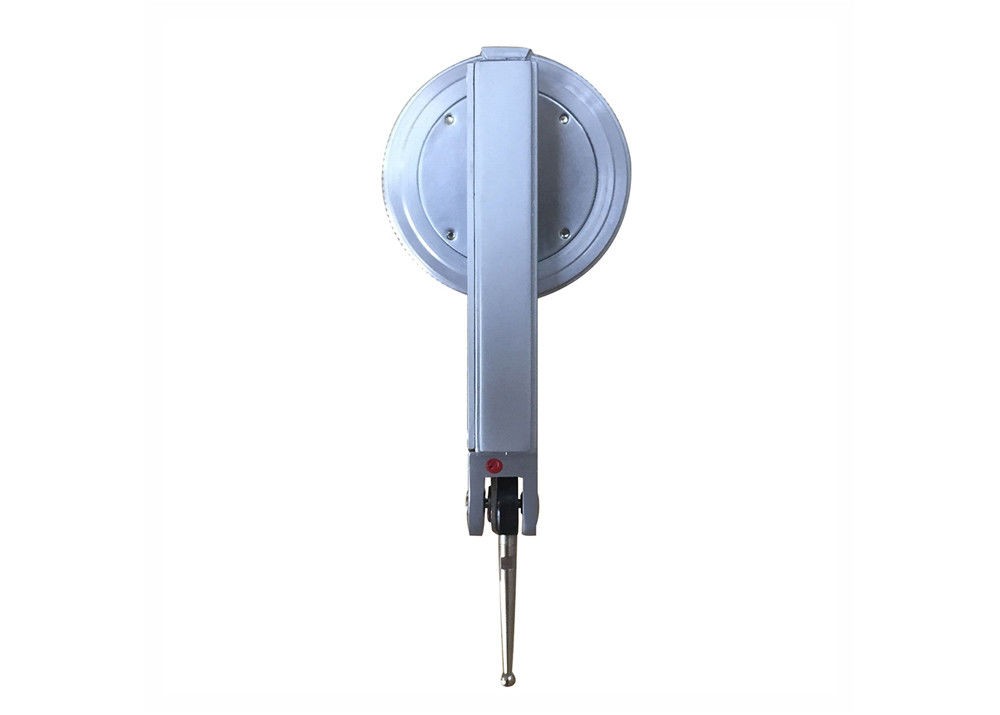

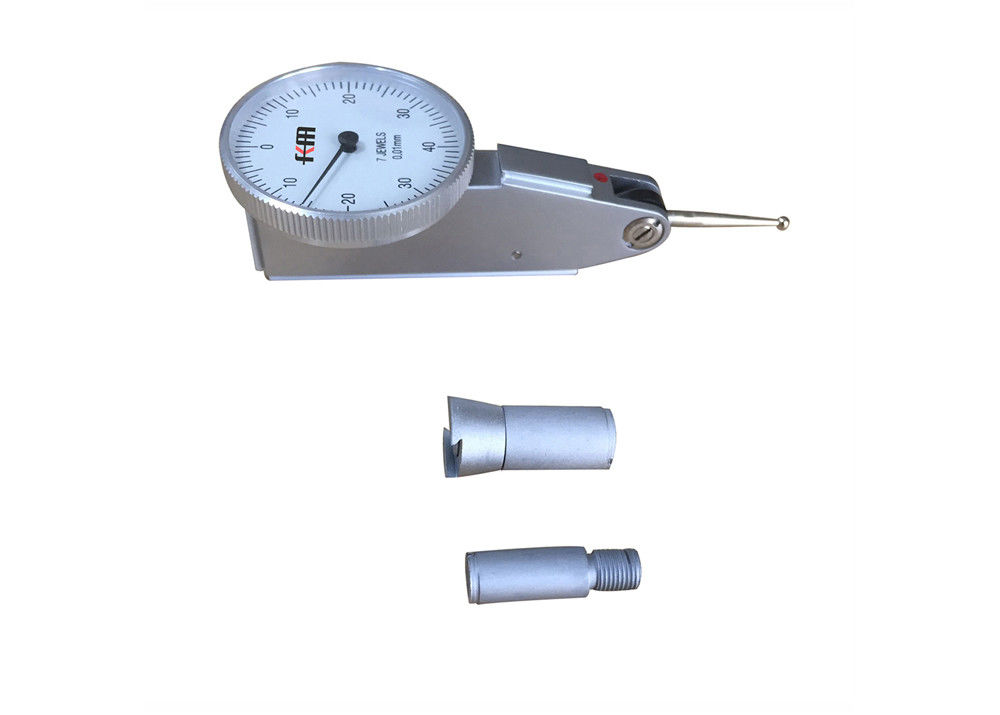

2. Dovetails on top and back for all-around positioning.

3. Six Jewels inner wear-resist bearing housings.

4. 180° swiveling and two directional functions.

5. Anti Magnetic Body.

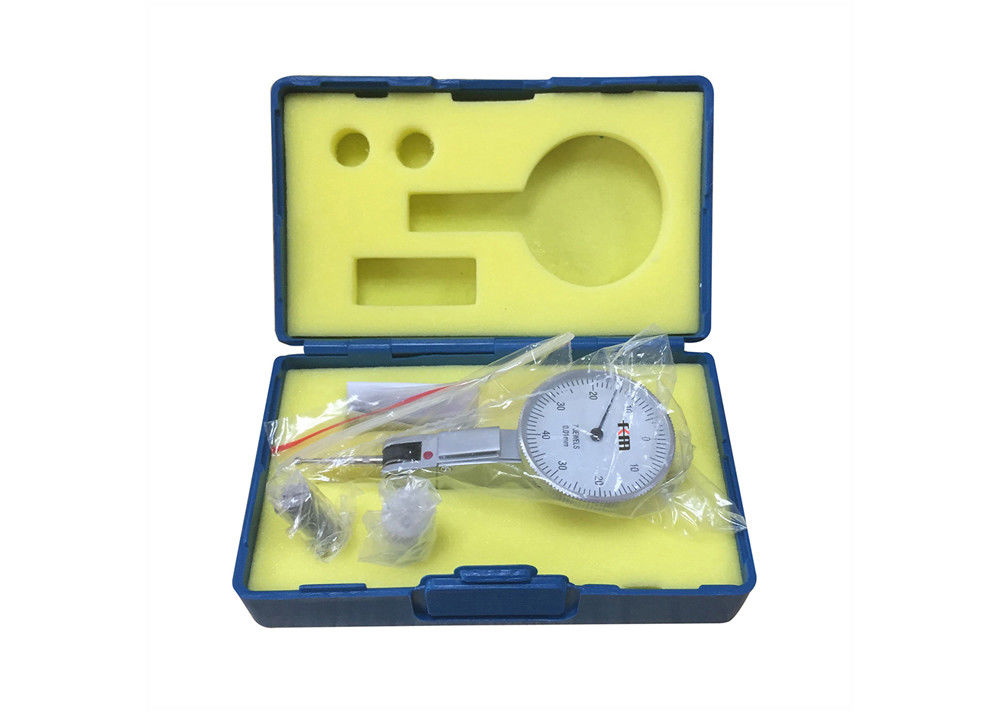

6. Supplied in fitted safe case packing.

Description:

This model supplied with six jewels bearing provides wear resistance and low friction movements for smooth,

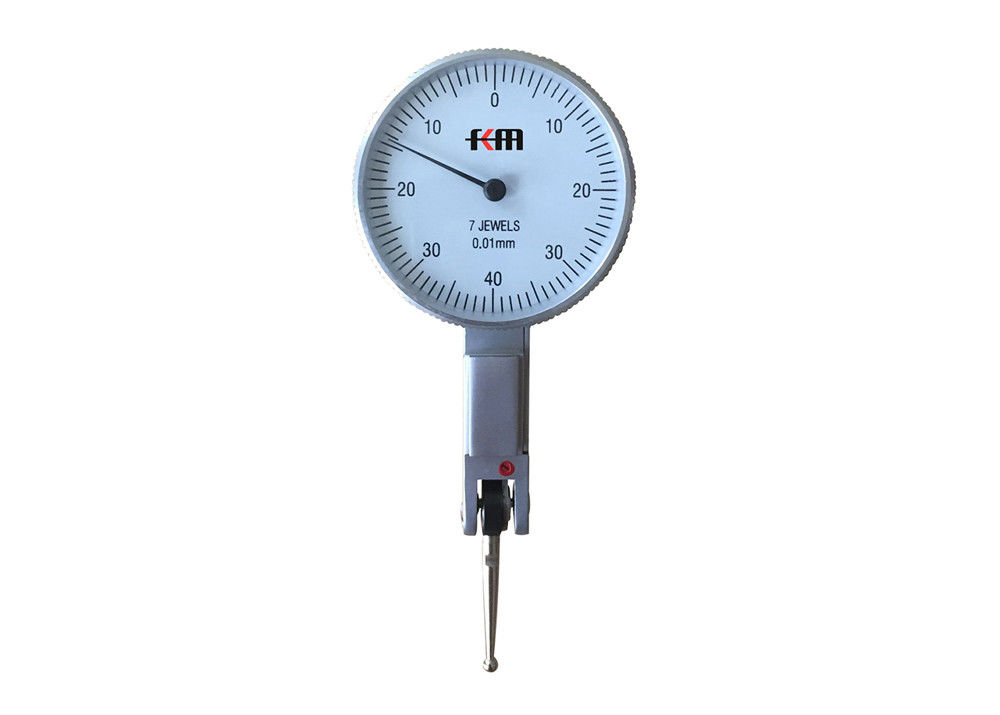

precise operations. With range 0-0.8mm, 0.01mm graduation, 0-40-0 reading face and 32mm dial face.

It is small in size and high in precision, and is suitable for the condition where the dial indicator is difficult to measure.

A dial test indicator, also known as a lever gauge or finger indicator, has a smaller measuring range than a standard

dial indicator. A test indicator measures the deflection of the arm, the probe does not retract but swings in an arc around

its hinge point. The lever may be interchanged for length or ball diameter, and permits measurements to be taken in narrow

grooves and small bores where the body of a probe type may not reach.

The dial test indicator is a high-precision, convenient and easy-to-use measuring tool with a wide range of application

prospects. In practice, it is necessary to select the appropriate model and specification according to the specific needs

and follow the correct measurement method to ensure the accuracy and reliability of the measurement results.

Specification:

Precautions:

1. Before use, please check the flexibility of the measuring rod.

2. When use, fix the dial test indicator on the holder.

3. Do not use dial test indicator to measure roughness surface and use the measuring head to hit the workpiece suddenly.

4. For accurate reading, the large pointer should be at zero position before measurement.

Applications:

They are particularly helpful for those working with lathes, jig borers, and milling machines. Test indicators make checking

for flatness, roundness, or runoff a snap. They can also help an operator locate part center. Test indicators can make a machine

operator’s job a lot easier because they can measure what the human eye cannot see.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) What are the terms of trade?

We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?

Yes, OEM is available.

6) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
