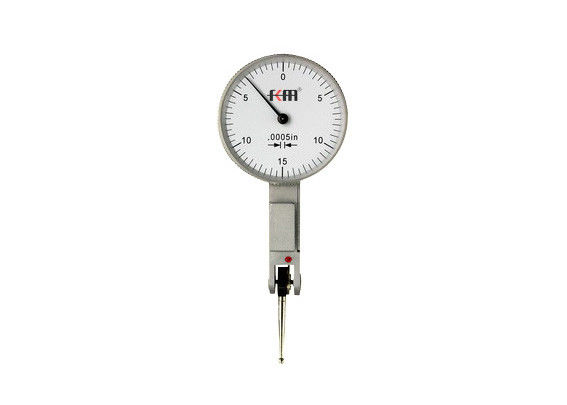

0.03" Precision Dial Test Indicator .0005" Graduation

0.03" Precision Dial Test Indicator .0005" Graduation

Quick Detail:

1. Inch measurement.

2. Dovetails on top and back for all-around positioning.

3. Jeweled movement.

4. 180° swiveling and two directional functions.

5. Steel contact point.

6. Anti Magnetic Body.

7. Supplied in fitted safe case packing.

Description:

This is inch reading dial indicator with measuring range 0-0.03in, graduation 0.0005in, 0-15-0 reading dial for easy reading.

It is small in size and high in precision, and is suitable for the condition where the dial indicator is difficult to measure.

They are also known as a lever gauge or finger indicator, has a smaller measuring range than a standard dial indicator.

A test indicator measures the deflection of the arm, the probe does not retract but swings in an arc around its hinge point.

The lever may be interchanged for length or ball diameter, and permits measurements to be taken in narrow grooves

and small bores where the body of a probe type may not reach.

Specification:

Precautions:

1. Before use, please check the flexibility of the measuring rod.

2. When use, fix the dial test indicator on the holder.

3. Do not use dial test indicator to measure roughness surface and use the measuring head to hit the workpiece suddenly.

4. For accurate reading, the large pointer should be at zero position before measurement.

Applications:

They are particularly helpful for those working with lathes, jig borers, and milling machines. Test indicators make checking

for flatness, roundness, or runoff a snap. They can also help an operator locate part center. Test indicators can make a machine

operator’s job a lot easier because they can measure what the human eye cannot see.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) What are the terms of trade?

We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?

Yes, OEM is available.

6) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
