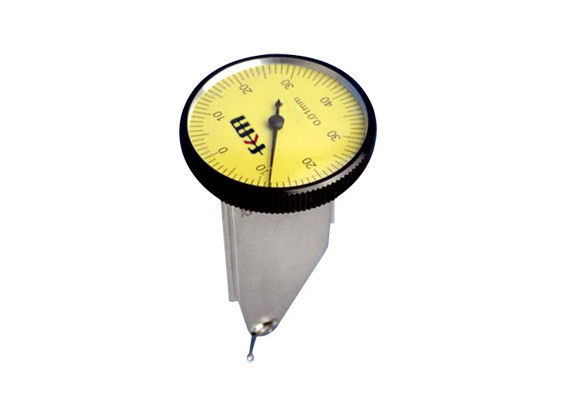

0-0.8mm Vertical Design Dial Test Indicator Gauge High Precision Machine Tool

0-0.8mm Vertical Design Dial Test Indicator Gauge High Precision Machine Tool

Quick Detail:

1. Metric measurement.

2. Dovetails top, front, and back mounting allows this indicator to be read in both horizontal and vertical position.

3. Jeweled movement.

4. 180° swiveling and two directional functions.

5. Steel contact point.

6. Anti Magnetic Body.

7. Supplied in fitted safe case packing.

Description:

The Vertical dial test indicator is designed with dovetails top, front, and back mounting allows this indicator to be read

in both horizontal and vertical position, with measuring range 0-0.8mm, graduation 0.01mm, 0-40-0 reading face

and 38mm large dial diameter for easy reading. It is small in size and high in precision, and is suitable for the condition

where the dial indicator is difficult to measure.

The vertical dial test indicator has a variety of advantages, such as small size, high precision, strong adaptability, etc.,

especially suitable for places where it is difficult to measure with general dial indicators. It is mainly used to measure

the geometric error and mutual position correctness of the workpiece, and can measure the actual size by the comparative

method. The dial test indicator can be divided into several types: front, side and end, with a graduation value of 0.01mm

and a measurement range of no more than 1mm. Its dial is symmetrically scaled, and the stem works in both directions.

Specification:

Precautions:

1. Before use, please check the flexibility of the measuring rod.

2. When use, fix the dial test indicator on the holder.

3. Do not use dial test indicator to measure roughness surface and use the measuring head to hit the workpiece suddenly.

4. For accurate reading, the large pointer should be at zero position before measurement.

Applications:

They are particularly helpful for those working with lathes, jig borers, and milling machines. Test indicators make checking

for flatness, roundness, or runoff a snap. They can also help an operator locate part center. Test indicators can make a machine

operator’s job a lot easier because they can measure what the human eye cannot see.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) What are the terms of trade?

We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?

Yes, OEM is available.

6) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
