Best Selling Standard Digital Indicator Gauge with 0-12.7mm/0-0.5" Measuring Range and 0.01mm/0.0005" Resolution
-
Highlight
0-12.7mm Digital Indicator Gauge
,Digital Indicator Gauge Measuring Force 1.6n
,0-12.7mm Digital Indicators
-
WarrantyOne Year
-
TypeDigital Indicator
-
MeasurementMetric/Inch
-
Precision0.02mm
-
Range0-12.7mm/0-0.5"
-
Resolution0.01mm/0.0005"
-
CapFixed And Moveable Cap
-
BackFlat Back And Back With Lug
-
Max Measuring Force1.6N
-
PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-232-12.7
-
Packaging DetailsABS Box 14*7*6cm/Piece 0.26kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month
Best Selling Standard Digital Indicator Gauge with 0-12.7mm/0-0.5" Measuring Range and 0.01mm/0.0005" Resolution

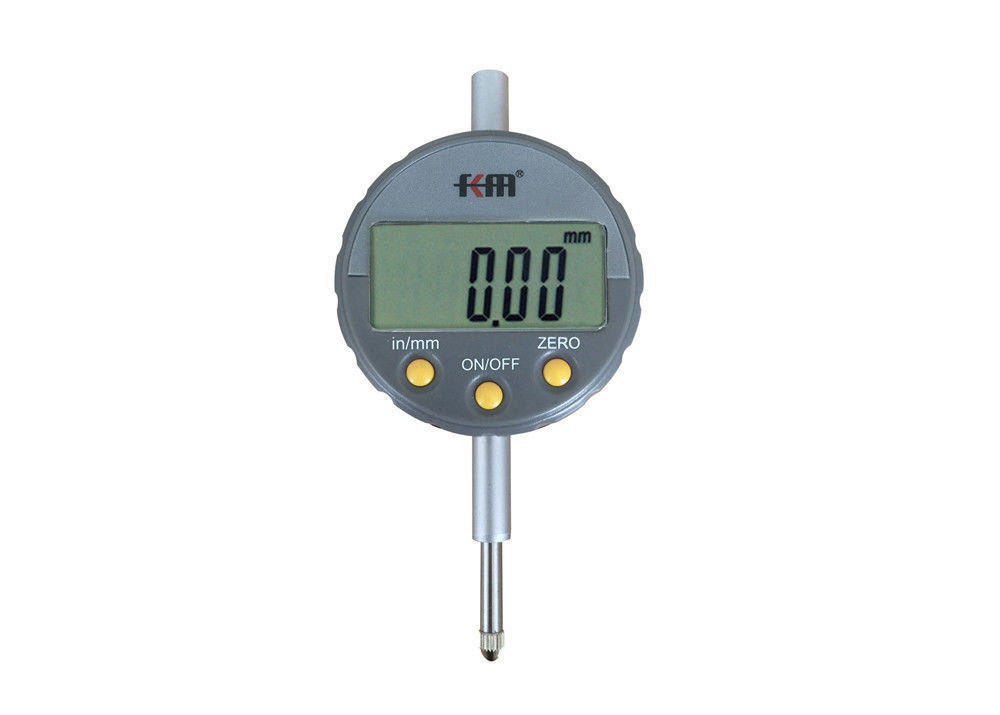

This is the most standard digital indicator with measuring range 0-12.7mm/0-0.5", resolution 0.01mm/0.0005", with low-cost, high-quality, multi-functional indicator with direct metric to inch conversion, zero setting at any position, power on/off and data output.
Digital dial indicator is mainly used to accurately measure small linear distances in mechanical and industrial processes, the electronic digital display has advantage of accurate, convenient reading and high accuracy. Digital indicator is an ideal tool for mechanical, industrial processes and laboratory use.
We produce and calibrate our digital indicators critically under the GB And DIN standards, makes our digital indicator high durability and reliability, and can ensure long-term stable measurement accuracy and performance. Therefore, it has been widely used in machinery manufacturing, precision machining, quality inspection and other fields.
- Large LCD display for easy reading.
- Metric/inch (mm/in) conversion.
- Power on/off function.
- Zero setting capability.
- Data output functionality.
- Optional fixed and movable caps.

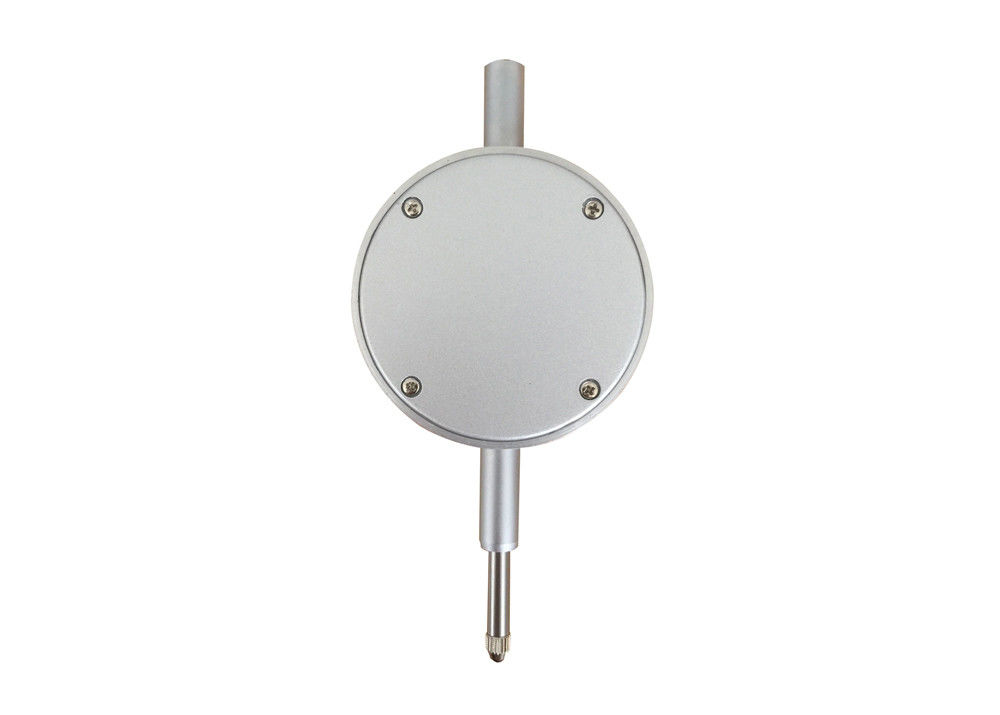

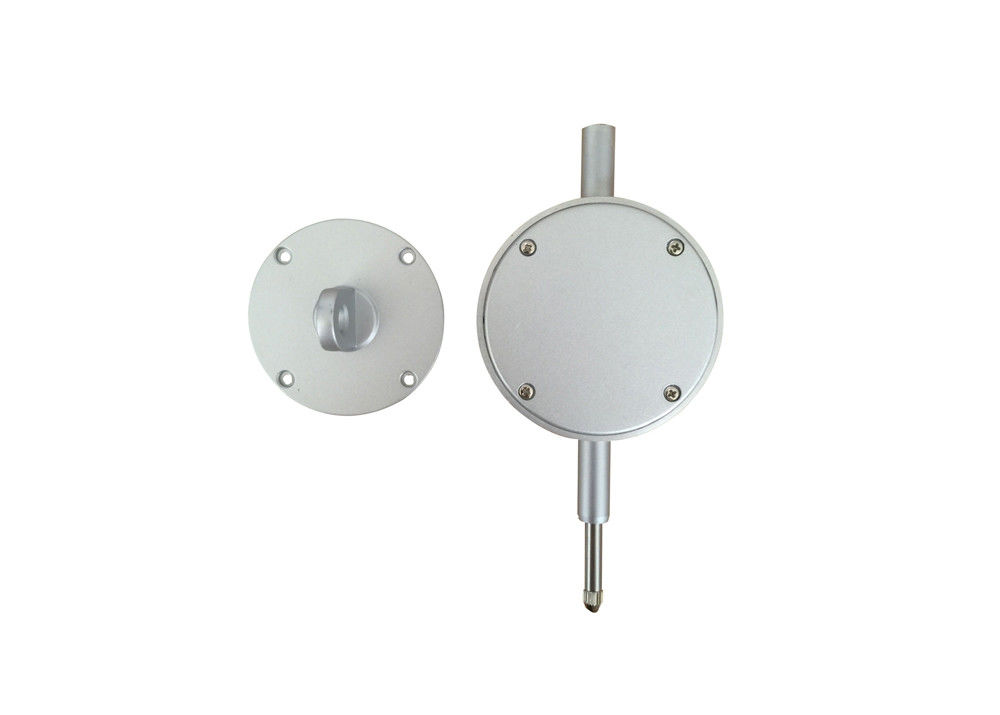

- Includes both flat back and back with lug for flexible mounting.
- Powered by CR2025 3V battery (easy to replace).

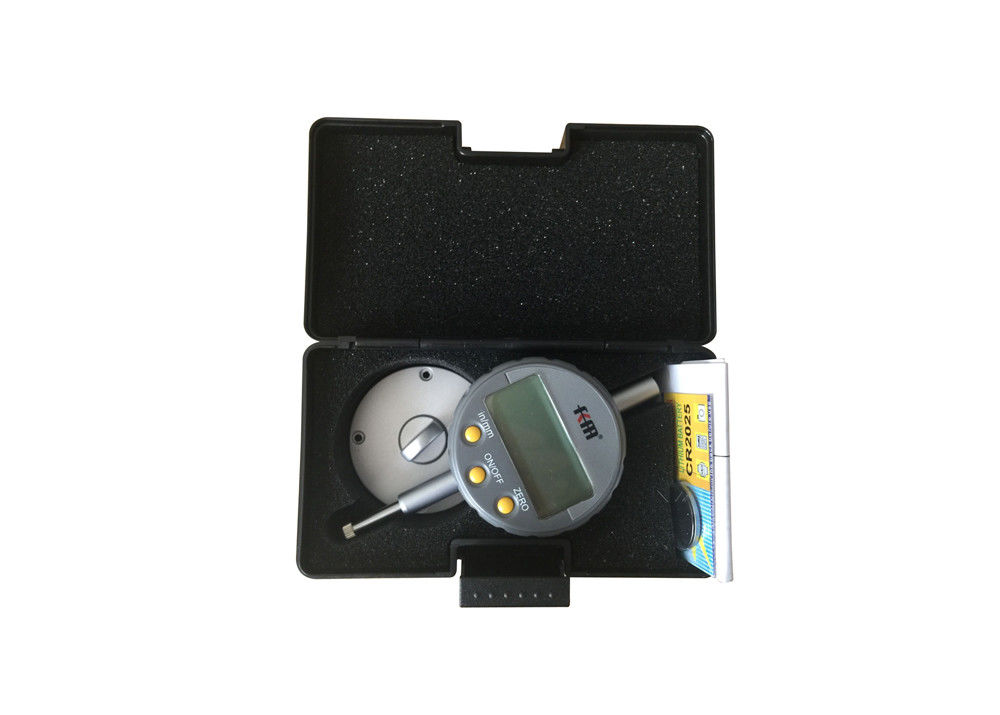

- Supplied in protective fitted case.
| Order No. | Range | Resolution | Accuracy | Max Measuring Force |
|---|---|---|---|---|
| KM-232-12.7 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | ±0.02mm | 1.6N |
| KM-232L-25.4 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | ±0.03mm | 2.2N |
| KM-232L-50 | 0-50mm/0-2″ | 0.01mm/0.0005″ | ±0.04mm | 3.5N |
- Precision measurement of machined parts with high accuracy.
- Measurement of flat objects including plates, tires, and wheels.
- Dimensional measurement of round objects (external/internal circles).
- Material hardness testing in industrial production.
- Depth measurement applications (oil wells, ground pipes, etc.).
- Keep indicator face clean and prevent liquid ingress.
- Avoid shocks, impacts, or dropping to maintain precision.
- Do not operate in direct sunlight or extreme temperatures.
- Never connect indicator to any voltage source.
- Remove battery when not in use for extended periods.
