Digital Dial Indicator Gauge with a Measurement Range of 0-25.4mm/0-1′′ and High Accuracy
-
Highlight
Precision 0.03mm Digital Dial Indicator Gauge
,Inch Measurement Dial Indicator Gauge
,Metric Measurement Dial Indicator Gauge
-
WarrantyOne Year
-
TypeDigital Indicator
-
MeasurementMetric/Inch
-
Precision0.03mm
-
Range0-25.4mm/0-1′′
-
Resolution0.01mm/0.0005′′
-

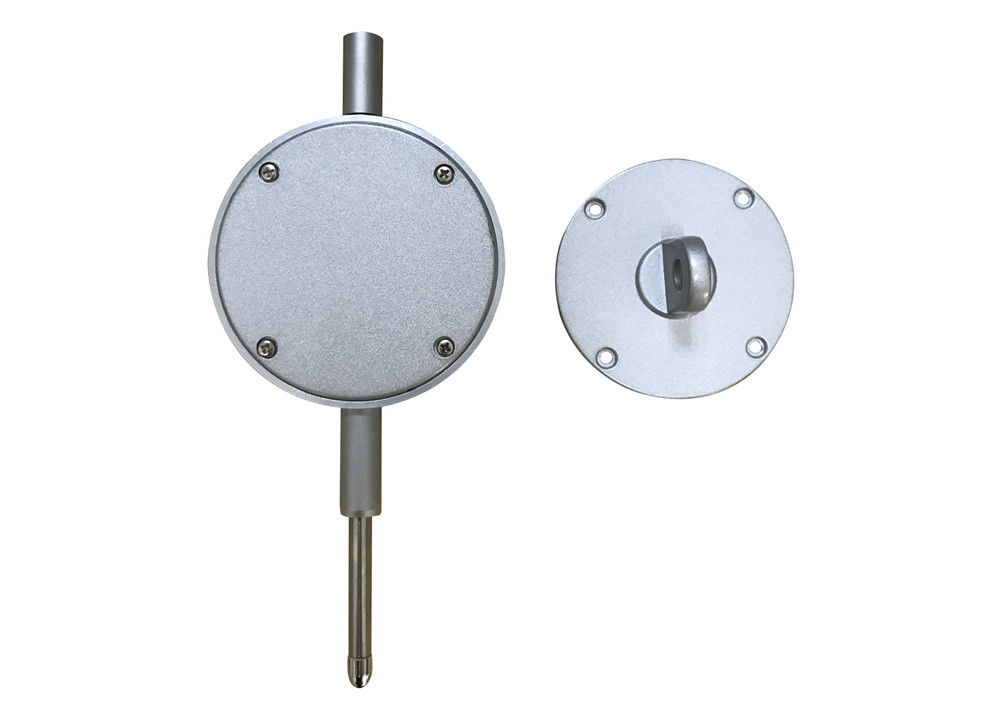

BackFlat Back And Back With Lug
-
PackageABS Box
-
CapFixed And Moveable Cap
-
Max Measuring Force2.2n
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-232L-25.4
-
Packaging DetailsABS Box 15*8*6cm/Piece 0.26kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

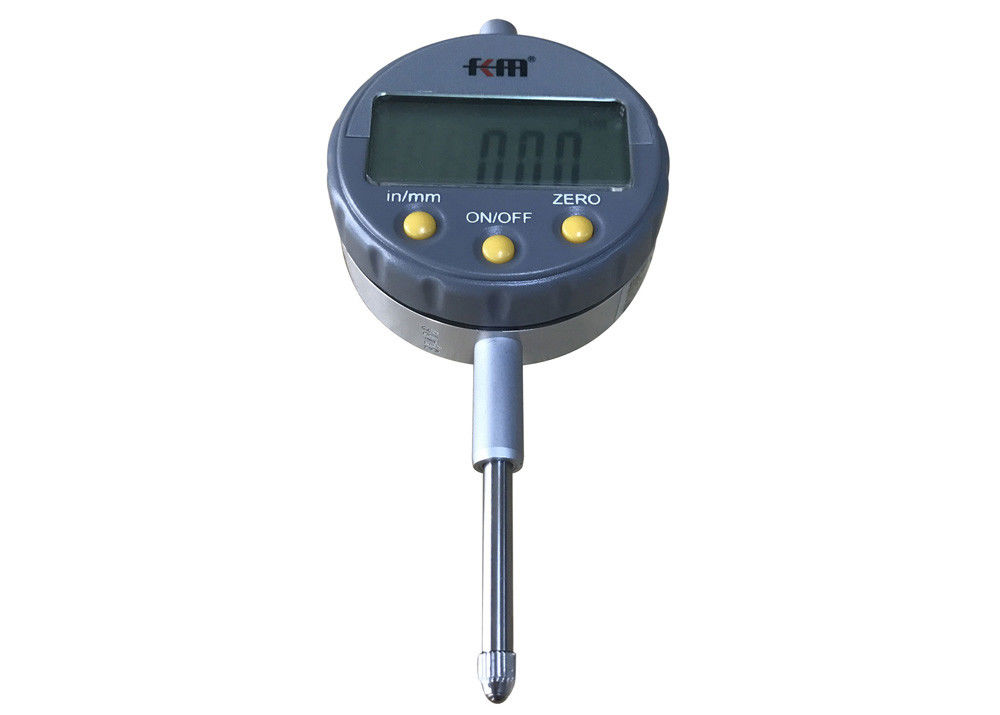

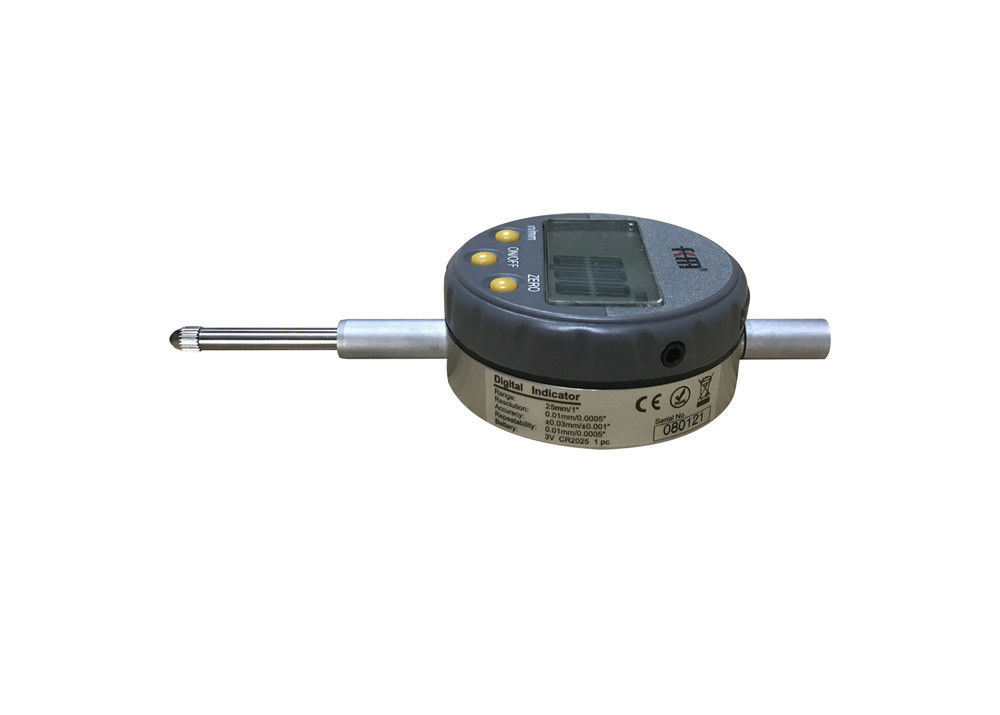

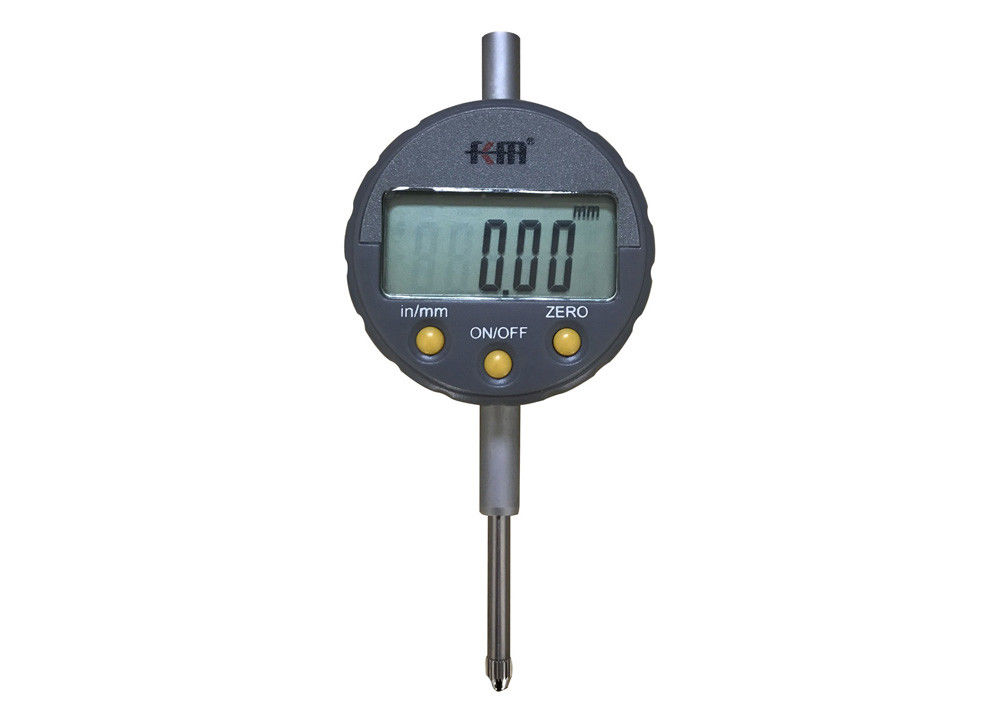

Digital Dial Indicator Gauge with a Measurement Range of 0-25.4mm/0-1′′ and High Accuracy
Digital Dial Indicator Gauge with a Measurement Range of 0-25.4mm/0-1′′ and High Accuracy
Key Features
- Large LCD for easy-reading.
- Metric/inch (mm/in) conversion.
- Power ON/OFF function.
- Zero setting capability.
- Data output functionality.
- Optional fixed and moveable caps.
- Includes both flat back and back with lug for mounting.
- Uses CR2025 3V battery (easy to replace).
- Supplied in fitted protective case.
Product Description
Digital dial indicator features a 0-25.4mm/0-1'' measuring range with 0.01mm/0.0005'' resolution and 56.7mm dial diameter. This precision instrument offers superior accuracy and reliability compared to traditional dial indicators. The electronic display provides direct measurement readings, eliminating the need for manual pointer interpretation.
Digital indicator includes multiple protection functions such as overload protection and battery low voltage alerts, ensuring measurement safety and accuracy. Ideal for mechanical and industrial applications, it provides convenient, accurate readings for various precision measurement tasks.
Technical Specifications
| Order No. | Range | Resolution | Accuracy | Max Measuring Force |
|---|---|---|---|---|
| KM-232-12.7 | 0-12.7mm/0-0.5″ | 0.01mm/0.0005″ | ±0.02mm | 1.6N |
| KM-232L-25.4 | 0-25.4mm/0-1″ | 0.01mm/0.0005″ | ±0.03mm | 2.2N |
| KM-232L-50 | 0-50mm/0-2″ | 0.01mm/0.0005″ | ±0.04mm | 3.5N |
Usage Precautions
- Keep indicator face clean and prevent liquid ingress.
- Avoid shocks, impacts, or dropping to maintain precision.
- Do not operate in direct sunlight or extreme temperatures.
- Never connect any part of the indicator to voltage.
- Remove battery when not in use for extended periods.
- Do not remove end lid without using output interface.
Applications
- Precision measurement of machined parts in manufacturing.
- Measurement of flat objects including plates, tires, and wheels.
- Dimensional and roundness measurement of circular components.
- Material hardness testing in quality control processes.
- Depth measurement applications in construction and oil fields.
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
What products do we carry?
We offer dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW trade terms.
What are the payment methods?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do you accept customization?
Yes, OEM services are available.
What is your after-sales service policy?
All products come with a one-year warranty. Defective parts will be replaced promptly. Our strict calibration and inspection processes ensure product quality.
