0-12.7mm/0-0.5" High Precsion Digital Indicator with 0.001mm/0.00005" Resolution
-
Highlight
0-12.7mm digital dial gauge indicator
,0-0.5" digital dial gauge indicator
,dial gauge indicator 0.00005" Resolution
-
WarrantyOne Year
-
TypeDigital Indicator
-
MeasurementMetric&Inch
-
Precision0.005mm
-
Range0-12.7mm/0-0.5"
-
Resolution0.001mm/0.00005"
-
BackFlat Back And Back With Lug
-
PackageABS Box
-
CapFixed And Moveable Cap
-
Max Measuring Force1.6n
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-233F-12.7
-
Packaging DetailsABS Box 16*10*6cm/Piece 0.35kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

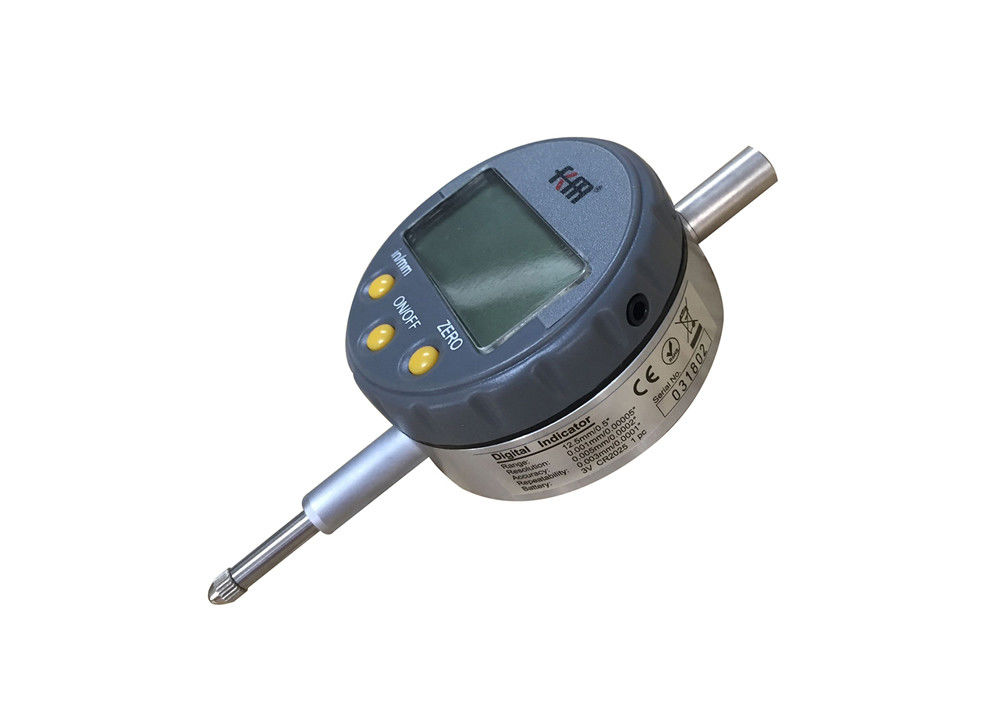

0-12.7mm/0-0.5" High Precsion Digital Indicator with 0.001mm/0.00005" Resolution
This is high precision digital micron indicator with measuring range 0-12.7mm/0-0.5", resolution 0.001mm/0.00005", ±0.005mm accuracy, used for more accurate measurement.
It also called dial micron indicator, mainly used to check the variation in tolerance during the inspection processof a machined part, measure the deflection of a beam or ring under laboratory conditions, as well as many other situations where a small measurement needs to be registered or indicated.
Compared with the traditional dial gauge, the digital dial indicator has higher accuracy and reliability, and the measurement results can be read directly through the electronic display, avoiding the tedious process of the traditional dial indicator that needs to manually read the position of the pointer.

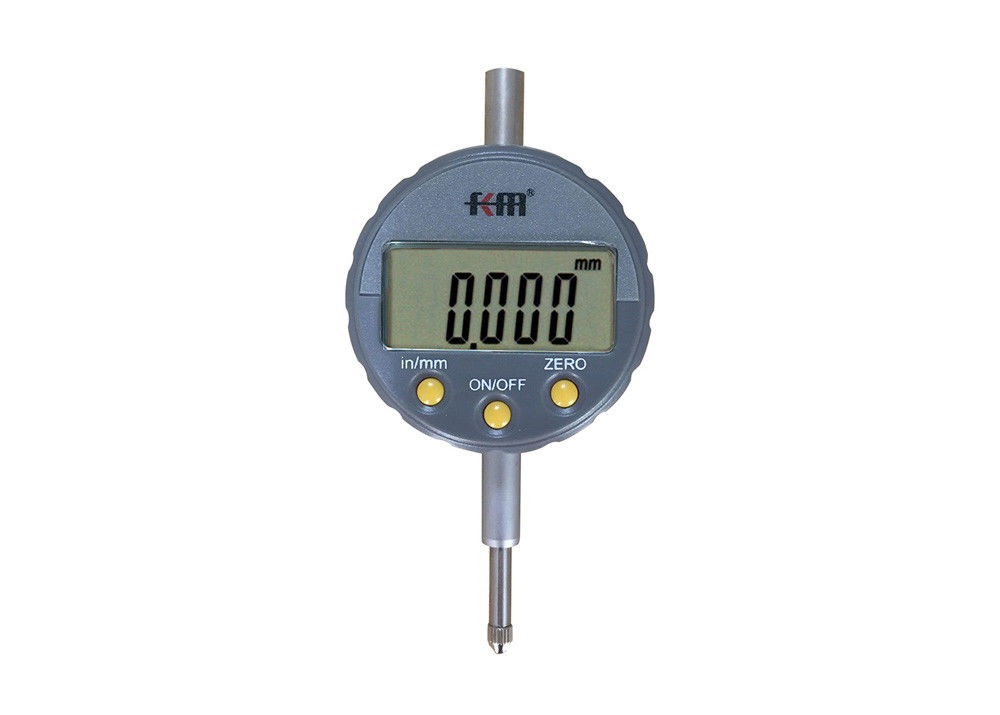

- Large LCD display for clear readings.
- Metric/inch unit conversion capability.
- Power ON/OFF and zero setting functions.
- Data output capability.
- Optional fixed and movable caps.

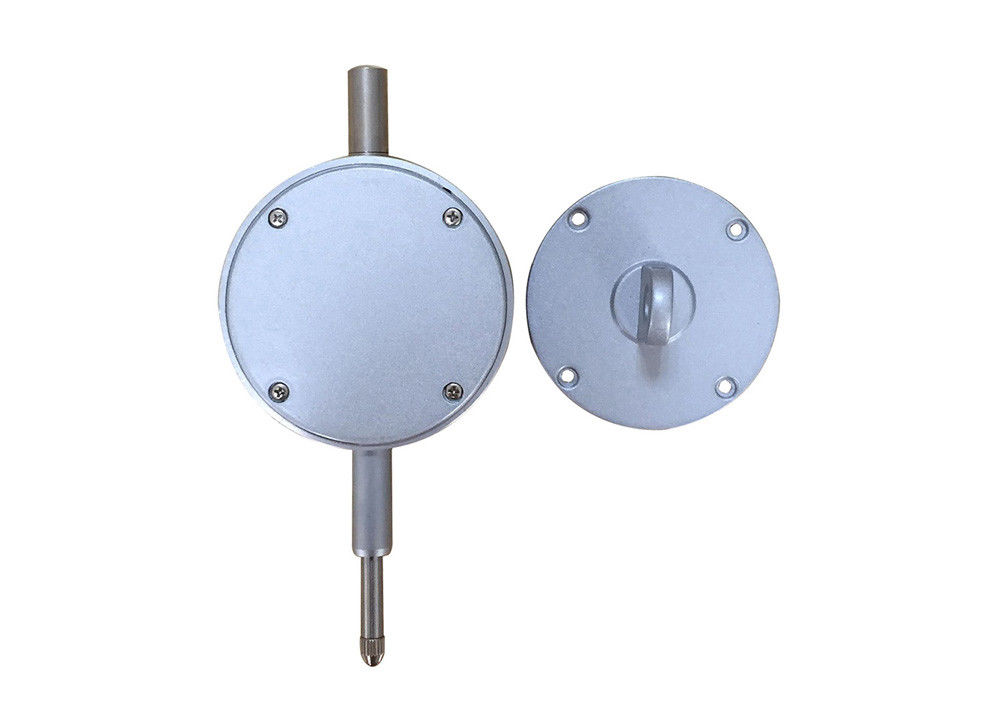

- Includes both flat back and lug back for versatile mounting.
- Uses CR2032 3V battery (easy replacement).

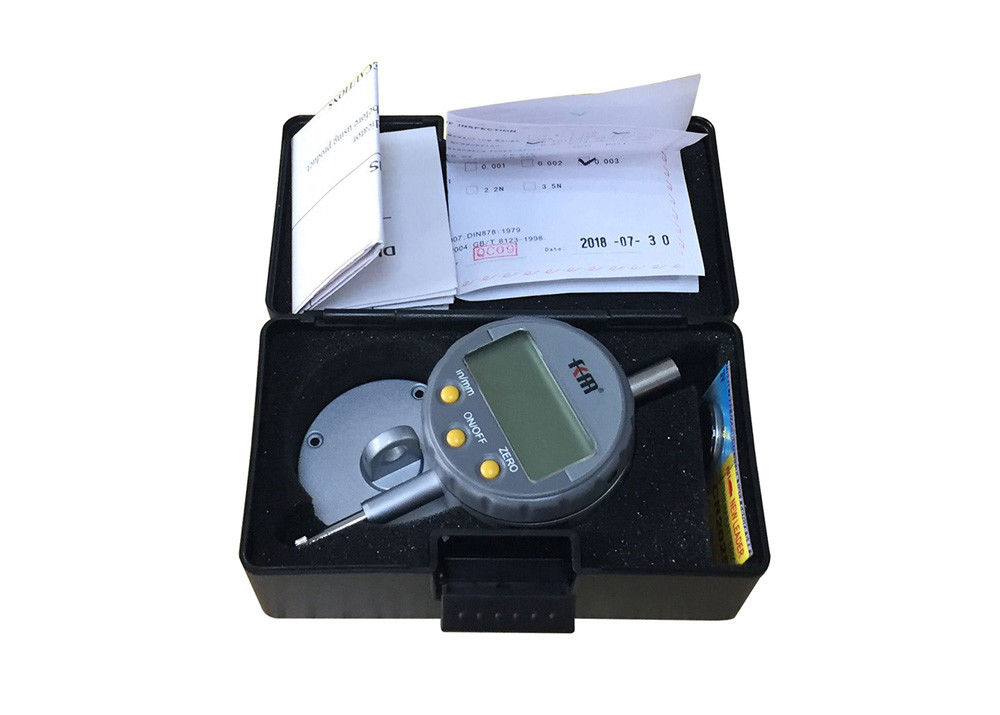

- Comes with protective fitted case.
| Order No. | Range | Resolution | Accuracy | Max Measuring Force |
|---|---|---|---|---|
| KM-233F-12.7 | 0-12.7mm/0-0.5" | 0.001mm/0.00005" | ±0.005mm | 1.6N |
- Precision measurement of machined parts in manufacturing.
- Measuring flat surfaces including plates, tires, and wheels.
- Dimensional analysis of round objects (external/internal circles).
- Material hardness testing in quality control.
- Depth measurement applications in various industries.
- Keep indicator face clean and dry.
- Avoid shocks, impacts, or dropping.
- Operate away from direct sunlight and extreme temperatures.
- Never connect to voltage sources.
- Remove battery during extended storage.
