High Precision Z Axis Setting Indicator Gauge

High Precision Z Axis Setting Indicator Gauge

Quick Detail:

1. Efficient to set zero point with built in dial indicator.

2. Positing accuracy and repeatability.

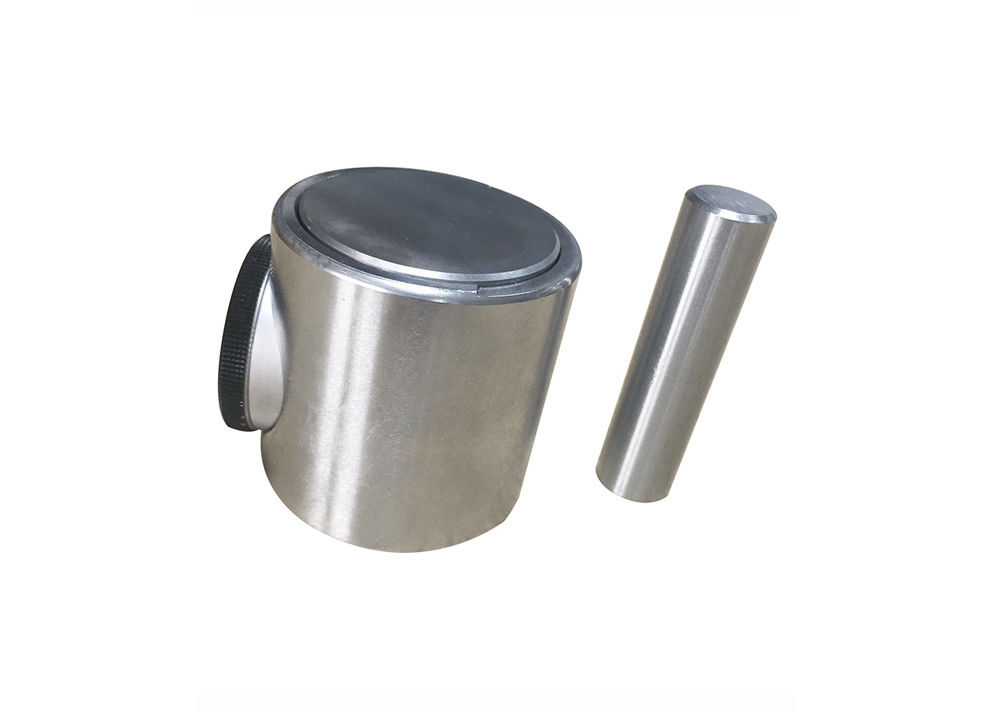

3. Spring loaded setting face to safeguard against damage from overrun.

4. Position alignment of zero position with easy reading precision dial indicator.

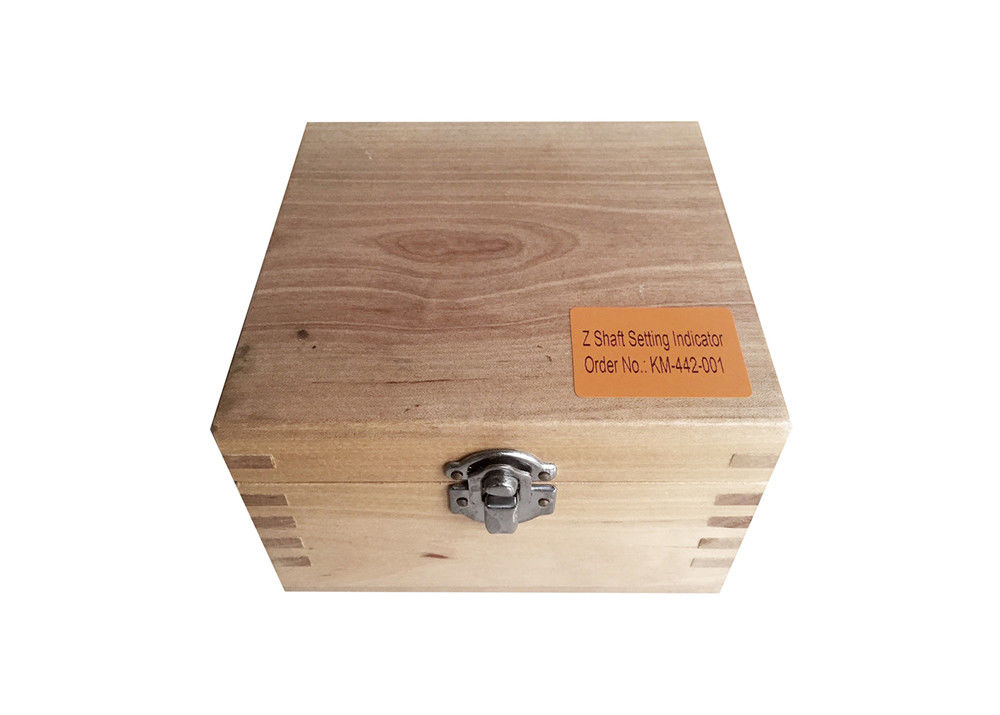

5. Supplied in fitted case packing.

Description:

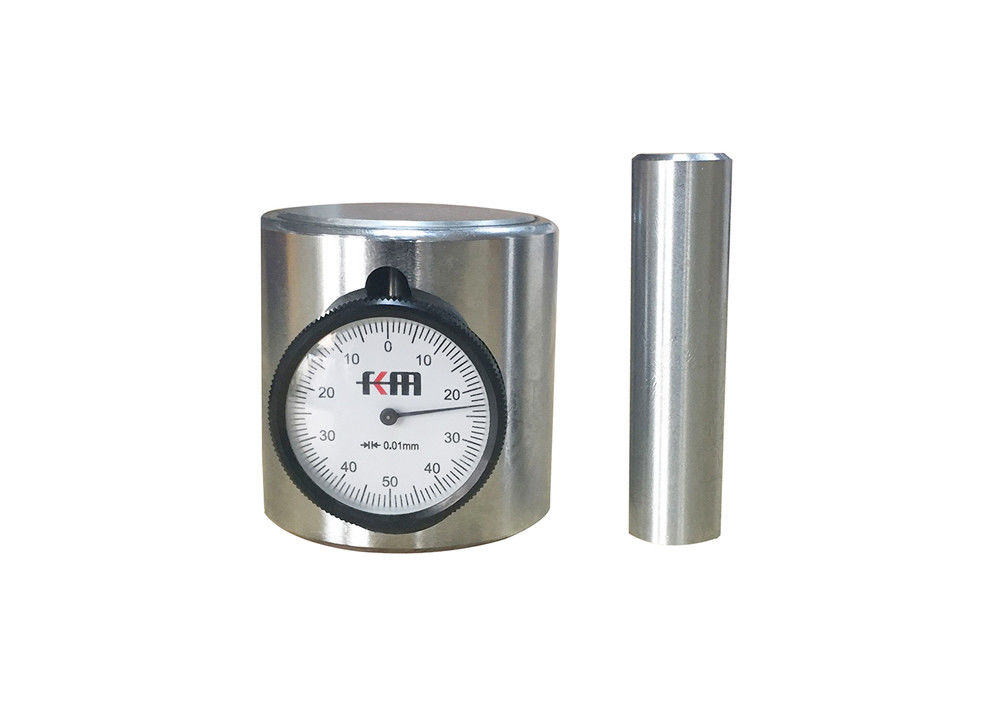

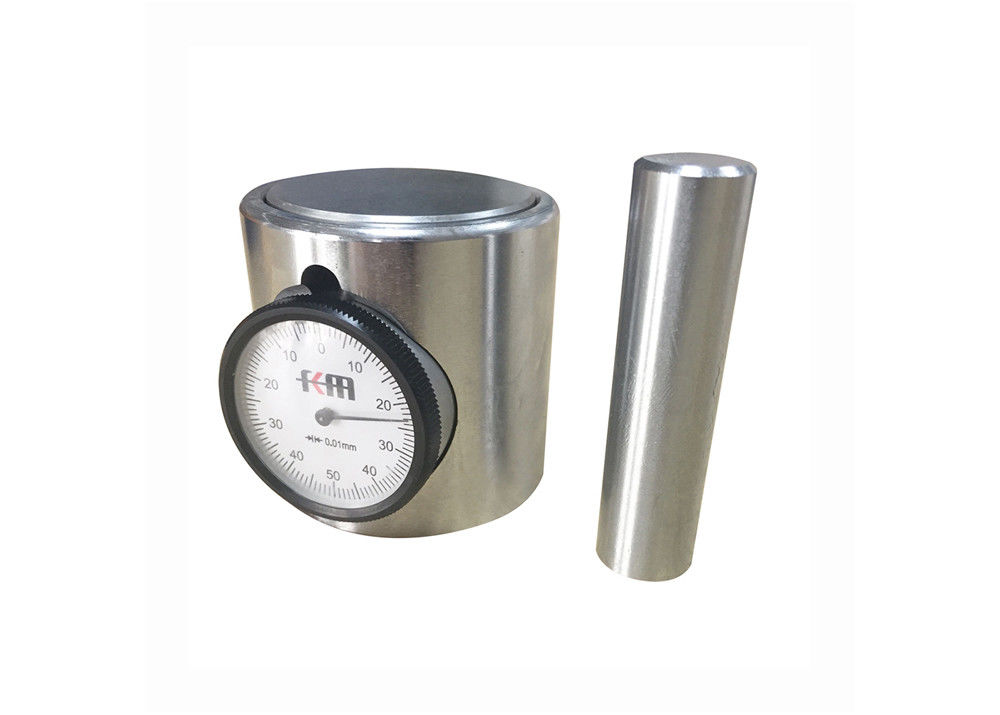

This is round type Z-axis setting indicator with height 50mm, graduation 0.01mm, accuracy ±0.02mm, as a multiple function

measuring instruments, it can set the length of cutting and calculate the main shaft reference point of traditional boring-milling

machine and CNC machining center. This type of indicator is often used to ensure the precise alignment and positioning

of machine tools, fixtures, or workpieces in the Z-axis direction.

Our Z-axis setting indicators are typically made with high-quality materials and manufacturing processes to ensure their stability

and durability in harsh industrial environments. It is available in a variety of types, such as round, square, scheduled, photoelectric

and magnetic, etc., to suit different CNC machine tools and application needs.

Specification:

Precaution:

1. Make sure the Z-axis setting indicator is properly installed and calibrated.

2. Before use, check that it is in good condition and that there are no damaged or worn parts.

3. When in use, take care to avoid collisions or excessive pressure to avoid damage to the device.

4. Keep equipment clean and avoid dust and dirt that can affect its accuracy and performance.

5. Regular inspection and maintenance to ensure its long-term stable operation.

Applications:

The Z-axis setting indicator is mainly used in CNC machine tools to set and measure the length of the tool or the position of the Z-axis.

It ensures the precise position of the workpiece in the Z-axis direction, thus avoiding machining errors and improving machining quality.

In addition, the Z-axis setting indicator can be used for tool length measurement and compensation, as well as for setting the zero

position of the workpiece.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) What are the terms of trade?

We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?

Yes, OEM is available.

6) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
