Highlight
High Precision Comparator Gage Stand
,Natural Granite Base Comparator Gage Stand
,Hardened Steel Comparator Gage Stand
-
WarrantyOne Year
-
TypeComparator Stand
-
MaterialHardened Steel
-
Stem Dimension25x180mm
-
Clamping Hole Diameter8mm Or 3/8′′
-
Base Dimension80x80mm
-
Base MaterialCeramics Base Or Natural Granite Base
-
PackagePaper Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-651-05
-
Packaging DetailsPaper Box+Poly Foam 40*20*34cm/Piece 4.00kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

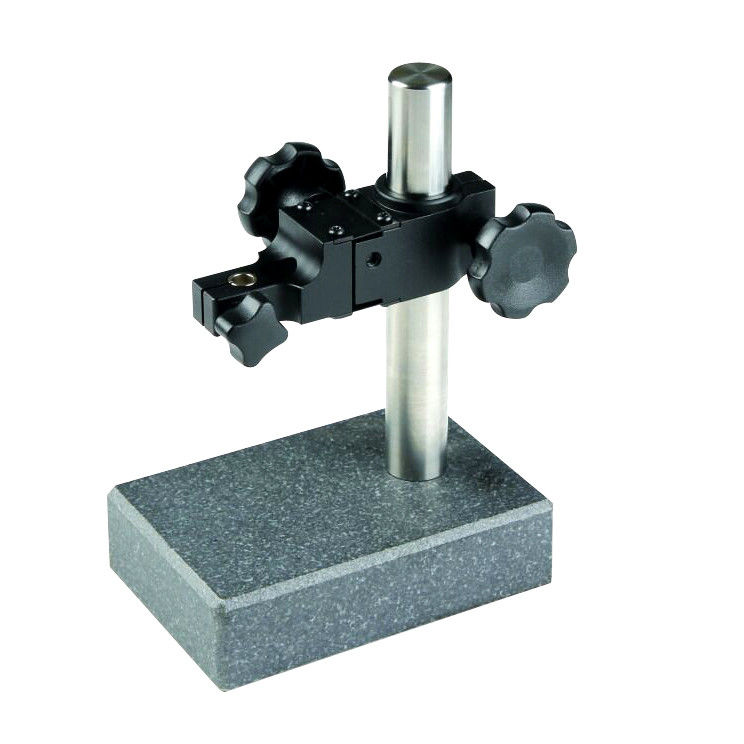

Natural Granite Base High Precision Comparator Stand
Natural Granite Base High Precision Comparator Stand
This natural granite base comparator stand provides exceptional stability and precision for dimensional inspection in industrial settings.
Key Features
- Hardened steel base construction
- High precision clamp with fine adjustment for maximum stability
- Compatible with most dial indicators and digital indicators
- Supplied in protective fitted case
Product Description
This natural granite base comparator features fine particle organization, allowing workpieces to slide smoothly without ringing. With exceptional stability and high flatness accuracy, it serves as a reliable tool for precision dimensional inspection.
The stand provides a stable platform that enables dial indicators to accurately measure workpieces. Adjustable height and angle configurations accommodate various measurement requirements. By adjusting the position and height of the dial gage stand, the indicator's probe maintains proper contact with workpiece surfaces to measure size or shape deviations.
Manufactured from hardened steel material, our comparator stands deliver the stability and accuracy essential for precision measurements. We offer a comprehensive range suitable for most indicator types.
As an important auxiliary equipment for dial gauge measurement, this stand provides both a stable measuring platform and adjustable support modes, enabling accurate and convenient measurement of workpiece dimensions and shape deviations.
Technical Specifications
| Order No. | Stem Dimension |  |
Base Dimension | Base Material |
| KM-651-01 | φ25x180mm | 75mm | 80x80mm | Hardened steel |
| KM-651-02 | φ60 mm | |||
| KM-651-03 | 80x80mm | Alumina ceramics | ||
| KM-651-04 | φ60 mm | |||
| KM-651-05 | 150x100x40mm | Natural granite | ||
| KM-651-06 | φ30x300mm | 95mm | 210x150x50mm | |
| KM-651-07 | 300x200x60mm |
Usage Guidelines
- Ensure proper installation and calibration before use
- Position workpieces correctly on the measuring platform, ensuring parallelism
- Perform regular maintenance to preserve accuracy and extend service life
Applications
Comparator stands are widely used in various machining and manufacturing processes for layout and inspection work, serving as highly accurate and reliable tools for dimensional inspection in industrial settings.
Frequently Asked Questions
- Who are we? Deko Corporation specializes in the development, manufacture, and marketing of KM brand precision measuring tools in China mainland.
- What products do we carry? Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
- What are the terms of trade? We support FOB, CFR, CIF, and EXW.
- What are the forms of payment? We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
- Do we accept customization? Yes, OEM services are available.
- How about after-sales service? All products include a one-year warranty. Defective parts or products will be replaced promptly. Our strict calibration and inspection processes ensure superior product quality.
