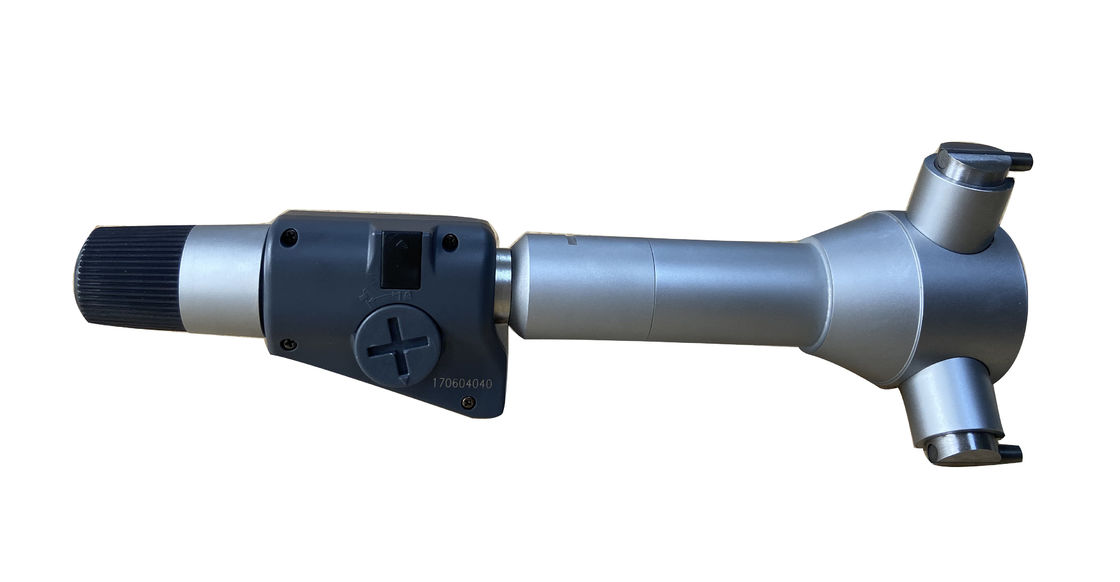

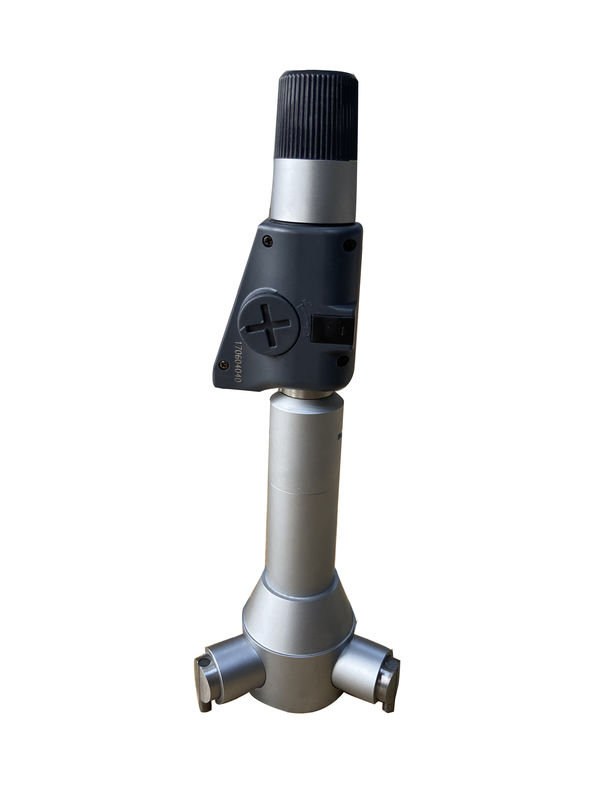

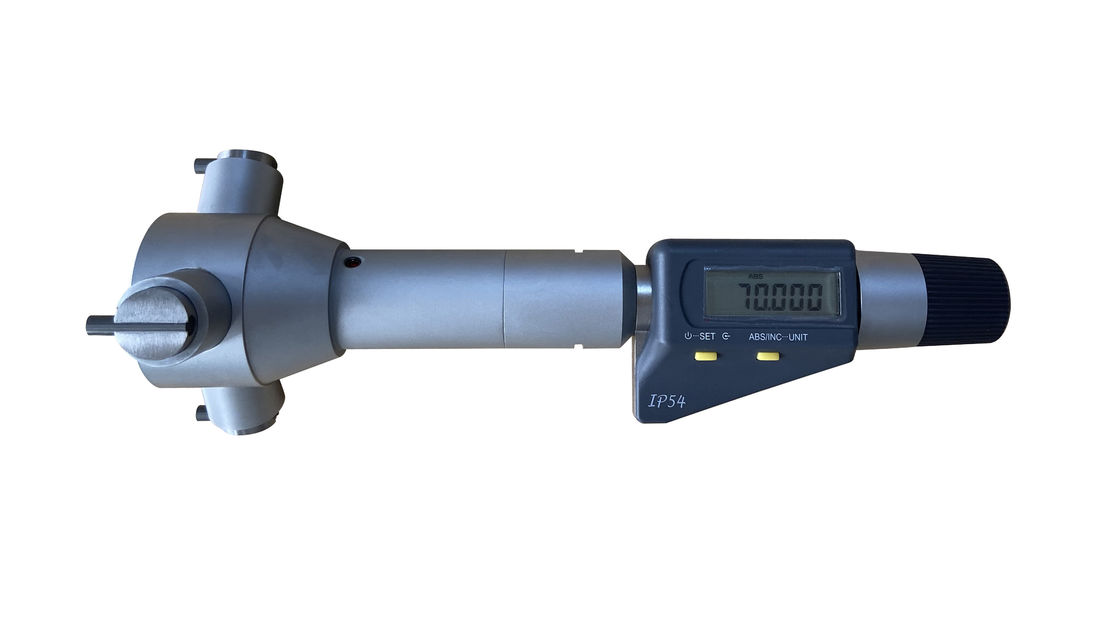

70-100mm IP54 Digital Three Point Micrometer Inside Measuring Tools

70-100mm IP54 Digital Three Point Internal Micrometer Inside Measuring Tools

Quick Detail:

1. Protection level IP54.

2. Digital three-point micrometer centering self and aligning self.

3. Measurement can be taken closer to the bottom of the blind bore, and can be taken into a deep hole

    with an extension rod.

4. ON/OFF button.

5. Zero setting at any position.

6. Metric/inch conversion.

7. Absolute/Incremental measurement conversion.

8. Origin set for absolute measurement.

9. Carbide-tipped contacts points, ratchet stop.

10. Within 100mm, supplied with setting rings.

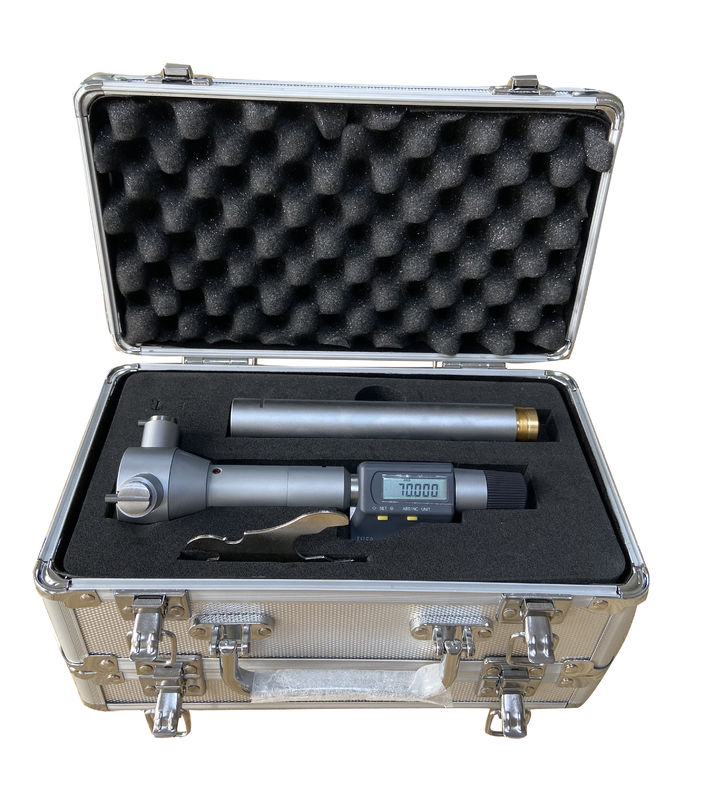

11. Supplied in fitted case.

Description:

This series digital three-point internal micrometers provide more wide measuring range, including 50-70mm, 70-100mm,

100-150mm, 150-250mm, 200-300mm, with resolution 0.001mm.

The protection level of the IP54 electronic three-point internal micrometer provides good dust and water resistance,

even in dusty workshops or humid environments, the micrometer can maintain its accuracy and stability,

and will not reduce the measurement accuracy due to the influence of the external environment.

The three-point measurement design allows the micrometer to be more accurate and stable when measuring blind

and through holes. With three-point contact, the errors in the measurement process can be avoided more effectively,

thus improving the accuracy of the measurement results.

Specification:

Metric/Inch

Inch/Metric

Precautions:

1. Do not subject the instrument to blows or knocks. Do not drop it or apply excessive force to it.

2. Do not disassemble the instrument. Do not press the key with a pointed object.

3. Do not use or store the instrument under direct sunlight, or in an excessively hot or cold place.

4. Do not let the instrument near strong magnetic field or high voltage.

5. Use a soft or a cotton swad that is dry to wipe stains off the instrument. Do not use organic solvent

    such as benzene.

6. Clean measuring faces of the instrument before use it.

7. Remove the battery if the instrument not used for a long time.

Applications:

Digital three-point internal micrometer is mainly used to measure the holes, slotted hole, etc. It is widely used in machinery

manufacturing, automobile manufacturing, aerospace, electronic components and other industrial fields.

With its high measurement accuracy, easy to use and simple operation, it has become one of the important tools

for measuring bore diameter.
