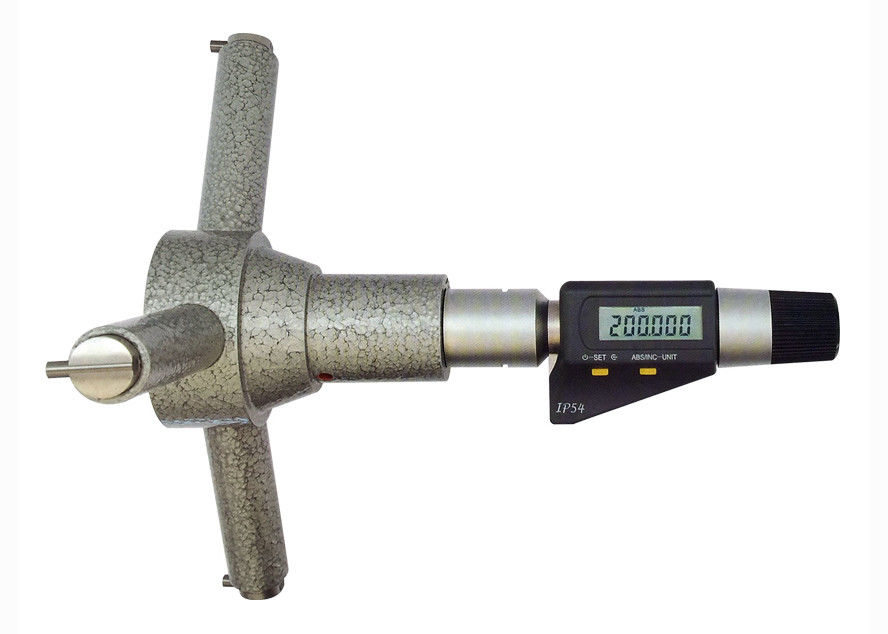

IP54 200-500mm Large Range Digital 3 Point Internal Micrometre Instrument

IP54 Protection Degree 200-500mm Large Range Digital 3-Point Internal Micrometer Instrument

Quick Detail:

1. Protection level IP54.

2. Large measuring range due to the patent structure.

3. High accuracy interchangeable measuring rods enable that reading does not have to be reset

    after changing rods.

4. Measurement can be taken closer to the bottom of the blind bore.

5. ON/OFF button.

6. Zero setting at any position.

7. Metric/inch conversion.

8. Absolute/Incremental measurement conversion.

9. Origin set for absolute measurement.

10. Carbide-tipped contacts points, ratchet stop.

11. Setting rings are optional.

12. Supplied in fitted case.

Description:

This series electronic three-point internal micrometers provide large measuring range from 200mm to 1000mm,

with resolution 0.001mm, within 100mm, the setting rings are optional.

The protection level of the IP54 electronic three-point internal micrometer provides good dust and water resistance,

even in dusty workshops or humid environments, the micrometer can maintain its accuracy and stability, and will not reduce

the measurement accuracy due to the influence of the external environment.

This three-point measurement design allows the micrometer to be more accurate and stable when measuring blind

and through holes. With three-point contact, the errors in the measurement process can be avoided more effectively,

thus improving the accuracy of the measurement results.


Specification:


Precautions:
1. Do not subject the instrument to blows or knocks. Do not drop it or apply excessive force to it.
2. Do not disassemble the instrument. Do not press the key with a pointed object.
3. Do not use or store the instrument under direct sunlight, or in an excessively hot or cold place.
4. Do not let the instrument near strong magnetic field or high voltage.
5. Use a soft or a cotton swad that is dry to wipe stains off the instrument. Do not use organic solvent
    such as benzene.
6. Clean measuring faces of the instrument before use it.
7. Remove the battery if the instrument not used for a long time.

Applications:
Digital three-point internal micrometer is mainly used to measure the holes, slotted hole, etc. It is widely used in machinery
manufacturing, automobile manufacturing, aerospace, electronic components and other industrial fields. With its high measurement
accuracy, easy to use and simple operation, it has become one of the important tools for measuring bore diameter.

FAQ:
1) Who are we?
Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools
in China mainland.

2) What products do we carry?
Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,
gauge, blocks, level, etc.

3) What are the terms of trade?
We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?
Yes, OEM is available.

6) How about after-sales service?
One year warranty for all kinds of products.
If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.
As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
