Highlight
digital dial bore gauge 50-160mm
,digital dial bore gauge 2-6″
,stainless steel digital cylinder bore gauge
-
WarrantyOne Year
-
TypeDial Bore Gauge
-
MeasurementMetric/Inch
-
MaterialStainless Steel
-
Measurement ObjectInside Diameter
-
Range50-160mm/2-6"
-
Graduation0.01mm/0.0005"
-
Measuring Depth160mm
-
FeatureWith Fixed And Inserting Changeable Anvils
-
PackageABS Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-DDB160
-
Packaging DetailsABS Box 45*28*10cm/Piece 2.34kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

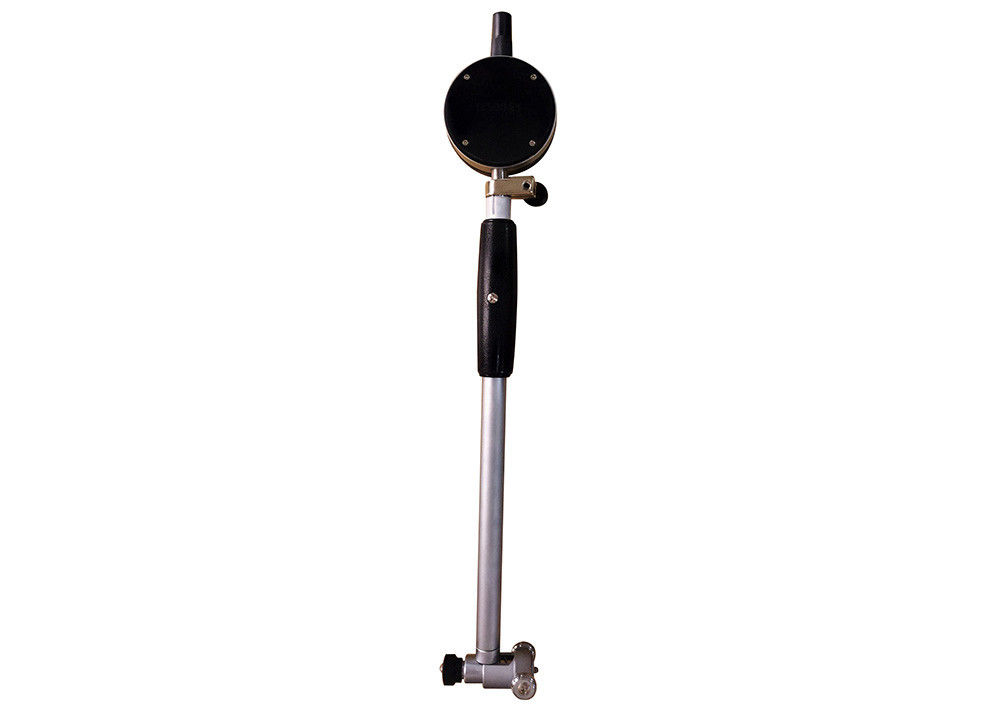

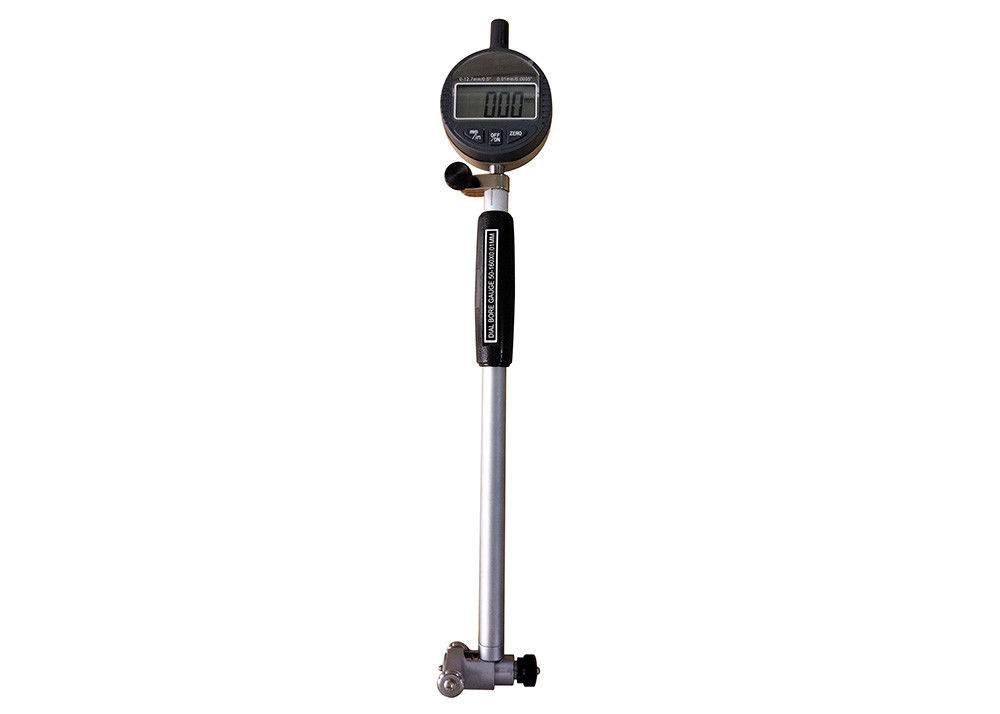

Stainless Steel Cylinder Digital Dial Bore Gauge With 50-160mm Range
Stainless Steel Cylinder Digital Dial Bore Gauge With 50-160mm Range
Product Description
Cylinder Electronic Digital Bore Gauge with 50-160mm/2-6″ Measuring Range, Measuring Depth 150mm
Key Features
- Digital display for easy-reading
- Inserting interchangeable anvils
- With 0-12.7mm/0-0.5″ digital indicator
- Inch/mm: inch/metric conversion
- OFF/ON: power on and power off
- ZERO: zero setting at any position
- Measuring Depth can be customized to meet different applications

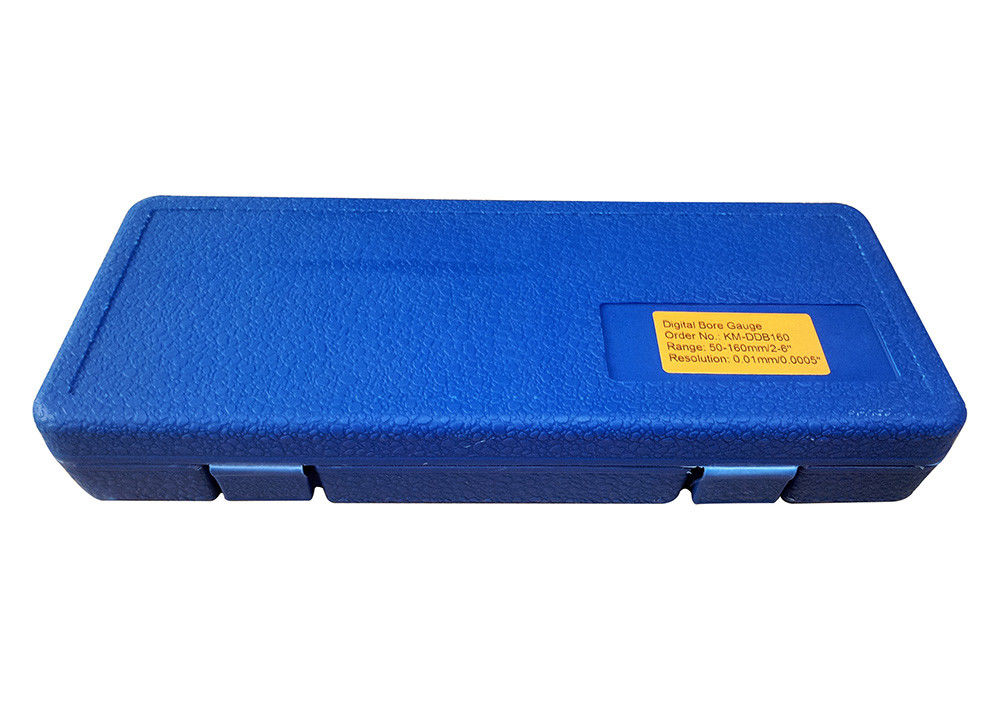

- Supplied in fitted case
Detailed Description
Digital bore gauge is one of the most popular and widely used bores measuring tools. Our digital bore gauge has a direct approach to calculating hole measurements. The equipped digital indicator provides fast and easy reading, offering accurate and reliable measurements for wider and deeper bores.
Our digital bore gauge provides a standard measuring range from 6mm/0.24" up to 450mm/16", with resolution 0.01mm/0.0005". We can also customize measuring ranges and depths to meet different application requirements.

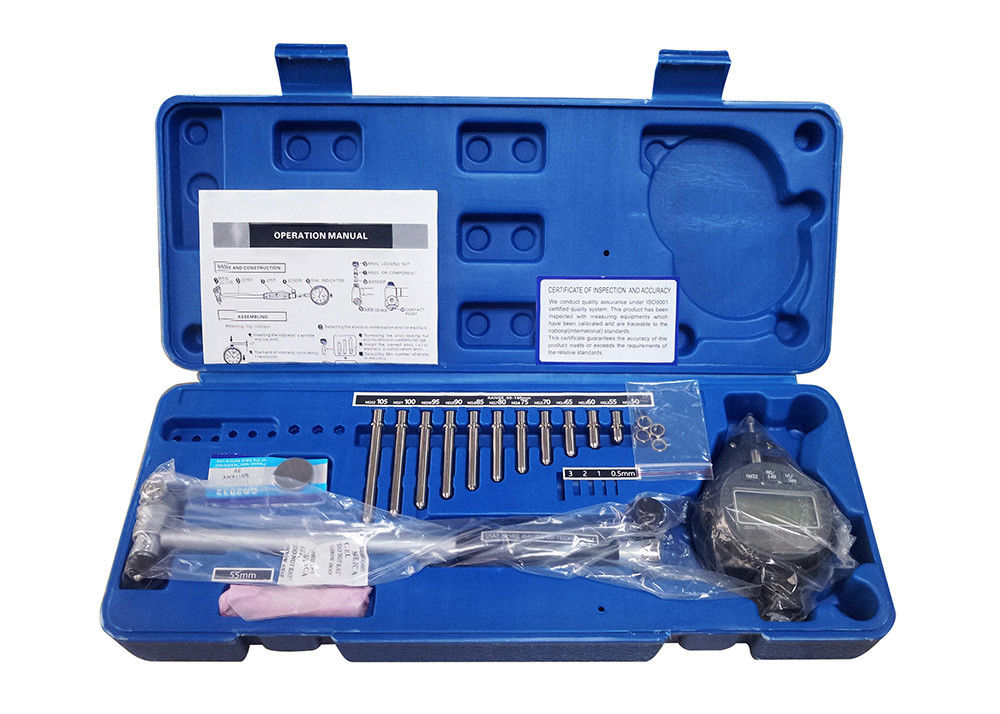

Each bore gauge comes with complete set packing including digital indicator, measuring extended heads, inserting anvils, and adjusting washers.
Specifications
| Order No. | Range | Depth | Resolution | Accessories | ||
| Anvils | Washers | Sub-anvils | ||||
| KM-DDB10 | 6-10mm/0.24-0.4″ | 40mm | 0.01mm/0.0005″ | 9 | ||
| KM-DDB18 | 10-18mm/0.4-0.7″ | 100mm | 0.01mm/0.0005″ | 9 | 1 | |
| KM-DDB35 | 18-35mm/0.7-1.5″ | 150mm | 0.01mm/0.0005″ | 9/10 | 2 | |
| KM-DDB50 | 35-50mm/1.4-2.4″ | 150mm | 0.01mm/0.0005″ | 4/6 | 4/3 | |
| KM-DDB160 | 50-160mm/2-6″ | 150mm | 0.01mm/0.0005″ | 12/11 | 4/3 | 1 |
| KM-DDB250 | 160-250mm/6-10″ | 250mm | 0.01mm/0.0005″ | 5/6 | 5/6 | 1 |
| KM-DDB450 | 250-450mm/10-16″ | 250mm | 0.01mm/0.0005″ | 5/6 | 5/6 | 2 |
Precautions
- Do not disassemble or modify the gauge
- Do not subject the gauge to blows or knocks
- Clean and apply antirust after using. Disassemble the indicator (laying indicator with the gauge together may affect the precision) and place the gauge in the box
- Do not embezzle the anvil, washer, etc.
- Remove the battery if the gauge will not be used for a long time
Applications
Digital bore gauges are widely used in the automotive industry for checking hole sizes in engine components, drivetrains, and brake systems during production.
They are also extensively used in machining, aerospace, shipbuilding, and other industrial fields to help improve production efficiency and quality control.
Frequently Asked Questions
1) Who are we?
Deko Corporation mainly dedicates to the development, manufacture and marketing of KM brand precision measuring tools in China mainland.
2) What products do we carry?
Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, etc.
3) What are the terms of trade?
We support FOB, CFR, CIF, EXW.
4) What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, Western Union.
5) Do we accept customization?
Yes, OEM is available.
6) How about after-sales service?
One year warranty for all products. If you find any defective accessories when receiving goods, we will ship replacement parts or products. As an experienced manufacturer, we have strict calibration and inspection processes to ensure product quality.
