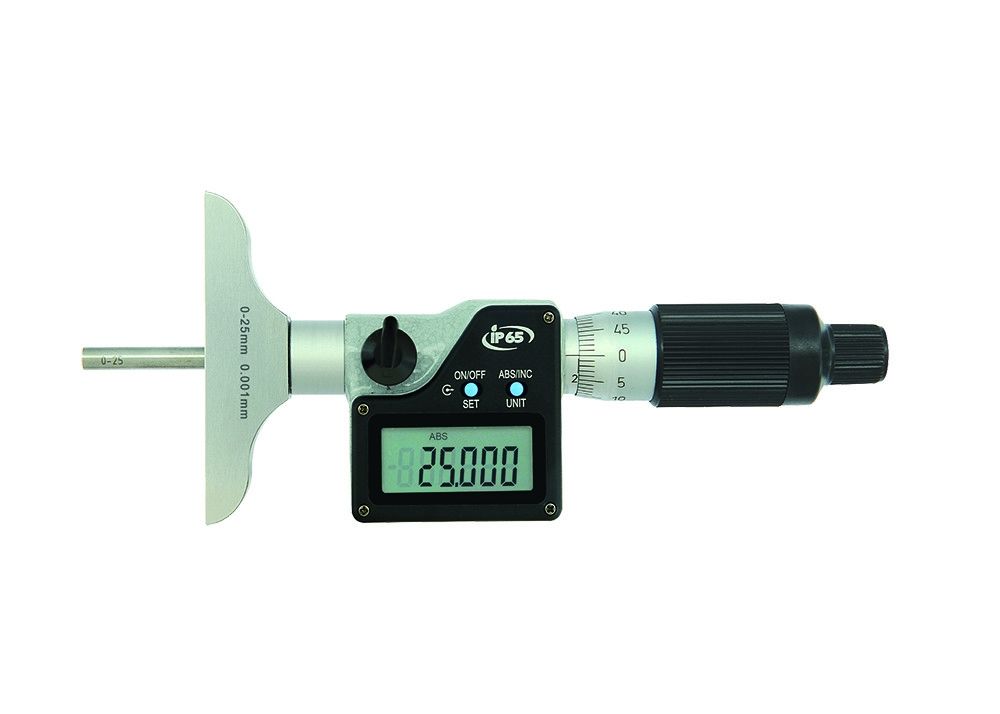

IP65 Protection Degree 0-25mm Electronic Depth Micrometer Digital

IP65 Protection Degree 0-25mm Electronic Digital Depth Micrometer

Quick Detail:

1. Protection level: IP65(oil, water and dust proof).

2. LCD display for fast reading.

3. OFF/ON, SET, ABS/INC, UNIT (in/mm conversion) function keys.

4. Interchangeable rods provide a wide measuring range.

5. High accuracy interchangeable rods enable that reading does not have to be reset when changing rods.

6. Measuring inserts:±(2+L/75)um (±(0.001+0.0005(L/3)’’)

    L=measuring length (Metric/Inch).

7. Supplied in fitted case.

Description:

Our KM digital depth micrometers provide the highest accuracy of depth measurement and can be used with various-sized

interchangeable rods to measure different depth ranges, and include various lengths of measuring rods for a range of depths.

We supply measuring range from 0-25mm/0-1'' up to 0-300mm/0-12''.

IP65 protection degree provides excellent resistance against water, dust and ensures precision and reliable measuring,

even in very bad surroundings. Made from high-quality materials with good stability and durability.

Specification:

Precautions:

1. Wipe the depth micrometer clean before use, and then check whether its moving parts are flexible and reliable.

2. Select and replace the measuring rod according to the depth or height to be measured.

3. The depth micrometer of 0-25mm can be directly calibrated to the zero position.

4. For the depth measurement range above 25mm, the zero position should be calibrated with a proofreading measuring tool

    (which can be replaced by a measuring block).

5. When using a depth micrometer to measure blind holes and deep grooves, it is often impossible to see the bottom

    of the holes and grooves, so be especially careful when operating the depth micrometer and avoid recklessness.

6. When the diameter of the measured hole or the width of the groove is bigger than the base of the depth micrometer,

    it can be measured with an auxiliary positioning reference plate.

7. Remove the battery if the micrometer not use for a long time.

Applications:

Depth micrometers are widely used in manufacturing, machining, and other industrial fields.

The following are the application of depth micrometers in the industrial field.

1. Machining: digital depth micrometers are commonly used in machining, such as turning, drilling, and milling, etc.

    It can accurately measure the depth and length of the workpiece, providing accurate data for manufacturing and machining.

2. Part manufacturing: When manufacturing parts, depth micrometers can be used to measure a variety of specific sizes

    and spacing, and ensure that the accuracy meets the requirements.

3. Quality control: In industrial production, depth micrometers are often used for quality control and inspection work.

    It can inspect the size, depth, and spacing of products to ensure that they meet quality standards.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) What are the terms of trade?

We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?

Yes, OEM is available.

6) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
