10-20mm Mechanical Outside Dial Caliper Gauges Graduation 0.0005′′

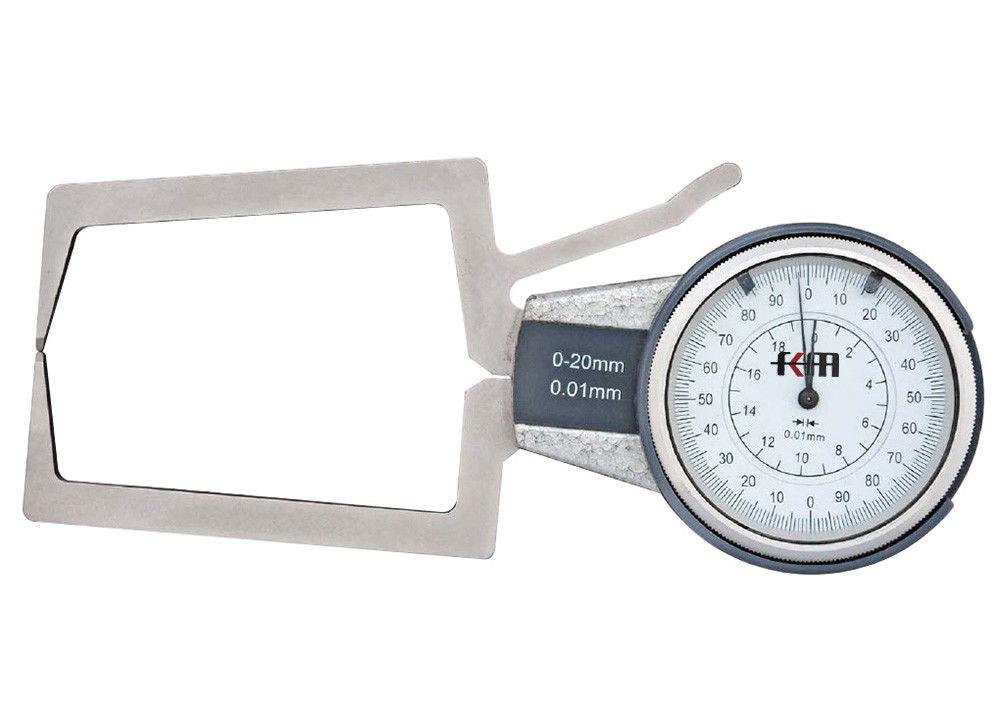

10-20mm Mechanical Outside Dial Caliper Gauge

Quick Detail:

1. Clear dial reading.

2. Suited for measuring grooves and other hard-to-reach outside dimension.

3. A type and B type measuring face for option.

4. Supplied in fitted case.

Description:

Our KM-510A series is precision outside caliper gauge equipped with a dial indicator and spring-loaded arms fixed

to the dial indicator that measures outside dimensions. This mode of operation is simple and intuitive, easy to understand

and use, available with measuring range from zero up to 60mm for metric and zero up to 2.4’’ for inch.

Our outside caliper gauges are manufactured with high-quality materials and precise processes for high durability and stability.

Even in harsh working environments, it can maintain stable operation for a long time. Our mechanical outside dial caliper gauge

structure is relatively simple, easy to calibrate and maintain.

Specification:

Travel 10mm

Metric

Order No.	Range	Graduation	Accuracy	Measuring Contact Forms
KM-510A-10	0~10mm	0.01mm	0.02mm
KM-510A-20	10~20mm	0.01mm	0.02mm
KM-510A-30	20~30mm	0.01mm	0.02mm
KM-510A-40	30~40mm	0.01mm	0.02mm
KM-510A-50	40~50mm	0.01mm	0.02mm
KM-510B-10	0~10mm	0.01mm	0.02mm
KM-510B-20	10~20mm	0.01mm	0.02mm
KM-510B-30	20~30mm	0.01mm	0.02mm
KM-510B-40	30~40mm	0.01mm	0.02mm
KM-510B-50	40~50mm	0.01mm	0.02mm

Inch

Order No.	Range	Graduation	Accuracy	Measuring Contact Forms
KM-510A-0.4	0~0.4″	0.0005″	0.0008″
KM-510A-0.8	0.4~0.8″	0.0005″	0.0008″
KM-510A-1.2	0.8~1.2″	0.0005″	0.0008″
KM-510A-1.6	1.2~1.6″	0.0005″	0.0008″
KM-510A-2.0	1.6~2.0″	0.0005″	0.0008″
KM-510B-0.4	0~0.4″	0.0005″	0.0008″
KM-510B-0.8	0.4~0.8″	0.0005″	0.0008″
KM-510B-1.2	0.8~1.2″	0.0005″	0.0008″
KM-510B-1.6	1.2~1.6″	0.0005″	0.0008″
KM-510B-2.0	1.6~2.0″	0.0005″	0.0008″

Travel 20mm

Metric

Order No.	Range	Graduation	Accuracy	Measuring Contact Forms
KM-520A-20	0~20mm	0.01mm	0.03mm
KM-520A-30	10~30mm	0.01mm	0.03mm
KM-520A-40	20~40mm	0.01mm	0.03mm
KM-520A-50	30~50mm	0.01mm	0.03mm
KM-520A-60	40~60mm	0.01mm	0.03mm
KM-520B-20	0~20mm	0.01mm	0.03mm
KM-520B-30	10~30mm	0.01mm	0.03mm
KM-520B-40	20~40mm	0.01mm	0.03mm
KM-520B-50	30~50mm	0.01mm	0.03mm
KM-520B-60	40~60mm	0.01mm	0.03mm

Inch

Order No.	Range	Graduation	Accuracy	Measuring Contact Forms
KM-520A-0.8	0~0.8″	0.0005″	0.0012″
KM-520A-1.2	0.4~1.2″	0.0005″	0.0012″
KM-520A-1.6	0.8~1.6″	0.0005″	0.0012″
KM-520A-2.0	1.2~2.0″	0.0005″	0.0012″
KM-520A-2.4	1.6~2.4″	0.0005″	0.0012″
KM-520B-0.8	0~0.8″	0.0005″	0.0012″
KM-520B-1.2	0.4~1.2″	0.0005″	0.0012″
KM-520B-1.6	0.8~1.6″	0.0005″	0.0012″
KM-520B-2.0	1.2~2.0″	0.0005″	0.0012″
KM-520B-2.4	1.6~2.4″	0.0005″	0.0012″

Precautions:

1. Do not subject the gauge to blows or knocks.

2. Do not drop the gauge or apply excessive force to the gauge.

3. Do not disassemble the gauge.

4. Do not use or store the gauge under direct sunlight or in an excessively hot or cold environment.

5. Do not subject the gauge in strong magnetic fields and high voltage environment.

6. Use soft cloth or cotton cleaning the gauge. Do not use any organic solvent  .

Applications:

Outside dial caliper gauges are suitable for the measurement of outside dimension in various industries,

such as mechanical manufacturing, metal manufacturing, automobile manufacturing, aerospace and so on.

FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.

2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.

3) What are the terms of trade?

We support FOB, CFR, CIF, EXW.

4) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, Western Union.

5) Do we accept customization?

Yes, OEM is available.

6) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
