Dial Gauge 5-25mm Electronic Inside Caliper Tools for Precision Measurement

Dial Gauge 5-25mm Electronic Inside Caliper Tools for Precision Measurement

  • Highlight

    5-25mm Inside Caliper Tools

    ,

    Electronic Inside Caliper Tools

    ,

    Precision Measurement Inside Caliper Tools

  • Warranty
    One Year
  • Type
    Dial Gauge
  • Measurement Object
    Inside Diameter
  • Measurement
    Metric/Inch
  • Range
    5-25mm
  • Accuracy
    0.03mm
  • Featured
    With Convenient Grip Handle
  • Resolution
    0.005mm
  • Key Selling Point
    Easy To Operate
  • Customization
    Customized

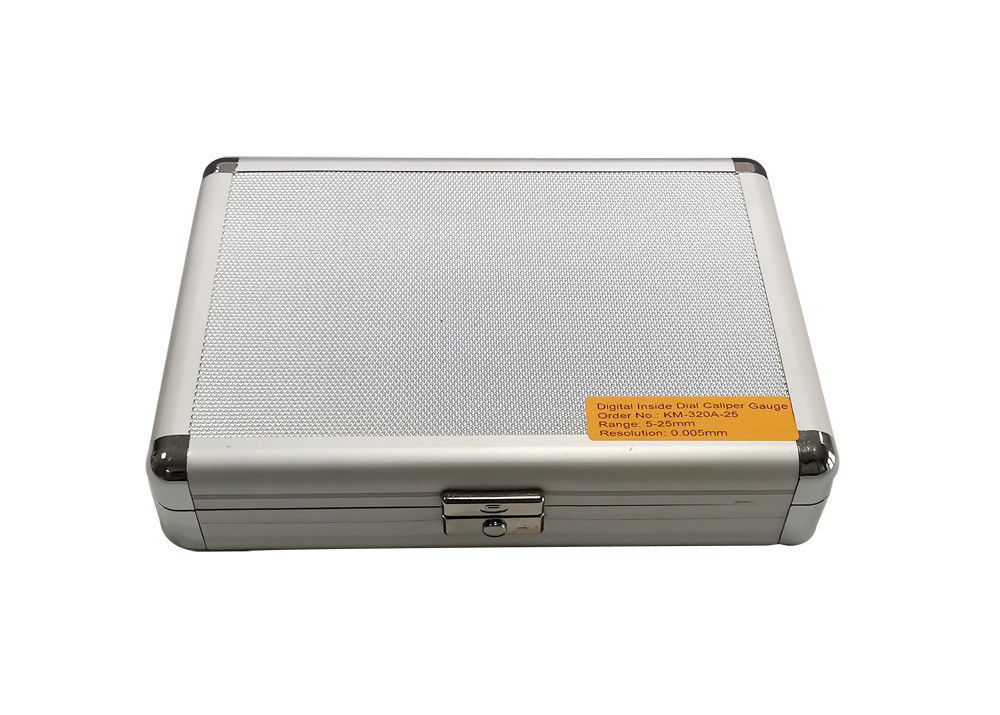

  • Package
    Aluminum Box
  • Place of Origin
    Shaanxi, China
  • Brand Name
    KM
  • Certification
    ISO DIN GB RoHS
  • Model Number
    KM-320A-25
  • Packaging Details
    30*16*5.5cm/Piece 1.10kg/Piece
  • Delivery Time
    Within 15days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    50000pieces/Month

Dial Gauge 5-25mm Electronic Inside Caliper Tools for Precision Measurement

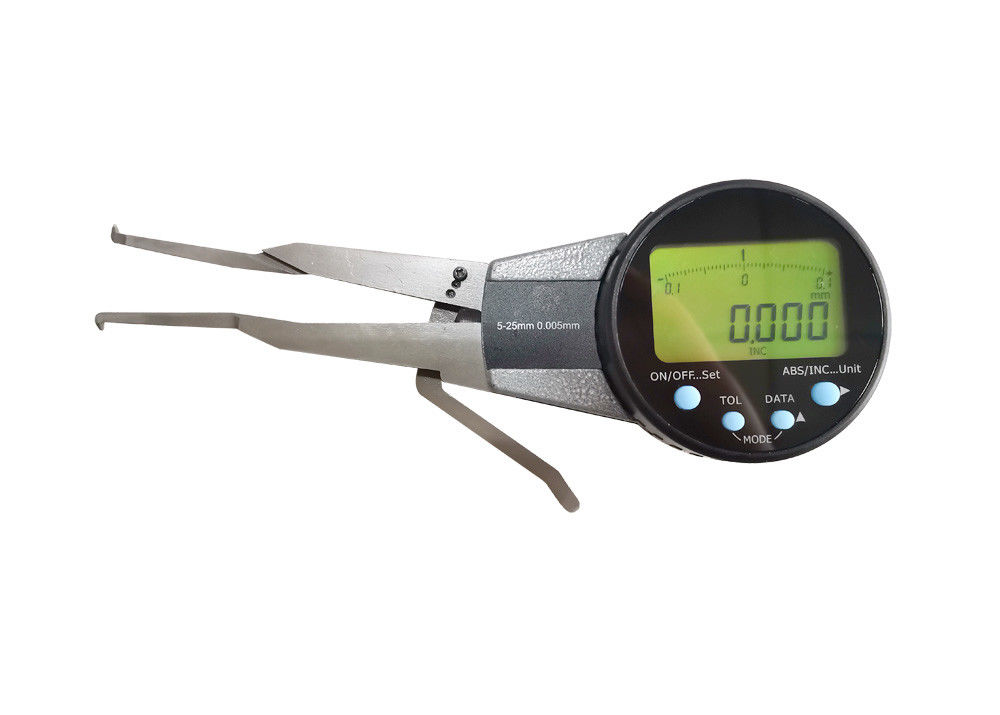

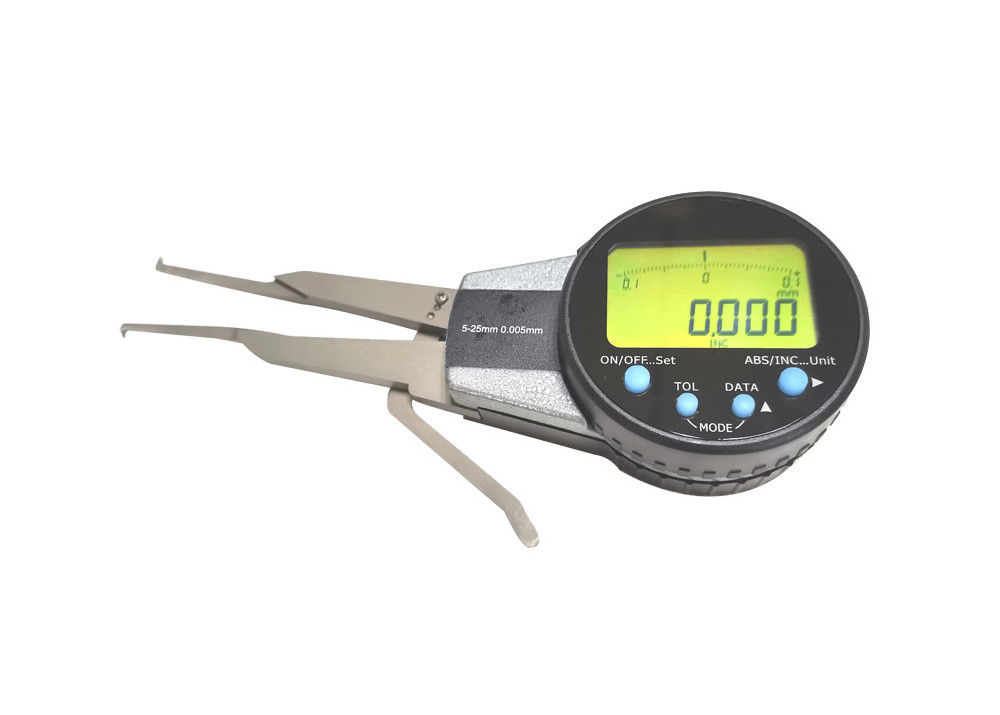

5-25mm Electronic Inside Caliper Gauge Tools



Description:

Digital inside caliper gauge also call electronic inside caliper gauge is precision measuring tool for measuring bores,internal

groove and other hard to reach dimensions, it equipped with a digital indicator and spring-loaded arms fixed to the digital

indicator that measures.The digital display can indicate both metric and inch measurement, available with measuring range

from 5mm up to 60mm for metric and 0.2’’ up to 2.4’’ for inch.



There are two different contact points A and B available, please choose suitable contact points according to the measurement

requirements.



Digital inside/external caliper gauges are manufactured with high-quality materials and precise processes for high durability

and stability.Even in harsh working environments, it can maintain stable operation for a long time.



Quick Detail:

1. Large LCD digital display for easy reading.

2. Used for measuring bores, internal groove and other hard-to-reach inside dimension.

3. Dial rotates ±170° for use at versions angles.

4. Display data is origin data of absolute measurement after changing battery.

5. Digital display and analog display on LCD, automatic switch over.

6. Analog display range: ±20 graduation.

7. A type and B type measuring face for option.

8. Power ON/OFF.

9. ABS and INC conversion.

10. Metric and Inch conversion.

11. Origin data set.

12. Tolerance set.

13. Remember data of max and min or hold display date.

14. Data output.

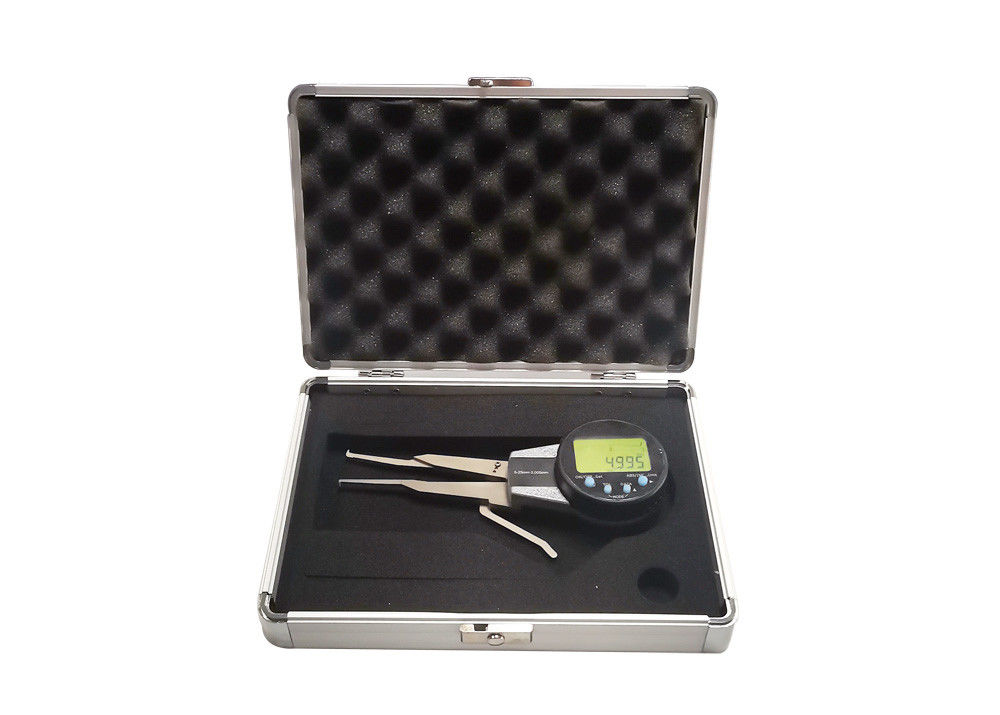

15. Supplied in fitted case.



Specification:

Travel 20mm

Metric

Order No. Range Resolution Accuracy Measuring Contact Forms
KM-320A-25 5~25mm 0.005mm 0.03mm Dial Gauge 5-25mm Electronic Inside Caliper Tools for Precision Measurement 0
KM-320A-30 10~30mm 0.005mm 0.03mm
KM-320A-40 20~40mm 0.005mm 0.03mm
KM-320A-50 30~50mm 0.005mm 0.03mm
KM-320A-60 40~60mm 0.005mm 0.03mm
KM-320B-30 10~30mm 0.005mm 0.03mm Dial Gauge 5-25mm Electronic Inside Caliper Tools for Precision Measurement 1
KM-320B-40 20~40mm 0.005mm 0.03mm
KM-320B-50 30~50mm 0.005mm 0.03mm
KM-320B-60 40~60mm 0.005mm 0.03mm

Inch

Order No. Range Resolution Accuracy Measuring Contact Forms
KM-320A-1.0 0.2~1.0″ 0.0002″ 0.0012″ Dial Gauge 5-25mm Electronic Inside Caliper Tools for Precision Measurement 2
KM-320A-1.2 0.4~1.2″ 0.0002″ 0.0012″
KM-320A-1.6 0.8~1.6″ 0.0002″ 0.0012″
KM-320A-2.0 1.2~2.0″ 0.0002″ 0.0012″
KM-320A-2.4 1.6~2.4″ 0.0002″ 0.0012″
KM-320B-1.2 0.4~1.2″ 0.0002″ 0.0012″ Dial Gauge 5-25mm Electronic Inside Caliper Tools for Precision Measurement 3
KM-320B-1.6 0.8~1.6″ 0.0002″ 0.0012″
KM-320B-2.0 1.2~2.0″ 0.0002″ 0.0012″
KM-320B-2.4 1.6~2.4″ 0.0002″

0.0012″



Applications:

Digital inside caliper gauges are suitable for the measurement of inside dimensions in various industries,

such as mechanical manufacturing, metal manufacturing, automobile manufacturing, aerospace and so on.



Precautions:

1. Do not subject the gauge to blows or knocks.

2. Do not drop the gauge or apply excessive force to the gauge.

3. Do not disassemble the gauge.

4. Do not press the button with a pointed object.

5. Do not use or store the gauge under direct sunlight or in an excessively hot or cold environment.

6. Do not subject the gauge in strong magnetic fields and high voltage environment.

7. Use soft cloth or cotton cleaning the gauge. Do not use any organic solvent.

8. Remove the battery if the gauge not use for a long time.



FAQ:

1) Who are we?

Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools

in China mainland.



2) What products do we carry?

Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,

gauge, blocks, level, etc.



3) What are the terms of trade?

We support FOB, CFR, CIF, EXW.



4) What are the forms of payment?

We accept T/T, L/C, D/A, D/P, PayPal, Western Union.



5) Do we accept customization?

Yes, OEM is available.



6) How about after-sales service?

One year warranty for all kinds of products.

If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.

As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
