Highlight
200mm spirit level measuring tool
,0.02mm/m spirit level measuring tool
,0.02mm/m spirit level
-
WarrantyOne Year
-
TypeLevel
-
Measurement ObjectStraightness
-
MeasurementMetric
-
Graduation0.02mm
-
Size200x46x46mm
-
CustomizedAcceptable
-
PackageWood Case
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-200T
-
Packaging DetailsWood Box 28*7*6.5cm/Piece 2.40kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsT/T,L/C,D/P,D/A,Western Union,PayPal,MoneyGram
-
Supply Ability50000pieces/Month

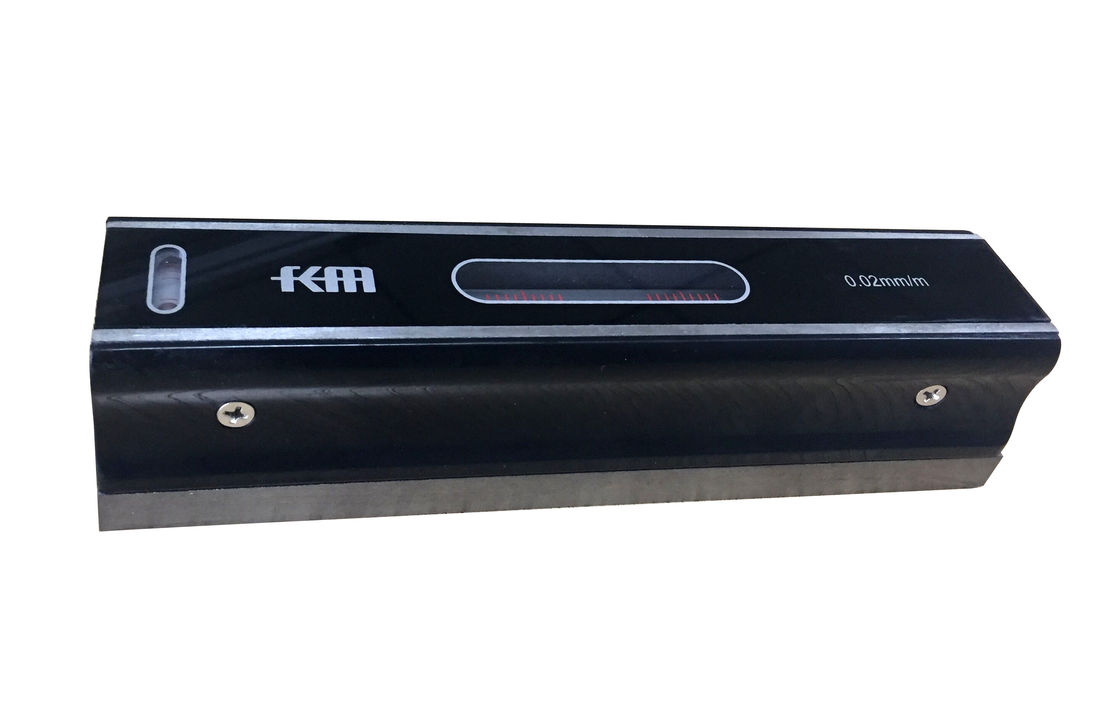

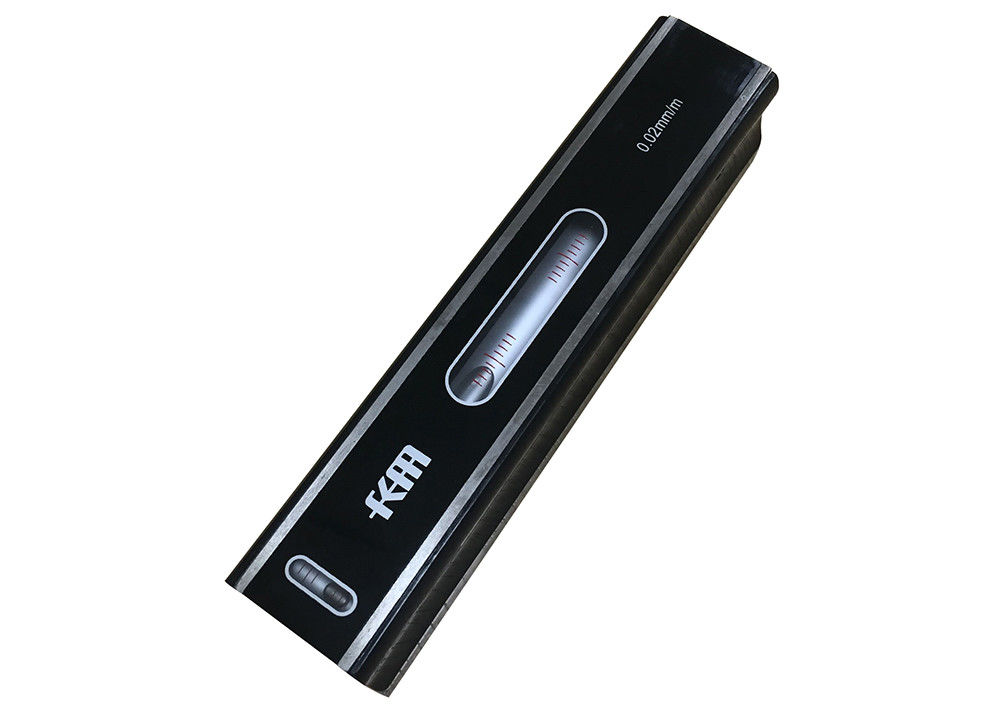

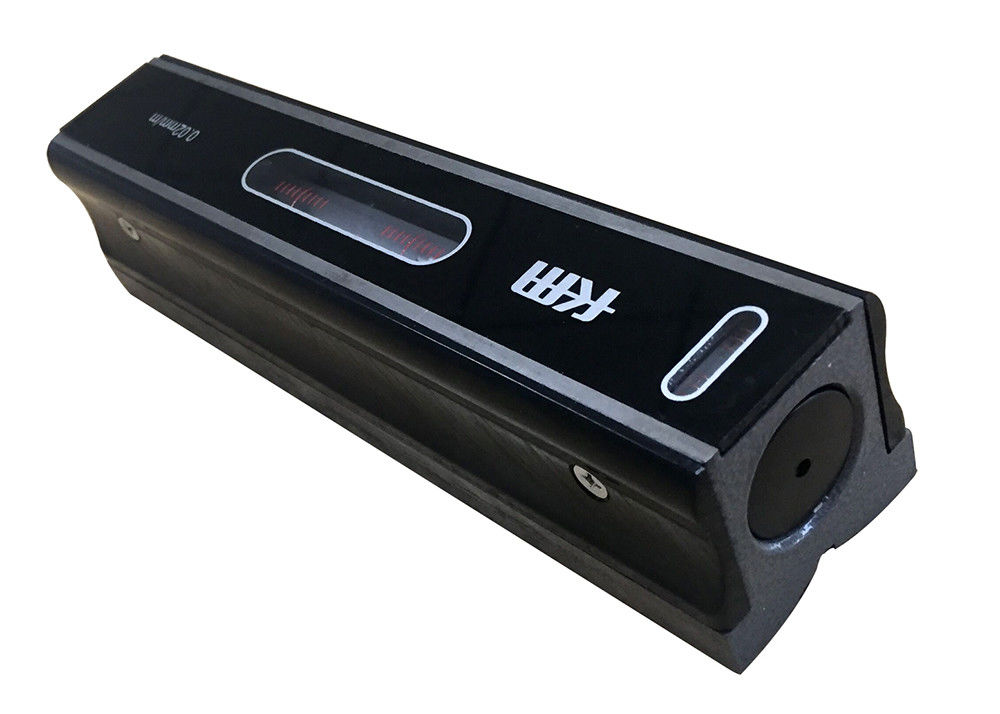

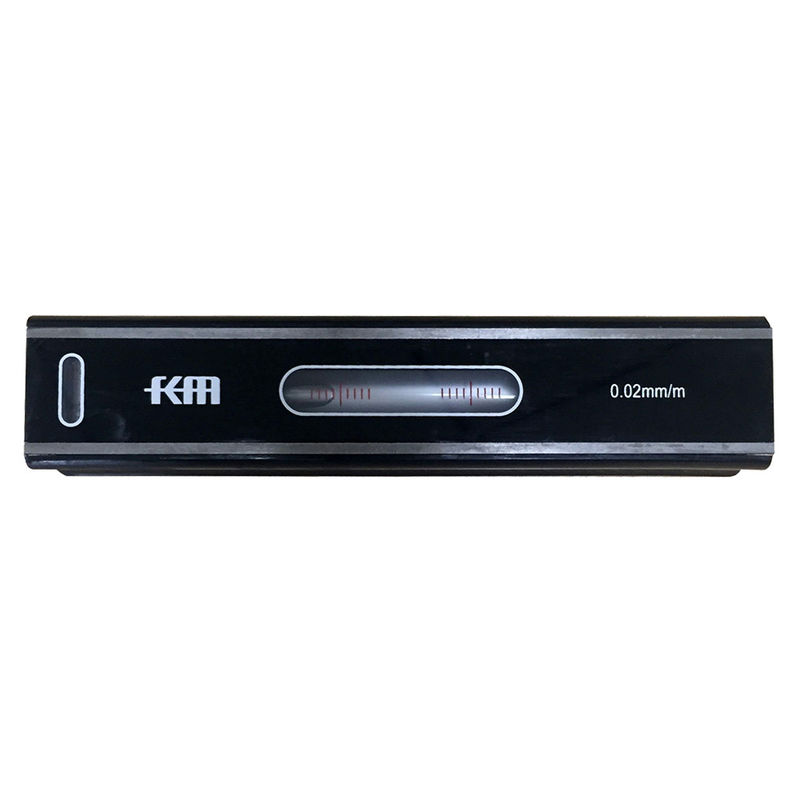

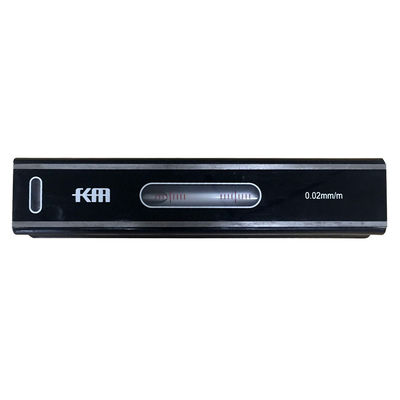

200mm 0.02mm/M Spirit Level Measuring Tool Straightness Measurement
200mm 0.02mm/M Spirit Level Measuring Tool Straightness Measurement
Product Description
200mm 0.02mm/m Spirit Master Level Gauge Precision
Our KM-200T series is master level used to check the straightness of the slide ways of all machine tools and other equipment and correctness of horizontal and vertical installing positions. We supply sizes from 150mm, 200mm, 250mm and 300mm, with graduation 0.02mm/m and 0.05mm/m for optional.
Our master level consists of main body bubble tube, sub-bubble tube and zero adjusting device also can separate into adjustable type and fixing type. The adjustable type can adjust zero position that use main bubble tube, using this type is very easy and convenient. After check the zero position of fixing type level, the main spirit level is fixed with the main body, zero position is stable and reliable.
Quick Detail
- Cast iron material
- 150mm, 200mm, 250mm and 300mm all sizes available
- Graduation 0.02mm/m and 0.05mm/m optional
- Supplied in fitted case
Specification
Metric
| Order No. | Size | Graduation(mm/m) |
|---|---|---|
| KM-150T | 150x40x44mm | 0.02 |
| KM-200T | 200x46x46mm | 0.02 |
| KM-250T | 250x46x46mm | 0.02 |
| KM-300T | 300x46x46mm | 0.02 |
| KM-150TS | 150x40x44mm | 0.05 |
| KM-200TS | 200x46x46mm | 0.05 |
| KM-250TS | 250x46x46mm | 0.05 |
| KM-300TS | 300x46x46mm | 0.05 |
Inch
| Order No. | Size | Graduation(in/10in) |
|---|---|---|
| KM-6T | 150x40x44mm | 0.0002 |
| KM-8T | 200x46x46mm | 0.0002 |
| KM-10T | 250x46x46mm | 0.0002 |
| KM-12T | 300x46x46mm | 0.0002 |
| KM-6TS | 150x40x44mm | 0.0005 |
| KM-8TS | 200x46x46mm | 0.0005 |
| KM-10TS | 250x46x46mm | 0.0005 |
| KM-12TS | 300x46x46mm | 0.0005 |
Precautions
1. Before use, check whether there are no stains on the working surface and wipe the working surface dry.
2. Before use, check for scratches, burrs, rust on the measuring surface as these may affect measurements. Replace if damaged. Wait for bubbles to stabilize before reading.
3. Check zero position before measuring. Adjust if necessary. Avoid temperature effects from hands, breath, or sunlight on the level.
4. Stand perpendicular to the spirit level when taking readings to avoid visual errors.
Applications
- Measure straightness, parallelism and flatness of machine tool guide rails
- Check horizontal and vertical position accuracy of equipment installations
- Verify building levelness for construction accuracy
- Perform small angle measurements and check cylindrical workpiece parallelism
FAQ
1) Who are we?
Deko Corporation mainly dedicates to the development, manufacture and marketing of KM brand precision measuring tools in China mainland.
2) What products do we carry?
Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, etc.
3) What are the terms of trade?
We support FOB, CFR, CIF, EXW.
4) What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, Western Union.
5) Do we accept customization?
Yes, OEM is available.
6) How about after-sales service?
One year warranty for all products. Defective items will be replaced. Our strict quality control ensures reliable products.
