Highlight
150mm Spirit Level Measuring Tool
,Vertical Positions Spirit Level
,Master Level Spirit Level
-
WarrantyOne Year
-
TypeLevel
-
Measurement ObjectStraightness
-
SpecificationMetric
-
Graduation0.05
-
Size150x40x44mm
-
MeasurementManual
-
CustomizedAcceptable
-
PackageWood Box
-
Place of OriginShaanxi, China
-
Brand NameKM
-
CertificationISO DIN GB RoHS
-
Model NumberKM-150TS
-
Packaging DetailsWood Box 18*7*6cm/Piece 1.18kg/Piece
-
Delivery TimeWithin 15days
-
Payment TermsL/C,D/A,D/P,T/T,Western Union,MoneyGram
-
Supply Ability50000pieces/Month

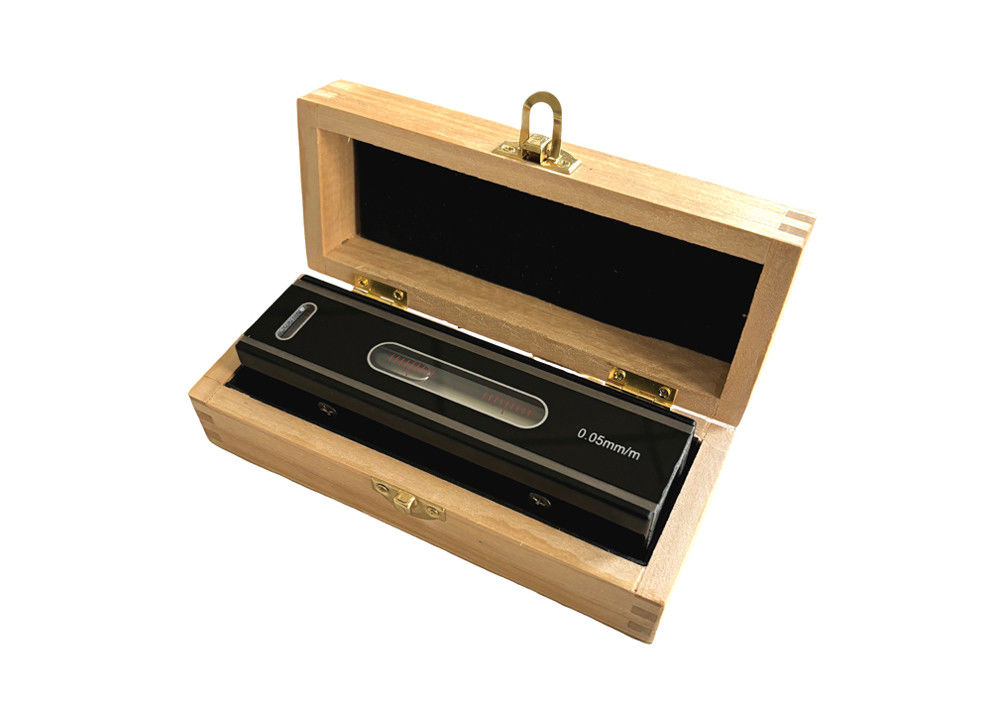

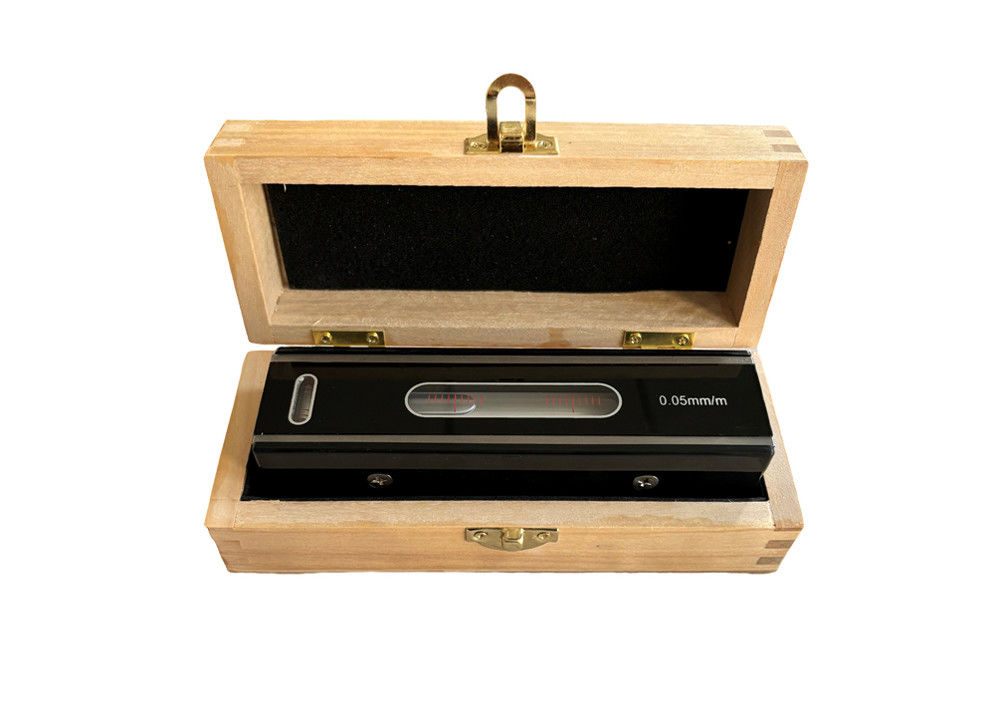

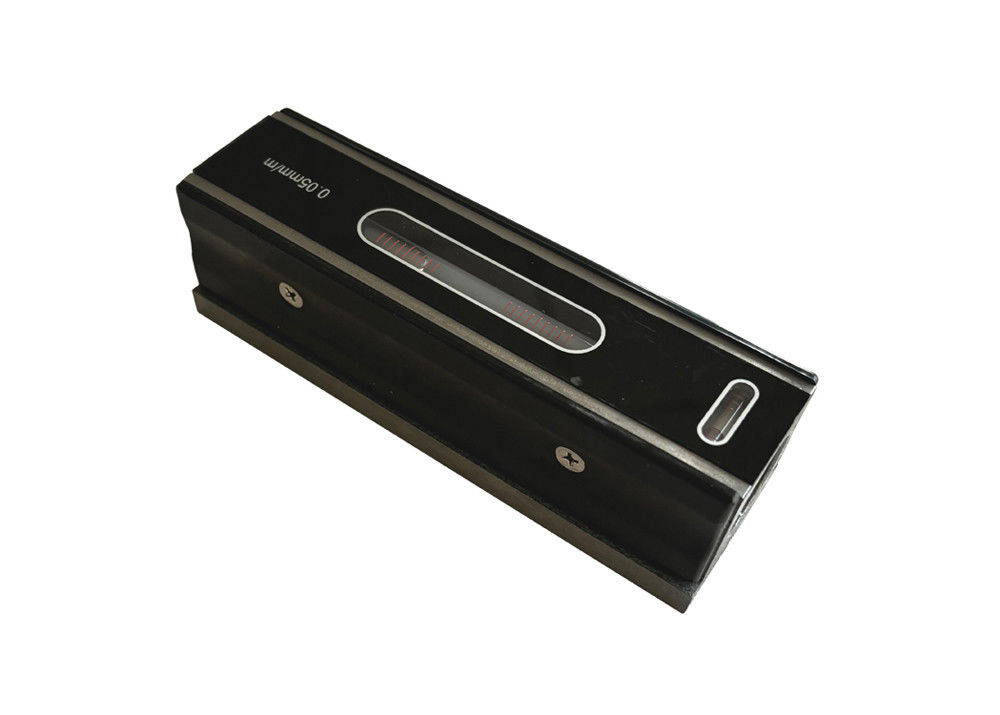

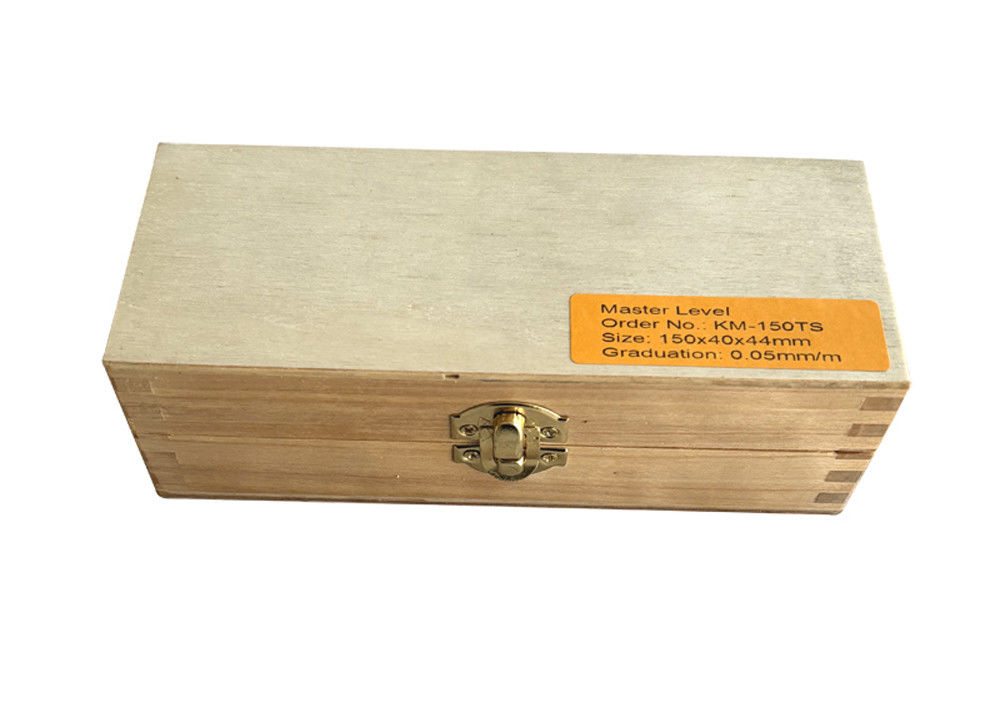

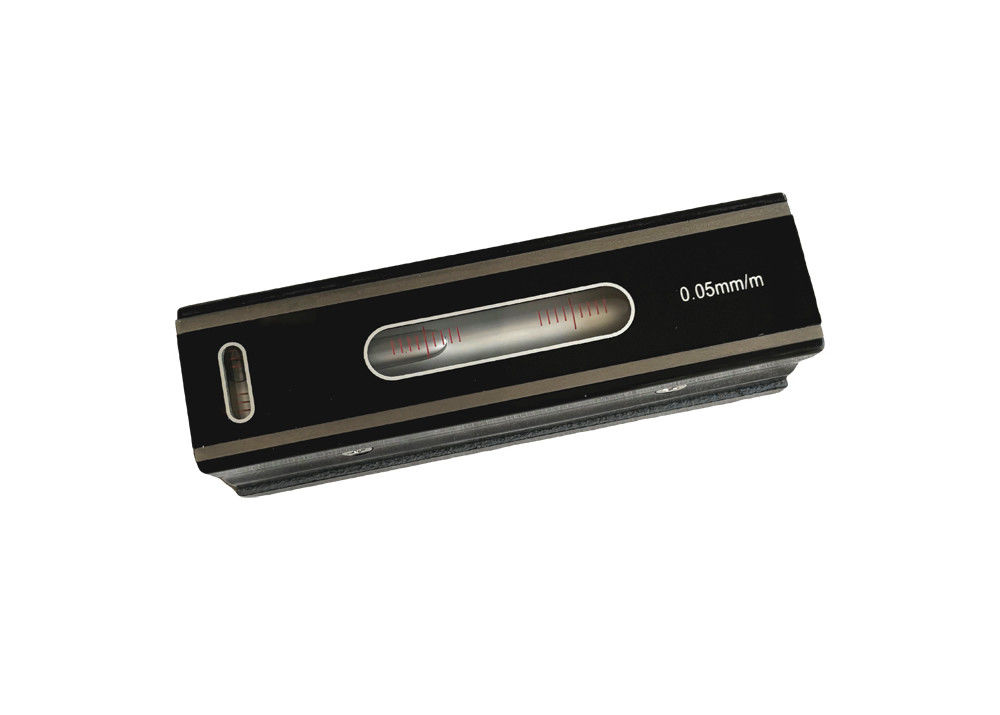

150mm Spirit Level Measuring Tool for Master Level of Vertical Positions
150mm Spirit Level Measuring Tool for Master Level of Vertical Positions
Product Description
Our KM-200T series is a master level used to check the straightness of slide ways on machine tools and other equipment, as well as the correctness of horizontal and vertical installing positions. Available in sizes from 150mm to 300mm, with graduation options of 0.02mm/m and 0.05mm/m.
The master level consists of a main body bubble tube, sub-bubble tube, and zero adjusting device. Available in both adjustable and fixed types. The adjustable type allows for zero position adjustment using the main bubble tube, while the fixed type maintains a stable and reliable zero position after initial calibration.
Key Features
- Constructed from durable cast iron material
- Available in 150mm, 200mm, 250mm, and 300mm sizes
- Graduation options: 0.02mm/m and 0.05mm/m
- Includes protective fitted case
Specifications
Metric
| Order No. | Size | Graduation(mm/m) |
|---|---|---|
| KM-150T | 150x40x44mm | 0.02 |
| KM-200T | 200x46x46mm | 0.02 |
| KM-250T | 250x46x46mm | 0.02 |
| KM-300T | 300x46x46mm | 0.02 |
| KM-150TS | 150x40x44mm | 0.05 |
| KM-200TS | 200x46x46mm | 0.05 |
| KM-250TS | 250x46x46mm | 0.05 |
| KM-300TS | 300x46x46mm | 0.05 |
Inch
| Order No. | Size | Graduation(in/10in) |
|---|---|---|
| KM-6T | 150x40x44mm | 0.0002 |
| KM-8T | 200x46x46mm | 0.0002 |
| KM-10T | 250x46x46mm | 0.0002 |
| KM-12T | 300x46x46mm | 0.0002 |
| KM-6TS | 150x40x44mm | 0.0005 |
| KM-8TS | 200x46x46mm | 0.0005 |
| KM-10TS | 250x46x46mm | 0.0005 |
| KM-12TS | 300x46x46mm | 0.0005 |
Applications
- Measuring straightness, parallelism and flatness of machine tool guide rails
- Verifying horizontal and vertical positioning of equipment installations
- Checking building levelness for construction accuracy
- Small angle measurement and V-groove surface inspection
- Measuring installation parallelism of cylindrical workpieces
Precautions
- Inspect and clean working surfaces before use
- Check for scratches, burrs or rust that may affect measurements
- Verify zero position accuracy before measurements
- Allow bubbles to stabilize before reading
- Minimize temperature effects from hands, breath or sunlight
- Position yourself perpendicular to the level for accurate readings
Frequently Asked Questions
Who are we?
Deko Corporation specializes in the development, manufacture and marketing of KM brand precision measuring tools in China mainland.
What products do we carry?
We offer dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors, gauge blocks, levels, and more.
What are the terms of trade?
We support FOB, CFR, CIF, and EXW terms.
What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, and Western Union.
Do we accept customization?
Yes, OEM services are available.
How about after-sales service?
All products come with a one-year warranty. Defective parts will be replaced promptly. Our strict calibration and inspection processes ensure high product quality.
